The effectiveness of a solar energy storage system is fundamentally tied to its efficiency. As homeowners and businesses increasingly turn to solar power for energy independence, understanding how well a battery stores and returns energy is crucial. The central metric for this is Round Trip Efficiency (RTE), yet many misconceptions surround it. This text separates the myths from the reality of lithium battery performance, providing the clarity needed to make informed decisions for your solar setup.
Understanding Round Trip Efficiency in Solar Batteries
Before tackling the myths, it's important to have a solid grasp of the core concept that defines battery performance: Round Trip Efficiency. This figure reveals how much energy is lost in a charge-and-discharge cycle.
What is Round Trip Efficiency?

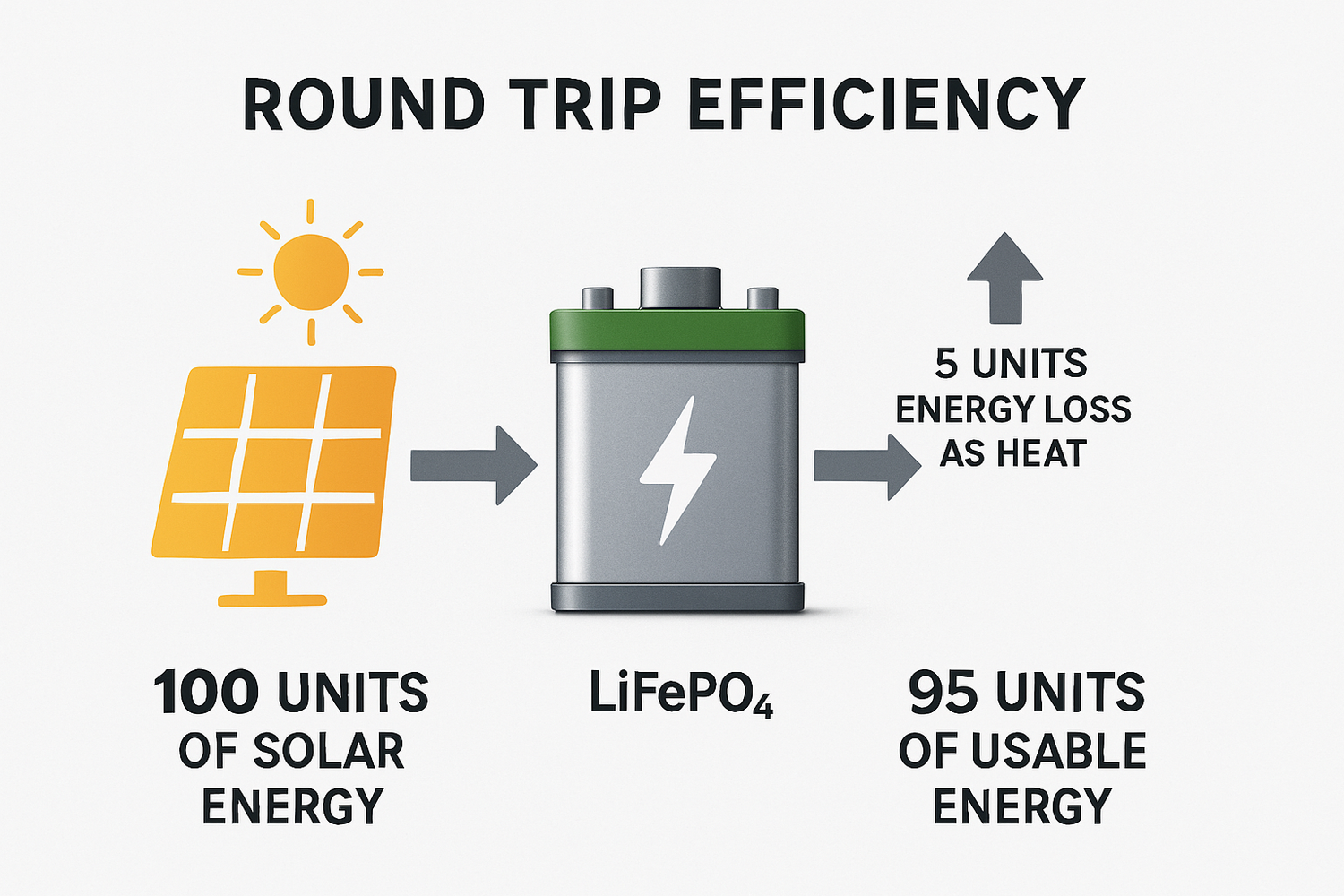

Round Trip Efficiency measures the ratio of usable energy a battery delivers during discharge compared to the energy it received during charging. For instance, if you put 10 kWh of electricity into a battery and can only draw 9.5 kWh back out, the battery has an RTE of 95%. The remaining 0.5 kWh is lost, primarily as heat, due to internal resistance and chemical processes. High-quality lithium iron phosphate (LiFePO4) batteries consistently demonstrate an RTE of over 95%, a significant advantage in solar applications.
Why a Few Percentage Points Matter
A difference of just a few percentage points in RTE can have a substantial financial impact over the life of a solar energy storage system. A battery with 95% RTE wastes half as much energy as one with 90% RTE. Over a decade of daily cycles, this saved energy translates into lower reliance on the grid and tangible cost savings. Higher efficiency means you get the most out of every ray of sun your panels capture.
Myth 1: The 100% Efficient Battery Exists
One of the most persistent myths is the idea of a perfectly efficient battery that returns every bit of energy put into it. This concept is appealing but contradicts fundamental physical laws.
The Reality of Energy Loss
The laws of thermodynamics dictate that no energy conversion process is 100% efficient. When a battery charges or discharges, moving electrical energy in and out of a chemical storage medium inevitably generates some heat. This loss is primarily due to the battery's internal resistance. According to the U.S. Department of Energy, research continues to focus on advanced materials and methods to minimize these inherent losses, but they can never be eliminated entirely.
LiFePO4 vs. Other Chemistries
While no battery is perfect, some are far more efficient than others. Lithium iron phosphate (LiFePO4) batteries represent a top tier of performance for solar energy storage. Their efficiency stands in sharp contrast to older technologies like lead-acid batteries.
| Battery Chemistry | Typical Round Trip Efficiency | Key Characteristics |
|---|---|---|
| Lithium Iron Phosphate (LiFePO4) | 95%+ | High efficiency, long cycle life, excellent thermal stability. |
| Lead-Acid | 80-85% | Lower efficiency, shorter lifespan, significant energy loss as heat. |
| Nickel-Cadmium (NiCd) | 70-80% | Lower efficiency, subject to 'memory effect', environmental concerns. |

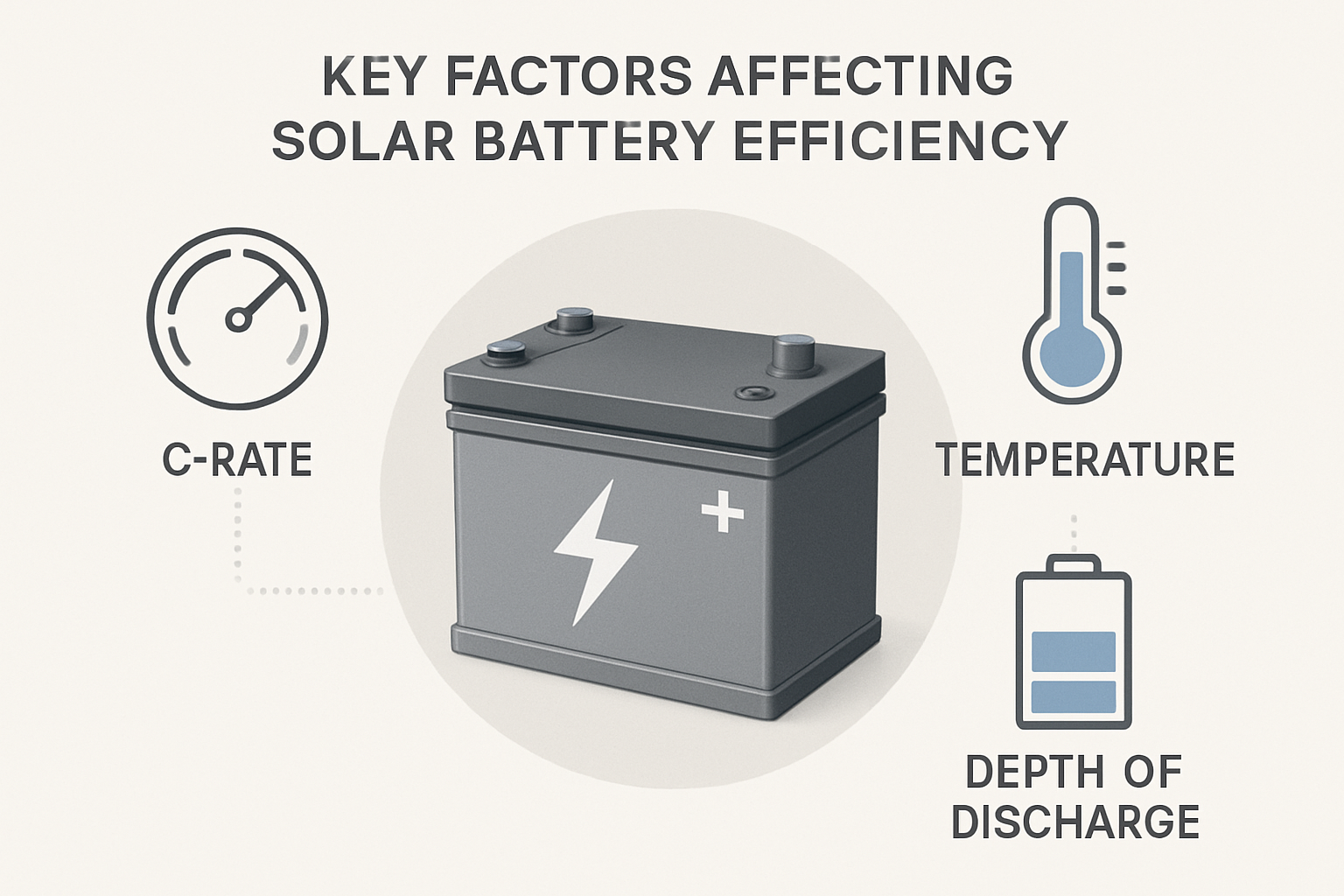

Myth 2: Stated Efficiency is Always Real-World Performance
A battery's datasheet provides a vital baseline, but its listed efficiency is often measured under ideal laboratory conditions. Real-world performance can be influenced by several operational factors.
The Impact of C-Rates
The C-rate describes how quickly a battery is charged or discharged relative to its total capacity. A 1C rate on a 100Ah battery means drawing 100 amps. While LiFePO4 batteries can handle high C-rates, doing so consistently can slightly reduce efficiency. Faster charging and discharging generate more heat from internal resistance, leading to greater energy loss. Operating at lower, more moderate C-rates helps maximize efficiency.
Temperature's Role in Performance
Batteries are sensitive to their environment. Extreme temperatures, both hot and cold, can negatively affect the electrochemical reactions inside a battery, thereby reducing its efficiency. LiFePO4 batteries have a wide operating temperature range, but they perform best within a moderate climate. Proper ventilation and, in some cases, thermal management systems are essential to maintaining high RTE in demanding environments.
System Integration and Depth of Discharge
The battery is just one part of a larger system. The efficiency of the inverter, wiring, and other components also contributes to the overall system RTE. Furthermore, how the battery is used, specifically its depth of discharge (DoD), plays a role. While LiFePO4 batteries can be safely discharged to 100%, consistently operating them in a moderate state of charge can help preserve long-term health and efficiency. For a detailed analysis of how various factors contribute to overall system performance, a comprehensive look at the ultimate reference for solar storage performance provides valuable insights.
Myth 3: All Lithium-Ion Batteries Are the Same
The term 'lithium-ion' is a broad category that includes many different chemistries. For solar energy storage, the specific type of lithium-ion battery makes a significant difference in safety, longevity, and efficiency.
The LiFePO4 Advantage
LiFePO4 chemistry is exceptionally well-suited for stationary energy storage. Unlike chemistries like lithium cobalt oxide (LCO) or nickel manganese cobalt (NMC) common in portable electronics, LiFePO4 offers superior thermal and chemical stability. This makes it far less prone to thermal runaway, enhancing safety for home and business installations. Its robust structure also allows for a very high cycle life, often exceeding 4,000 cycles while retaining high capacity.
The Importance of the Battery Management System (BMS)
A high-quality LiFePO4 battery is always paired with an advanced Battery Management System. The BMS is the brain of the battery pack, responsible for monitoring cell voltage, current, and temperature. It ensures each cell is balanced, prevents overcharging or deep discharging, and protects against short circuits. A sophisticated BMS is critical for optimizing performance, ensuring safety, and helping the battery achieve its maximum possible efficiency and lifespan.
A Clearer View of Battery Performance
Moving past the myths about lithium battery efficiency allows for a more realistic and practical approach to designing a solar energy storage system. The reality is that while no battery is 100% efficient, modern LiFePO4 technology offers an exceptionally high Round Trip Efficiency of over 95%. This performance is not just a number on a spec sheet; it's a key factor in maximizing the value of your solar investment. Organizations like the International Renewable Energy Agency (IRENA) recognize that advanced battery storage is a key enabler for the global transition to renewables, providing the flexibility needed to power a cleaner future. By understanding the real-world factors that influence performance and choosing the right chemistry, you can build a reliable and highly efficient system that serves your energy needs for years to come.
Frequently Asked Questions
What is a good round trip efficiency for a solar battery?
A high-quality lithium iron phosphate (LiFePO4) battery typically offers a round trip efficiency of 95% or higher. This is considered excellent for solar energy storage systems. In contrast, traditional lead-acid batteries often have an RTE between 80-85%.
How does round trip efficiency affect my electricity bill?
Higher round trip efficiency means less wasted energy. For every kilowatt-hour of solar energy you store, you get more usable energy back. Over the battery's lifespan, this translates into lower reliance on the grid and greater savings on your electricity bill.
Does efficiency decrease as a lithium battery ages?
Yes, all batteries experience some degradation over time, which can lead to a slight decrease in efficiency. However, LiFePO4 batteries are known for their long cycle life and slow degradation rate, maintaining high efficiency for thousands of cycles when operated under proper conditions.
Is round trip efficiency the only metric I should consider?
While RTE is a critical metric, it is not the only one. You should also consider the battery's capacity, depth of discharge (DoD), cycle life, and the quality of its Battery Management System (BMS). A holistic view ensures you select the best battery for your solar setup.
