A home battery storage system is a cornerstone of modern energy independence, allowing you to store solar energy for use at night or during power outages. To get the most from your investment, you need to focus on its efficiency. Higher efficiency translates directly into more usable energy and greater long-term savings. This guide provides practical strategies for optimizing your home energy storage efficiency.
Understanding Core Battery Efficiency Metrics
Optimizing your system begins with a clear grasp of the metrics that define its performance. These indicators go beyond simple capacity ratings and reveal how effectively your battery stores and releases energy.
What is Round Trip Efficiency?

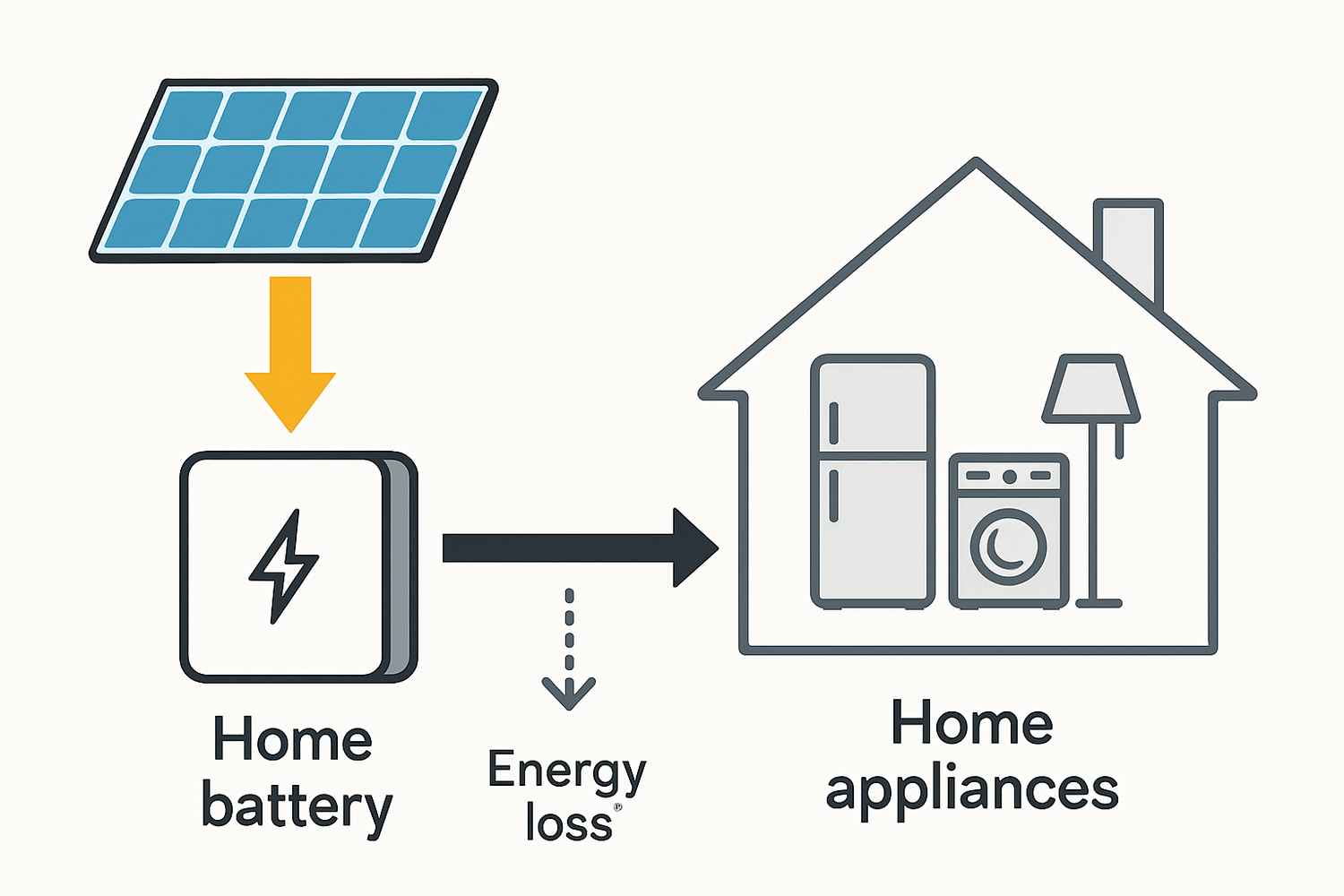

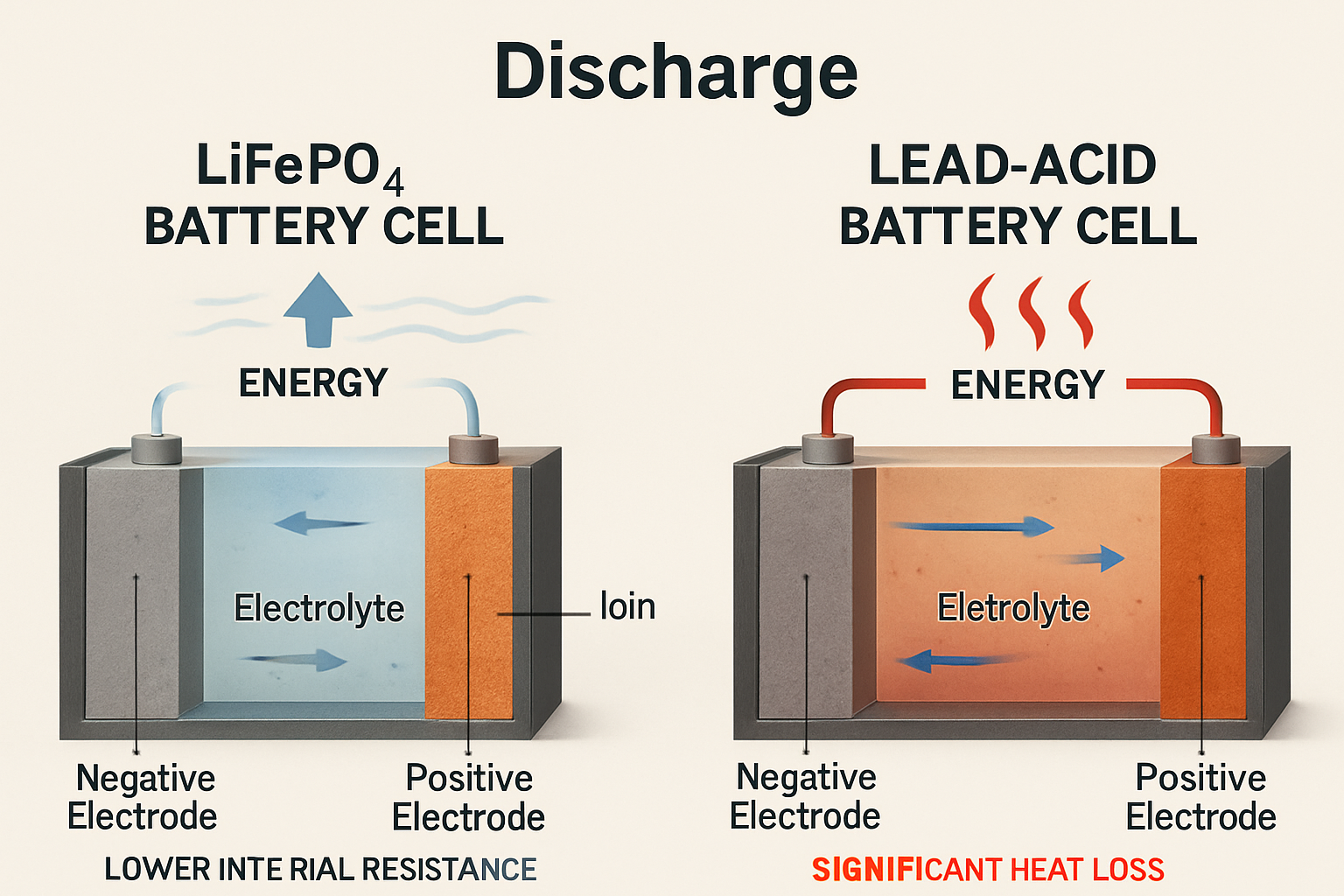

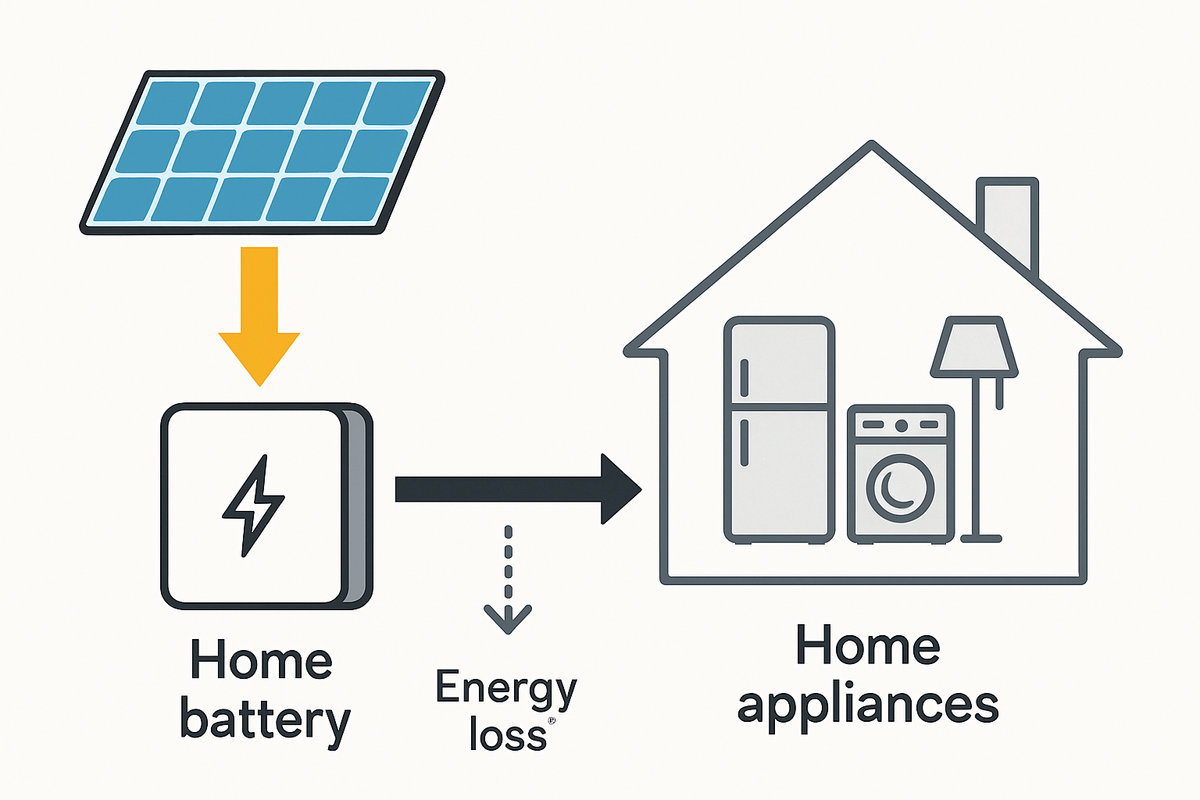

Round trip efficiency (RTE) is a primary measure of a battery's performance. It represents the percentage of energy you get out of a battery relative to the amount of energy you put into it. Think of it like a bucket for storing water; if you put in 10 gallons but can only pour out 9, the bucket has a 90% round trip efficiency. The lost gallon represents energy converted to heat during charging and discharging. High-performance lithium iron phosphate (LiFePO4) batteries often feature an RTE of over 92%, minimizing wasted energy.
Beyond RTE: Other Key Performance Indicators
While RTE is critical, other factors also define your system's overall effectiveness. A holistic approach to home battery storage optimization considers Depth of Discharge (DoD), C-rate, and self-discharge. DoD indicates the percentage of the battery's total capacity that is used in a cycle. A lower DoD, for instance, using only 80% of the capacity, can significantly extend the battery's lifespan compared to regularly draining it completely. The C-rate defines how quickly the battery charges or discharges. A lower C-rate is generally more efficient and gentler on the battery. Finally, self-discharge is the small amount of energy a battery loses naturally over time, even when not in use.
Core Factors Influencing Your System's Efficiency
Several external and operational factors directly influence your home energy storage efficiency. Managing these elements is key to achieving optimal performance and longevity from your system.
The Critical Role of Temperature Management
Temperature is one of the most significant variables affecting battery health and efficiency. Both extreme heat and cold can negatively impact performance. The ideal operating temperature for most lithium battery systems is between 20°C and 25°C (68°F and 77°F). According to the U.S. Department of Energy, high temperatures can accelerate the degradation of battery components, permanently reducing storage capacity. Cold temperatures can temporarily reduce efficiency and the amount of power the battery can deliver. Proper placement in a climate-controlled area like a basement or insulated garage, away from direct sunlight, is crucial.
Charging and Discharging Practices
How you charge and discharge your battery directly impacts its efficiency and lifespan. Charging or discharging at a high C-rate generates more internal heat, which lowers round trip efficiency. Whenever possible, using slower, controlled charging and discharging cycles is more effective. Similarly, consistently discharging the battery to 100% DoD puts significant stress on its internal components. Setting a DoD limit, such as 80-90%, can dramatically increase the number of cycles the battery can provide over its lifetime.
System Integration and Component Matching
A home battery storage system is more than just the battery itself. It includes an inverter to convert DC to AC power and a Battery Management System (BMS) to protect the cells. The efficiency of each component contributes to the total system RTE. A mismatched or low-quality inverter can be a major source of energy loss. The International Energy Agency (IEA) notes that proper system design and component synergy are just as important as the quality of the individual parts for ensuring reliable and efficient operation.
Actionable Strategies for Battery System Optimization
With a solid understanding of the factors at play, you can implement specific strategies to enhance your battery system's performance and get the most value from your solar energy.
Optimizing Your System Configuration
Properly sizing your battery to match your home's energy consumption is the first step. An undersized system will undergo excessive stress from deep, frequent cycles, while an oversized system may not operate in its most efficient range. Additionally, configuring your inverter's smart settings can yield significant gains. You can program it to prioritize using stored solar power for your home (self-consumption) or discharge during peak utility rate periods to maximize financial savings.
Implementing Effective Thermal Management
Active thermal management is a powerful optimization tool. Ensure your battery unit has adequate ventilation, with at least a few inches of clearance on all sides to allow air to circulate and dissipate heat. If the battery is in a location with wide temperature swings, consider adding insulation to the room to stabilize the ambient temperature. These simple measures help maintain the battery within its ideal operating range.
Leveraging a Battery Management System (BMS)
The BMS is the brain of your battery pack, and its role is indispensable for both safety and efficiency. It actively monitors cell voltage, temperature, and current to prevent overcharging, over-discharging, and overheating. A sophisticated BMS also performs cell balancing, ensuring all cells in the pack charge and discharge evenly. This function prevents individual cells from degrading prematurely, which helps maintain the pack's overall capacity and efficiency for longer.
Measuring and Monitoring for Peak Performance
Continuous improvement relies on accurate data. Regularly monitoring your system's performance allows you to make informed adjustments and identify potential issues before they become significant problems.
Tools and Techniques for Monitoring
Most modern energy storage solutions come with dedicated software or a mobile app for performance monitoring. These platforms provide real-time and historical data on key metrics like state of charge (SoC), energy charged and discharged, and system temperature. Make it a habit to review this data to understand your energy usage patterns and how your system responds.
Interpreting the Data for Better Results
By tracking daily inputs and outputs, you can calculate your system's approximate RTE. As detailed in a comprehensive guide on solar storage performance, consistent monitoring helps you establish a baseline and spot any degradation over time. A sudden drop in efficiency could signal an issue with a component or a change in operating conditions. The guide highlights that even a 5% decline in efficiency can result in substantial energy losses over the system's lifespan, reinforcing the need for proactive oversight.
| Factor | High Efficiency Scenario | Low Efficiency Scenario | Impact on Performance |
|---|---|---|---|
| Temperature | 20°C (68°F) | 40°C (104°F) or 0°C (32°F) | Reduced capacity and lifespan |
| C-Rate | 0.2C (5-hour charge) | 1C (1-hour charge) | Increased heat, lower RTE |
| Depth of Discharge | 80% DoD | 100% DoD | Significantly reduced cycle life |
| System Sizing | Correctly matched to load | Oversized or undersized | Wasted capacity or premature wear |
A Proactive Approach to Energy Storage
Maximizing your home battery storage system efficiency is not a one-time setup but an ongoing practice. It involves understanding the technology, managing its operating environment, and using data to make intelligent adjustments. By taking a proactive approach to temperature control, charging habits, and system monitoring, you can ensure your system delivers reliable, clean energy for years to come, moving you closer to true energy independence.
Frequently Asked Questions
What is a good round trip efficiency for a home battery?
A good round trip efficiency for modern lithium-ion batteries, particularly Lithium Iron Phosphate (LiFePO4), is typically above 90%. Some high-quality systems can even reach 95%. This means for every 10 kWh of electricity you put into the battery, you can get at least 9 kWh back out.
How much does temperature really affect my battery's efficiency?
Temperature has a significant impact. High temperatures (above 30°C or 86°F) can accelerate battery degradation and reduce its lifespan. Cold temperatures (below 5°C or 41°F) can temporarily reduce the battery's capacity and its ability to deliver power. As research from the International Renewable Energy Agency (IRENA) shows, maintaining an optimal temperature is crucial for long-term battery health and sustained performance.
Can I improve the efficiency of an existing battery system?
Yes. You can often make improvements by adjusting inverter settings to optimize charging and discharging cycles, improving the ventilation around the unit to manage temperature, and ensuring the firmware for your BMS and inverter is up to date. Regularly monitoring performance can also help you spot and address issues early.
