Unlock Peak Performance in Your Solar Energy Storage System

A solar energy storage system is more than just a component of your renewable energy setup; it's a cornerstone of energy independence. It allows you to capture and store the sun's power for use when you need it most. But not all of the energy that goes into your battery comes back out. This is where a critical metric, Round Trip Efficiency (RTE), comes into play. Understanding and optimizing your system's RTE is key to maximizing both its performance and your financial return.

What is Round Trip Efficiency and Why Does It Matter?

Think of your battery as a bucket for energy. When you fill it, a small amount of energy is lost, like a tiny leak. When you pour it out, another small amount is lost. RTE measures how much energy you get back after a full charge and discharge cycle. A higher RTE means less wasted energy and better performance.

Defining Round Trip Efficiency (RTE)

Round Trip Efficiency is the ratio of the energy discharged from a battery to the energy put into it. It's calculated with a simple formula: (Energy Out / Energy In) x 100%. For example, if you put 10 kilowatt-hours (kWh) of energy into your battery and can only draw 9.5 kWh back out, your RTE is 95%. High-quality lithium iron phosphate (LiFePO4) batteries, a type of lithium ion solar battery, can achieve RTEs of 92-96%, while older lead-acid technologies often fall between 75-85%.

The Financial Impact of Low Efficiency

Every percentage point of lost efficiency represents wasted energy, which translates directly into lost savings over the lifespan of your system. A system with 95% RTE will deliver significantly more value than one with 85% RTE. Over a decade of operation, this difference can amount to thousands of kilowatt-hours of otherwise lost energy. Maximizing the usable energy from your solar panels is a primary goal, and a high RTE is essential to achieving that.

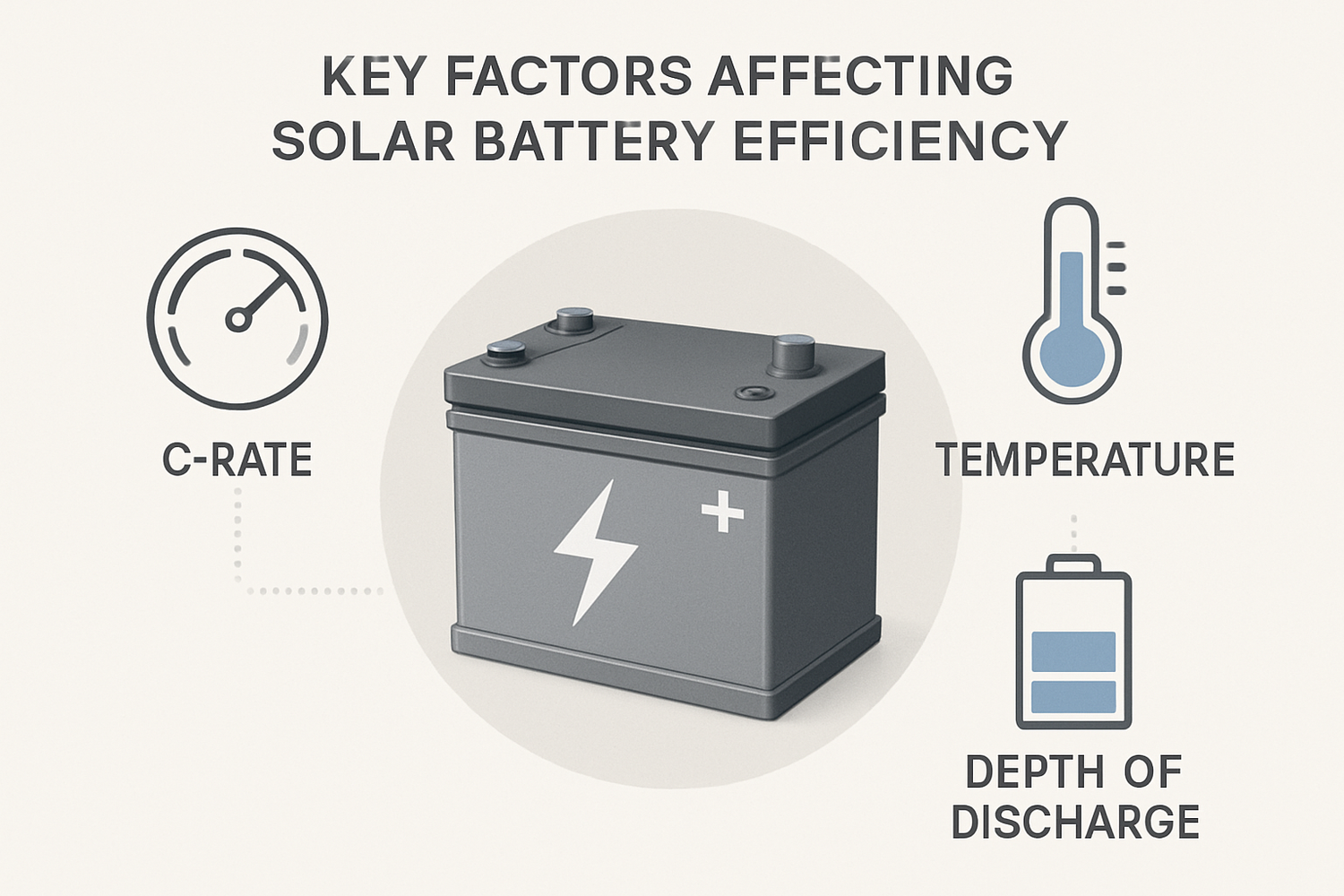

Key Factors Influencing Your System's Efficiency

Several operational and environmental factors directly influence the RTE of your solar energy storage system. Managing these elements is crucial for achieving peak performance.

Charge and Discharge Rates (C-Rates)

The C-rate measures how quickly a battery is charged or discharged relative to its total capacity. While a deep cycle lithium battery is designed to handle various rates, consistently high C-rates generate more internal heat due to resistance. This heat represents energy loss, which lowers the overall RTE. Operating within the manufacturer's recommended C-rates ensures the battery functions optimally, preserving both efficiency and its long-term health.

Temperature's Critical Role

Batteries are sensitive to their environment. Extreme heat or cold can negatively impact the chemical reactions inside, leading to reduced efficiency and a shorter lifespan. The ideal operating temperature for most lithium-based batteries, like a 12 volt lithium ion battery, is typically between 15°C and 25°C (60°F to 77°F). Proper ventilation and, in some cases, climate control are essential for maintaining high RTE.

Depth of Discharge (DoD)

Depth of Discharge refers to the percentage of the battery's capacity that has been used. Regularly discharging the battery to 100% (a very high DoD) can put stress on its components and slightly reduce its efficiency over time. Many system owners choose to set a maximum DoD of 80-90%. This practice helps to extend the battery's cycle life and maintain stable, high efficiency for years to come.

Practical Strategies for Optimizing Energy Storage System Efficiency

Beyond understanding the key factors, you can take several practical steps to enhance your system's performance.

Proper System Sizing and Component Matching

An efficient system starts with a smart design. The capacity of your battery bank should be well-matched to your solar array's output and your home's energy needs. An undersized system may be forced to operate at high C-rates frequently, while an oversized one can lead to underutilization. Additionally, the inverter, which converts DC electricity from the battery to usable AC power, has its own efficiency rating. According to the U.S. Department of Energy, selecting a high-quality, efficient inverter is a critical part of minimizing energy losses throughout the entire system.

Implementing Smart Charging Protocols

Modern Battery Management Systems (BMS) and smart inverters offer precise control over charging parameters. You can set optimal voltage and current levels to prevent overcharging, which not only wastes energy but can also degrade the battery. For those connected to the grid, some systems can be programmed to charge during off-peak hours when electricity is cheapest and discharge during peak hours, maximizing economic efficiency.

Environmental and Physical Maintenance

Simple maintenance can have a noticeable impact on performance. Ensure the area around your lithium battery storage is well-ventilated to dissipate heat. Periodically check that all electrical connections are tight and free of corrosion, as loose connections increase resistance and cause energy loss. Regular monitoring of system data can also help you spot any performance issues before they become significant problems.

Measuring and Tracking Your System's Performance

To optimize your system, you first need to understand how it's performing. Accurately measuring RTE provides the data needed to make informed adjustments.

Tools and Techniques for Measurement

The most straightforward way to measure RTE is by using the data from a high-quality BMS or an external battery monitor. These devices track the total energy that flows into and out of the battery. The basic formula is `RTE = (Total kWh Discharged / Total kWh Charged) * 100` over a set period. For the most accurate results, it's best to measure over several complete cycles.

Interpreting the Data for Actionable Insights

By tracking your RTE over time, you can establish a performance baseline. This allows you to see how factors like seasonal temperature changes affect efficiency. If you notice a significant drop in performance, it could indicate an issue with a specific component. For a more detailed look at key metrics, the ultimate reference on solar storage performance offers valuable insights. This guide explains that consistent tracking is fundamental to achieving long-term system optimization and getting the most from your investment.

A Forward Look at Energy Storage

Achieving peak performance from your solar energy storage system is an ongoing process, not a one-time task. Round Trip Efficiency is a vital indicator of your system's health and financial return. By understanding the factors that influence it and implementing smart strategies, you can minimize energy loss and enhance your energy independence. As the world transitions toward cleaner energy, the role of efficient, decentralized storage becomes increasingly important. The International Renewable Energy Agency (IRENA) notes that battery storage is critical for creating a flexible and resilient grid capable of supporting high levels of renewable energy. Investing in a high-quality system built with reliable components, such as a lithium iron phosphate battery 12v, is a step toward a more sustainable and self-sufficient future.

Disclaimer: This article is for informational purposes only and does not constitute financial or legal advice. Consult with a qualified professional before making any investment decisions.

Frequently Asked Questions

What is a good round trip efficiency for a solar battery?

For modern lithium-ion batteries, especially lithium ion phosphate battery (LiFePO4) types, a good RTE is typically above 92%. High-quality systems can achieve 95% or more. Older technologies like lead-acid batteries have a lower RTE, often between 70% and 85%.

How can I improve my solar battery efficiency in winter?

To improve efficiency in colder months, try to keep the battery in a temperature-controlled environment, such as an insulated garage or basement. If the battery must be in a colder space, consider using a battery heating mat. Ensure the BMS has low-temperature cutoff protection to prevent charging in freezing conditions, which can cause permanent damage.

Does a higher C-rate always mean lower efficiency?

Generally, yes. Pushing or pulling a large amount of current quickly (a high C-rate) generates more internal heat due to resistance, leading to greater energy loss. While a deep cycle lithium battery is designed to handle high C-rates better than other chemistries, operating at lower, more consistent rates will almost always yield a higher round trip efficiency.

Is round trip efficiency the only metric I should care about?

While RTE is a critical metric for a solar energy storage system, it's not the only one. You should also consider the battery's lifespan (cycle life), depth of discharge (DoD), capacity, and the reliability of the Battery Management System (BMS). A holistic view ensures you choose a system that delivers both efficiency and long-term value.
