7 Surge Handling Strategies to Protect Hybrid Inverters and ESS

Your hybrid inverter and energy storage system (ESS) are the heart of your energy independence. These sophisticated systems are significant investments, but they are vulnerable to a common and often invisible threat: power surges. A sudden voltage spike can degrade components over time or cause immediate, catastrophic failure. Implementing robust surge handling strategies is not just a recommendation; it’s essential for safeguarding your system’s longevity and performance.

This article provides seven practical strategies to protect your equipment. You will learn about the types of surges, the devices designed to stop them, and the critical role that system design and modern inverter technology play in creating a resilient power system.

Understanding the Nature of Power Surges

Before deploying protective measures, it's useful to recognize what you are defending against. Power surges, or transient voltages, are brief but powerful increases in voltage. They can originate from both outside and inside your property, each posing a unique risk to your hybrid inverter and ESS.

External vs. Internal Surge Events

External surges are typically the most powerful and destructive. Lightning strikes, even those miles away, can induce immense voltage spikes onto utility lines. Utility grid switching, downed power lines, or faults in nearby transformers also send damaging transients down the line and into your home.

More frequent, however, are internal surges. These are generated by equipment within your own property. The startup and shutdown of large appliances like air conditioners, pumps, or workshop equipment can create small but persistent surges. Over time, the cumulative effect of these internal events can degrade sensitive electronic components within your inverter, leading to premature failure.

The Impact on Inverters and Batteries

Hybrid inverters and the battery management systems (BMS) within an ESS rely on microprocessors, capacitors, and other sensitive electronics to function. A high-voltage surge can easily overwhelm these components, causing them to burn out. The damage might be immediate and obvious, or it could be a gradual degradation that leads to unexplained performance issues, increased harmonic distortion, and a shortened operational lifespan.

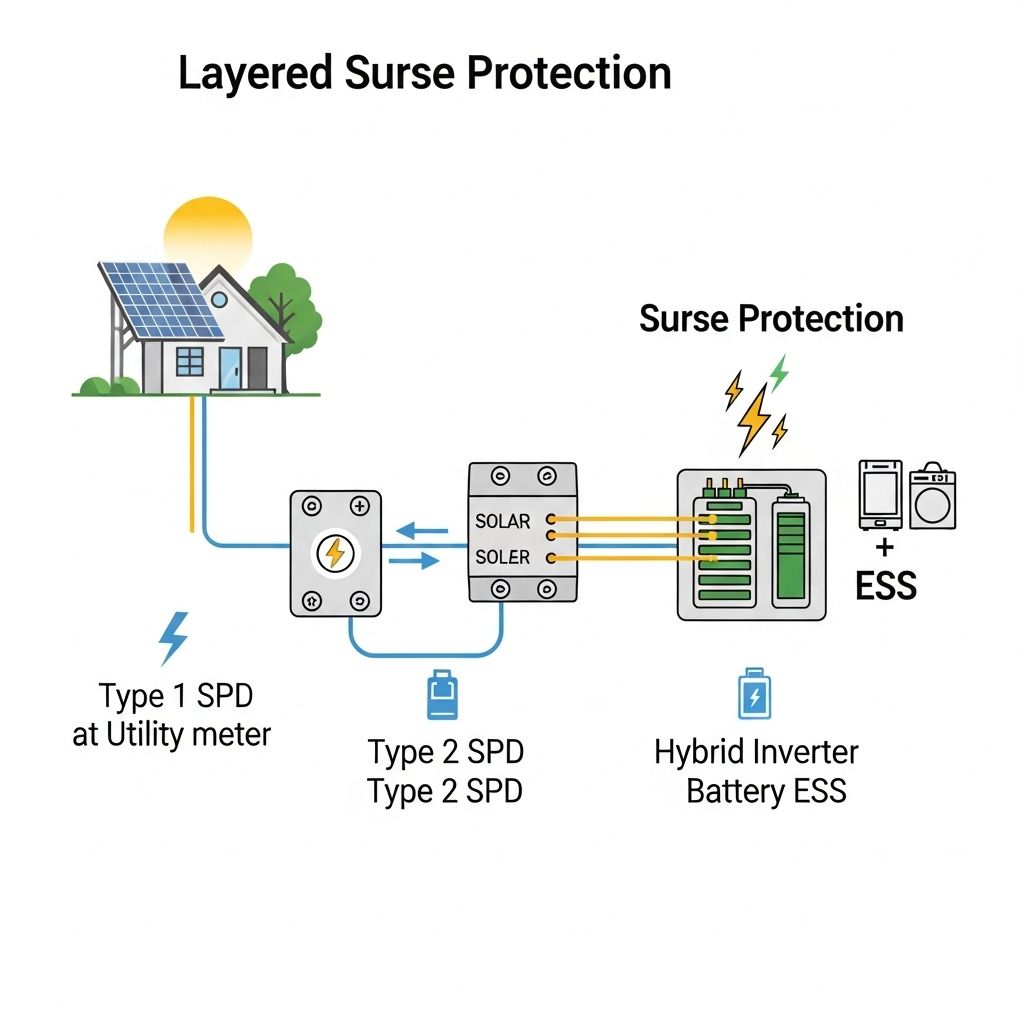

1. Deploy a Layered Surge Protection Strategy

A single protective device is not enough. The most effective approach is a layered defense using Surge Protective Devices (SPDs) at key points in your electrical system. This creates a coordinated system that diverts surge energy away from your valuable equipment.

Choosing the Right SPDs

SPDs are classified by 'Type', indicating where they should be installed. A comprehensive strategy often involves multiple types.

• Type 1 SPD: Installed on the line side of your main service entrance, often at the utility meter. It provides the first line of defense against large external surges like lightning.
• Type 2 SPD: Installed on the load side of the main service panel. It protects the entire panel and all sub-panels from residual external surges and internal surges generated within the home. This is the most critical SPD for protecting your inverter.
• Type 3 SPD: These are the familiar surge-protector power strips used at the point of use for devices like computers. While not the primary protection for an inverter, they are part of a whole-home strategy.

Key SPD Specifications

When selecting an SPD, pay attention to its ratings. The Voltage Protection Rating (VPR) indicates the maximum voltage the device will let pass through; a lower VPR is better. The Surge Current Capacity, rated in kiloamperes (kA), tells you how much surge energy the device can shunt to ground before failing; a higher kA rating offers more robust protection.

2. Leverage Advanced Inverter Capabilities

Modern hybrid inverters are more than just power converters; they are intelligent devices with built-in protective features. Understanding and utilizing these capabilities adds another layer of defense.

Fault Ride-Through (FRT)

Fault Ride-Through is the ability of an inverter to remain connected and operational during brief grid voltage sags or swells. Instead of disconnecting at the first sign of a disturbance, which can cause its own issues upon reconnection, the inverter 'rides through' the event. As noted in the IRENA report, Grid Codes for Renewable Powered Systems, grid codes are increasingly mandating FRT capabilities to improve grid stability as more renewable sources are added. This feature helps avoid the stress of repeated shutdowns and startups during unstable grid conditions.

Anti-Islanding Protection

Anti-islanding is a safety feature that prevents an inverter from sending power to the grid during an outage, protecting utility workers. This mechanism constantly monitors grid parameters like voltage and frequency. Its ability to rapidly detect deviations and disconnect means it can also react to certain types of surge events, providing a fail-safe disconnection to protect the inverter's internal components.

3. Insist on Proper Grounding and Bonding

An SPD's effectiveness is entirely dependent on its connection to a low-impedance grounding system. Grounding provides a safe path for surge currents to dissipate into the earth. Without a proper ground, the surge energy has nowhere to go and will seek a path through your equipment.

All components of your solar and storage system—panels, racking, inverter chassis, and battery enclosures—must be bonded together and connected to the grounding electrode system. This ensures that all parts are at the same electrical potential, preventing dangerous voltage differences during a surge event.

4. Optimize System Wiring and Layout

The physical installation of your system plays a surprising role in surge handling. Long, looping wire runs can act as antennas, inducing voltage from nearby lightning strikes. Keeping DC and AC wire runs as short and direct as possible minimizes this risk. Twisting the positive and negative DC conductors from the solar array can also help cancel out induced magnetic fields, further reducing transient voltage potential.

5. Install DC-Side Surge Protection

Your solar array, with its large surface area and rooftop location, is a prime target for lightning. A surge on the DC side can travel directly into your inverter's MPPT controller. Installing a DC-rated SPD between the solar array and the inverter is a critical step, especially for systems in areas with high lightning activity. This device protects the most sensitive input stage of your hybrid inverter.

6. Connect Performance Monitoring with System Health

A system that is frequently stressed by small, internal surges may show signs of declining performance before it fails completely. Increased Total Harmonic Distortion (THD) or a drop in operating efficiency can be early warning signs that internal components are under stress. Proactively protecting your system from surges is a key part of maintaining its performance over the long term. To fully appreciate how protection impacts output, it's helpful to understand the key performance indicators of your system. As detailed in the Ultimate Reference for Solar Storage Performance, metrics like round-trip efficiency and self-consumption rate are directly linked to the health of your ESS. By preventing surge damage, you ensure these vital statistics remain strong for years to come.

7. Conduct Regular Inspections

Surge protection is not a 'set it and forget it' solution. Most SPDs sacrifice themselves to protect your equipment, meaning they have a finite lifespan. It is good practice to visually inspect your SPDs at least once a year. Many devices have an indicator light or window that shows their operational status. If an SPD indicates it is no longer functional, it must be replaced immediately to restore protection.

A Resilient Foundation for Your Energy Future

Protecting your hybrid inverter and ESS from power surges is a fundamental aspect of ensuring a reliable and long-lasting energy system. By implementing a layered defense with properly specified SPDs, leveraging the advanced features of your inverter, and adhering to installation best practices, you create a robust shield against both visible and invisible threats. These strategies work together to safeguard your hardware, protect your financial investment, and secure your energy independence for the future.

Disclaimer: This article provides general information and guidance. The installation of electrical equipment, including Surge Protective Devices, should always be performed by a qualified and licensed electrician in accordance with local codes and regulations.
