Upgrading your RV’s power system is a significant step toward greater energy independence and convenience on the road. Replacing a traditional lead-acid battery with a 12V 100Ah lithium battery can transform your travel experience. This installation guide provides a clear path to help you complete the upgrade safely and effectively, ensuring your recreational vehicle is ready for any adventure.
Why Upgrade to a 12V 100Ah Lithium Battery?
The decision to switch to a lithium iron phosphate (LiFePO4) battery is backed by substantial performance gains. These batteries offer a superior alternative to conventional power sources for several key reasons, making them one of the best 12V lithium batteries for RV applications.
Performance Advantages Over Lead-Acid
Lithium batteries deliver more usable power, last longer, and weigh significantly less than their lead-acid counterparts. A key difference is the usable capacity. A LiFePO4 battery can be discharged up to 80-90% without damage, while lead-acid batteries should not be depleted beyond 50% to preserve their lifespan. This means a 100Ah lithium battery provides nearly double the usable energy of a 100Ah lead-acid battery. The demand for key materials in these advanced batteries, such as lithium and cobalt, is rising as clean energy technologies become more widespread. According to a report from the International Energy Agency, the transition to cleaner energy systems implies a significant increase in demand for these minerals. For a deeper analysis of battery metrics, this ultimate reference on solar storage performance offers valuable insights.
| Feature | 12V 100Ah LiFePO4 Battery | 12V 100Ah Lead-Acid Battery |
|---|---|---|
| Usable Capacity | 80-95Ah (80-95%) | 50Ah (50%) |
| Cycle Life | 3,000 - 7,000 cycles | 300 - 700 cycles |
| Weight | Approx. 24 lbs (11 kg) | Approx. 64 lbs (29 kg) |
| Voltage Output | Consistent throughout discharge | Drops as it discharges |
| Maintenance | None required | Requires regular fluid checks |
Long-Term Value and Safety

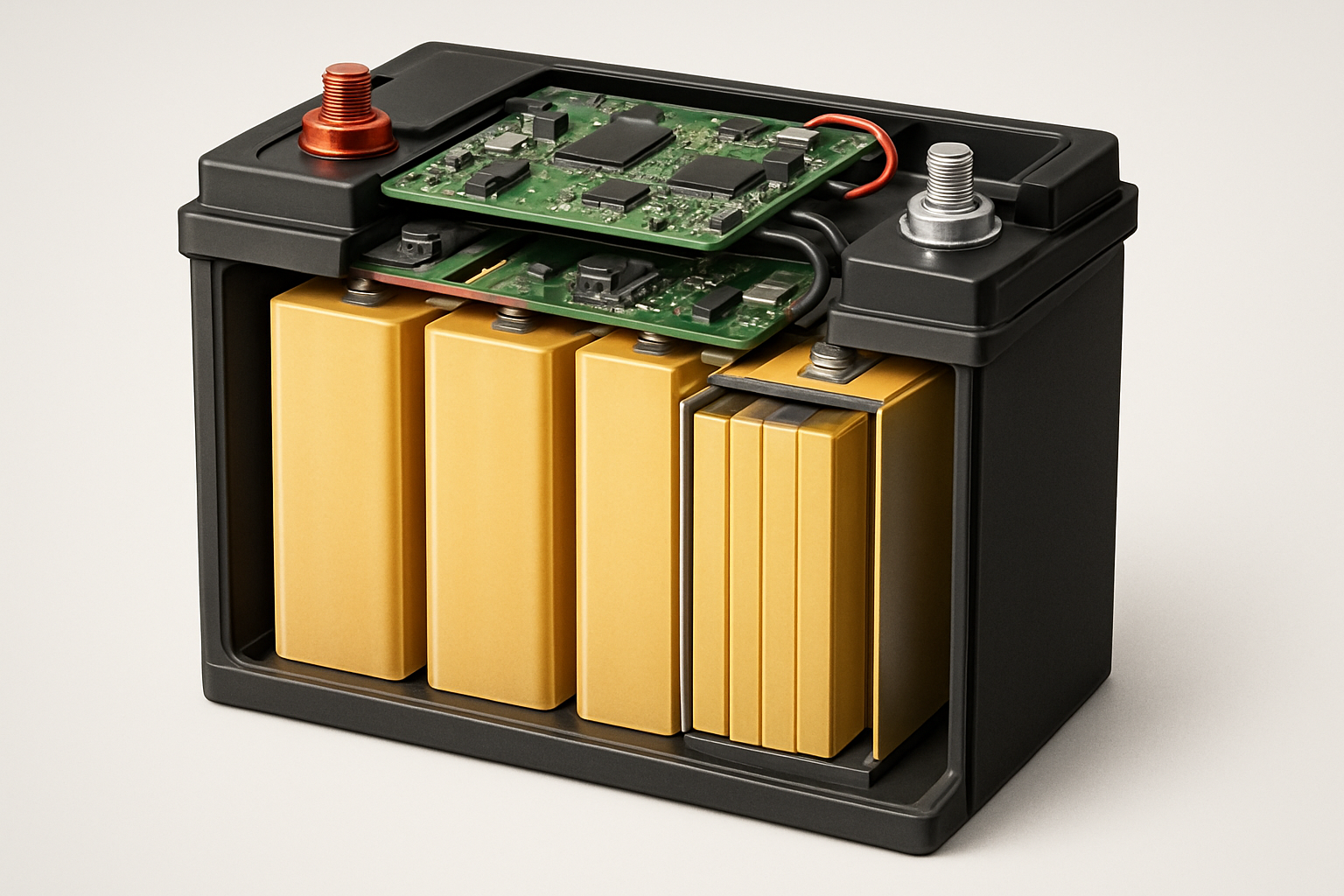

While the initial investment for a 12V 100Ah lithium battery is higher, its extended lifespan makes it more economical over time. With a cycle life that can be ten times longer than lead-acid, you will not need to replace it as frequently. LiFePO4 chemistry is also inherently safer, with a stable thermal and chemical structure that reduces the risk of overheating or combustion. An integrated Battery Management System (BMS) further protects the cells from overcharging, over-discharging, and short circuits.
Pre-Installation Planning and Preparation
Proper planning is crucial for a smooth and safe RV lithium battery installation. Before you begin, gather the right tools and assess your current electrical system to ensure full compatibility.
Essential Tools and Materials
Having the right equipment on hand will make the process much more straightforward. Here is a basic checklist:
- Socket wrench set
- Wire cutters and strippers
- Wire crimping tool and terminals
- Voltmeter
- Safety glasses and gloves
- Battery terminal cleaning tool
- Appropriate gauge wiring (if upgrading)
- Battery hold-down straps or brackets
Assessing Your RV's Electrical System
Your RV's existing components must be compatible with a lithium battery. The most important component to check is your converter/charger. Older models designed for lead-acid batteries may not have the correct charging profile for LiFePO4, potentially undercharging the battery or even damaging it. Check your converter’s manual or contact the manufacturer to confirm it has a lithium-compatible setting. If not, you will need to upgrade it. Additionally, if you have a solar setup, ensure your solar charge controller is also configurable for lithium batteries.
Choosing the Right Location
LiFePO4 batteries do not produce gas during charging, so they can be installed in various locations inside your RV, not just in vented external compartments. Choose a location that is clean, dry, and protected from extreme temperatures. Although they are lighter, ensure the battery is securely fastened to prevent it from moving while the RV is in motion.
The Step-by-Step Installation Process
With your preparations complete, you can proceed with the physical installation. Follow these steps carefully, prioritizing safety at all times. This RV battery upgrade guide is designed to be clear and direct.
Safety First: Disconnecting Power
Before touching any wires, completely disconnect your RV from all power sources. This includes unplugging from shore power, turning off the generator, and deactivating your solar charge controller. Use a circuit breaker or fuse to disconnect any solar panels. Finally, switch your main battery disconnect to the 'OFF' position.
Removing the Old Battery
Start by disconnecting the negative (-) terminal first. This prevents accidental short circuits if your tool touches the frame while loosening the positive terminal. Once the negative cable is safely tucked away, disconnect the positive (+) terminal. After both cables are disconnected, unfasten any hold-down straps or brackets and carefully lift the heavy lead-acid battery out of the compartment.
Installing the New 12V 100Ah Lithium Battery
Clean the battery compartment of any corrosion or debris. Place the new lithium battery in the compartment and secure it firmly with the hold-down mechanism. When connecting the wires, follow the reverse order of removal: connect the positive (+) terminal first, followed by the negative (-) terminal. Ensure the connections are tight and clean to facilitate good electrical flow.
System Configuration and Testing
Installing the battery is only part of the process. Proper system configuration is essential to maximize the performance and lifespan of your new power source. The integration of advanced energy storage is a key element in modernizing power systems, a concept explored by the International Renewable Energy Agency in its valuation frameworks.
Configuring Your System for Lithium
Refer to the manuals for your RV's converter/charger and solar charge controller. Access their settings and select the 'Lithium' or 'LiFePO4' profile. This adjusts the charging voltages to the levels required by the battery, typically around 14.4V for bulk charging and 13.6V for float. Incorrect settings can lead to an undercharged battery and diminished capacity. These principles of system optimization are also applied in larger-scale projects, as detailed in success stories from the U.S. Department of Energy on power optimization technologies.
Final Checks and Powering On
With everything connected and configured, conduct a final visual inspection. Make sure all connections are secure and that no tools are left in the battery compartment. Turn the battery disconnect switch back to 'ON' and restore power to your RV. Test a few 12V appliances, like lights and fans, to confirm everything is working correctly. If you installed a new battery monitor, now is the time to calibrate it to show an accurate state of charge.
Powering Your Adventures Ahead
Completing your RV lithium battery installation is a rewarding project that significantly enhances your travel capabilities. You now have a lighter, more powerful, and longer-lasting energy solution. This upgrade provides the reliable power needed to operate appliances, charge devices, and enjoy the comforts of your RV, whether you are at a full-service campground or exploring remote, off-grid destinations. Enjoy the freedom that comes with a modern, efficient power system.
Frequently Asked Questions
Can I use my old lead-acid battery charger?
It is not recommended. Most lead-acid chargers do not have the specific charging profile that LiFePO4 batteries require. Using one can result in undercharging, which reduces the battery's performance and lifespan. Always use a charger with a dedicated lithium setting for best results.
Do I need a special battery box for a lithium battery?
Unlike lead-acid batteries, LiFePO4 batteries do not release gas during charging, so they do not require a vented battery box. However, it is still essential to secure the battery in a compartment or box to prevent it from shifting or sustaining damage during travel.
How many solar panels do I need to charge a 100Ah lithium battery?
The amount of solar power needed depends on your daily energy consumption and average sunlight exposure. As a general rule, 200 to 400 watts of solar panels can effectively charge a 12V 100Ah lithium battery. This provides enough power to replenish daily usage and keep the battery topped off under typical conditions.
