220/230/240VAC 48VDC 10200W High Frequency Off-grid Hybrid Solar Inverter

220/230/240VAC 48VDC 10200W High Frequency Off-grid Hybrid Solar Inverter

by Anern

Description:

◆ Pure Sine Wave Inverter(on/off Gird), can be converted to a variety of different power loads.

◆ Built-in 160A(for 8.2KW)/180A(for 10.2KW)MPPT solar charger

◆ High PV input voltage rang(90~500VDC)

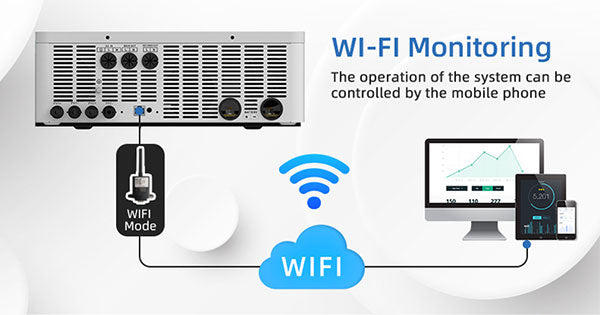

◆ Communicate with WIFI for IOS and Android

◆ Dual PV Input and output

Package Content:

1 x The Unit,1 x User Manual

The shipping cost and product prices are for reference only, pls leave your demands and contact information, we will send you the quotation soon.

For wholesale business or project, pls email: Cooperation@anern.com

$504.00 - $504.00
$504.00
$504.00 - $504.00
$504.00




Video of 48V 10.2KW High-frequency Hybrid Solar Inverter

    Specification of 10.2KW ON/OFF Grid Hybrid Solar Inverter

    Model

    AN-SCI-MAX-10200

    RATED POWER

    10200W

    Maximum PV Input Power

    10200W

    GRID-TIED OPERATION



    PV INPUT (DC)



    Nominal DC Voltage/Maximum DC Voltage

    360VDC/500VDC

    Start-up Voltage/Initial Feeding Voltage

    90VDC/120VDC

    MPPT DC Voltage Range

    90-450VDC

    Number of MPPT Trackers/Maximum Input Current

    2/18A

    GRID OUTPUT (AC)



    Nominal AC Output Voltage

    220/230/240VAC

    AC Output Voltage Range

    195.5-253VAC

    Nominal AC Output Current

    44.3A

    Power Factor

    >0.99

    Feed-in Grid Frequency Range

    49-51±1Hz / 59-61±1Hz

    EFFICIENCY



    Maximum Conversion Efficiency (Solar to AC)

    98%

    TWO LOADS OUTPUT POWER



    Full Load

    10200W

    Maximum Main Load

    10200W

    Maximum Second Load (battery mode)

    3400W

    Main Load Cut Off Voltage

    44VDC

    Main Load Return Voltage

    48VDC

    OFF-GRID OPERATION



    AC Start-up Voltage/Auto Restart Voltage

    120-140VAC/180VAC

    Acceptable AC Input Voltage Range

    90-280VAC or 170-280VAC

    Maximum AC Input Current

    50A

    Nominal Operating Frequency



    Surge Power

    20400W

    BATTERY MODE OUTPUT (AC)



    Nominal Output Voltage

    220/230/240VAC

    Output Waveform

    Pure sine wave

    Efficiency (DC to AC)

    94%

    BATTERY & CHARGER



    Nominal DC Voltage

    48VDC

    Maximum Charging Current(Solar to AC)

    160A

    Maximum AC Charging Current

    160A

    GENERAL



    Dimension, D x W x H (mm)

    530*390*130mm

    Net Weight (kgs)

    14.5KG

    Communication interface

    WIFI

    Humidity

    5% to 95% Relative Humidity (Non-condensing)

    Operating Temperature

    –10°C - 50°C

    Storage Temperature

    –15°C - 60°C

    Key Features of High-frequency ON/OFF Grid Hybrid Solar Inverter

    ◆ Pure Sine Wave Inverter(on/off Gird), can be converted to a variety of different power loads.

    ◆ Self-consumption and feed-in to the grid

    ◆ One-click restoration to factory Settings

    ◆ Built-in Lithium battery automatic activation

    ◆ Built-in 160A(for 7.2KW/8.2KW)/180A(for 10.2KW)MPPT solar charger

    ◆ High PV input voltage rang(90~500VDC)

    ◆ Built-in anti-dusk kit for harsh environment

    ◆ Communicate with WIFI for IOS and Android

    ◆ Dual PV Input and output are more convenient for solar panel wiring and reduce the use of combiner boxes.

    ◆ Touch button

    ★★★★★
    ★★★★★
    ★★★★★
    ★★★★★
