Space-saving lithium battery storage for solar power, home backup and reliable energy management, with 5kWh, 10kWh and higher-capacity planning options.
Compare 25.6V and 51.2V wall formats by usable space, inverter platform and energy requirement.
LiFePO4 Battery

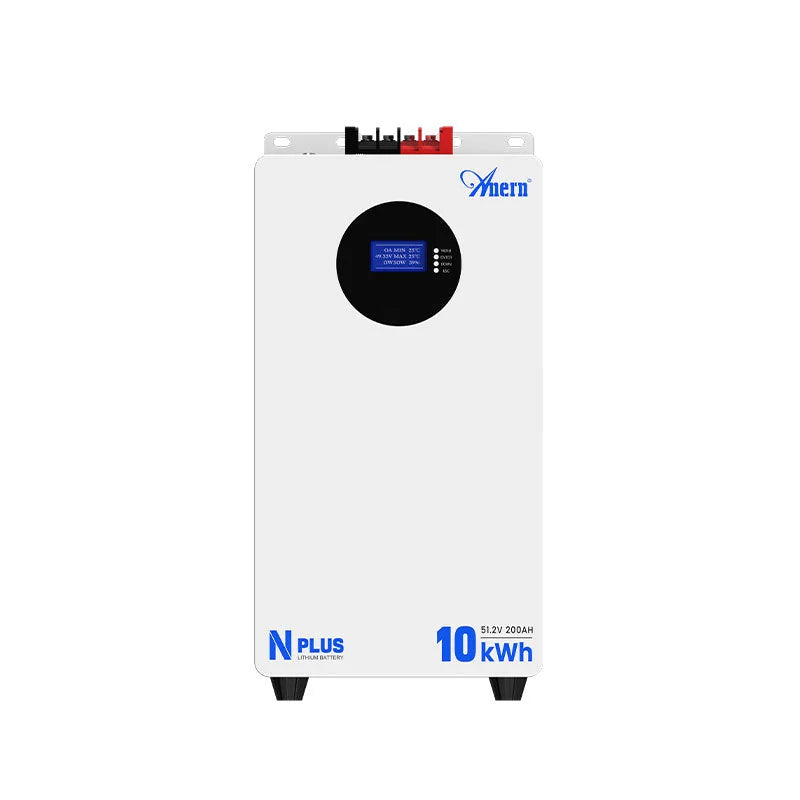

The 51.2V 200Ah wall mounted lithium battery is a high-performance 10.24kWh LiFePO4 solar battery, ideal for residential, commercial, and hybrid solar systems. Featuring advance…
View product
LiFePO4 Battery
The 25.6V 200Ah solar liFePO4 battery offers a high-capacity, compact, and efficient energy storage solution designed to meet the demands of solar energy systems for both reside…
View product
LiFePO4 Battery
The 10kWh wall-mounted battery is a premium energy storage solution designed for residential solar systems and off-grid applications. Using high-safety LiFePO4 cells, it deliver…
View product
A wall-mounted battery is a lithium energy-storage battery designed to be fixed to a suitable wall or support structure, reducing floor-space use and keeping the installation organized.
Wall format does not determine voltage or capacity. The planned range includes 25.6V and 51.2V products, so installers must match structural support, service clearance, inverter class, cabling and environmental conditions.
A wall-mounted design needs a load-bearing mounting surface, manufacturer-approved bracket and fasteners, service clearance, safe cable routing and an indoor or protected environment within the product rating.
Balance daily energy and backup duration with wall area, weight, inverter voltage and future expansion.
Small homes and compact solar systems.
Larger homes, higher self-consumption and longer backup.
High-energy homes and small commercial systems where an approved wall format is available.
The format supports compact, organized installations while retaining key LFP energy-storage functions.
Uses wall area and keeps usable floor space clearer.
A defined bracket and cable route can create a clean technical-room layout.
Supports stable operation and repeated energy-storage cycling.
Monitors and helps protect the battery during charge and discharge.
25.6V and 51.2V products fit different inverter architectures.
Compatible units can increase storage without changing nominal system voltage.
Supported interfaces help coordinate compatible batteries and inverters.
Designed for compact solar and home-backup environments.
Use the wall format where the mounting surface and service environment are appropriate.
Store solar energy in a compact household installation.
Support priority loads during grid outages with a compatible inverter.
Reduce equipment footprint in utility rooms and protected service areas.
Targeted backup or solar self-consumption for defined commercial loads.
Create a planned multi-unit wall bank where the product and structure permit.
Parallel connection is typically used to add energy at the same voltage; series use is product-dependent.
Size one unit to the defined energy and current requirement.
Matched units retain nominal voltage while increasing total Ah and kWh.
Reserve structural capacity, cable route, protection and communication for future compatible units.
Wall format is mechanical; electrical selection still begins with battery voltage and power limits.
Use a compatible 24V-class hybrid or off-grid inverter and approved charger settings.
Use a compatible 48V-class inverter with sufficient power and current capacity.
Select higher power/current capability for larger loads and verify an approved wall installation.
Confirm supported CAN / RS485 protocol and cable pinout.
Verify wall load rating, bracket, clearance, cable sizing, fusing and isolation.
Select voltage from the DC architecture, inverter operating range and load current—not from energy capacity alone.
| Voltage class | Typical scale | Common fit | Design note |
|---|---|---|---|
| 12V / 12.8V | Small DC loads | Portable, compact and low-power systems | Higher current at equal power |
| 24V / 25.6V | Medium DC loads | Off-grid homes and mid-size backup | Lower current than 12V |
| 48V / 51.2V | Solar ESS | Home storage, telecom and larger systems | Efficient for higher-power loads |
Final selection must be checked against the exact battery, inverter, charger, cable and protection specifications.
The format can support multiple customer paths when the electrical and structural design is properly defined.
Compact solar self-consumption and backup with clear wall-space planning.
Repeatable residential installations with defined brackets and commissioning.
A capacity ladder for different home-energy markets.
Space-efficient battery placement within a coordinated electrical design.
Early allocation of structural support, cable routes and utility-room clearance.
Format selection aligned with load analysis and future expansion.
Project-based branding, interface and documentation review.
Targeted backup and solar storage for measured essential loads.
It is an energy-storage battery designed for secure installation on a suitable wall or support, saving floor space and organizing the system layout.
The planning range includes approximately 5kWh and 10kWh options, with higher-capacity wall configurations subject to the selected product.
25.6V batteries generally fit compatible 24V-class systems, while 51.2V batteries fit compatible 48V-class inverters. Verify the complete operating range.
Yes where the product supports it. Use matching units, correct communication and equalized cabling, and follow the maximum unit count.
Choose from the battery voltage, current, power and communication requirements. Wall mounting alone does not define inverter compatibility.
Service life depends on model, cycle depth, temperature, power/current, settings and maintenance of the surrounding system.
Confirm structural and electrical specifications, documents, approvals, packaging, MOQ, delivery, warranty, OEM scope and support.
Share the system voltage, daily energy demand, inverter model, installation environment and required backup duration for a project-based recommendation.
