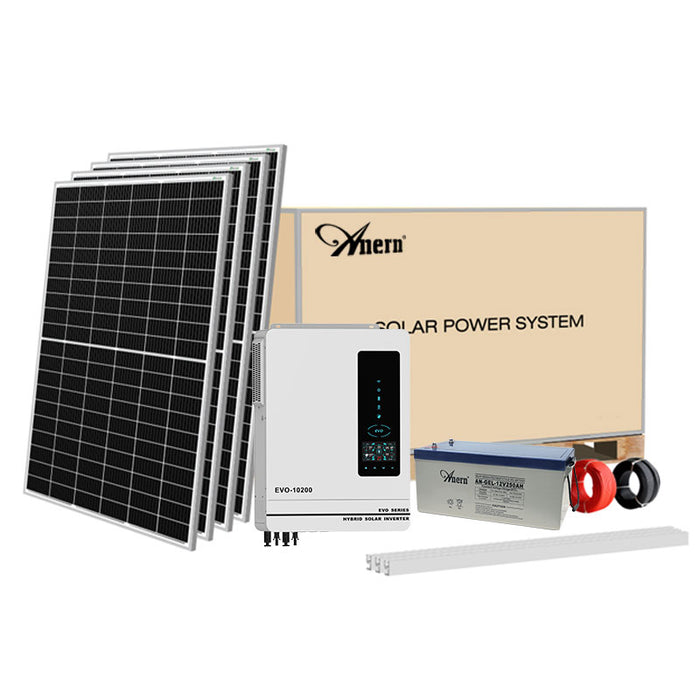

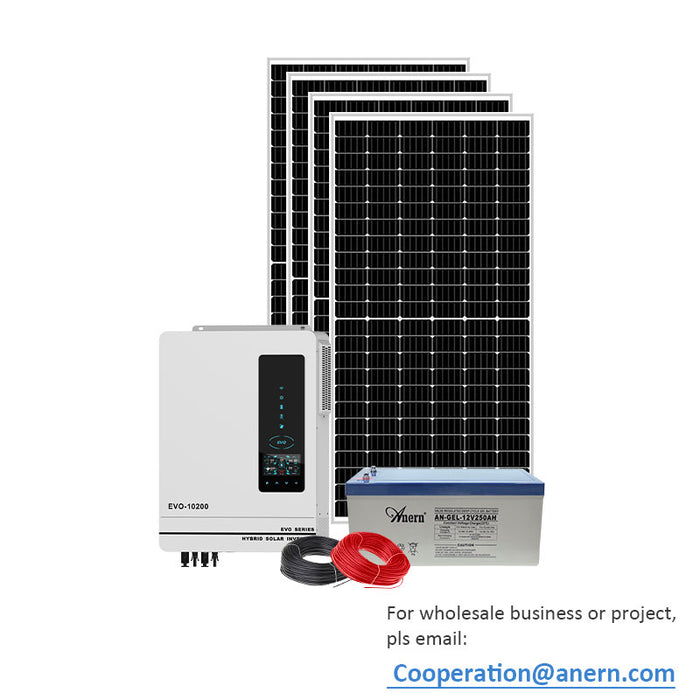

10KW Off-grid Solar System with Gel Battery
|System Basic Information:||Average daily generation: 34-39KWH|
|Rated Loads Capacity:10000W|
|Solar Panel(20pcs)||Type: Half-cell Monocrystalline PV Module
Max Power: 450W
25 years power output guarantee
|Solar Inverter(2pcs)||Rated Ouput Power: 5000W
Rated DC Voltage: 48V
Grid Power Input:
Grid Input Voltage: 220VAC
Input frequency: 50HZ
Output Voltage: 220VAC
Output Frequency: 50Hz
Wave Form: Pure Sine Wave
Max Input Voltage: 500V
Rated Solar Input Power: 5000W
Max Current: 80A
Battery Rated Voltage: 48V
MPPT Range @ Operating Voltage: 120 ~ 450 VDC
Protections: reverse polarity, short-circuit, overvoltage, undervoltage, over-discharge, anti-thunder
|PV Array Combiner(2pcs)||Simplify wiring between PV array and controller, protections to controller, features:
- Wide range of DC input voltage
- IP65 guard level, suitable for outdoor
- Reliable thunderstorm & surge protection
- Multiple PV strings inputs (4 strings)

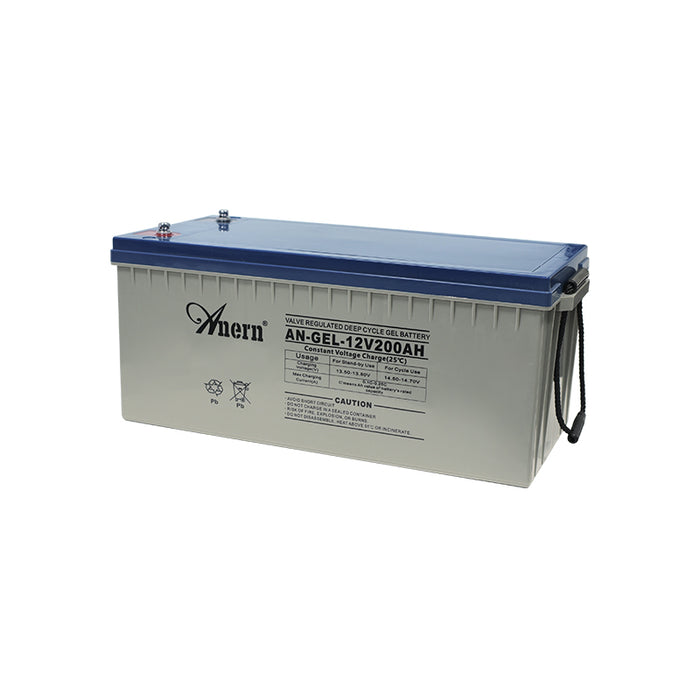

|GEL Battery(12pcs)||12V/250AH per piece
GEL valve-regulated lead-acid battery, fully sealed, deep cycle, free maintenance type
Service Life: 5~6 years
|Solar Panel Rack(1pcs)||Roof type mounting rack
including complete fittings,aluminum alloy
(Rack can be customized per request)
|Cables||International standard, with specification suitable for solar system, PVF-1*4 series red and black|
|Circuit Breaker(2pcs)||DC500V 2P 63A(AC)
DC500V 2P 125A(Battery)
|Monitor, troubleshoot, or communication|

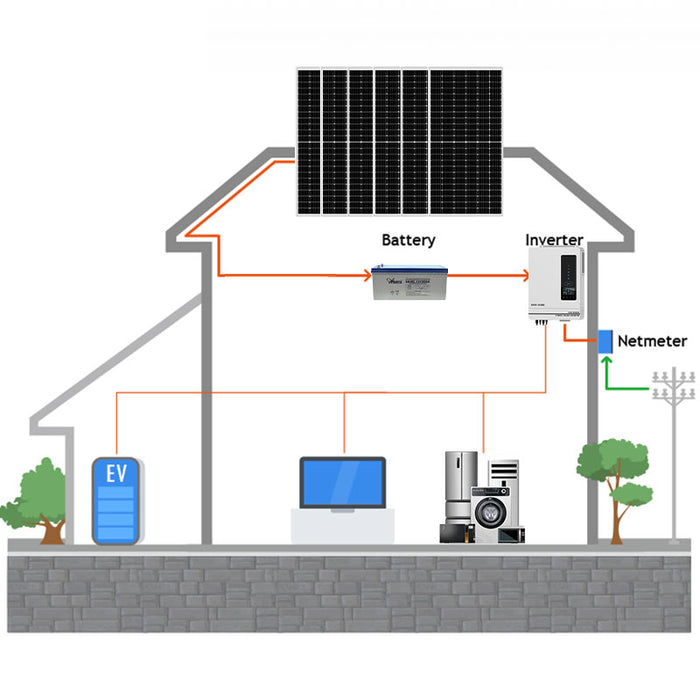

System Working Principle:
This system uses batteries to store the solar energy, at the same time, the system can be connected with the grid for utilization of grid power optionally. The system uses battery power in priority, but when sunshine is not so good or loads consumption is too big which caused the battery power inadequacy, then the system can switch automatically to grid power supply. When the batteries restore capacity, the system can switch back to battery power source.
Terms and conditions:
1. Package: Export standard package suitable for tough handling and sea transport.
2. Delivery: Goods to be ready within 7~30 days depending on order quantity.
3. Warranty: 5 years for solar panel, 2 years for controller/inverter/battery.
4. Certification: CE,ROHS
5. Validity: 30 days.
10KW Off-grid Solar System with Gel Battery Description
The 10KW Off-Grid Solar System with 10kw solar battery set is an ideal solution for those looking for a reliable off-grid power system. This is an ideal solution for those looking for a simple, easy to manage system that offers great performance in most situations.
The 10KW Off-grid Solar System with 10kw solar battery combines the panel and batteries for you to produce your own electricity. The system includes a high performance, durable and maintenance free gel battery.
1. The introduction of the solar light for road Solar energy is inexhaustible, clean, pollution-free and renewable green and environmentally friendly energy. Solar street lightings are powered by crystal silicon solar batteries, and maintenance-free valve-controlled sealed batteries (collagen battery)...
