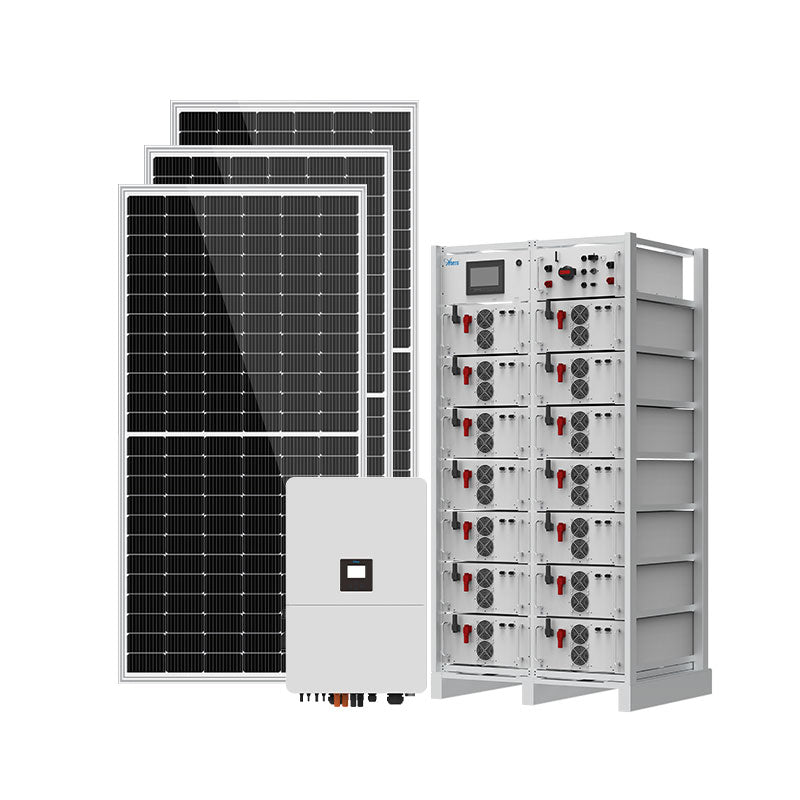

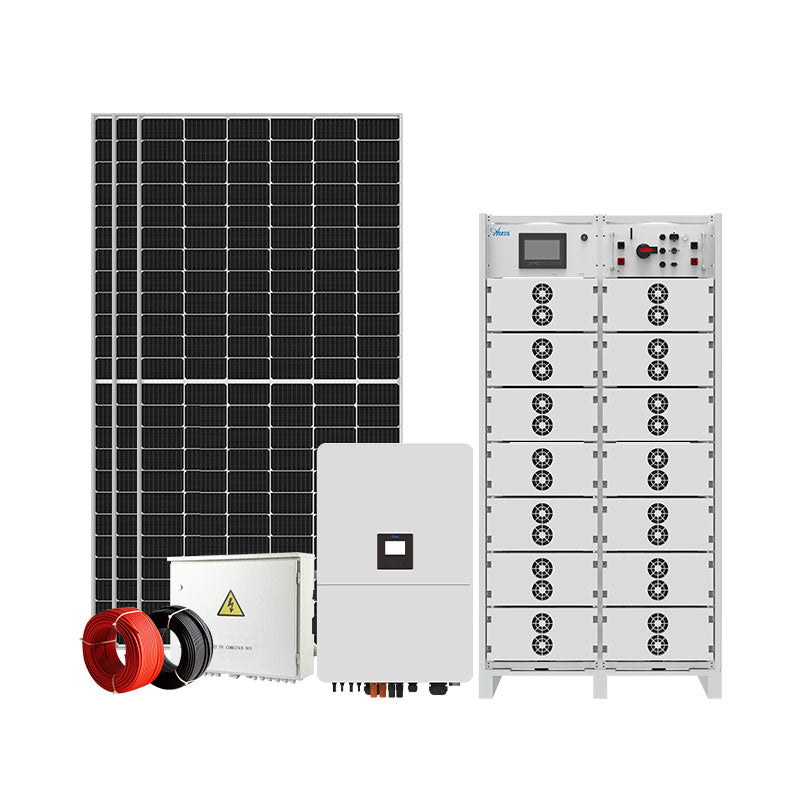

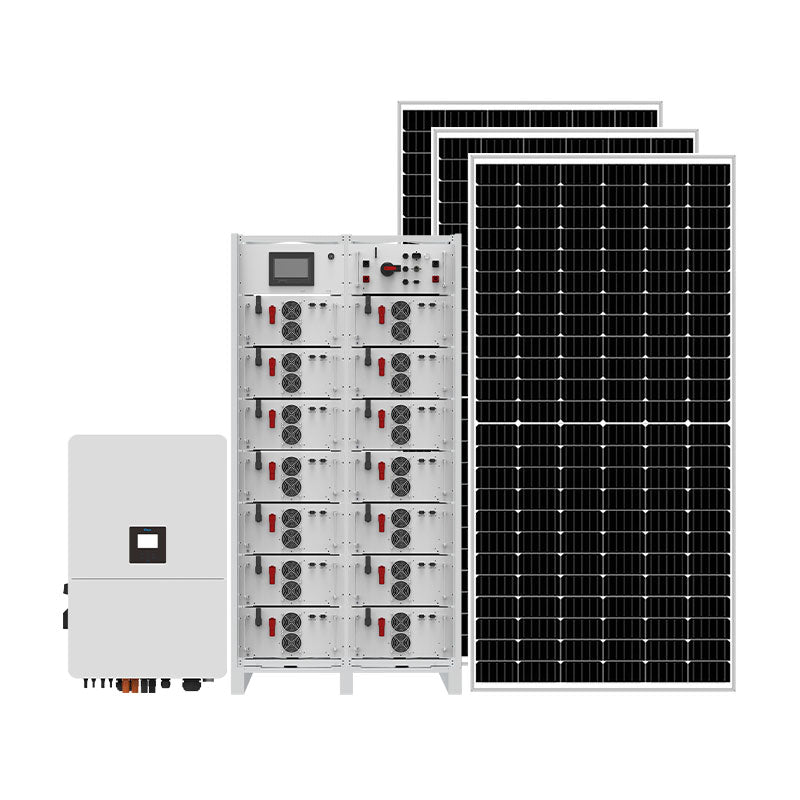

80kW 225kWh Commercial Hybrid Battery Solar Storage System

Name: 80kW 225kWh Commercial Hybrid Battery Solar Storage System
Brand: Anern
Rating: 4.5 (10 reviews)

Key Features

Ultra-Durable Tier-1 PV Modules
Integrated Liquid-Cooled Storage
High-Voltage Smart Inverters
Intelligent Peak Shaving & Load Management
Rapid "Plug-and-Play" Deployment

Technical Certification

Description

This all-in-one energy storage system (ESS) is engineered for commercial and industrial (C&I) facilities. By combining the deye 80kw hybrid inverter with a 225kWh high-voltage (HV) LiFePO4 battery bank, it provides a streamlined solution for energy independence, backup power, and electricity cost reduction.

80kW 225kWh Commercial Hybrid Battery Solar Storage System

Specification table

Solar Panels Rated Power

69KW

Battery

225KWH

Hybrid Inverter(Deye)

80KW

Rated AC Input/Output Active Power

80KW

Max. AC Input/Output Apparent Power

88KVA

Half-cell Mono Solar Panel

112pcs 620W

Solar Panel Size

2382*1134*30mm

More details highlight quality

All-in-One Integrated Design

Combines an 80kW hybrid inverter, 225kWh high-voltage LiFePO4 battery, BMS/EMS, and fire protection into one compact cabinet. Factory pre-installation reduces on-site work and shortens installation time by up to 60%. Modular design supports flexible capacity expansion for future energy needs.

Reliable Safety Protection

Built with safe and stable LiFePO4 battery cells, the system offers over 6000 cycles and strong thermal stability. A three-level fire protection system, combined with explosion relief, intelligent ventilation, and multiple electrical protections, helps ensure safe and stable operation in daily use.

Smart Energy Management

Built-in EMS automatically manages solar power, battery charging, and grid electricity based on real-time energy demand, helping reduce electricity costs by up to 30%. The system also supports fast switching between on-grid and off-grid modes for continuous power supply.

High Efficiency and Stable Output

Achieves 98% efficiency with 99% MPPT accuracy for maximum solar yield. It delivers reliable three-phase power for industrial loads. The IP65 enclosure and advanced thermal management ensure durable performance in harsh high-temperature and outdoor environments.

Low Maintenance and Long Service Life

Supports over 8000 cycles with a service life of more than 15 years under normal conditions. Industrial-grade components reduce maintenance requirements, while the remote monitoring platform allows users to check system performance, battery status, and alarms anytime through the cloud platform.
