15KW/20KW/30KW/50KW MPPT Off-grid Solar Power System with Gel Battery for Commercial and Industrial Solutions

by Anern

Description:

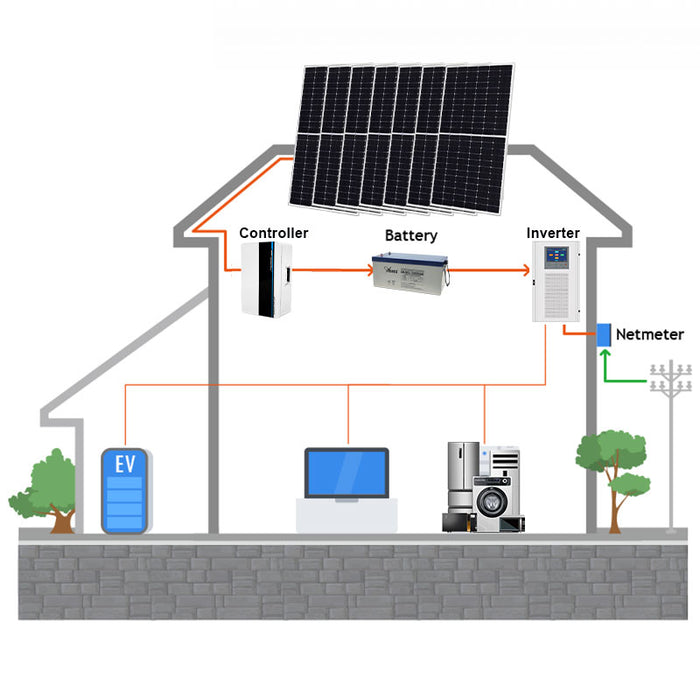

This off-grid solar power generation system, which uses batteries to store solar energy. At the same time, the system can be connected to the grid to optionally utilize grid power. The system preferentially uses battery power, but when the sunshine is not good or the load power is too big, and the battery power is insufficient, the system can automatically switch to the grid power. When the battery recovers its capacity, the system can switch back to battery power supply.

Package Content:

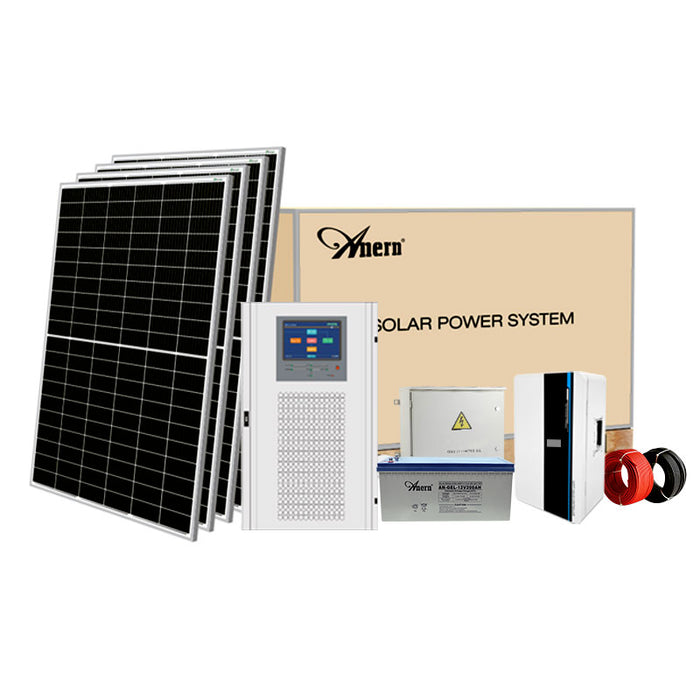

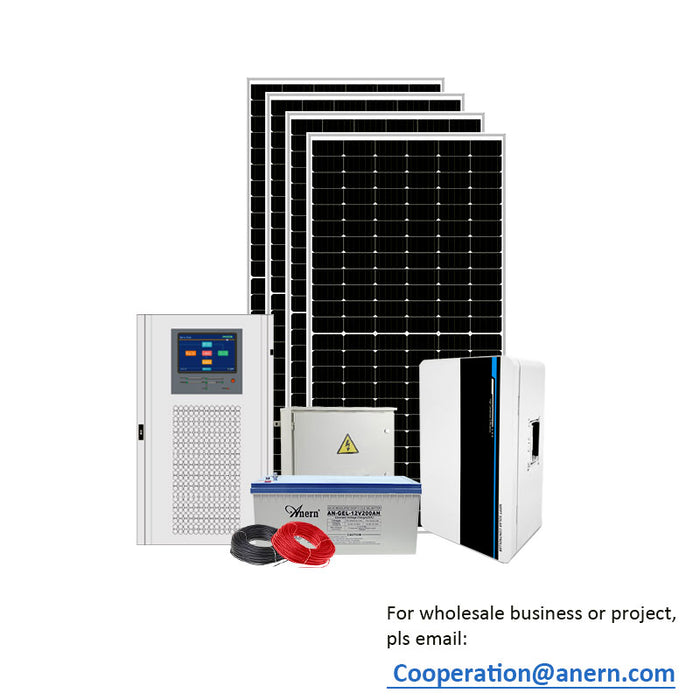

With Solar Panel(550W), Mppt Inverter, Pv Array Combiner, Inverter, Lead-Acid Battery, Solar Panel Bracket and Cables

The shipping cost and product prices are for reference only, pls leave your demands and contact information, we will send you the quotation soon.

For wholesale business or project, pls email: Cooperation@anern.com

Original price $14,400.00 - Original price $41,584.00
Original price
$14,400.00
$14,400.00 - $41,584.00
Current price $14,400.00
Solar System: 15KW with GEL Battery



Anern 20kw off grid solar system price of bulk order



Video of 15KW/20KW/30KW/50KW MPPT Off-grid Solar Power System with Gel Battery for Commercial and Industrial Solutions



Specification of 15KW/20KW/30KW/50KW MPPT Off-grid Solar Power System with Gel Battery for Commercial and Industrial Solutions



Solar System

15KW Off-grid (with grid switch) Solar System

20KW Off-grid (with grid switch) Solar System

30KW Off-grid (with grid switch) Solar System

50KW Off-grid (with grid switch) Solar System

System Basic Information:

Solar Panels Rated Power: 15KW

Solar Panels Rated Power: 20KW

Solar Panels Rated Power: 30KW

Solar Panels Rated Power: 50KW



Daily Power Consumption:>60KWH

Daily Power Consumption:>80KWH

Daily Power Consumption:>120KWH

Daily Power Consumption:>200KWH



Inverter Rated Output Power: 15KW

Inverter Rated Output Power: 20KW

Inverter Rated Output Power: 30KW

Inverter Rated Output Power: 50KW

Solar Panel

27pcs 550w Half-cell Monocrystalline PV Module

36pcs 550w Half-cell Monocrystalline PV Module

56pcs 550w Half-cell Monocrystalline PV Module

91pcs 550w Half-cell Monocrystalline PV Module

Controller

PV Charging Controller 192V 80A

PV Charging Controller 192V 100A

PV Charging Controller 360V 80A

PV Charging Controller 360V 80A

Solar Inverter

Rated DC192V input, AC380V 3-phase output; Frequency: 50 Hz +/- 0.5%

Rated Output Capacity: 15KW





Rated DC192V input, AC380V 3-phase output; Frequency: 50 Hz +/- 0.5%

Rated Output Capacity: 20KW

Rated DC360V input, AC380V 3-phase output; Frequency: 50 Hz +/- 0.5%

Rated Output Capacity: 30KW

Rated DC360V input, AC380V 3-phase output; Frequency: 50 Hz +/- 0.5%

Rated Output Capacity: 50KW

Lithium Battery

12V/250AH per piece*32pcs

12V/200AH per piece*48pcs

12V/250AH per piece*60pcs

12V/250AH per piece*90pcs



Key Features of 15KW/20KW/30KW/50KW MPPT Off-grid Solar Power System with Gel Battery for Commercial and Industrial Solutions

  • Adopting MPPT controller, with high charging efficiency. It can fully charge the batteries in 5 hours under the condition of sufficient sunlight.
  • Supplied with city power backup function. When the solar energy or the battery power is insufficient, the city power will be switched immediately to ensure 24 hours of uninterrupted power supply.
  • The solar power generation system has a short construction period and is convenient and flexible. The capacity of the solar array can be added or reduced arbitrarily according to the increase or decrease of the load to avoid waste.
  • Strong wind and snow resistance, able to withstand wind pressure of 2400pa and snow pressure of 5400pa, and able to be installed in any unsupervised place.



15KW/20KW/30KW/50KW MPPT Off-grid Solar Power System with Gel Battery for Commercial and Industrial Solutions Description

20KW off grid solar system has been designed to meet the needs of all those who wish to benefit from the cost savings and non-polluting nature of solar power. The 20kw solar system includes a number of components which have been chosen in order to give the best possible performance at the lowest possible price.

The 20KW MPPT battery charge controller is specially designed for 20KW off grid solar system with battery. It will intelligently control the incoming DC input voltage, current and temperature to keep your batteries fully charged at all times while avoiding overcharging and overheating. Contact us to get 20kw off grid solar system price of bulk order!

★★★★★
★★★★★
★★★★★
★★★★★
