Anern 100 kva solar system for sale

Commercial 100kVA 480V Three Phase Solar System

by Anern

Description:

Commercial use AN-CSPS 100kva 480V three-phase solar power system, adopts three-phase off-grid inverter which is specially designed for high-power off-grid system, with efficiency up to 95%. The inverter is fit with isolation transformer, pure sine wave output, used in various high-power industrial electrical appliances, suitable for areas with a temperature range of -10°C~45° and high altitudes, without being supervised or repaired, which solves the problem of industrial power consumption in underdeveloped areas.

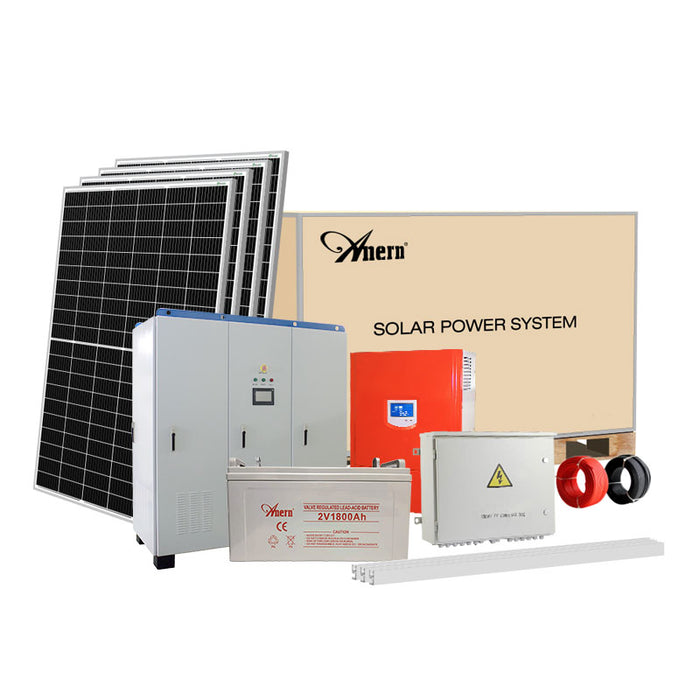

Package Content:

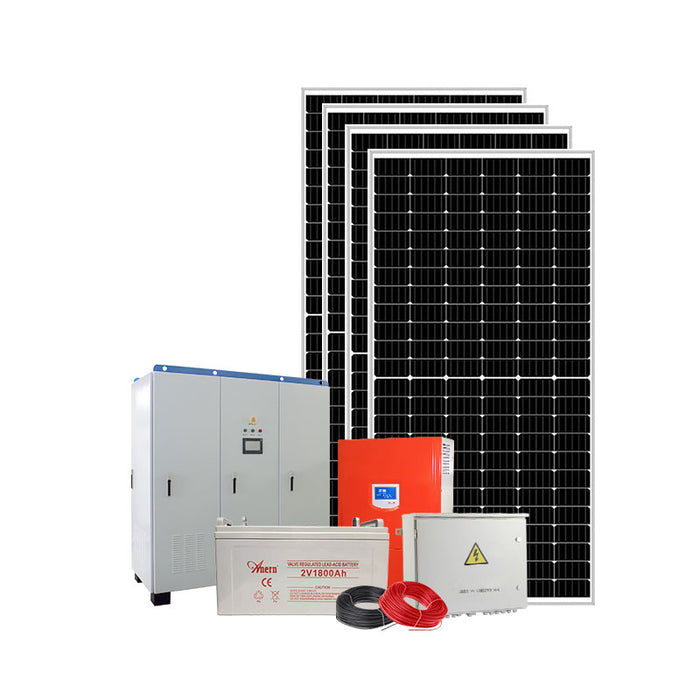

With 192pcs Solar Panel(500W), 3pcs Pv Array Combiner, 3pcs Controller, 1pcs Inverter(100Kva), 192pcs Lead-Acid Battery, Solar Panel Bracket, Cables and Circuit Breakers

The shipping cost and product prices are for reference only, pls leave your demands and contact information, we will send you the quotation soon.

For wholesale business or project, pls email: Cooperation@anern.com

$140,800.00 - $140,800.00
$140,800.00
$140,800.00 - $140,800.00
$140,800.00



Anern 100 kva solar system price of bulk order



Video of Commercial 100kVA 480V Three Phase Solar System



Key Features of Commercial 100kVA 480V Three Phase Solar System

  • One-stop service, providing a complete solar power generation system.
  • The solar power generation system has a short construction period, is convenient and flexible, and can add or reduce the amount of solar power arbitrarily according to the increase or decrease of the load to avoid waste.
  • The solar system is modularized and can be installed close to places with power consumption. In areas far away from the power grid, it can reduce the cost of power transmission and distribution and increase the reliability of power supply facilities.
  • The solar energy system generates electricity. The solar panel has a 25-year warranty, is not easy to be damaged, and is easy to maintain. It is suitable for unattended use.

100 kVA Solar System Description

100 kva solar system with 3 phase solar battery is designed to be flexible and can be used for a variety of applications such as remote locations or off-grid locations. Anern 100 kva solar system with 3 phase solar battery is also used to minimize grid connection cost while maximizing the benefit from PV solar generation. Contact us now to get the cost of 100 kva solar system of bulk order!



Specification of Commercial 100kVA 480V Three Phase Solar System

System Basic Information: Average daily generation:<500KWH
Rated Loads Capacity:100KVA
Solar Panel(192pcs) Type: Monocrystalline Silicon PV Module
Max Power: 500W
Pm:  500W
Voc: 48.75V
Isc:  13.14A
Vm: 39.96V
Ⅰm: 12.51A
Size: 2158*1020*35MM
25 years power output guarantee
Controller(3pcs) PV Charging Controller 384V 100A;
PMW charging type, LCD display, intelligent control.
Temperature compensation; Protections: short circuit, deep discharge, input surge voltage, over current.
PV Array Combiner(3pcs) Simplify wiring between PV array and controller, protections to controller, features:
- Wide range of DC input voltage
- IP65 guard level, suitable for outdoor
- Reliable thunderstorm & surge protection
- Multiple PV strings inputs (6 strings)
Inverter (1pcs) Rated DC384V input, AC380V 3-phase output; Frequency: 50 Hz +/- 0.5%
Rated Output Capacity: 100KVA
True sine-wave, off-grid type, with grid power switch function; LCD display of operating parameters;
• Protections: Short circuit, overload, surge current, over temperature, over/under voltage, over/under frequency, lightning, phase imbalance, reverse polarity
Battery(96pcs) 2V/1800AH per piece
GEL valve-regulated lead-acid battery, fully sealed, deep cycle, free maintenance type
Service Life: 5~6 years
Solar Panel Rack(1pcs) Ground type or Flat Roof type mounting rack, including complete fittings, aluminum alloy (Rack can be customized per request)
Cables International standard, with specification suitable for solar system, PV1-F-1*4 series
Cables International standard, with specification suitable for solar system, BVR-1*16 series
Cables International standard, with specification suitable for solar system, BVR-1*70 series
Circuit Breaker(1pcs) Protect high-power electrical appliances,Connect between the 2 series battery  dc1000V 500A
Circuit Breaker(1pcs) Protect high-power electrical appliances,Connect between the 2 series battery  dc1000V250A

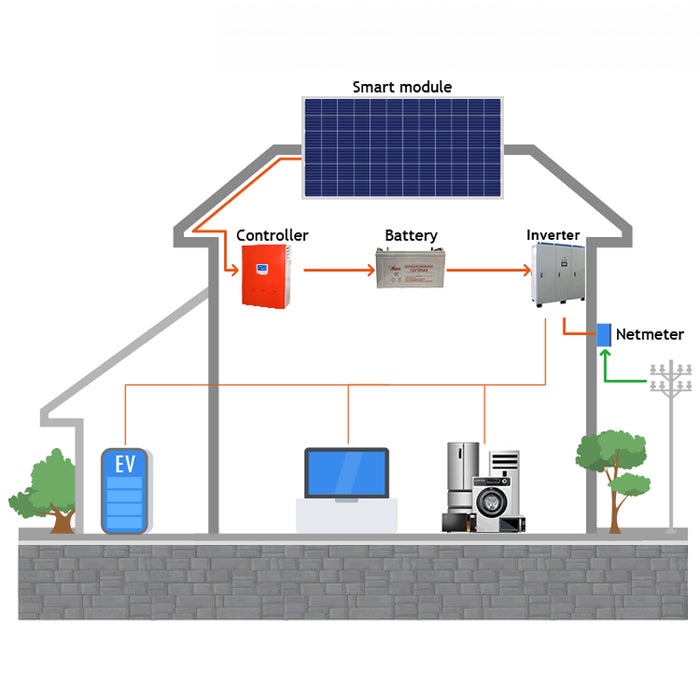

System Working Principle:
This 100 kva solar system uses batteries to store the solar energy, at the same time, the system can be connected with the grid for utilization of grid power optionally. The system uses battery power in priority, but when sunshine is not so good or loads consumption is too big which caused the battery power inadequacy, then the 100 kva solar system can switch automatically to grid power supply. When the batteries restore capacity, the system can switch back to battery power source.

Terms and conditions:
1. Package: Export standard package suitable for tough handling and sea transport.
2. Delivery: Goods to be ready within 7~30 days depending on order quantity.
3. Warranty: 5 years for solar panel, 2 years for controller/inverter/battery.
4. Certification: CE,ROHS
5. Validity: 30 days
