Depth of Discharge: How It Affects LiFePO4 Battery Life

Lithium iron phosphate (LiFePO4) batteries are a cornerstone of modern solar and energy storage systems, valued for their safety, stability, and long-term performance. To truly maximize the value of this technology, it is important to understand the factors that influence its lifespan. One of the most critical of these is the Depth of Discharge (DoD). Managing DoD effectively is a key strategy for extending the operational life of your battery and ensuring you get the most from your energy investment.

Understanding Key Battery Metrics: DoD, SoC, and Cycle Life

Before adjusting system settings, it helps to be familiar with a few fundamental terms. These metrics describe a battery's state and its expected lifespan, forming the basis for effective energy management.

What is Depth of Discharge (DoD)?

Depth of Discharge is the percentage of a battery's total capacity that has been used. For example, if you have a 10 kWh battery and you use 8 kWh of energy, the DoD is 80%. It is a measure of how 'empty' the battery is. A battery discharged to its maximum limit is at 100% DoD.

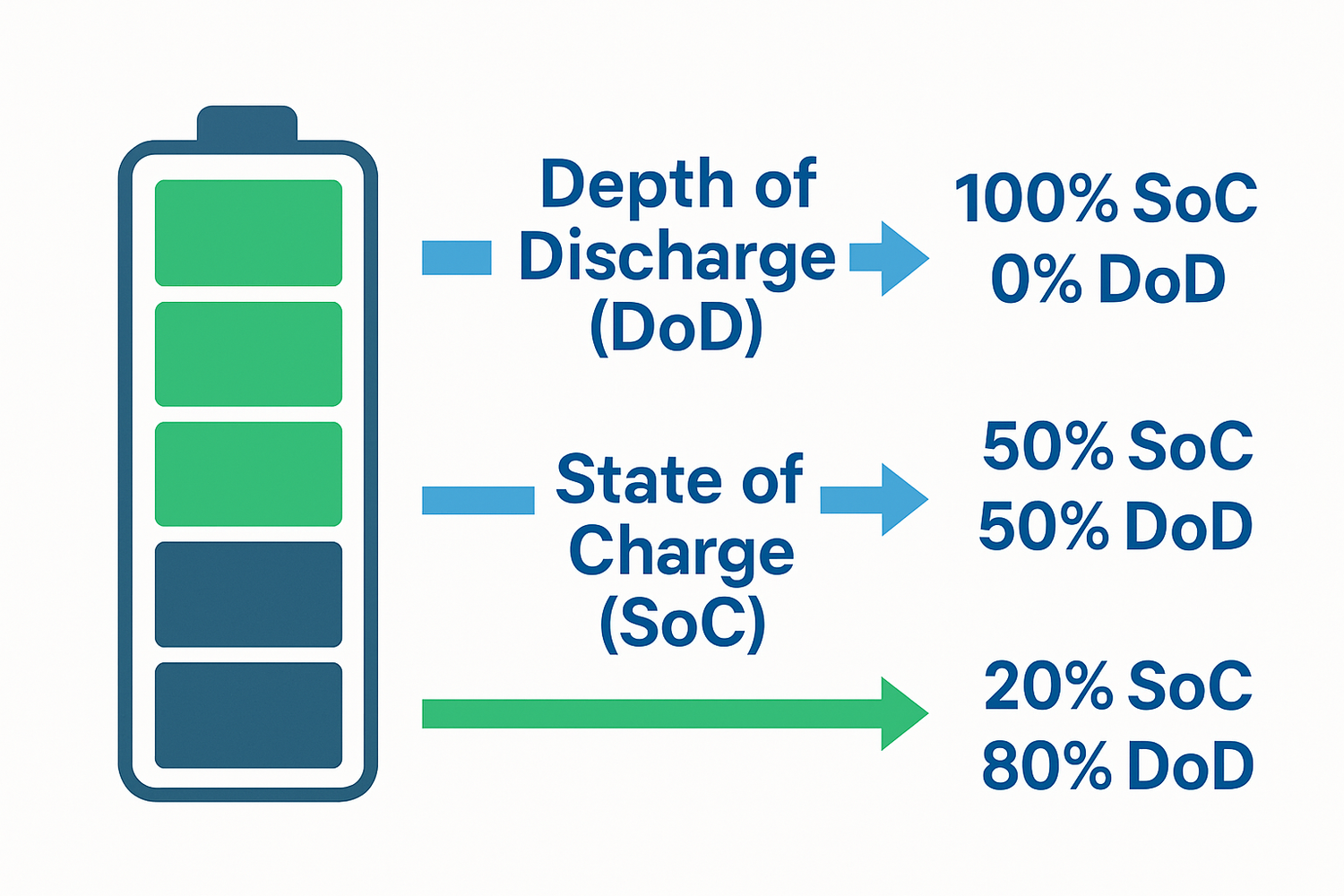

State of Charge (SoC) vs. DoD

State of Charge (SoC) is the inverse of DoD. It represents the remaining charge in a battery as a percentage. If a battery has been discharged by 30% (30% DoD), its SoC is 70%. The relationship is simple: SoC + DoD = 100%. In practice, you often set your system's parameters based on a minimum desired SoC, which in turn controls the maximum DoD.

Defining Cycle Life

A charge cycle is one full charge and subsequent discharge. Cycle life refers to the total number of cycles a battery can undergo before its capacity permanently degrades to a specific threshold, typically 80% of its original rating. A battery with an initial capacity of 100Ah that degrades to 80Ah is considered to have reached the end of its cycle life, even though it may still function at the reduced capacity.

The Direct Impact of DoD on LiFePO4 Battery Longevity

The relationship between how deeply you discharge your LiFePO4 battery and how long it lasts is direct and significant. Consistently pushing a battery to its limits accelerates degradation and shortens its useful life.

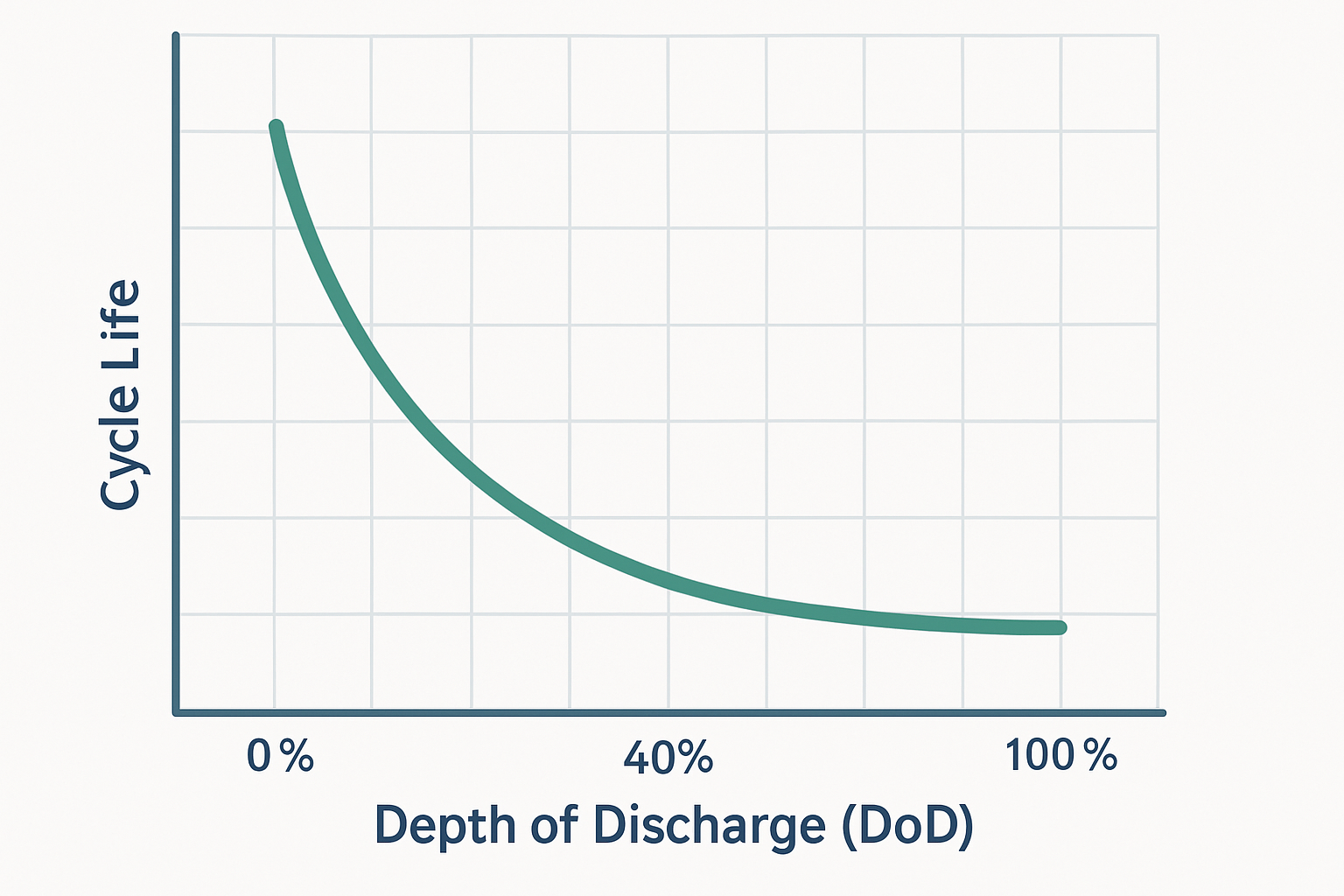

The Inverse Relationship: Lower DoD, Longer Life

There is an inverse relationship between Depth of Discharge and the number of cycles a LiFePO4 battery can provide. Shallower discharge cycles result in a much longer lifespan. For instance, a battery that is regularly discharged to only 50% DoD might provide thousands more cycles than one that is consistently drained to 90% or 100% DoD. This is because deeper discharges place more mechanical and chemical stress on the battery's internal components.

Why Deeper Discharges Accelerate Degradation

Each charge and discharge cycle causes physical changes inside the battery. Lithium ions move between the cathode and anode, causing the materials to expand and contract. Deeper discharges lead to greater expansion and contraction, which can cause micro-cracks and accelerate the breakdown of the electrode materials over time. This process, along with the slow growth of a resistive layer known as the Solid Electrolyte Interphase (SEI), contributes to gradual capacity loss.

Data-Driven Insights on Cycle Life

The difference in cycle life at various DoD levels is not minor. While LiFePO4 batteries are robust enough to handle deep discharges, the impact on longevity is clear. The U.S. Department of Energy actively supports research into extending battery lifespan as a key factor in making renewable energy more viable.

Practical Strategies for Managing DoD

You can actively manage DoD through smart system design and configuration. This allows you to strike a balance between daily energy needs and long-term battery health, protecting your investment.

Sizing Your Battery System Correctly

One of the most effective strategies is to size your battery bank appropriately for your energy needs. A slightly oversized battery bank allows you to meet your daily power requirements without needing to discharge the battery deeply. For example, if your daily consumption is 8 kWh, a 15 kWh battery system would only require a DoD of about 53%, promoting a much longer cycle life compared to a 10 kWh system that would require an 80% DoD.

Configuring Your Inverter and Charge Controller

Modern solar inverters and charge controllers offer programmable settings to protect your battery. You can typically set a 'minimum SoC' or 'low voltage cutoff' level. Setting the minimum SoC to 20% effectively limits the maximum DoD to 80%. This simple configuration prevents the system from regularly draining the battery completely, reserving that deep discharge capability for emergencies.

Balancing Performance and Longevity

Choosing a lower DoD is a strategic trade-off. It requires a larger upfront investment in battery capacity but pays off with a significantly longer operational life and greater system reliability. According to the International Energy Agency (IEA), the rapid growth of battery storage is a critical component of the global energy transition, making longevity and reliability more important than ever. Understanding how to balance these factors is a core part of optimizing your system. For a complete picture of how different factors interact, a detailed guide on solar storage performance provides valuable insights into metrics that define a system's real-world value.

Beyond DoD: Other Factors Affecting LiFePO4 Battery Life

While DoD is a primary driver of battery degradation, other factors also play a role. For optimal health, it is important to consider the battery's entire operating environment.

Operating Temperature

LiFePO4 batteries perform best within a moderate temperature range, typically between 20°C and 45°C (68°F and 113°F). Consistently operating at extreme high or low temperatures can accelerate chemical degradation and reduce both capacity and cycle life, regardless of the DoD.

Charge and Discharge Rates (C-Rate)

The C-rate measures how quickly a battery is charged or discharged relative to its capacity. A 1C rate on a 100Ah battery means charging or discharging at 100 amps. While LiFePO4 batteries can handle high C-rates, consistently using very high rates generates more internal heat and stress, which can shorten the battery's lifespan.

Maximizing Your Energy Investment

Understanding and managing the Depth of Discharge is one of the most powerful tools you have for extending the life of your LiFePO4 batteries. By designing a system that allows for shallower daily cycles and using programmable settings to enforce those limits, you can significantly increase the number of years your battery will perform reliably. This approach turns your energy storage system from a simple power source into a durable, long-term asset, helping you achieve true energy independence.

Frequently Asked Questions

What is the best DoD for a LiFePO4 battery?

For daily use, a maximum DoD of 80% (or a minimum SoC of 20%) is widely recommended as an excellent balance between usable capacity and long-term battery health. For applications where longevity is the absolute priority, limiting DoD to 50-60% can further extend cycle life.

Can I discharge a LiFePO4 battery to 100% DoD?

Yes, LiFePO4 batteries equipped with a Battery Management System (BMS) can be safely discharged to 100% DoD without causing immediate failure. However, making this a regular practice will significantly reduce the battery's total cycle life compared to using shallower discharges. It is best reserved for occasional or emergency situations.

Does leaving a LiFePO4 battery fully charged harm it?

Unlike some other lithium-ion chemistries, LiFePO4 batteries are not significantly stressed when left at a high state of charge (e.g., 100% SoC). The primary factor influencing their degradation is repeated deep discharge cycles, not storage at full charge.
