kW and kWh sit at the center of solar power terminology, yet they often get mixed up. This piece clears the air with practical myths vs facts, plain formulas, and home-ready examples. You will see how kilowatt and kilowatt-hour affect bills, inverter sizing, batteries, and daily comfort.
Quick primer: power vs energy

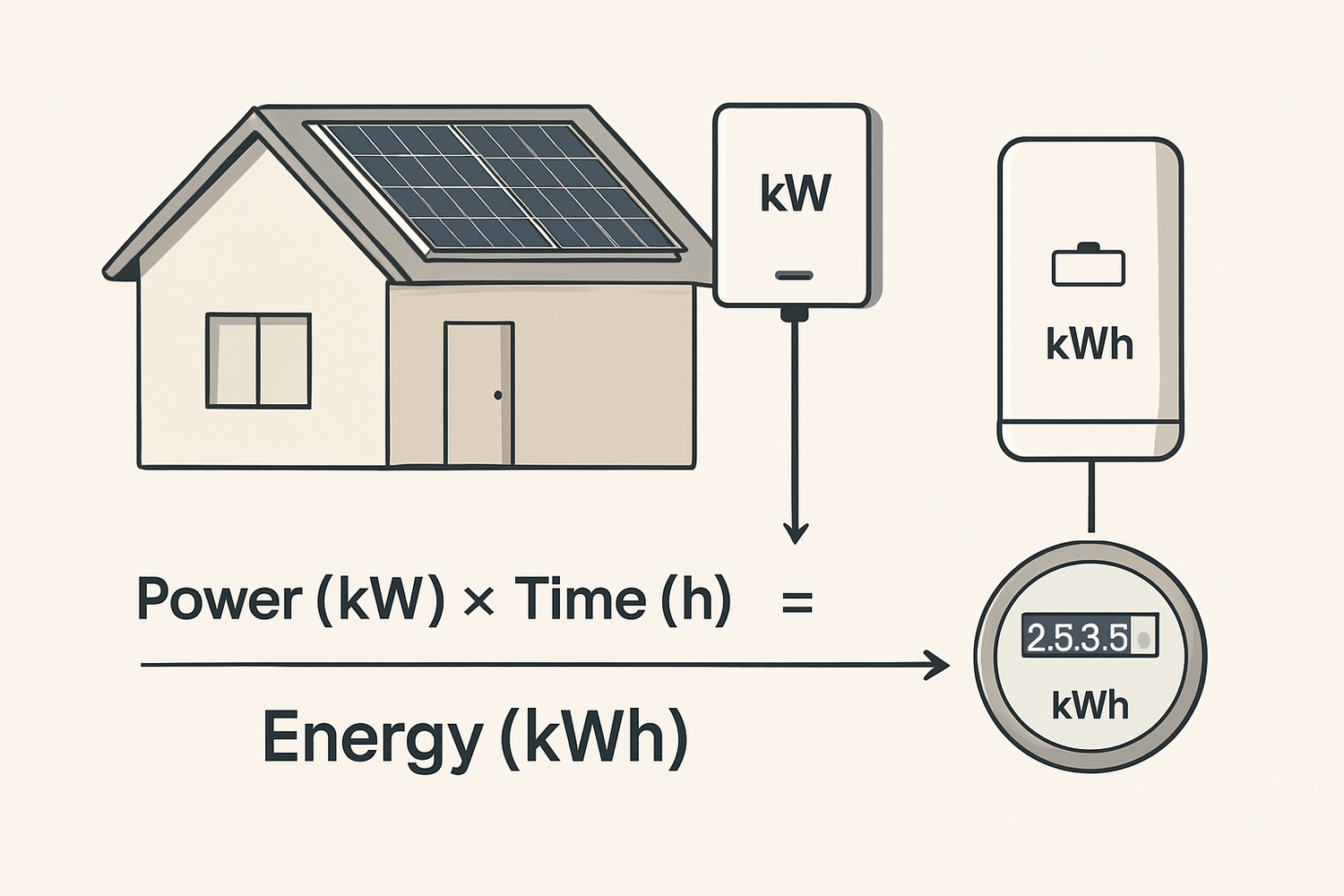

Power is the rate. Energy is the amount. A kilowatt (kW) is power at an instant. A kilowatt-hour (kWh) is energy over time.
- Energy (kWh) = Power (kW) × Time (hours)
- Instantaneous household demand is in kW. Your monthly bill shows kWh.
Global agencies standardize these units across reports and tariffs. See the International Energy Agency unit list and cost expressions in The Power of Transformation. The U.S. Energy Information Administration presents retail prices and usage in $/kWh and kWh on residential billing pages at eia.gov. The U.S. Department of Energy notes that PV output depends on irradiance and system losses, which translate rated kW into daily kWh on energy.gov. IRENA uses the same kW and kWh conventions for cost and performance metrics at irena.org.
Myths vs reality that cost homeowners money
Myth 1: kW and kWh are interchangeable
Reality: kW is power, kWh is energy. A 2 kW kettle running for 0.25 hours uses 0.5 kWh. Bills charge for kWh, not kW, unless a demand fee applies.
Myth 2: A larger inverter (kW) always lowers bills
Reality: A bigger inverter increases peak power capability, not energy savings. Savings link to how many kWh of solar you self-consume and how many kWh you avoid from the grid. Oversizing can add cost without extra kWh.
Myth 3: A 10 kWh battery can deliver 10 kW for one hour
Reality: Deliverable power is limited by the inverter’s kW rating and the battery’s discharge rate (C‑rate). Many residential LiFePO4 packs are set to 0.5C–1C continuous. A 10 kWh pack at 0.5C supports ~5 kW continuous. Check both battery and inverter specs.
Myth 4: A 6 kW PV array produces 6 kW all day
Reality: Nameplate DC kW is at test conditions. Real output swings with sun angle, weather, module temperature, and system losses. Daily energy is kWh, often estimated as array kW × peak sun hours × system efficiency. As DOE notes, BOS and temperature losses reduce AC output, so design for kWh, not just kW nameplate.
kW vs kWh on tariffs, demand, and time-of-use
Most homes pay an energy charge in $/kWh. Some utilities also add a demand component based on the highest 15–30 minute average kW in the billing cycle.
According to the IEA’s Next Generation Wind and Solar Power, tariffs can include a demand charge for the monthly maximum demand and time-based energy prices. These structures reward shifting kW peaks away from constrained hours and trimming peak demand. The full discussion appears in the extended report at this IEA page.
Key takeaways for homes:
- Energy charge ($/kWh): lower your total kWh from the grid via solar self-consumption and efficiency.
- Time-of-use: move flexible loads to off-peak periods or use a battery to discharge during peak windows.
- Demand charge (kW): reduce coincident peaks by staggering appliances or using a battery to shave the monthly maximum.
Billing structures vary by region. Non-legal advice. Always check your utility tariff documents.
Spec sheet sanity check: what the numbers tell you
- Inverter continuous rating (kW): the sustained AC output you can draw. Surge rating (often in kVA) supports motor start spikes for a few seconds.
- Battery capacity (kWh): stored energy. Usable energy is typically 80–95% of nameplate depending on BMS settings and warranty terms.
- Battery discharge rate (C‑rate): 1C drains the full capacity in 1 hour. For a 10 kWh pack, 0.5C ≈ 5 kW continuous.
- PV array size (kWdc): DC rating at test conditions. Expected AC output (kWac) is lower after inverter and BOS losses. See unit conventions in the IEA’s report.
At-a-glance comparison
| Aspect | kW (kilowatt) | kWh (kilowatt-hour) |
|---|---|---|
| What it is | Power at an instant | Energy over time |
| On bills | Sometimes for demand charges | Always for energy charges |
| Solar spec | Inverter rating, array peak output | Daily/monthly production |
| Battery spec | Max charge/discharge rate | Stored energy capacity |
| How to control | Stagger loads, shave peaks | Produce/store more, use less |
Home scenarios: same kWh, different kW
Two homes can use the same monthly kWh yet pay different bills or need different equipment because their kW peaks differ.
| Metric | Home A: Smooth loads | Home B: Spiky loads |
|---|---|---|
| Monthly usage | 600 kWh | 600 kWh |
| Peak demand | 3.2 kW | 7.5 kW |
| Likely inverter size | 5 kW | 8–10 kW |
| Battery discharge need | 3–4 kW for peak hours | 6–8 kW for short bursts |
| Demand charge exposure | Lower | Higher |
Energy is equal, yet Home B needs higher kW capability for comfort and may face higher demand fees if the tariff includes them. The IEA notes that demand-based components can materially affect bills and favor load management (source).
Appliance reality check
| Appliance | Power (kW) | Energy in 1 hour (kWh) | Notes |
|---|---|---|---|
| Heat pump (running) | 1.2–2.5 | 1.2–2.5 | Higher during defrost/start |
| Induction cooktop (one zone) | 1.4–2.0 | 1.4–2.0 | Short cycles |
| Electric water heater | 3.0–4.5 | 3.0–4.5 | Stagger with other loads |
| Clothes dryer | 2.5–5.0 | 2.5–5.0 | Good candidate for off-peak use |
| Fridge | 0.07–0.2 | 0.07–0.2 | Cycles on/off |
Tip: Avoid starting the dryer, water heater, and oven at the same time. You cut peak kW without sacrificing daily kWh use.
Formulas that remove confusion
- Energy from a device: kWh = (device kW) × (hours used)
- Annual PV energy (rough estimate): kWh/year ≈ kWdc × peak sun hours × 365 × system efficiency
- Battery backup time (estimate): hours ≈ usable kWh ÷ average load kW
- Demand calculation (typical): highest 15-minute average kW in the billing period
These align with agency usage of kW and kWh in tariffs and technology metrics in IEA, EIA, DOE, and IRENA publications (IEA, EIA, DOE, IRENA).
Solar + storage: focusing on the right number at the right time
PV selection
Match array kW to roof area, budget, and daily kWh goal. A 6 kWdc array in a 5 peak-sun-hour region with 75–85% net system efficiency might yield roughly 22–26 kWh/day. Actual results vary with shading, orientation, and seasonal weather (DOE context).
Inverter sizing
Size the inverter to meet your simultaneous loads plus desired solar clipping tolerance. Typical inverter efficiency is ~95–98%. Oversizing DC relative to AC (e.g., DC/AC ratio 1.2–1.4) can boost kWh harvest in mornings and afternoons while accepting brief mid‑day clipping.
Battery selection
Pick kWh for outage duration and time-of-use shifting. Pick kW (inverter plus pack discharge rate) for peak shaving and appliance starts. LiFePO4 chemistry offers stable cycle life and flexible C‑rates for home ESS use. Usable capacity depends on BMS settings and warranty terms.
Worked example: a balanced home setup
Assume daily use of 20 kWh. The goal is bill reduction under a time-of-use plan and coverage for short outages.
- PV: 5.5 kWdc array. In a 4.5 peak-sun-hour zone at 80% net efficiency, expected daily PV ≈ 5.5 × 4.5 × 0.80 ≈ 19.8 kWh.
- Inverter: 6 kWac to support cooking (2 kW), a heat pump (2 kW), and background loads (~1–1.5 kW) without trips.
- Battery: 10 kWh nameplate, ~8.5 kWh usable. Discharge rate set to 0.75C peak via inverter, enabling ~6–7 kW short bursts for cooking plus HVAC starts.
Operation plan:
- Charge the battery off PV mid‑day.
- Discharge during peak tariff windows for 2–4 hours to cut $/kWh and shave kW spikes.
- Keep a reserve for brief outages.
This setup targets both kWh savings and kW control, matching IEA’s observation that time-based and demand components shape value streams for distributed energy (IEA).
Step-by-step: pick the right numbers
- List your top five loads and their kW. Note start-up surges for motors.
- Add their typical simultaneous kW to size the inverter and peak shave target.
- Total your daily kWh from bills or a smart meter to set PV and battery kWh goals.
- Map your tariff: off‑peak, mid‑peak, peak. Use the battery to shift expensive kWh and trim peak kW. Time-based and demand elements are documented by the IEA for industry structures, and similar concepts appear in residential plans (reference).
Why this matters for independent energy
Focusing on both units keeps projects practical. kWh drives long‑term savings. kW keeps lights on during busy moments. LiFePO4 home systems, hybrid inverters, and integrated ESS bring flexible options to match your real usage profile. Prioritize safety, right‑sized wiring, and clear spec checks across PV, inverter, and storage. Agencies like IEA, EIA, DOE, and IRENA align on these units and metrics, keeping decisions comparable and grounded.
FAQ
Does a higher kW inverter increase my solar kWh?
No. Inverter kW affects peak power capacity. Solar kWh depends on irradiance, array size, orientation, and losses. A right‑sized inverter avoids clipping most of the time while staying cost‑effective.
How many kWh should my battery have?
Pick usable kWh based on outage hours and time-of-use goals. For example, to cover 3 hours at a 3 kW average load, you need ~9 kWh usable. Add headroom for surges and round‑trip losses.
Can a battery cut demand charges?
Yes, if the plan includes a demand component. Use the battery to discharge during your highest 15–30 minute windows to cap the monthly peak kW. The IEA documents demand-based charges in energy tariffs (source).
Why do bills show kWh, not kW?
Energy consumed over time determines most residential costs, so utilities bill per kWh. Some plans also track peak kW for a separate fee. Check your tariff sheets. Non-legal advice.
Is DC/AC ratio important?
Yes. A DC/AC ratio around 1.2–1.4 can raise total kWh harvest at the cost of brief mid‑day clipping. Balance roof space, inverter size, and local climate.
Disclaimer: Rates, incentives, and equipment rules vary by location. Non-legal advice. Consult local codes, utility documents, and qualified professionals.
