Understanding the Depth of Discharge (DoD) for a Lithium Iron Phosphate (LiFePO4) battery is fundamental to maximizing its operational life. While these batteries are known for their resilience, managing how deeply you discharge them directly influences their longevity. This approach moves beyond simple usage to a strategic management of your energy asset, ensuring you get the most value from your investment in a home battery storage system.
The Core Relationship: DoD and Cycle Life
The connection between how much of a battery's capacity you use and how many cycles it will last is a foundational concept in energy storage. For LiFePO4 batteries, this relationship is more forgiving than with older technologies, but the principles remain critical for optimization.
What is Depth of Discharge?
Depth of Discharge is the percentage of a battery's total capacity that has been discharged. If you have a 10 kWh battery and you use 8 kWh of energy, you have discharged it to 80% DoD. The remaining 2 kWh represents a 20% State of Charge (SoC). Think of it like a water tank: DoD is how much water you take out before refilling.

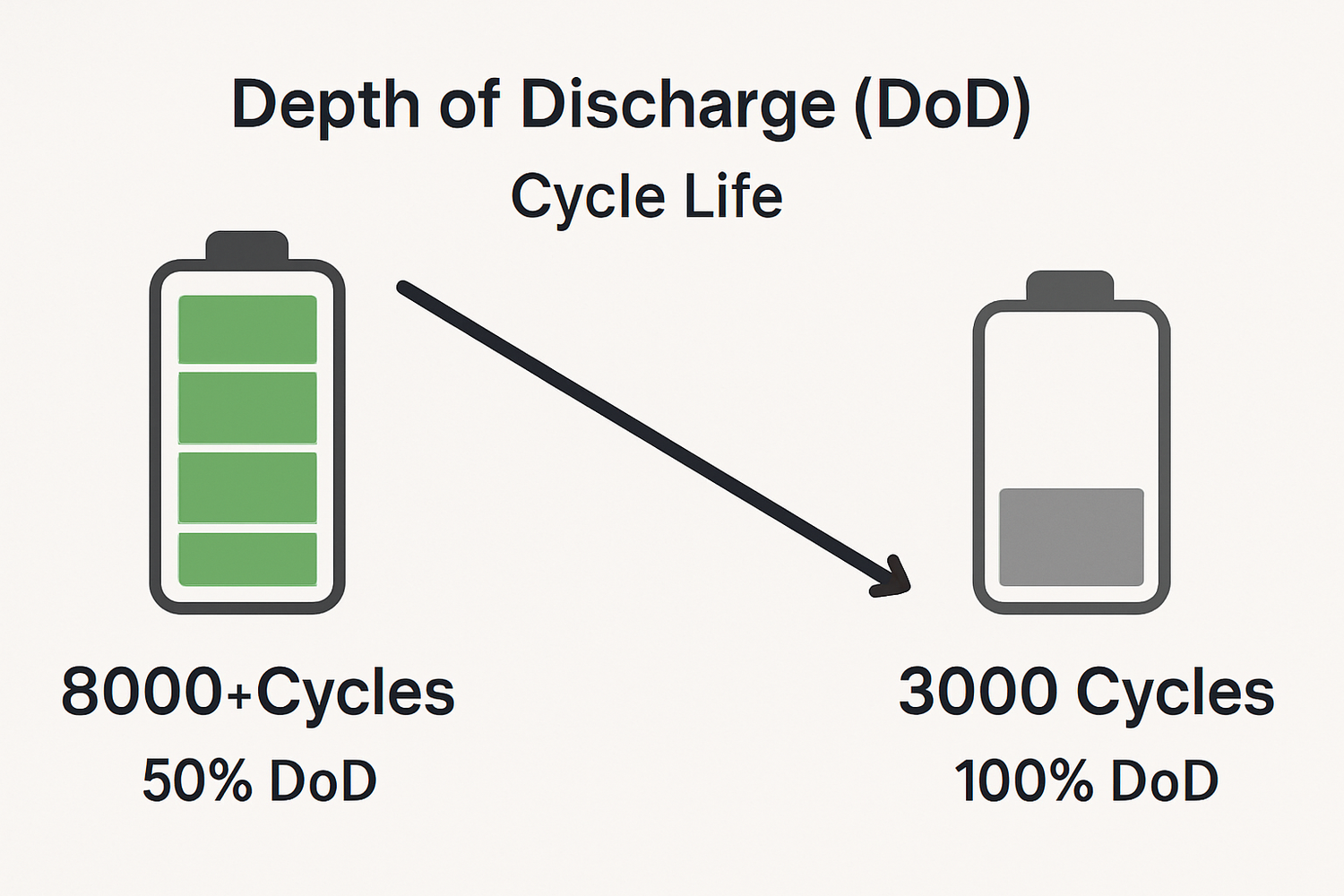

The Inverse Correlation Between DoD and Cycles
A direct, inverse relationship exists between the Depth of Discharge and the number of charge/discharge cycles a battery can endure. A deeper discharge places more strain on the battery's internal components, leading to a shorter cycle life. Conversely, shallower discharges result in a significantly longer lifespan. High-quality LiFePO4 batteries can handle deep discharges, but there is always a trade-off.
| Depth of Discharge (DoD) | Estimated Cycle Life |
|---|---|
| 100% | 3,000+ Cycles |
| 80% | 5,000+ Cycles |
| 50% | 8,000+ Cycles |
Note: These are typical estimates. Actual cycle life can vary based on battery quality, operating temperature, and charge/discharge rates.
Why LiFePO4 Chemistry is Different
Compared to traditional lead-acid batteries, which can be permanently damaged by deep discharges, LiFePO4 chemistry is exceptionally robust. Its stable chemical structure is less prone to the degradation that plagues other battery types. This resilience is a primary reason LiFePO4 has become the standard for reliable solar energy storage systems. The U.S. Department of Energy continues to support research into improving battery lifespan and durability to better integrate renewable energy sources into the grid.
The Role of the Battery Management System (BMS)
The Battery Management System (BMS) is the intelligent core of a modern lithium battery pack. It plays a crucial role in protecting the battery and enforcing the DoD limits that safeguard its longevity.
Your Battery's Guardian
A BMS is far more than a simple on/off switch. It is a sophisticated electronic system that monitors key parameters like individual cell voltage, temperature, and current. Its primary function is to keep every cell within a safe operating range, preventing conditions that could lead to damage or a shortened lifespan, such as over-charging or over-discharging.
Setting DoD Limits Through Voltage Cutoffs
The BMS effectively controls the maximum Depth of Discharge by establishing a low-voltage cutoff point. When the battery's voltage drops to this predetermined level during discharge, the BMS will intervene and disconnect the battery from the load. This action prevents the cells from being drained too deeply, thereby enforcing the desired DoD and protecting your investment.
Balancing Performance and Longevity
The ability to configure BMS settings provides a powerful tool for balancing daily energy needs with long-term battery health. Setting a lower voltage cutoff (resulting in a shallower DoD) will extend cycle life, while a higher cutoff allows you to use more of the battery's capacity in each cycle. Making an informed decision requires understanding various performance metrics. For a detailed examination of these factors, the Ultimate Reference for Solar Storage Performance offers valuable data to help you tailor your system to your specific goals.
Practical Strategies for DoD Optimization
Applying the knowledge of DoD can be achieved through smart system design and usage patterns. Proper planning ensures your system operates efficiently for years to come.
Right-Sizing Your Battery Bank
One of the most effective strategies is to size your battery bank appropriately for your energy consumption. A slightly oversized battery bank allows you to meet your daily power needs with shallower discharge cycles. For instance, if your home uses 6 kWh of energy overnight, a 12 kWh battery would only require a 50% DoD, placing minimal stress on the cells and promoting a very long life.
Considering Your Application
The optimal DoD strategy can differ based on the application. An off-grid home may need to utilize a deeper discharge during long periods of cloudy weather out of necessity. In contrast, a grid-connected home can use the battery for peak shaving or time-of-use arbitrage, often relying on shallower, more frequent cycles. The International Renewable Energy Agency (IRENA) notes that battery storage is essential for providing this kind of flexibility to modern power grids.
LiFePO4 Deep Discharge Realities
While the theory points to shallower cycles for longer life, the practical capabilities of modern LiFePO4 batteries offer significant flexibility. The International Energy Agency (IEA) recognizes that scaling up battery storage is crucial for the clean energy transition, highlighting the need for robust and reliable technology.
Can You Really Use 100% DoD?
Yes, premium LiFePO4 batteries are engineered to be capable of 100% Depth of Discharge without immediate damage. This is a testament to their advanced chemistry and construction. However, it is vital to remember the trade-off: consistently using 100% DoD will result in a lower total number of cycles compared to shallower discharging. For applications where maximizing immediate capacity is more critical than achieving the absolute longest lifespan, this is a viable option.
The Quality Factor
The ability to reliably handle deep discharges comes down to the quality of the battery's components. Grade-A cells and a well-designed, industrial-grade BMS are non-negotiable. These elements ensure that even at high DoD levels, the battery operates safely and delivers its rated performance over time. Investing in a high-quality lithium ion solar battery from a reputable manufacturer is the best way to ensure you have the flexibility to use your battery as your needs demand.
A Strategic Approach to Battery Health
Managing the Depth of Discharge in your LiFePO4 battery is less about imposing strict limitations and more about making informed choices. By understanding the relationship between DoD and cycle life, leveraging the protective capabilities of a high-quality BMS, and designing your system thoughtfully, you can unlock a longer, more reliable service life. This strategic approach ensures your energy storage system remains a dependable and valuable asset for years.
Frequently Asked Questions
What is the ideal DoD for a LiFePO4 battery?
There isn't a single 'ideal' DoD; it depends on your objectives. For maximum longevity, a shallower DoD of 50-70% is excellent. To maximize usable capacity where cycle life is a secondary concern, 80-90% is a common and effective range. High-quality LiFePO4 batteries can handle 100% DoD, but this comes with a reduction in the total number of available cycles.
Does leaving a LiFePO4 battery at a low state of charge cause damage?
Unlike lead-acid batteries, leaving a LiFePO4 battery at a low state of charge (e.g., 20%) is not immediately harmful. The BMS is designed to prevent the battery from discharging to absolute zero, which would damage the cells. However, it is best practice to avoid leaving the battery fully discharged for prolonged periods.
How does the BMS protect against LiFePO4 deep discharge impact?
The Battery Management System (BMS) acts as the battery's brain, continuously monitoring the voltage of each internal cell. If any cell's voltage drops to a pre-set low-voltage threshold, the BMS will automatically disconnect the battery from the load. This action prevents further discharge and protects the battery from the potential damage of an excessive deep discharge event.
