The Ultimate Guide to LiFePO4 Battery Thermal Management Systems

Lithium iron phosphate (LiFePO4) batteries are renowned for their safety, longevity, and performance, making them a top choice for solar energy storage systems. However, to unlock their full potential, maintaining them within a specific temperature range is essential. A Battery Thermal Management System (BTMS) is the key to achieving this, ensuring your battery operates efficiently and safely for years. This text explains the importance of thermal management, explores different strategies, and helps you understand how these systems protect your energy investment.

Why Temperature Regulation is Crucial for LiFePO4 Batteries

Temperature directly influences the electrochemical reactions inside a battery. Both excessive heat and extreme cold can negatively affect performance, safety, and lifespan. Proper LiFePO4 battery thermal management is not just an accessory; it's a fundamental requirement for a reliable energy storage solution.

The Impact of High Temperatures

Elevated temperatures can accelerate the degradation of battery components. Operating a LiFePO4 battery consistently above its recommended range can lead to a reduction in cycle life and permanent capacity loss. While LiFePO4 chemistry is inherently more stable and less prone to thermal runaway than other lithium-ion types, extreme heat still increases safety risks. Managing heat is a critical aspect of ensuring long-term stability.

The Challenge of Low Temperatures

Cold temperatures present a different set of challenges. As the temperature drops, the internal resistance of the battery increases, which slows down the electrochemical reactions. This results in reduced capacity and lower discharge rates. Charging a LiFePO4 battery below freezing (0°C or 32°F) is particularly problematic, as it can cause lithium plating, a condition that can permanently damage the cell and reduce its safety. Most modern Battery Management Systems (BMS) will prevent charging in these conditions.

The Optimal Operating Temperature Range

LiFePO4 batteries perform best within a specific temperature window. The ideal operating range is generally considered to be between 15°C and 35°C (59°F to 95°F). While the acceptable discharge range is much wider, typically from -20°C to 60°C (-4°F to 140°F), operating consistently at these extremes will compromise the battery's health and longevity. Maintaining the battery within its optimal range ensures maximum efficiency and extends its service life.

Core Strategies for Battery Thermal Management

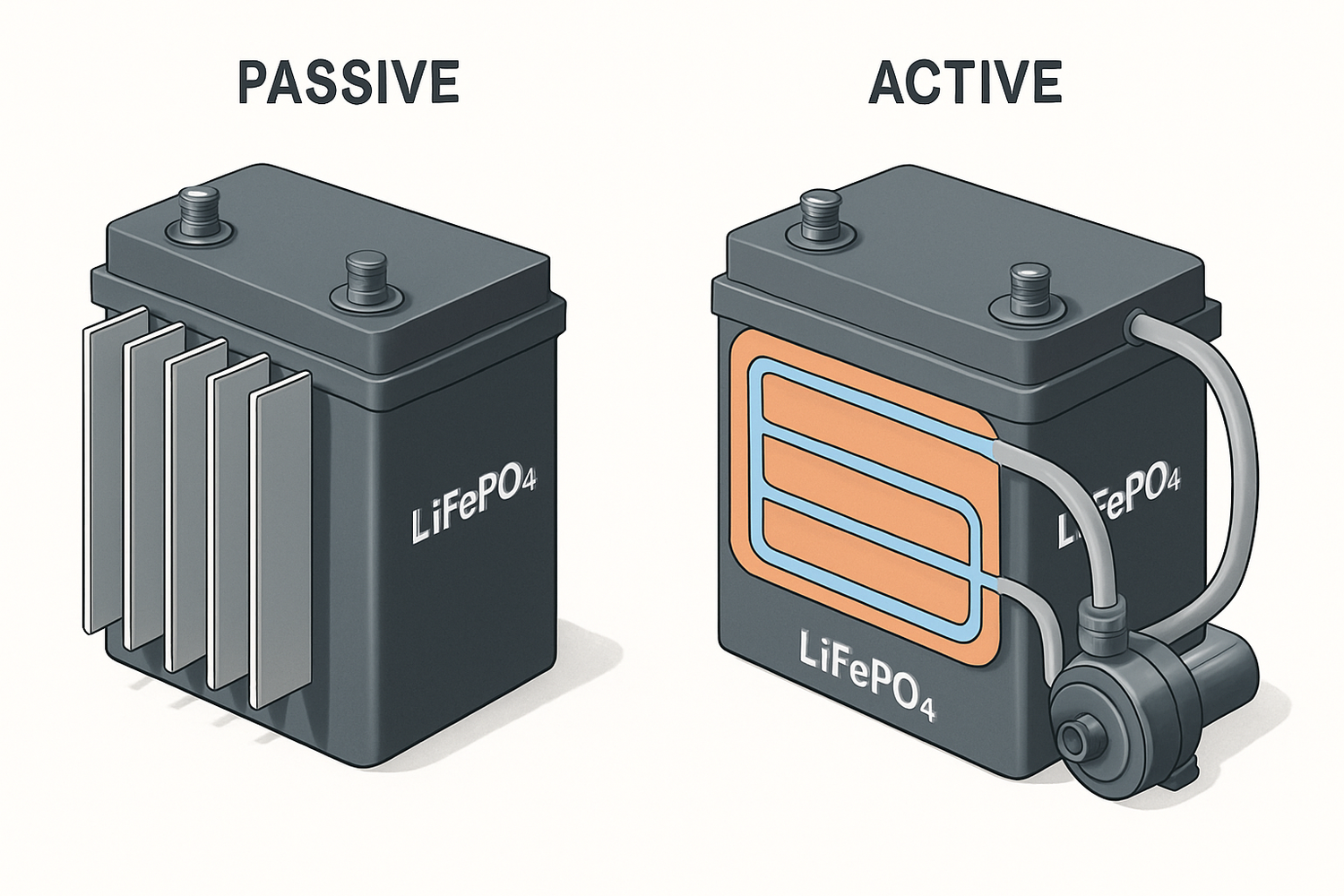

A battery thermal control system can be designed using several different approaches, primarily categorized as passive, active, or hybrid systems. The choice depends on the application, environmental conditions, and performance requirements.

Passive Thermal Management Systems

Passive systems regulate temperature without consuming additional energy. They rely on natural heat transfer principles like conduction, convection, and radiation. Common methods include:

• Heat Sinks and Fins: These components increase the surface area of the battery pack, allowing heat to dissipate more effectively into the surrounding air.
• Phase Change Materials (PCMs): PCMs absorb heat as they melt and release it as they solidify, helping to stabilize the battery's temperature during periods of high load. According to a report by the International Renewable Energy Agency (IRENA), PCMs are a promising technology for thermal storage in buildings and can be adapted for battery systems. Innovation outlook: Thermal energy storage highlights how these materials can manage thermal loads effectively.

Passive systems are simple, cost-effective, and reliable but may not be sufficient for high-power applications or extreme climates.

Active Thermal Management Systems

Active systems use external power to move a cooling or heating medium, offering much more precise temperature control. These are more complex but highly effective. Key active strategies include:

• Forced-Air Cooling: Fans or blowers circulate air around the battery modules. This is a straightforward active method but can be limited in its cooling capacity.
• Liquid Cooling: A coolant, typically a water-glycol mixture, circulates through pipes or cooling plates integrated into the battery pack. This method is very efficient at removing heat and is common in demanding applications.

Active systems provide superior performance, but they add complexity, cost, and a small energy overhead known as parasitic draw.

Designing an Effective LiFePO4 Battery Thermal Control System

A well-designed BTMS integrates seamlessly with the battery pack to provide reliable and efficient temperature regulation. It involves several key components and design considerations.

Key Components of a BTMS

An effective thermal management system typically consists of three main parts:

1. Sensors: Temperature sensors are placed throughout the battery pack to monitor the temperature of individual cells and modules in real-time.
2. Control Unit: This is the brain of the system. It processes data from the sensors and decides when to activate heating or cooling. It often works in conjunction with the main BMS.
3. Actuators: These are the components that perform the temperature regulation, such as fans, pumps, or electric heaters.

Integration with the Battery Management System (BMS)

The BTMS and BMS are deeply interconnected. The BMS monitors the voltage, current, and state of charge of each cell, while the BTMS focuses on temperature. The BMS can communicate with the BTMS to request cooling during high-rate charging or to prevent charging in freezing conditions, ensuring both safety and optimal performance.

Factors Influencing System Design

The design of a LiFePO4 battery heat dissipation system depends on several factors. The local climate is a primary consideration—a system in a hot desert will have different needs than one in a cold northern region. High charge and discharge rates generate more heat, requiring a more robust cooling solution. The physical enclosure of the battery and its ventilation also play a critical role in thermal performance. As noted in a report by the International Energy Agency (IEA), smart controls are essential for managing energy systems efficiently, which includes thermal management. Clean Energy Innovation emphasizes the importance of co-ordinating support for technologies like advanced battery designs and smart controls.

Practical Applications and Performance Metrics

Effective thermal management is vital across all applications, from residential solar storage to mobile off-grid setups.

Residential Energy Storage

For a home battery storage system, a BTMS ensures reliability and longevity. It protects the battery from daily and seasonal temperature swings, guaranteeing that stored energy is available when needed. By maintaining the battery's health, it secures the long-term value of the investment in energy independence. Understanding these performance metrics is key. For a deeper analysis of how temperature affects capacity and efficiency, you can review this comprehensive reference on solar storage performance.

Off-Grid and Mobile Solutions

In off-grid applications, batteries are often exposed to more extreme and unpredictable environmental conditions. A robust BTMS is essential to ensure the system operates reliably, whether it's powering a remote cabin or a mobile workstation. Some systems even include a heating function to ensure the battery can be safely charged in sub-zero temperatures.

Evaluating BTMS Effectiveness

The success of a BTMS is measured by its ability to maintain temperature uniformity across the entire battery pack, minimize its own energy consumption (parasitic load), and contribute to the overall efficiency of the energy storage system. Advanced thermal modeling, as described in projects supported by the U.S. Department of Energy, helps optimize these systems before they are even built. EERE Success Story—Small Wonder: New Converter and Wiring Setup Can Improve Photovoltaic Module Performance shows how thermal modeling can ensure components meet stringent safety and performance standards.

Final Thoughts on System Longevity and Safety

A Battery Thermal Management System is a critical component that safeguards the performance, safety, and lifespan of a LiFePO4 battery. By mitigating the damaging effects of extreme temperatures, a BTMS ensures that an energy storage system operates reliably and efficiently. Investing in a system with proper thermal management directly translates to a greater return on investment and lasting peace of mind.
