Shading is a primary obstacle to peak solar panel performance. A shadow from a tree, chimney, or adjacent building can significantly reduce a system's energy output. To counter this, two leading technologies have emerged: multi-MPPT string inverters and Module-Level Power Electronics (MLPE). Choosing the correct one is crucial for the efficiency and financial return of your solar investment.
The Challenge of Shading on Solar Arrays
How Shading Impacts Traditional Systems
In a basic solar setup, panels are connected in series to form a 'string'. This string feeds into a central inverter. If one panel in this string is shaded, its power output drops. Because of the series connection, this single underperforming panel can restrict the energy flow of the entire string, much like a kink in a hose. While modern panels have bypass diodes to mitigate the worst of this 'Christmas light effect', a substantial performance loss can still occur across the whole group of panels.
Quantifying Performance Loss
The impact of shading is not trivial. Even partial or moving shadows can cause disproportionate drops in energy production. This directly affects your electricity savings and the system's payback period. As solar cell technology advances, maximizing the output from every panel becomes even more important. According to a report by the IEA, modern solar cells are significantly more efficient than those from just a few years ago, making it critical to harvest every possible watt. The Solar PV Global Supply Chains study highlights that advanced cell designs promise further efficiency gains, which effective power management technologies can help realize.
Solution 1: The Multi-MPPT String Inverter Approach
What is a Multi-MPPT String Inverter?
A Maximum Power Point Tracker (MPPT) is a device that optimizes the electrical output of a string of solar panels. A standard string inverter might have one or two MPPTs. A multi-MPPT inverter features several MPPTs within a single unit. This design allows you to create multiple, independent strings of panels on the same inverter. Each string's performance is optimized separately by its dedicated MPPT controller.
Strategic System Design with Multiple MPPTs
The practical application of a multi-MPPT inverter is to group panels with similar conditions onto separate strings. For instance, if your roof has an east-facing and a west-facing section, you would connect all the east-facing panels to one MPPT and all the west-facing panels to another. If the east-facing string is shaded in the afternoon, its reduced production will not affect the output of the west-facing string, which is operating in full sun. This approach effectively isolates the impact of predictable shading.
Advantages and Limitations
The primary benefit of a multi-MPPT inverter is its balance of cost and performance. It is generally more affordable than a full MLPE solution and involves a simpler installation with fewer electronic components on the roof. However, its optimization is at the string level, not the panel level. If complex or moving shade affects several panels within a single string, the entire string's output will still be compromised.
Solution 2: Module-Level Power Electronics (MLPE)
Understanding MLPE: Microinverters and Power Optimizers
MLPE is a category of devices that perform power optimization at the individual solar panel. There are two main types:
- Power Optimizers: These are small electronic devices attached to the back of each solar panel. They condition the DC electricity from each panel, adjusting voltage to maximize energy harvest before sending the power to a central string inverter.
- Microinverters: A microinverter is also attached to each panel, but it converts the DC electricity into AC electricity right at the source. This eliminates the need for a central string inverter entirely.
The Granular Advantage of Panel-Level Optimization
The key benefit of MLPE is granular control. Each solar panel operates as an independent power producer. A shaded or soiled panel will not affect the performance of any other panel in the array. This makes MLPE an excellent solution for rooftops with complex layouts, multiple angles, or unpredictable shading patterns. Additionally, these systems offer detailed monitoring, allowing you to track the performance of every single panel.
Weighing the Pros and Cons
MLPE systems typically yield the maximum possible energy from a solar array, especially in challenging shade conditions. They also offer enhanced safety features like panel-level rapid shutdown. The main drawbacks are a higher upfront cost and increased system complexity, with more electronic components installed on the roof that could potentially require service over the system's lifetime.

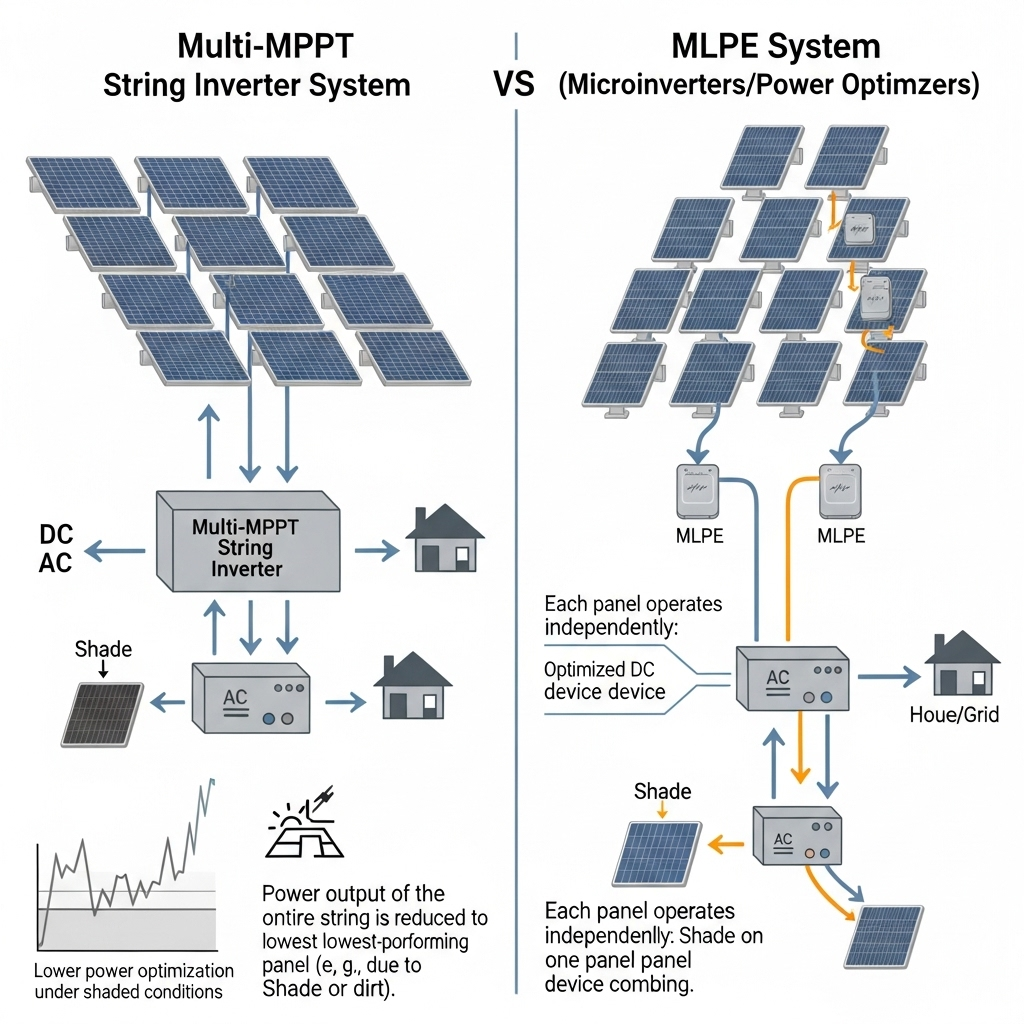

Head-to-Head Comparison: Multi-MPPT vs. MLPE
Choosing the right technology depends on a careful evaluation of your specific needs. The table below provides a direct comparison.
| Feature | Multi-MPPT String Inverter | MLPE (Optimizers/Microinverters) |
|---|---|---|
| Performance in Shade | Good for predictable, uniform shading on separate strings. | Excellent for complex, moving, or partial-panel shading. |
| Upfront Cost | Lower | Higher |
| System Complexity | Simpler. Fewer components on the roof. | More complex. An electronic device for every panel. |
| Maintenance & Reliability | Centralized inverter is easier to access for service. Fewer potential failure points. | Components on the roof can be harder to service. More potential failure points. |
| Monitoring Capability | String-level monitoring is standard. | Panel-level monitoring provides granular data. |
Making the Right Choice for Your Rooftop
When to Choose a Multi-MPPT String Inverter
A multi-MPPT inverter is an effective and budget-friendly choice for rooftops with simple layouts and distinct shading patterns. If you have a gable roof where one side gets morning shade and the other gets afternoon shade, this technology is often sufficient. It provides a significant performance boost over a basic single-MPPT inverter without the higher cost of MLPE.
When MLPE is the Clear Winner
MLPE is the superior option for complex rooftops with dormers, vents, multiple angles, and orientations. It is also the best choice if your roof experiences significant or moving shade from trees or nearby structures. If your primary goal is to maximize every watt of energy production and you desire the visibility of panel-level monitoring, MLPE is the recommended path.
The Importance of System Performance
The choice of inverter technology directly impacts your system's overall efficiency and long-term financial returns. A deep analysis of solar storage performance reveals that component matching is critical. As detailed in the ultimate reference for solar storage performance, the inverter's ability to manage variable input from panels is a key factor in the system's lifetime energy yield. Efficiently managing generation at the source, as both technologies aim to do in different ways, is fundamental to a high-performing system.
Final Considerations for Your Solar Project
Ultimately, the decision between a multi-MPPT string inverter and MLPE depends on your roof's specific characteristics, your energy production goals, and your budget. There is no universal 'best' solution. A thorough shading analysis performed by a qualified professional can provide the data needed to make an informed choice. This ensures you select the technology that delivers the most value for your unique situation. As inverter-based resources become more integral to power systems, making the right choice is more important than ever. The International Renewable Energy Agency (IRENA) notes that advanced inverters are key to system stability, as discussed in their report Grid Codes for Renewable Powered Systems.
Disclaimer: This information is for educational purposes only. It is not financial or legal advice. Consult with a qualified solar professional and a financial advisor to assess your specific situation.
Frequently Asked Questions
Can you mix different solar panel models with a multi-MPPT inverter?
It is possible, but not recommended for optimal performance. Each string connected to a single MPPT should ideally have identical panels. If you must mix panels, they should have very similar electrical characteristics and be on separate MPPT inputs.
Do MLPEs work with any string inverter?
Power optimizers are typically designed to work with a specific brand of compatible string inverter. Microinverters, on the other hand, eliminate the need for a central string inverter altogether, as they output AC power directly.
What is the lifespan of MLPE devices compared to a string inverter?
MLPE devices (microinverters and optimizers) often come with a 25-year warranty, matching the typical warranty of solar panels. String inverters usually have a shorter warranty, typically 10-15 years, though extensions are often available.
Does MLPE technology improve the efficiency of the solar panels themselves?
No, MLPE does not change the inherent efficiency of a solar panel. Instead, it optimizes the power harvesting of the system by ensuring each panel operates at its individual maximum power point, preventing underperforming panels from dragging down the output of others.
