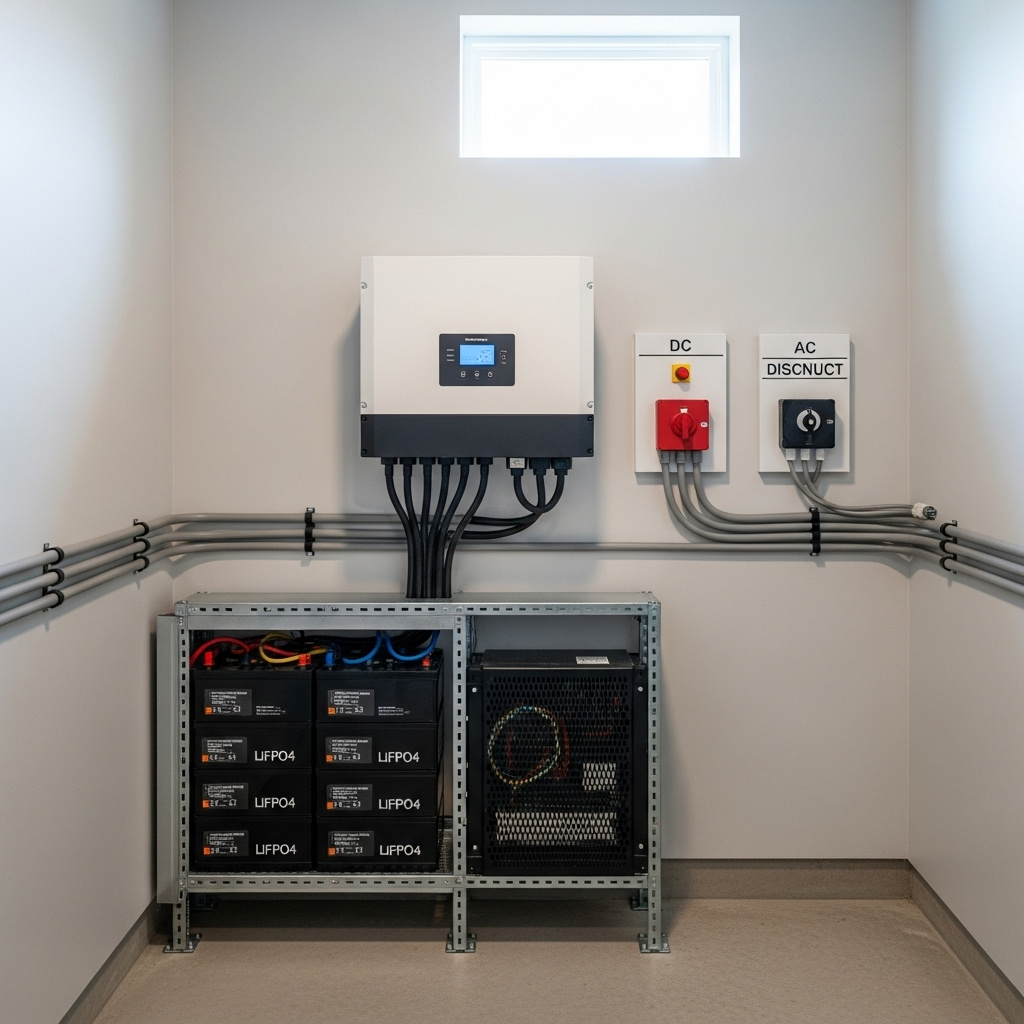

Building an off-grid solar and energy storage system offers true energy independence. Yet, this freedom comes with the responsibility of ensuring safety and reliability. The National Electrical Code (NEC) provides the essential framework for this. Specifically, Article 690 for Solar Photovoltaic (PV) Systems and Article 706 for Energy Storage Systems (ESS) are the foundational standards. This roadmap outlines the key requirements to design and install an off-grid PV+ESS that is both powerful and compliant.
Foundational Principles: NEC 690 and Your PV Array
NEC Article 690 addresses the solar-specific components of your system, from the panels down to the wiring that connects to your charge controller or inverter. Adherence to these rules is the first step in a safe installation.
Critical Disconnecting Means
A fundamental safety requirement is the ability to de-energize your PV array. NEC 690 mandates a disconnecting means to isolate the PV system from all other conductors. This allows for safe maintenance and emergency response. The disconnect must be readily accessible and clearly labeled. For an off-grid system, this typically involves a DC disconnect switch located between the solar panels and the charge controller.
Conductor Sizing and Protection
The wires, or conductors, that carry power from your solar array are a critical component. Their size must be calculated to handle the maximum possible current under various temperature conditions without overheating. NEC 690 provides tables and formulas to guide this selection. Additionally, overcurrent protection devices (OCPDs), such as fuses or circuit breakers, are required to protect these conductors from short circuits and ground faults, preventing potential fire hazards.
Grounding and Bonding for Safety
Proper grounding is non-negotiable for safety. An off-grid system requires two types of grounding. First, equipment grounding connects all metallic, non-current-carrying parts (like panel frames and racking) to a grounding conductor. This prevents these surfaces from becoming energized during a fault. Second, system grounding connects one of the current-carrying conductors (typically the negative) to the ground. This stabilizes the system voltage and provides a path for fault current to flow, allowing OCPDs to operate correctly.
The Core of Autonomy: NEC 706 and Energy Storage Systems
As off-grid systems become more common, ensuring their safety is paramount. The International Renewable Energy Agency's Electricity Storage Valuation Framework notes that solar PV combined with storage is essential for reliable 24/7 access to electricity. NEC Article 706 governs the installation of your battery bank, the heart of an off-grid system. It addresses the unique risks associated with storing large amounts of energy.
Battery Disconnects and Overcurrent Protection
Similar to the PV array, the battery bank must have a readily accessible disconnect. This switch allows you to completely isolate the battery from the rest of the system for service or in an emergency. An OCPD, properly sized for the battery's maximum output current, must be installed in series with the disconnect. This protects the system from the immense fault currents a battery bank can deliver during a short circuit.
Ventilation and Location Requirements
Battery safety is heavily influenced by location. NEC 706 specifies that battery systems must be installed in locations with adequate ventilation to prevent the accumulation of potentially explosive gases, particularly for certain battery chemistries. The code also restricts installation in habitable spaces and requires clearance from combustible materials. For stable and safe chemistries like Lithium Iron Phosphate (LiFePO4), ventilation needs may be less stringent, but following manufacturer specifications and code is still vital.
Clear Labeling and Signage
Clear communication is a key safety feature. NEC 706 mandates specific labels for the ESS. This includes signage indicating the system's nominal voltage, maximum charging and discharging currents, and available fault current. Emergency shutdown procedures must also be clearly posted. These labels provide critical information for homeowners and first responders who may need to interact with the system.
System Integration: Where PV and ESS Meet
A compliant system is more than just compliant parts; it's about how they work together. The components that bridge your PV array and battery bank must also meet NEC standards to ensure seamless and safe operation.
Charge Controller and Inverter Compliance
The charge controller regulates the flow of energy to the batteries, while the inverter converts DC power to usable AC power. Both must be listed by a Nationally Recognized Testing Laboratory (NRTL) for their intended use. The wiring to and from these devices must follow the conductor sizing and overcurrent protection rules outlined in the NEC. The inverter's AC output circuits must also be protected and wired according to standard residential wiring practices found elsewhere in the code.
System Performance and Sizing
Beyond compliance, a system must be designed to perform reliably. Proper sizing ensures your system can meet your energy needs without overly stressing components. This involves careful calculation of your daily loads, solar resource availability, and required battery capacity. For a comprehensive look at balancing these factors, the ultimate reference on solar storage performance offers valuable data and methodologies. As the IEA's Technology Roadmap - Solar Photovoltaic Energy 2010 points out, developing suitable business models for deploying off-grid PV is a critical action for increasing energy access.
A Step-by-Step Compliance Roadmap
Navigating the NEC can feel complex. This table simplifies the process into a clear, actionable sequence for your off-grid project.
| Step | Key NEC Article(s) | Description | Common Pitfall |
|---|---|---|---|
| 1. System Design & Calculation | 690.7, 690.8, 706.31 | Calculate system voltages, currents, and required conductor sizes. Determine load requirements and size the PV array and battery bank accordingly. | Underestimating loads, leading to an undersized system that fails to meet needs. |
| 2. Component Selection | 110.3(B), 690.4(D), 706.6 | Choose NRTL-listed components (panels, inverter, charge controller, batteries) rated for your system's voltage and current. | Using unlisted or improperly rated equipment to save on initial cost. |
| 3. PV Array Installation | 690, Part IV & V | Install racking, bond all metallic components, ground the system, and run conduit. Ensure proper overcurrent protection and disconnects are in place. | Improper grounding or bonding, creating a serious shock hazard. |
| 4. ESS Installation | 706, Part II & III | Install the battery bank in a compliant location with proper ventilation. Install the required battery disconnect and overcurrent protection. | Placing batteries in a living space or failing to provide adequate ventilation. |
| 5. System Labeling | 690, Part VI; 706, Part II | Apply all required labels to disconnects, junction boxes, and equipment, indicating voltages, shutdown procedures, and system details. | Using handwritten or non-durable labels that fade or fall off over time. |
| 6. Final Review | All Applicable Articles | Conduct a thorough review of all connections, torque settings, and compliance points before energizing the system. Consult with a qualified professional if needed. | Skipping a final, detailed check and energizing a system with a hidden wiring error. |
Achieving True Energy Independence
Building an off-grid solar and storage system is a significant undertaking. By following the roadmap laid out in NEC Articles 690 and 706, you create a system that is not only powerful but also fundamentally safe and reliable. This structured approach moves beyond simply assembling components; it involves creating an integrated power plant for your home that is built to last. A compliant system provides peace of mind and ensures your investment in energy independence is a secure one.
Frequently Asked Questions
Do I need rapid shutdown for my off-grid PV system?
Rapid shutdown requirements (NEC 690.12) are primarily for systems on or in buildings to protect firefighters by de-energizing conductors. While many off-grid structures like ground mounts or small cabins may not fall under the same rules, the specific requirements depend heavily on your local Authority Having Jurisdiction (AHJ). If the system is on a dwelling, some form of rapid shutdown is often expected.
What are the main differences between NEC 690 and 706?
NEC 690 specifically covers the solar photovoltaic (PV) system components. This includes everything from the solar modules themselves down to the combiner boxes and the initial DC disconnects. NEC 706 focuses entirely on the Energy Storage System (ESS). It governs the batteries, battery management systems, containment, and the associated controls and safety disconnects.
Can I use any type of lithium battery for my off-grid ESS?
You should only use batteries that are listed and labeled for the intended application, such as those certified to UL 1973 for stationary energy storage. This certification ensures the battery has undergone rigorous safety testing. NEC 706 emphasizes the use of certified components to minimize risks associated with high-energy storage.
Is a professional electrician required to install an NEC-compliant off-grid system?
While some jurisdictions permit homeowners to perform their own electrical work, the high voltages and currents in PV and ESS installations present significant safety risks. Hiring a qualified professional who is experienced with NEC standards and local code amendments is highly recommended. This ensures the system is installed safely and will pass any required inspections.
