A deep cycle lithium battery is the core of modern energy independence, powering everything from off-grid homes to recreational vehicles. Its reliability is paramount. A significant risk associated with any high-energy battery is thermal runaway, a rapid and self-sustaining overheating event. Understanding and preventing this is crucial for the safety and longevity of your energy storage system. This discussion focuses on the causes of thermal runaway and the effective safeguards, including battery thermal management, that protect your investment.
Understanding Thermal Runaway in Lithium Batteries

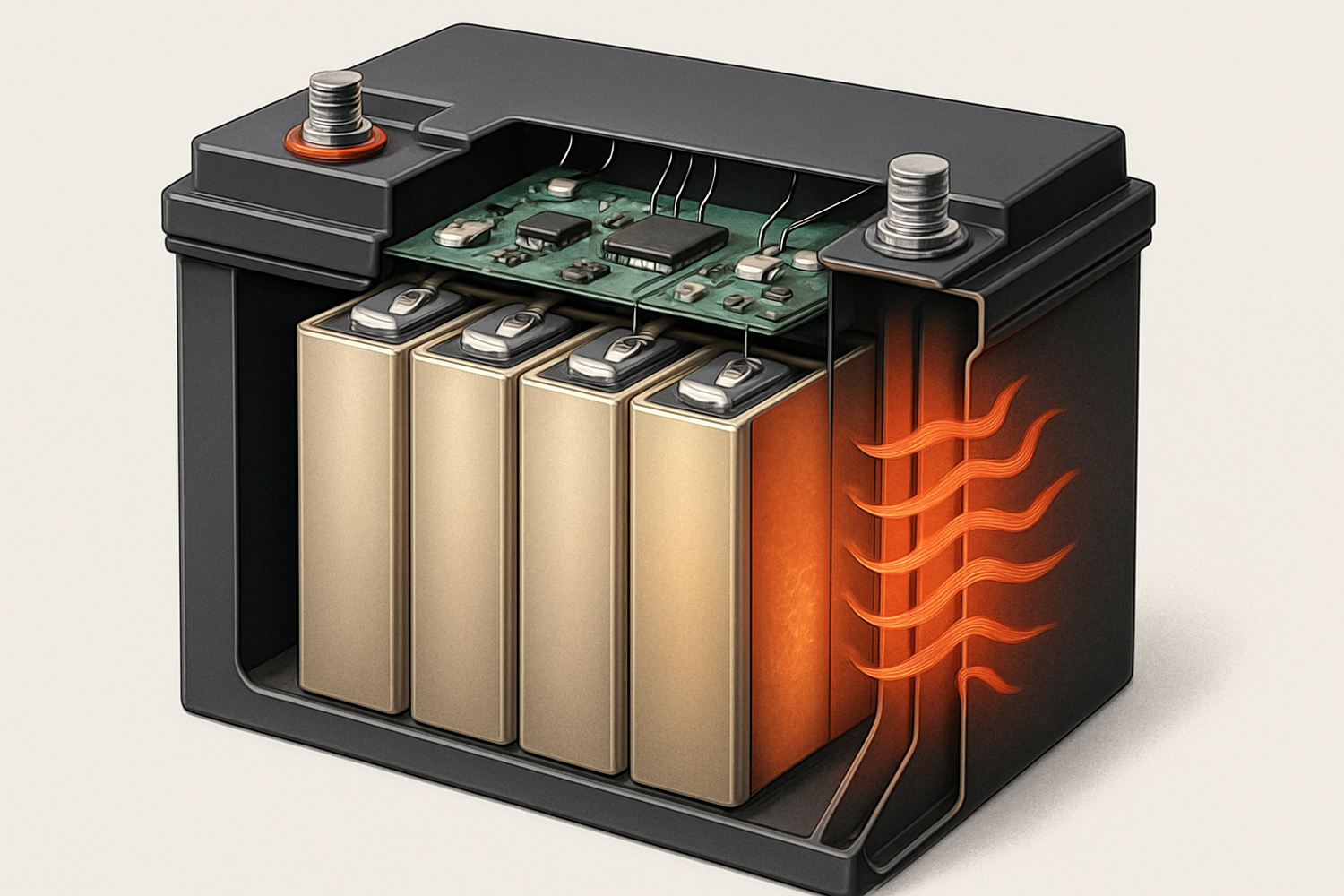

Thermal runaway is not a single failure but a chain reaction. When a battery cell's temperature rises uncontrollably, it reaches a point where the internal materials begin to break down. This decomposition releases energy, which generates more heat, creating a feedback loop that can spread to adjacent cells. The result is an extremely rapid temperature spike, the release of flammable gases, and potential system failure.
The Primary Causes of Overheating
Several conditions can initiate this dangerous cycle. These causes can be categorized as either internal or external factors.
- Internal Short Circuits: This is a common trigger, often stemming from microscopic manufacturing imperfections or the growth of metallic dendrites inside the cell over time. A physical impact that deforms the battery can also cause internal components to touch, creating a short circuit.
- Overcharging: Pushing too much voltage into a battery stresses its internal chemistry. This can lead to the breakdown of the electrolyte and cathode materials, generating excess heat and initiating the thermal runaway process.
- Excessive Discharge Rates: Drawing power from the battery faster than it is designed to deliver generates significant internal heat. Consistently high discharge rates can elevate the battery's core temperature to unsafe levels.
- High Ambient Temperatures: Storing or operating a deep cycle lithium battery in a very hot environment reduces its ability to dissipate its own operational heat. This external heat load adds to the internal temperature, increasing the risk of overheating.
The Role of a Battery Management System (BMS)
A modern Battery Management System (BMS) is the primary safeguard against thermal runaway. It acts as the battery's brain, constantly monitoring its condition and intervening before a dangerous situation can develop. A quality BMS is not an optional feature; it is fundamental to the safety of any lithium battery pack.
The First Line of Defense
The BMS performs several critical functions to maintain safe operation. It continuously tracks the voltage of each individual cell, the total current flowing in and out of the battery, and the internal temperature. If it detects any parameter exceeding its safe limits, the BMS will automatically disconnect the battery to prevent damage. This protects against overcharging, over-discharging, and over-current events, which are three of the main triggers for overheating.
Advanced BMS Features for Thermal Safety

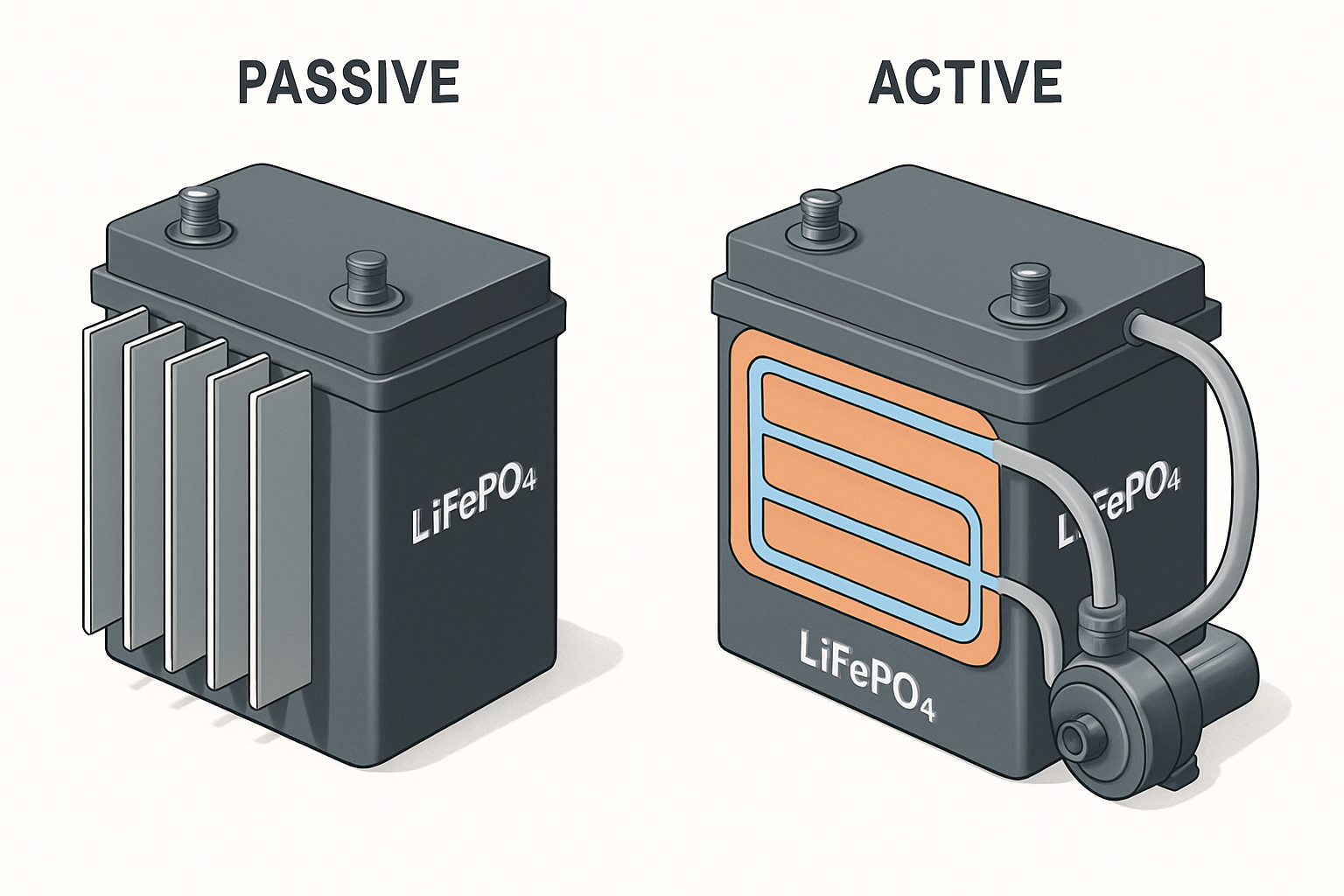

Beyond basic protection, advanced BMS units incorporate features specifically for battery thermal management. Temperature sensors are placed in multiple locations within the battery pack to get a comprehensive thermal profile. If one area begins to heat up disproportionately, the BMS can take action. Furthermore, cell balancing is a vital function where the BMS ensures all cells in the pack are at an equal state of charge. This prevents individual cells from being overcharged or over-discharged, a condition that can cause stress and heat generation.
Proactive Strategies for Battery Thermal Management
While the BMS provides automated protection, user practices and proper system design play a significant role in safeguarding lithium batteries. These proactive steps help minimize thermal stress and support the BMS in its protective role.
Proper Installation and Ventilation
How and where a battery is installed has a direct impact on its temperature. Lithium batteries should be installed in a dry, well-ventilated space. It is important to leave adequate clearance around the battery to allow for natural air circulation, which helps dissipate heat. Installing a battery in a sealed, tight compartment, especially in a warm climate, can trap heat and create a dangerous operating environment.
Smart Charging and Discharging Practices
Operating the battery within its specified limits is key to a long and safe life. Always use a charger that is specifically designed for the battery's chemistry, such as LiFePO4. Adhering to the recommended charge and discharge rates prevents the generation of excessive internal heat. As detailed in the Ultimate Reference for Solar Storage Performance, managing these rates not only enhances safety but also directly impacts the overall efficiency and lifespan of your energy storage system.
Regular Inspection
Periodic visual checks can help identify potential issues early. Look for any signs of physical damage to the battery case, such as swelling or cracking. Check the terminals to ensure they are clean and the connections are tight. Loose connections can create electrical resistance, which generates heat at the terminals and can pose a safety risk.
The Chemistry Advantage: Why LiFePO4 is a Safer Choice
The internal chemistry of a battery is a fundamental factor in its thermal stability. Lithium Iron Phosphate (LiFePO4) batteries are widely recognized for their superior safety profile compared to other lithium-ion chemistries like Nickel Manganese Cobalt (NMC) or Lithium Cobalt Oxide (LCO).
Structural and Thermal Stability
The safety of LiFePO4 stems from its remarkably stable molecular structure. The phosphorus-oxygen bond in the phosphate material is exceptionally strong, making it much more difficult to break down under high temperatures. This means that a LiFePO4 cell can withstand more thermal abuse before it begins the exothermic decomposition that leads to thermal runaway. According to the International Energy Agency's Clean Energy Innovation report, advancements in electrochemistry are critical for scaling up safer and more resilient energy storage solutions. The inherent stability of LiFePO4 chemistry is a prime example of this innovation in action.
A Comparison of Safety Metrics
Data clearly illustrates the safety advantage of LiFePO4. The onset of thermal runaway occurs at a much higher temperature in LiFePO4 batteries. The industry's focus on securing supply chains for key minerals, as noted in the IEA's World Energy Investment 2023 report, underscores the importance of using high-quality materials to ensure this chemical stability.
| Metric | LiFePO4 (LFP) | NMC/LCO |
|---|---|---|
| Thermal Runaway Onset | ~270°C (518°F) | ~150-210°C (302-410°F) |
| Oxygen Release during Failure | Very little | Significant (acts as an accelerant) |
| Cycle Life | 3,000 - 8,000+ cycles | 500 - 2,000 cycles |
Final Thoughts on Battery Safety
Preventing thermal runaway in a deep cycle lithium battery is a multi-layered approach. It begins with selecting a battery that has an inherently safe chemistry like LiFePO4. It is managed by a sophisticated Battery Management System that acts as a constant guardian. Finally, it is supported by proper installation and sensible operating practices. By taking these factors into account, you can confidently rely on your energy storage system, ensuring it delivers safe, dependable power for years to come.
Frequently Asked Questions
What are the early warning signs of a battery overheating?
Early signs can include the battery case feeling unusually warm to the touch, a faint sweet or sharp metallic smell, any visible swelling or deformation of the battery casing, or a sudden, unexpected drop in performance or voltage.
Can a BMS completely prevent thermal runaway?
A high-quality BMS is the most effective tool for preventing the conditions that lead to thermal runaway, such as overcharging, over-discharging, and overheating. It can prevent the vast majority of potential incidents. However, a severe internal short circuit caused by extreme physical damage could potentially trigger thermal runaway before the BMS can react.
Does cold weather affect the risk of thermal runaway?
The direct risk of thermal runaway is much lower in cold conditions. The primary danger with cold is charging a lithium battery below freezing (0°C or 32°F). This can cause a phenomenon called lithium plating, which can create an internal short circuit and significantly increase the risk of thermal runaway when the battery is used later in warmer conditions.
Is a LiFePO4 battery completely immune to thermal runaway?
No battery is completely immune to failure under extreme abuse. However, LiFePO4 batteries are significantly more resistant to thermal runaway than other common lithium-ion chemistries. Their higher thermal threshold means they can withstand far more heat and stress before reaching a critical state, making them a much safer choice for energy storage applications.
