Adopting solar energy is a significant step towards energy independence and a sustainable future. Modern solar systems offer reliability and efficiency, transforming sunlight into usable electricity for homes and businesses. As a new solar owner, you gain the power to generate your own electricity. However, understanding how to interpret your system's performance data can sometimes be challenging. Misinterpreting PV output is a common hurdle for many new owners. This guide addresses frequent errors and provides practical insights to help you accurately assess your solar panel's electricity generation and ensure your system performs optimally.
Understanding How Solar Panels Generate Electricity

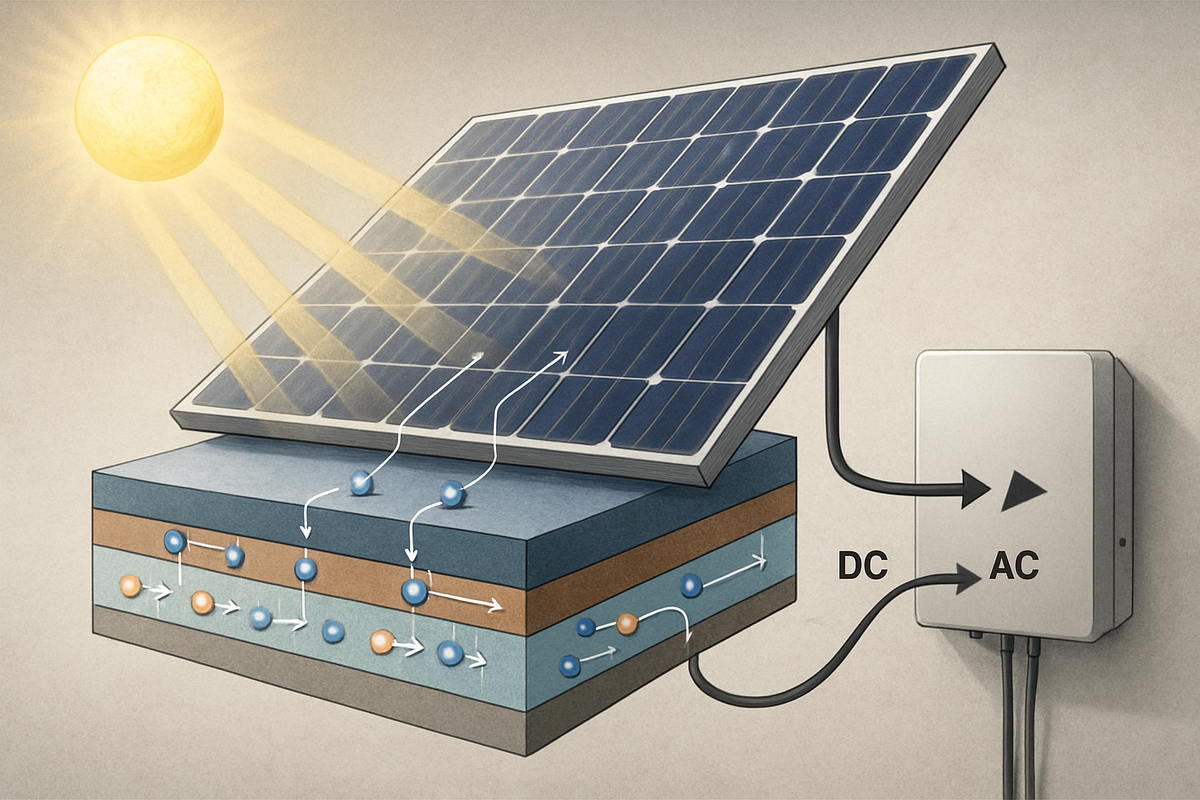

Solar panels rely on the photovoltaic (PV) effect to convert sunlight into electricity. This fascinating process begins when photons from sunlight strike the semiconductor material, typically silicon, within a solar cell. The energy from these photons excites electrons, causing them to break free from their atoms. This movement of electrons creates a direct current (DC) of electricity.
For household use, this DC electricity needs conversion into alternating current (AC). A solar inverter handles this crucial task, making the electricity compatible with your home's appliances and the electrical grid.
The amount of electricity a solar panel generates depends on factors like its size, the efficiency of its PV cells, and the intensity of sunlight it receives. Modern solar panels are designed to maximize energy capture. Integrated ESS (Energy Storage System) solutions, which combine high-performance batteries (like LiFePO4) with hybrid inverters and solar panels, are engineered to optimize this energy flow, ensuring power is available when needed.
Common Misinterpretations of Real-Time PV Data
Many new solar owners check their system's real-time output and sometimes feel disappointed if the numbers do not match the panel's nameplate capacity. Several factors influence actual output, leading to common misinterpretations:
1. Ignoring Environmental Factors
The electricity production of solar panels is highly sensitive to environmental conditions. Factors such as sunlight intensity, temperature, and cloud cover significantly affect output. For example, solar panels often perform better in cooler temperatures with high irradiance, as excessive heat can reduce efficiency. A panel rated at 350 W under 'standard test conditions' will rarely produce exactly 350 W in real-world scenarios due to these variables.
2. Misunderstanding Nameplate Capacity vs. Actual Output
A solar panel's nameplate capacity (e.g., 400 watts) represents its maximum output under ideal laboratory conditions, known as Standard Test Conditions (STC). Actual output in the field is almost always lower. This is a normal phenomenon. Real-world performance is affected by factors like the angle of the sun, panel temperature, and even the type of inverter used. You should expect your system to produce less than its nameplate capacity for much of the day and year.
3. Confusing AC and DC Output
Solar panels generate direct current (DC) electricity, which is then converted into alternating current (AC) by an inverter for home use. Your monitoring system might display both DC and AC output. The AC output will always be slightly lower than the DC output due to efficiency losses during the conversion process within the inverter. Understanding this distinction prevents concern over what might appear to be "lost" power.
Errors Related to System Monitoring
Monitoring your solar system is crucial for optimal performance, but misinterpreting monitoring data can lead to unnecessary worry or overlooked issues.
4. Not Checking Monitoring Systems Regularly
Many new owners initially check their system frequently, but then neglect it. Regular monitoring helps you identify potential issues early. Modern monitoring apps provide real-time data and historical trends, allowing you to track energy production, identify irregularities, and ensure your system is performing as expected. Comprehensive ESS solutions often integrate seamlessly with monitoring platforms, giving users clear visibility into their energy generation and consumption.
5. Misinterpreting Historical Data Trends
Solar output naturally fluctuates with seasons and weather patterns. A dip in production during winter months or on cloudy days is normal. Do not compare a cloudy day's output to a sunny day's output directly. Instead, compare current performance to historical data for similar conditions or times of year. This provides a more accurate picture of your system's health. According to Ember’s Global Electricity Review, solar PV generation increased by a record 320 TWh in 2023, a 25% rise from 2022, demonstrating the technology's growing contribution to global electricity (Ember, 2024).
6. Overlooking Minor, Cumulative Issues
Small, consistent dips in output can signal a brewing problem, such as partial shading or minor degradation. While a single low reading might be insignificant, a sustained pattern of underperformance warrants investigation. Regular review of daily and weekly trends helps detect these subtle changes before they become major issues.
Installation and Maintenance Oversights
Even with advanced technology, physical issues with your solar setup can impact its energy production. Proper installation and diligent maintenance are key.
7. Unaddressed Shading Issues
Shading is a primary culprit for reduced solar output. Even partial shading from trees, chimneys, or neighboring buildings can significantly decrease a panel's efficiency. Solar panels are often connected in "strings," meaning that if one panel in a string is shaded, the output of the entire string can drop dramatically. Some industry studies suggest homeowners could lose as much as 40% of potential generation due to shade. Professional installers consider shading during design, but new obstructions can arise. Trimming vegetation or, in some cases, using microinverters or power optimizers can mitigate these effects.
8. Neglecting Panel Degradation
Solar panels gradually lose efficiency over time, a process called degradation. This is a natural aging process. Most manufacturers offer warranties guaranteeing a certain percentage of original output after 20-30 years, typically around 80-90%. For example, a National Renewable Energy Laboratory (NREL) analysis found that monocrystalline panels made after 2000 showed an average degradation rate of just 0.4% annually, better than the 1% often used in warranties (NREL, 2022). A common initial drop (1-3%) occurs early on due to light-induced degradation (LID), after which the rate stabilizes. Understanding this expected decline helps set realistic expectations for long-term performance.
9. Overlooking Wiring or Connection Problems
Loose, corroded, or damaged wiring and connections can interrupt power flow and reduce your system's output. These issues might not always be visible and can lead to inconsistent readings or system outages. Regular visual inspections for physical damage and ensuring secure connections are important preventive measures. If you suspect wiring issues, consulting a professional is advisable, as these can pose a safety risk and may require adherence to local electrical codes.
Here is a summary of factors influencing solar panel performance:
| Factor | Impact on PV Output | Mitigation/Consideration |
|---|---|---|
| Sunlight Intensity | Directly proportional to output. Lower intensity (cloudy days, dawn/dusk) means lower output. | Normal fluctuation; compare against historical data for similar conditions. |
| Temperature | Higher temperatures generally reduce efficiency, despite more sunlight. | Proper panel ventilation; system design accounts for this. |
| Shading | Even partial shading can significantly reduce output, sometimes by 40-80% for affected string. | Site surveys, tree trimming, microinverters/optimizers. |
| Panel Orientation/Tilt | Optimal angle and direction (south-facing in Northern Hemisphere) maximize sun exposure. | Crucial during installation; fixed systems are optimized for annual average. |
| Dust, Dirt, Debris | Blocks sunlight, reducing efficiency. | Regular cleaning (every 6 months or as needed). |
| Panel Degradation | Natural, slow decline in efficiency over time (avg. 0.4-1% per year). | Expected; check warranty for guaranteed output levels over time. |
| Inverter Efficiency | Converts DC to AC; some energy loss occurs here. | Invest in high-quality inverters; ensure proper function. |
| Wiring/Connections | Loose or corroded connections hinder electricity flow. | Regular visual checks; professional inspection for complex issues. |
A Practical Troubleshooting Checklist for Underperformance
If you suspect your system is underperforming, a systematic approach can help you identify the cause.
IMPORTANT SAFETY NOTICE: Working with electrical systems is dangerous. These steps are for informational purposes. Steps involving direct contact with wiring or components should only be performed by a qualified solar professional or electrician. Always follow proper safety procedures, including shutting down the system as instructed by the manufacturer.
Required Tools: Manufacturer's manual for your inverter, multimeter (with DC voltage settings), and appropriate personal protective equipment (PPE) like insulated gloves.
- Read Inverter Error Codes: Your inverter is the brain of the system. Check its display or monitoring app for any error codes or fault messages. Consult your user manual to understand what these codes mean, as they can often pinpoint the exact issue (e.g., grid instability, isolation fault).
- Quantify the Performance Drop: Compare the system's output on a clear, sunny day with historical data from a day with similar weather conditions (e.g., same month last year). A consistent, unexplained drop of more than 10-15% may indicate a problem.
-
Perform a Visual Inspection: From a safe vantage point, inspect your system for obvious issues:
- Debris: A thick layer of dust, leaves, or bird droppings on the panels.
- New Shading: Has a tree grown, or has a new structure been built that now casts a shadow on your panels during peak sun hours?
- Visible Damage: Check for cracked glass, loose frames, or obviously damaged wiring.
- (Advanced - Professional Recommended) Measure Voltage: If you are qualified and have the proper safety training, you can measure the voltage of individual strings. Following all safety protocols, disconnect a string from the combiner box and measure its Open Circuit Voltage (Voc) with a multimeter. The expected Voc is listed on the panel's data sheet. A reading significantly lower than the expected value (e.g., a string of 10 panels with a 38V Voc each should read around 380V) can help pinpoint a faulty panel or connection.
Ensuring Long-Term Performance of Your Solar System
Understanding these common errors empowers you to take a proactive approach to managing your solar power system. By paying attention to environmental factors, regularly checking your monitoring data, and being aware of potential physical issues, you can ensure your solar investment delivers consistent performance.
Solar energy is a rapidly expanding sector. In its 2024 Renewables report, the International Energy Agency (IEA) noted that solar PV accounted for three-quarters of renewable capacity additions worldwide in 2023 (IEA, 2024). In the United States, the Energy Information Administration (EIA) reported that solar additions outpaced other resources in the electric power sector in 2023. By August 2024, the U.S. had 107.4 GW of operating solar electricity generating capacity in the Lower 48 states, a 36% increase from August 2023 (EIA, 2024).
A Note on Energy Storage
To maximize energy independence, many owners integrate a robust energy storage system. High-quality batteries (such as LiFePO4 models known for safety and longevity) provide a stable power supply when the sun isn't shining. Combined with hybrid inverters and off-grid capable solar solutions, a complete system can be designed for scalability and consistent energy delivery.
Remember, while solar technology is robust, a clear understanding of its operation and potential issues will help you get the most from your system. If you ever encounter persistent issues or unusual readings, consulting a qualified solar professional is always the best course of action. They can diagnose complex problems and provide the necessary solutions to keep your system running efficiently for years to come.
