In my technical reviews of photovoltaic (PV) and energy storage (ESS) proposals, I have observed that confusion almost always originates from poorly defined acronyms. Bankable projects depend on unambiguous terminology that maps to measurable quantities and testable assumptions. The goal here is not breadth but precision: a compact, first-principles toolkit that beginners can use to read datasheets, interrogate models, and avoid specification drift.
Why acronyms matter across the project lifecycle
Each phase uses distinct shorthand. Design discussions center on MPPT windows and inverter loading ratio (ILR); storage work revolves around SoC, DoD, C-rate, and round-trip efficiency; contracting invokes LCOE, LCOS, and PPA clauses. I align definitions with guidance from agencies such as the International Energy Agency and the U.S. Department of Energy, and I cross-check resource inputs with NREL solar datasets to keep models falsifiable.

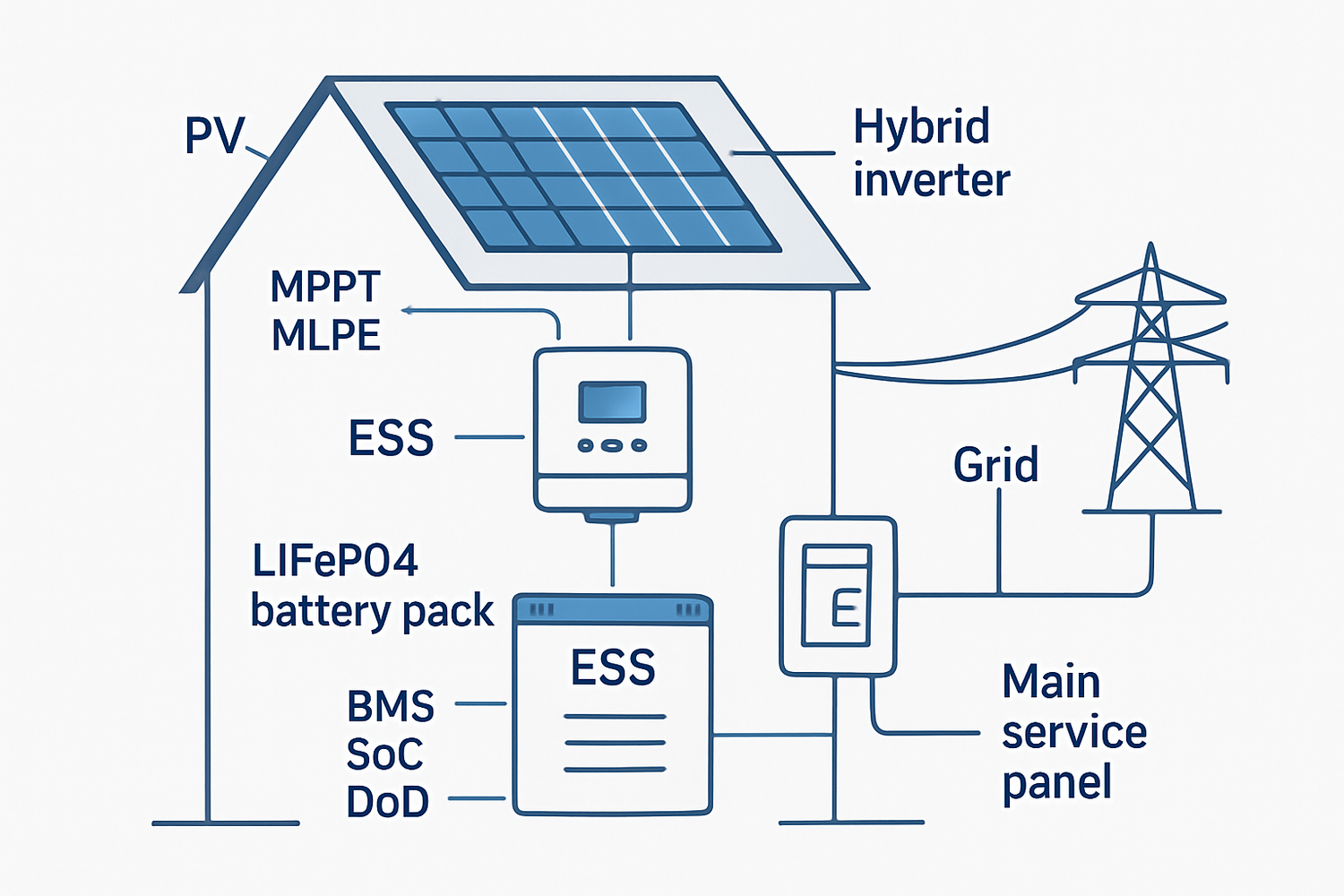

Core technology acronyms you will see first
PV, BIPV, BOS, MLPE, MPPT
- PV (photovoltaics): Semiconductor devices converting irradiance to DC current. Ratings are at STC; field yield depends on temperature coefficients and POA irradiance.
- BIPV (building-integrated PV): Modules integrated into envelopes; pay attention to mounting, fire ratings, and water ingress paths.
- BOS (balance of system): All non-module hardware and labor; frequently the dominant cost lever in small systems.
- MLPE (module-level power electronics): Per-module control for optimization and rapid-shutdown compliance on complex roofs.
- MPPT (maximum power point tracking): Control that maintains operation near (VMP, IMP) as weather shifts; verify array voltage stays within the inverter’s MPPT window in winter.
Storage acronyms for home and C&I ESS
ESS, BESS, LiFePO4, BMS, SoC, DoD, C-rate, PCS, EMS
- ESS/BESS: Energy storage system; battery racks plus a power conversion system (PCS) and controls.
- LiFePO4: Lithium iron phosphate chemistry with favorable safety envelope and cycle life for residential/commercial duty.
- BMS: Battery management system; enforces voltage, current, and temperature limits and communicates with the inverter/EMS.
- SoC/DoD: State of charge / depth of discharge; typical usable windows 10–90% to balance life and availability.
- C-rate: Charge/discharge rate relative to capacity; a 10 kWh pack at 1C delivers 10 kW. Coordinate with PCS current limits.
- PCS: Bidirectional inverter/charger connecting batteries to AC.
- EMS: Energy management system; applies rules for time-of-use, self-consumption, and backup priorities.
Grid and operations acronyms
IBR, GFM, DER, SCADA, PR, ILR
- IBR (inverter-based resource): Power-electronic sources (PV/ESS). Protection and ride-through settings differ from synchronous machines.
- GFM (grid-forming inverter): Inverters that establish voltage/frequency; increasingly relevant on weak feeders. See integration insights from the IEA.
- DER (distributed energy resources): Customer-sited PV/ESS/EVSE and controllable loads; aggregation can provide grid services (IRENA reports).
- SCADA: Supervisory control and data acquisition for monitoring, alarms, and remote control.
- PR (performance ratio): AC energy divided by theoretical STC energy; 0.75–0.90 is a practical long-term envelope depending on climate and O&M.
- ILR (inverter loading ratio): kWDC/kWAC; 1.1–1.4 is common to trade noon clipping for higher annual kWh.
Finance, policy, and permitting acronyms
PPA, CAPEX, OPEX, LCOE, LCOS, COD, EPC, O&M, ITC/PTC, PII/AHJ
- PPA (power purchase agreement): Energy offtake contract in $/MWh or $/kWh; terms drive bankability (non-legal advice).
- CAPEX/OPEX: Upfront vs. operating costs; both flow into LCOE.
- LCOE/LCOS: Levelized cost of electricity/storage; I cross-check trends against IEA investment reports and EIA data.
- COD: Commercial operation date; triggers warranties and payment schedules.
- EPC/O&M: Delivery scope and lifecycle maintenance obligations.
- ITC/PTC: U.S. incentives summarized by the IEA; eligibility is jurisdiction-specific (non-legal advice).
- PII/AHJ: Permitting, inspection, and interconnection with the authority having jurisdiction; queue times shape COD.
Quick-reference table: selected high-impact acronyms
| Acronym | Full Term | Quick Check |
|---|---|---|
| PV | Photovoltaics | Confirm STC rating, temp coefficients, and POA inputs. |
| BIPV | Building-integrated PV | Coordinate code path and waterproofing details. |
| BOS | Balance of system | Track cost drivers beyond modules. |
| MLPE | Module-level power electronics | Use on shaded or complex arrays; enables rapid shutdown. |
| MPPT | Maximum power point tracking | String V must remain inside MPPT window in cold weather. |
| ESS/BESS | Energy storage system | Specify usable kWh, kW, cycle warranty, and comms. |
| LiFePO4 | Lithium iron phosphate | Expect high RTE and stable thermal behavior. |
| BMS | Battery management system | Verify protections and telemetry with PCS/EMS. |
| SoC/DoD | State of charge / Depth of discharge | Define the usable window explicitly (e.g., 10–90%). |
| C-rate | Charge/discharge rate | Size conductors and PCS for peak amps. |
| PCS | Power conversion system | Check islanding modes and grid codes. |
| EMS | Energy management system | Encode TOU/backup priorities and limits. |
| IBR | Inverter-based resource | Coordinate protection with limited fault current. |
| GFM | Grid-forming inverter | Improve stability on weak feeders or microgrids. |
| DER | Distributed energy resources | Aggregation may earn ancillary revenues. |
| SCADA | Supervisory control and data acquisition | Ensure data fidelity and alarms. |
| PR | Performance ratio | Track long-term health; investigate deviations. |
| ILR | Inverter loading ratio | Common range 1.1–1.4 to raise net kWh. |
| PPA | Power purchase agreement | Check term, indexation, and curtailment clauses. |
| LCOE | Levelized cost of electricity | Compare options net of WACC and losses. |
| LCOS | Levelized cost of storage | Compare storage chemistries and duty cycles. |
| ITC/PTC | Investment/production credits | Verify eligibility and sunset dates (non-legal). |
| PII/AHJ | Permitting & interconnection / Authority having jurisdiction | Build queues into COD planning. |
Mini case: decoding a compact brief
Brief: “Design 200 kWAC rooftop PV with ILR 1.25 on 1500 Vdc; shaded rows use MLPE. Add 120 kWh LiFePO4 at 60 kW PCS; operate SoC 15–90% under TOU rules; PR ≥ 0.82; PPA 15 years; COD Q4 2026; follow PII with the AHJ.”
- ILR 1.25: Size array ≈ 250 kWDC; accept midday clipping for higher annual kWh.
- 1500 Vdc: Verify cold-weather VOC vs. inverter limits and MPPT window.
- MLPE: Mitigates shade losses and supports rapid shutdown.
- 120 kWh @ 60 kW PCS: Two-hour duration; C-rate ≈ 0.5C aligned with residential/commercial duty.
- SoC 15–90%: Balances life and availability; EMS enforces TOU shift.
- PR ≥ 0.82: Use PR trend as an early fault detector.
- PPA/COD/PII: Schedule engineering around interconnection lead times (non-legal advice).
Practical checks I use in first-pass reviews
- Spell out the term at first use, then use the acronym consistently.
- For storage, report energy (kWh), power (kW), SoC window, RTE, and cycle warranty together.
- Align policy/finance terms with regulator or agency pages (e.g., EIA, IRENA); document the date of retrieval. Non-legal advice.
- Keep resource inputs traceable (e.g., NREL maps) and state assumptions explicitly.
Closing perspective
Acronyms condense complex mechanisms into compact tokens; without definitions bound to data, they create failure modes. By tying PV and ESS shorthand to measurable ranges, formulas, and authoritative sources, beginners can move from recognition to reasoning—and from reasoning to defensible decisions.
