What happens during utility witness tests? A beginner’s guide

Connecting a solar energy system to the electrical grid involves several critical stages. Among the most vital is the utility witness test. This final examination ensures your system operates safely, reliably, and in harmony with the broader power network. For anyone embarking on a solar or energy storage project, understanding this process is key to a smooth transition to energy independence.

This guide provides a clear overview of utility witness tests, from preparation to the post-test steps, helping you navigate this essential phase with confidence.

The Purpose of Utility Witness Tests

Utility witness tests are not merely bureaucratic hurdles; they are crucial for safeguarding both your property and the integrity of the electrical grid. Utilities conduct these tests to verify that your solar or energy storage system adheres to strict safety and operational standards before it can officially connect and send power to the grid.

Ensuring Grid Stability and Safety

A primary goal of these tests is to confirm your system’s safe interaction with the utility grid. This includes verifying that your system will automatically disconnect during a power outage, a safety measure protecting utility workers performing repairs. This is often referred to as anti-islanding functionality.

Utilities also assess the system's impact on power quality, including voltage regulation, power flow, and frequency stability. For instance, improper integration of distributed energy resources (DERs) like solar PV can lead to issues such as potentially overloaded components or reverse power flow on the local network. According to the IEA's "System Integration of Renewables" report, accurate grid planning and proper system integration are vital to address these impacts.

The tests ensure your system maintains appropriate voltage and frequency levels, preventing disturbances that could affect other grid users or damage equipment.

Meeting Grid Code Requirements

Every electrical grid operates under a set of technical rules and standards, known as grid codes. These codes dictate how power-generating equipment, including solar panels and energy storage systems, must behave when connected to the network. Compliance with these codes is fundamental for grid stability, reliability, and safety.

Organizations like the Institute of Electrical and Electronics Engineers (IEEE) develop standards such as IEEE 1547, which are foundational for interconnecting distributed energy resources. The witness test verifies your system’s adherence to these specific technical requirements and local utility policies.

The IEA's "Getting Wind and Solar onto the Grid" report emphasizes that checking and certifying grid code compliance requires various resources and technical capacity. It highlights that proper verification should occur throughout a renewable energy project, from planning to commissioning.

Preparing for Your Witness Test

Effective preparation is crucial for a successful witness test. A well-prepared system and complete documentation can significantly reduce delays and ensure a smooth process.

Essential Documentation

Before the utility arrives, gather all necessary paperwork. This typically includes the interconnection agreement, detailed system schematics, equipment specifications (for components like solar inverters and lithium batteries), and any permits or approvals obtained. Your installer usually submits a Certificate of Completion (COC) to the utility, signaling the project's readiness.

Ensure these documents accurately reflect your installed system. Any discrepancies between the plans and the physical installation can lead to delays or re-tests.

Pre-Test System Checks

Before the utility witness test, your installer should conduct thorough internal commissioning tests. This includes verifying all electrical connections, confirming the functionality of safety devices, and ensuring all components, especially solar inverters and energy storage systems, are operating within their specified parameters.

For instance, all inverters must be producing power during the test, and the system should maintain continuous output for a specified duration, often 30 minutes, for analysis. Addressing any potential issues, such as inverter malfunctions or faulty wiring, beforehand can prevent rejections during the official witness test.

What Happens During the Test?

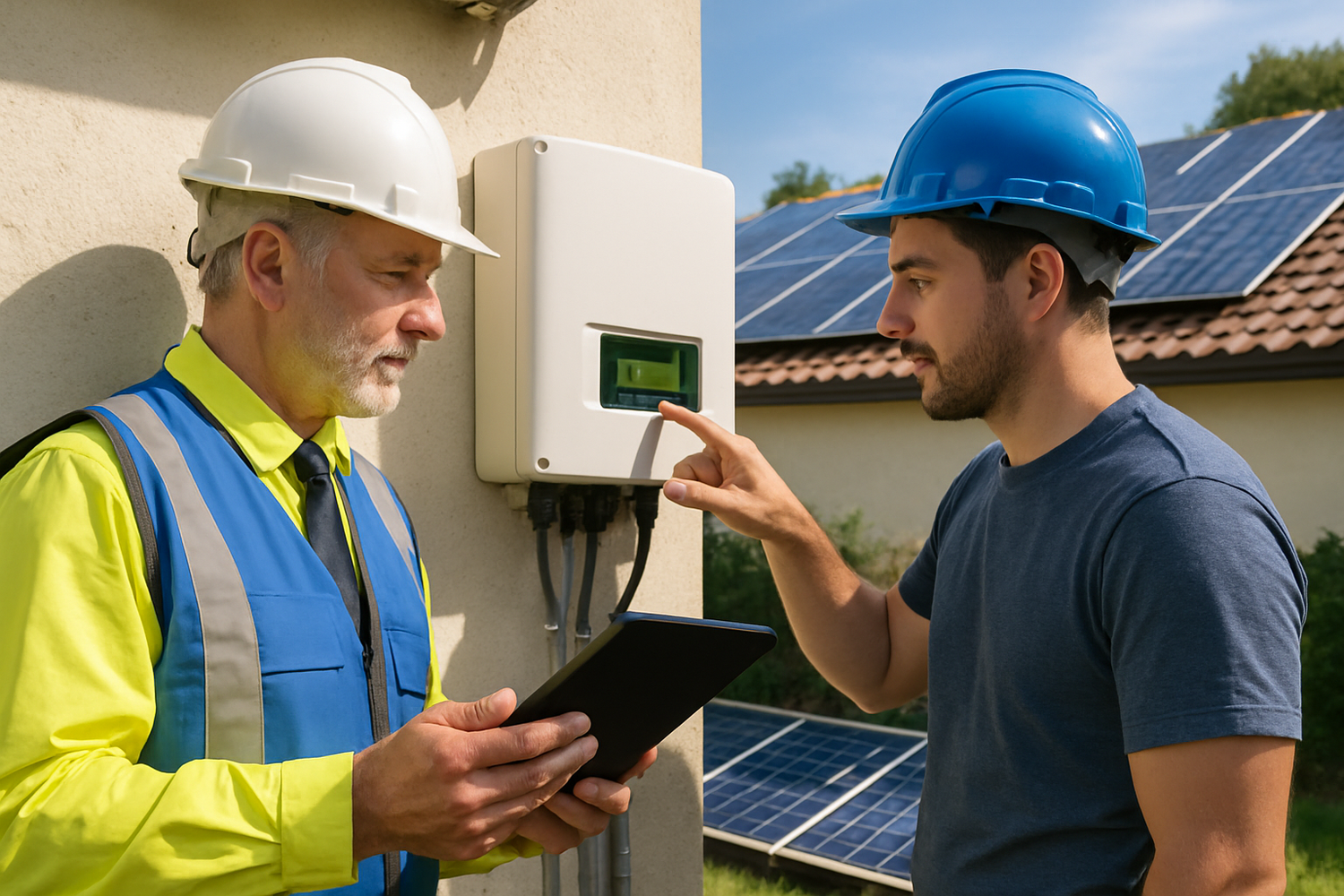

The witness test is an on-site inspection and operational verification conducted by a utility representative, often an engineer, in the presence of your solar installer or a system representative. The process typically takes less than an hour, but its thoroughness is paramount.

On-Site Verification and Testing Procedures

During the test, the utility engineer performs several checks. These often include:

• Visual Inspection: Confirming the physical installation matches the approved design and documentation. This includes checking wiring, labeling, and overall system integrity.
• Operational Checks: Verifying that the system powers on and off correctly, and that safety mechanisms, particularly anti-islanding protection, function as intended. This often involves simulating a grid outage to ensure the inverter disconnects.
• Power Quality Measurements: Using specialized equipment, such as power quality analyzers, to measure voltage, current, and frequency, and to identify any harmonics or transients that could affect grid stability. Some tests might involve measuring different strengths of accelerated electrical currents.
• Reactive Power Control: Ensuring the system can control power factor to a predetermined set point, as required by grid codes.

The utility's representative will observe your system's performance under various conditions, ensuring it can safely operate and integrate with the existing grid infrastructure.

Common Issues and How to Address Them

While thorough preparation minimizes problems, issues can sometimes arise during a witness test. Common findings include:

• Documentation Discrepancies: The installed system differing from the submitted plans.
• Inverter Malfunctions: Inverters not performing as expected or failing to meet specific grid code requirements.
• Wiring Problems: Loose connections, frayed wires, or incorrect wiring installations.
• Protection Device Failures: Safety relays (like a G10 relay in some regions) not activating correctly.

If an issue is found, the utility will typically require it to be corrected. This may necessitate a re-test, which can incur additional fees and extend the time before your system can operate. Addressing these promptly, often with the help of your installer, is crucial.

Post-Test and Permission to Operate

Successfully passing the utility witness test brings you closer to energizing your solar or energy storage system.

Receiving Permission to Operate (PTO)

Once your system passes the witness test and all required paperwork is in order, the utility issues a Permission to Operate (PTO). This is the official authorization allowing your system to generate and send electricity to the grid.

After receiving PTO, your installer will activate your system. From that moment, your solar panels begin powering your home, and if applicable, you can start earning credits for excess energy sent back to the grid through net metering.

Maintaining Compliance

Even after receiving PTO, maintaining your system's compliance and operational integrity is important. Regular maintenance, monitoring system performance, and addressing any issues promptly ensure continued safe and efficient operation. If you make significant changes to your system, such as replacing an inverter, a new witness test might be required.

Achieving Energy Independence

Utility witness tests are a foundational step in bringing your solar and energy storage system online. They confirm your system's safety, compliance with grid standards, and readiness to contribute to a more sustainable energy future. While the process involves technical checks and adherence to regulations, understanding each stage empowers you to navigate it successfully. By ensuring your system meets these critical requirements, you pave the way for reliable, clean energy, moving closer to energy independence.

Disclaimer: This article provides general information and should not be considered legal, financial, or engineering advice. Always consult with qualified professionals for specific guidance.
