12 Line-Items Every Off-Grid Solar BOM Must Include

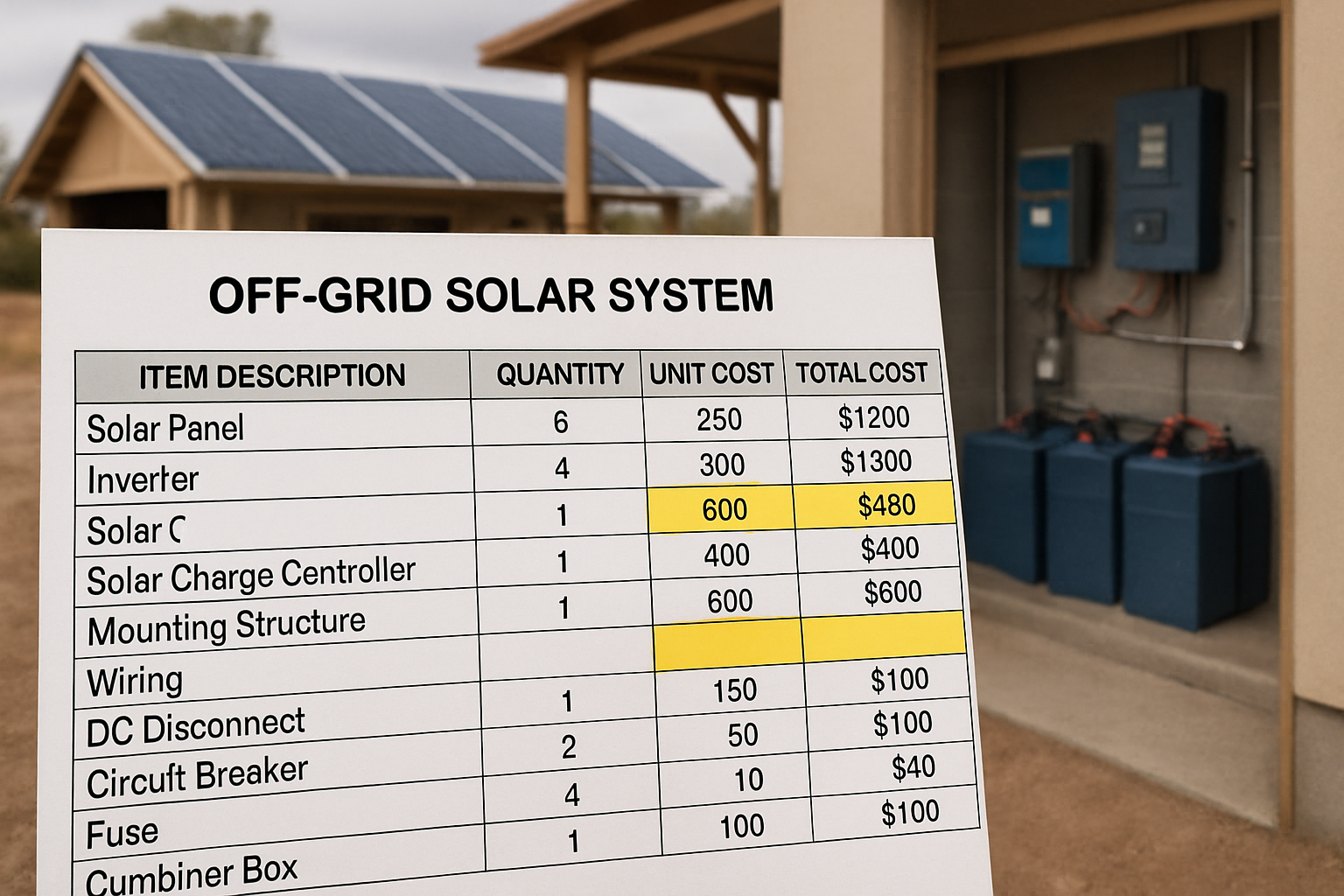

Achieving energy independence through an off-grid solar system offers freedom and resilience. Whether you are powering a remote cabin, a farm, or a complete home, a meticulously planned system is fundamental. A comprehensive Bill of Materials (BOM) is your blueprint, detailing every component needed for a functional and reliable off-grid energy setup. Missing even a small item can lead to delays, increased costs, or system failures. This guide outlines the 12 critical line-items you must include in your off-grid solar BOM, ensuring you build a robust and efficient power solution.

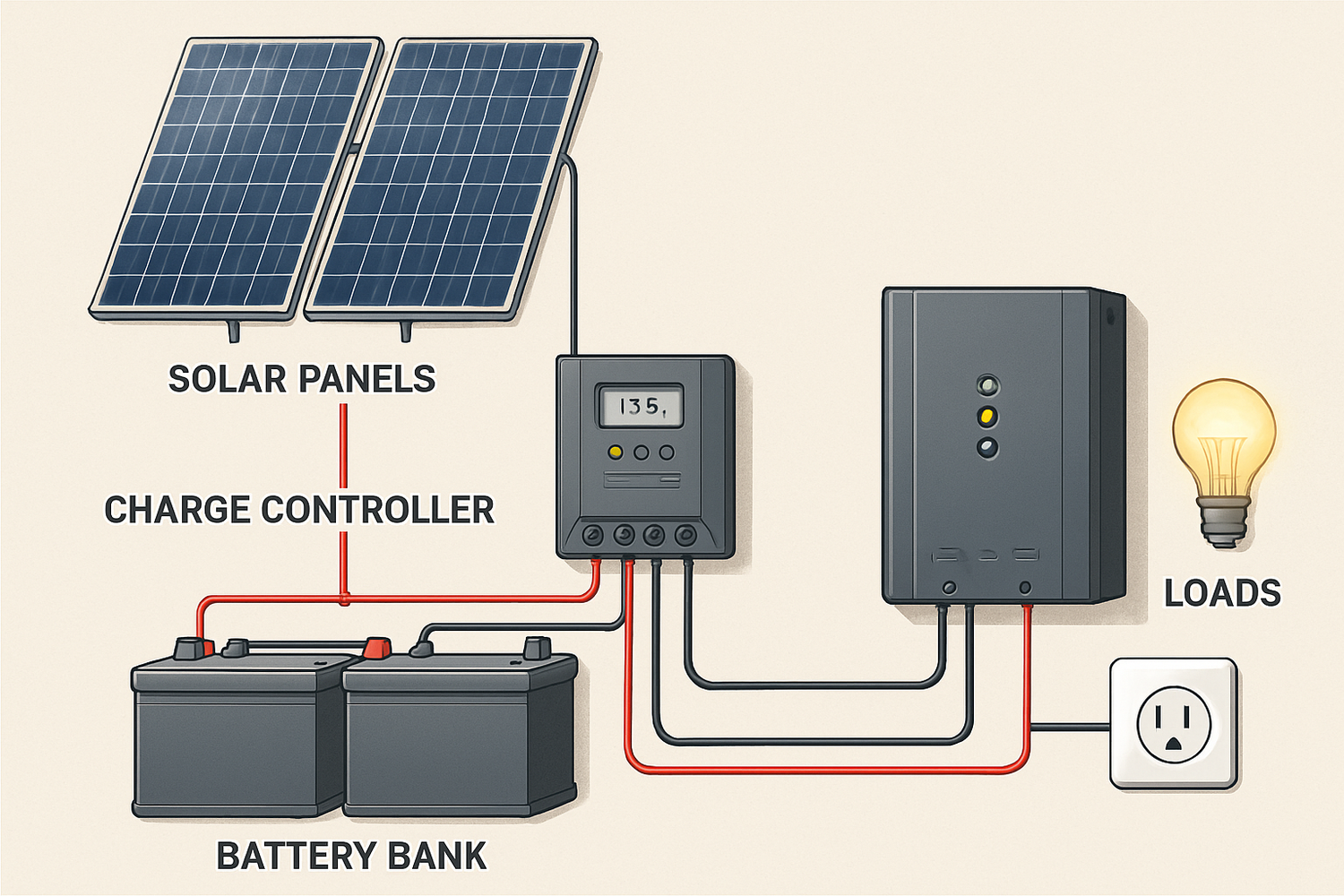

1. The Energy Harvesters: Solar Panels

Solar panels, also known as photovoltaic (PV) modules, are the starting point of your off-grid system. They capture sunlight and convert it into direct current (DC) electricity. Selecting the right panels involves considering efficiency, power output (watts), and physical size. Monocrystalline silicon panels generally offer higher efficiency and a smaller footprint compared to polycrystalline panels, making them a popular choice for many off-grid applications. The average efficiency of monocrystalline Si modules has shown a steady increase over time, reflecting continuous advancements in solar technology.

Future PV modules are expected to feature increased size and improved efficiency, integrating new materials and architectures to further enhance performance.

2. Secure Positioning: Mounting Hardware

Properly securing your solar panels is crucial for safety and performance. Mounting hardware includes rails, clamps, and brackets designed to withstand environmental conditions like wind and snow. Options vary for rooftop, ground-mount, or pole-mount installations. Each type requires specific components to ensure stability and optimal tilt angles for maximum sun exposure. A well-designed mounting system protects your investment and ensures the longevity of your solar array.

3. Power Regulation: Charge Controller

The charge controller manages the power flow from your solar panels to your battery bank. It prevents overcharging, which can damage batteries, and ensures efficient charging. Two primary types exist: Pulse Width Modulation (PWM) and Maximum Power Point Tracking (MPPT). MPPT controllers are more efficient, especially in varying weather conditions, as they optimize the voltage and current from the panels to maximize energy harvest. This can result in a significant increase in energy yield, often 10-30% more than PWM controllers, making them a wise investment for most off-grid setups.

4. The Energy Reservoir: Battery Bank

For an off-grid system, a reliable battery bank is your energy storage solution. It stores the DC electricity generated by your solar panels for use when the sun is not shining. Lithium Iron Phosphate (LiFePO4) batteries are an excellent choice for off-grid systems due to their high performance, safety, and long cycle life. They offer a deeper depth of discharge and a longer lifespan compared to traditional lead-acid batteries, providing a more reliable and cost-effective solution over time. Global electricity storage deployment has seen substantial growth, with significant projections for future increases across various scenarios.

5. DC to AC Conversion: Solar Inverter

Most household appliances operate on alternating current (AC) electricity. Your solar inverter converts the DC power from your battery bank into usable AC power. For off-grid systems, you will typically need a pure sine wave inverter to ensure compatibility with sensitive electronics and appliances. Hybrid inverters, which combine an inverter and charge controller, simplify system design and offer integrated management for solar, battery, and sometimes generator inputs, providing a seamless power supply.

6. The Lifelines: Wiring and Cabling

High-quality wiring and cabling are essential for safely transmitting electricity throughout your system. This includes DC wiring from panels to the charge controller and batteries, and AC wiring from the inverter to your loads. Proper wire sizing is critical to minimize energy loss and prevent overheating. All outdoor wiring must be UV-resistant and rated for direct burial or conduit protection, ensuring durability and safety in various environmental conditions.

7. Safety First: Fuses and Circuit Breakers

Protection devices are non-negotiable for any electrical system. Fuses and circuit breakers safeguard your components from overcurrents and short circuits. You will need DC-rated fuses or breakers for your solar array, charge controller, and battery bank, as well as AC-rated breakers for your inverter output and distribution panel. These devices are vital for preventing damage to your equipment and, more importantly, ensuring the safety of your property and occupants.

8. Emergency Stops: Disconnect Switches

Disconnect switches allow you to safely isolate parts of your solar system for maintenance, troubleshooting, or emergencies. DC disconnects are placed between the solar array and the charge controller, and between the battery bank and the inverter. An AC disconnect is typically located between the inverter and your load panel. These switches are crucial safety features, providing a means to de-energize the system when needed.

9. Grounding for Protection: Grounding Equipment

Proper grounding protects your system and property from lightning strikes and electrical faults. This includes grounding rods, grounding wire, and bonding straps that connect all metallic components of your solar array and electrical system to the earth. Adhering to electrical codes and standards for grounding is paramount for safety and system integrity.

10. The Brains of the Operation: System Monitoring

A monitoring system provides real-time data on your solar production, battery state of charge, and energy consumption. This allows you to track performance, identify potential issues, and optimize your energy usage. Many modern inverters and charge controllers come with integrated monitoring capabilities, often accessible via a mobile app or web portal, offering convenience and peace of mind.

11. Component Housing: Enclosures and Combiner Boxes

Enclosures protect your electrical components, such as charge controllers, breakers, and wiring connections, from environmental elements like dust, moisture, and extreme temperatures. Combiner boxes are used to consolidate the wiring from multiple solar panels into a single output, often housing fuses or breakers for each string. These enclosures are rated for outdoor use and are essential for maintaining the integrity and safety of your electrical connections.

12. Tools and Permits: Installation Essentials

Beyond the core components, you will need a range of tools for installation, including wire strippers, crimpers, multimeters, and safety gear. Additionally, depending on your location, you may need to obtain permits and undergo inspections for your off-grid solar system. Understanding and adhering to local regulations ensures your system is compliant and safe. While specific procedures for grid connection can sometimes be unclear, ensuring transparent procedures and fair costs is essential for encouraging private investment in renewable energy. Solar Energy Policy in Uzbekistan: A Roadmap highlights the importance of clear rules for permitting and grid access.

Building Your Energy Independence

Creating an off-grid solar system is an empowering step towards energy autonomy. A detailed Bill of Materials, encompassing these 12 critical line-items, forms the backbone of a successful installation. By carefully selecting each component, you ensure your system is not only functional but also reliable, safe, and tailored to your specific energy needs. Our company, with years of experience in the solar and energy storage industry, specializes in developing robust off-grid solar solutions, integrating high-performance LiFePO4 batteries and advanced inverters to help you achieve true energy independence.

Frequently Asked Questions

What is the most crucial component in an off-grid solar BOM?

While all components are vital for a functional system, the battery bank is often considered the heart of an off-grid setup. It provides the stored energy that keeps your system running when solar production is low or absent. High-quality LiFePO4 batteries offer superior performance and longevity.

How do I size my off-grid solar system correctly?

Sizing involves calculating your total energy consumption (load assessment) and then determining the solar panel capacity and battery storage needed to meet those demands, considering local sun hours and desired days of autonomy. Consulting with an experienced solar professional can help ensure accurate sizing.

Is it possible to expand an off-grid solar system later?

Yes, many off-grid systems are designed with expandability in mind. Planning for future expansion, such as oversizing your charge controller or inverter slightly, can make adding more solar panels or battery capacity simpler down the line. However, it is more cost-effective to plan for your anticipated needs from the start.

What is the expected lifespan of an off-grid solar system?

Solar panels typically last 25-30 years or more, while high-quality LiFePO4 batteries can last 10-15 years or thousands of cycles. Inverters generally have a lifespan of 10-15 years. Regular maintenance and proper installation contribute significantly to the overall lifespan of your system.

Do off-grid systems require maintenance?

Yes, off-grid systems require some maintenance. This includes keeping solar panels clean, checking battery terminals for corrosion, monitoring system performance, and ensuring all connections are secure. LiFePO4 batteries require less maintenance than lead-acid batteries, but periodic checks are still recommended.

References

• IEA. (2022). Solar Energy Policy in Uzbekistan: A Roadmap.
• IEA. (2016). Next Generation Wind and Solar Power.
• U.S. Department of Energy. (2021). Solar Futures Study. Figures 5-1, 5-2, 6-3, 6-9, 6-11, 6-17. (Referenced from the provided knowledge base, which cites specific figures from this study.)

Disclaimer: This article provides general information and is not intended as a substitute for professional engineering, electrical, or financial advice. Always consult with qualified professionals for your specific off-grid solar system design and installation.
