Is an MPPT Solar Controller Worth the Extra Cost? [Analysis]

A solar charge controller is a critical component in any off-grid solar power system, acting as the gatekeeper between your solar panels and your battery bank. Its primary job is to regulate the power flow, protecting your batteries from overcharging and optimizing the charging process. When selecting a controller, you face a choice between two main technologies: Pulse Width Modulation (PWM) and Maximum Power Point Tracking (MPPT). While MPPT controllers come with a higher price tag, the central question for many system builders is whether this extra cost is a worthwhile investment. This analysis will break down the technical differences, efficiency gains, and long-term value to help you make an informed decision.

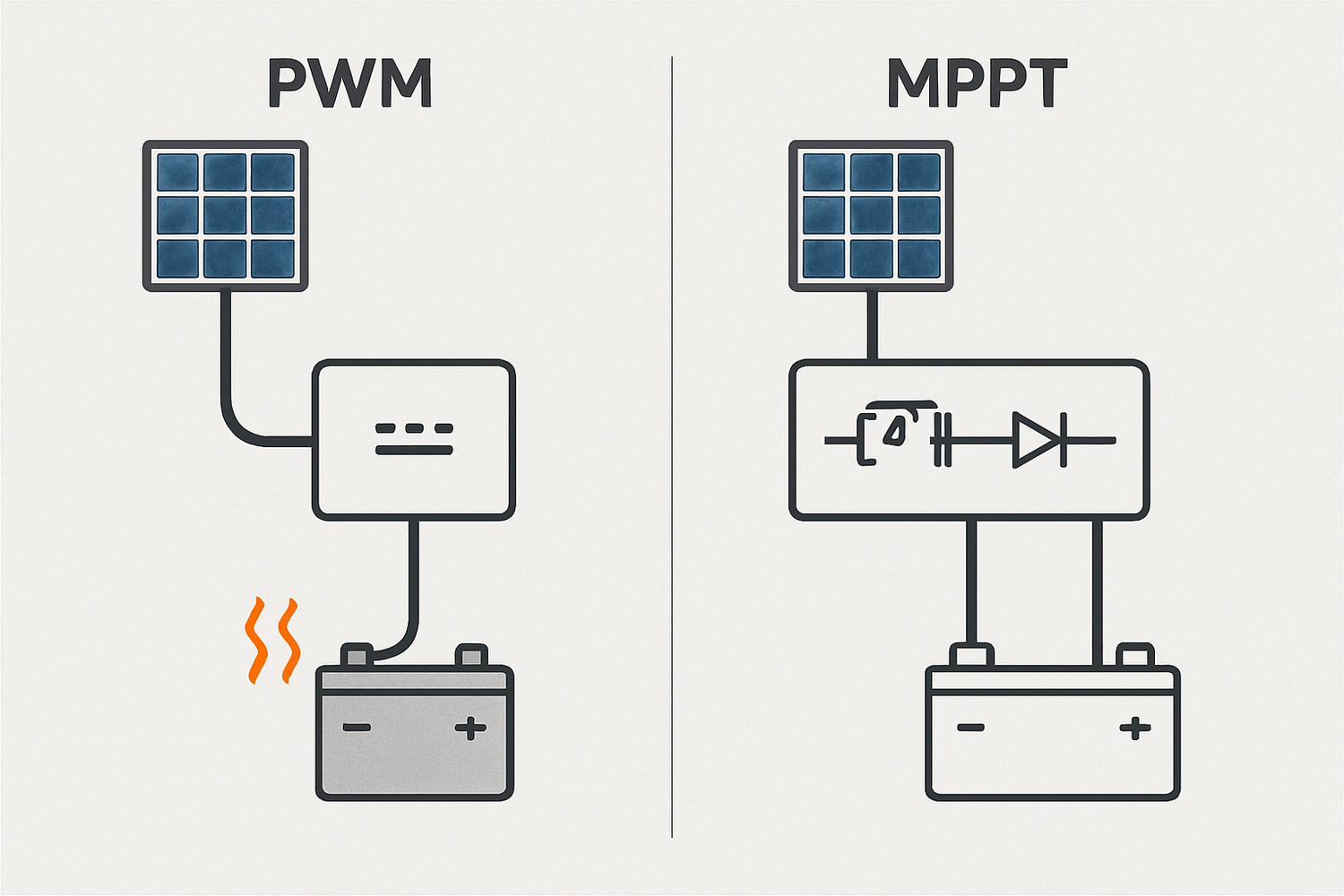

Understanding the Core Technologies: MPPT vs. PWM

To evaluate the cost-effectiveness of an MPPT solar controller, it's important to first grasp how each technology functions. Though they both manage battery charging, their methods and efficiency levels differ significantly.

How PWM Controllers Work

A Pulse Width Modulation (PWM) controller is the simpler of the two technologies. It functions like a smart switch, connecting the solar array directly to the battery bank. As the battery charges, the controller rapidly switches on and off to gradually reduce the power flow and prevent overcharging. The main limitation of a PWM controller is that it must match the solar panel's voltage to the battery's voltage. This process can lead to a significant loss of power, especially if there's a mismatch between the nominal voltage of the panels and the battery bank.

The Advanced Approach of MPPT Controllers

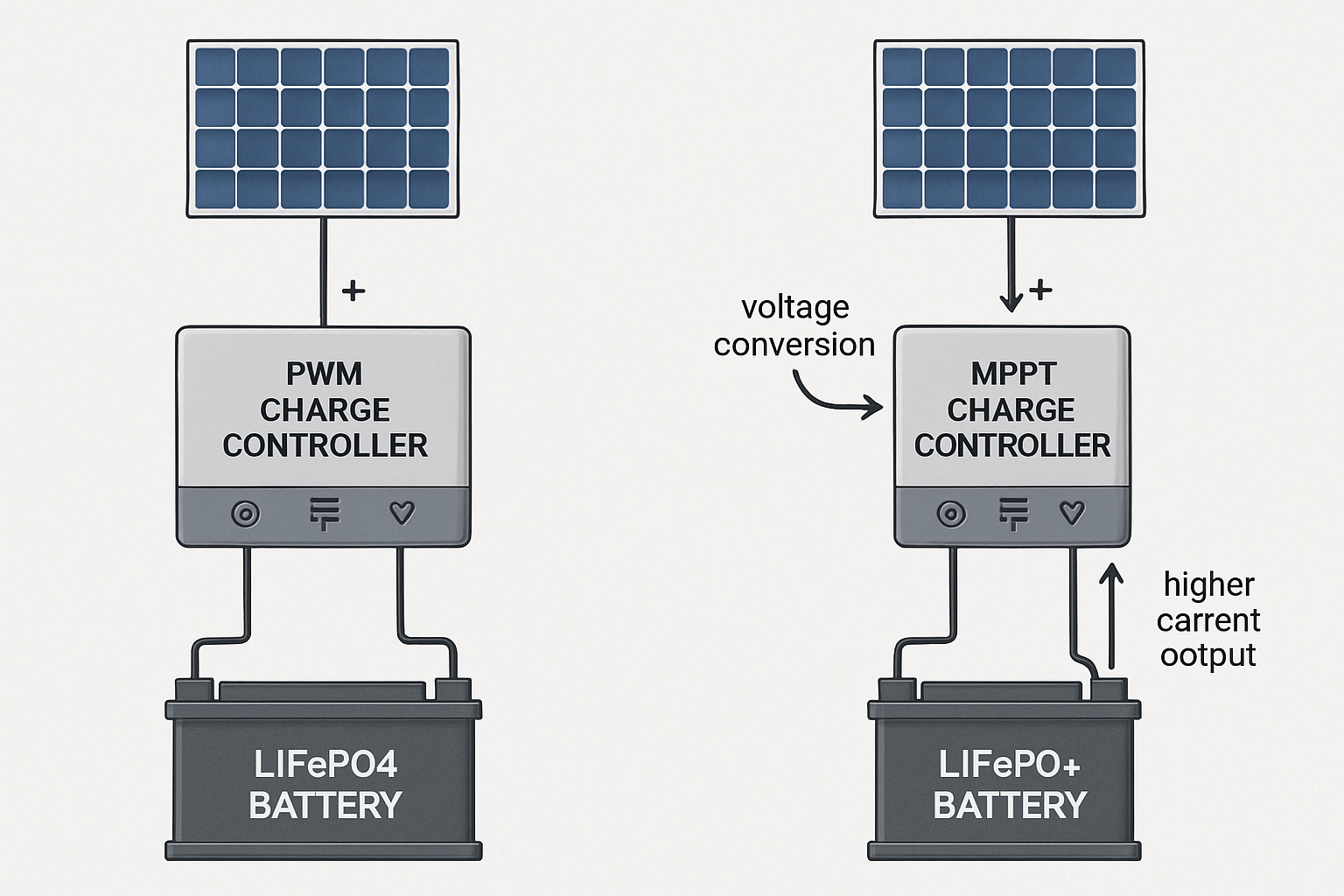

A Maximum Power Point Tracking (MPPT) controller is a more sophisticated device that acts as a smart DC-to-DC converter. Instead of just connecting the panel to the battery, it actively scans the panel's output to find the optimal combination of voltage and current—the 'maximum power point'. It then converts the panel's higher voltage output down to the battery's charging voltage. This conversion process boosts the current, allowing the system to capture up to 30% more power from the same solar array compared to a PWM controller. This capability is especially valuable in conditions where the panel's voltage is much higher than the battery's, such as in cold weather or when using high-voltage panels.

The Efficiency Argument: Quantifying the Gains

The primary advantage of an MPPT solar controller is its superior efficiency. This benefit is not constant; it becomes more pronounced under specific conditions where the controller can leverage its voltage-converting capabilities to harvest more energy.

When MPPT Delivers Peak Performance

An MPPT controller's efficiency advantage shines brightest in several key scenarios:

• Cold Weather: Solar panels produce a higher voltage at colder temperatures. An MPPT controller can capture this excess voltage and convert it into additional charging current, whereas a PWM controller would waste it.
• Low Battery State of Charge: When your battery is deeply discharged, the voltage difference between the solar panel and the battery is at its greatest. An MPPT controller excels in this situation, maximizing the charging current to replenish the battery more quickly.
• Mismatched Voltages: If you use higher-voltage panels (like 60-cell grid-tie panels) to charge a lower-voltage battery bank (e.g., 12V or 24V), an MPPT controller is essential. It efficiently steps down the voltage, a task a PWM controller cannot perform without massive power loss.

A Data-Driven Comparison

The efficiency gains of MPPT technology are not just theoretical. According to the International Energy Agency's (IEA) work on Performance of New Photovoltaic System Designs, optimizing system components is crucial for maximizing energy yield, a principle that directly applies here. Let's look at a practical comparison.

Disclaimer: These are illustrative values. Actual performance can vary based on specific components and conditions.

Cost Analysis: Initial Investment vs. Long-Term Value

While the technical superiority of MPPT is clear, the decision often comes down to financials. Is the higher upfront cost justified by the long-term returns?

The Upfront Price Difference

There is no denying that PWM controllers are more affordable. A small PWM controller might cost under fifty dollars, while an equivalent MPPT controller could be two to four times that price. For very small, simple systems—like a single panel for trickle charging a battery—the low cost of a PWM controller makes it an attractive option.

Calculating the Return on Investment (ROI)

The true value of an MPPT controller emerges over the system's lifespan. The extra 10-30% energy harvested daily compounds over years, often paying back the initial price difference and then some. Consider a 400W solar array. A 25% efficiency gain from an MPPT controller could yield an extra 100 watts of power during peak sun hours. Over a day, this can add up to several hundred watt-hours of energy, reducing the need for a generator or allowing you to power more devices. This increased energy harvest means you might be able to achieve your power goals with a smaller, less expensive solar array, offsetting the controller's higher cost from the start.

System Design and Compatibility Considerations

The choice between PWM and MPPT also has significant implications for your overall system design, including panel selection and battery health.

Matching the Controller to Your Solar Array

PWM controllers require that the nominal voltage of your solar panels matches your battery bank. This limits your panel choices, often to smaller, more expensive '12V' panels. MPPT controllers offer far more flexibility. You can use less expensive and more readily available high-voltage grid-tie panels to charge 12V, 24V, or 48V battery banks. This also allows you to wire panels in series for higher voltage, which reduces the required wire gauge and minimizes power loss over long cable runs.

The Impact on Battery Health and Performance

Advanced batteries, such as Lithium Iron Phosphate (LiFePO4), benefit greatly from the sophisticated charging algorithms found in high-quality MPPT controllers. These controllers typically offer multi-stage charging (Bulk, Absorption, Float) that can be customized to the specific needs of lithium chemistry, ensuring the battery is charged safely and efficiently. As noted in the Ultimate Reference for Solar Storage Performance, matching your charging profile to your battery is essential for maximizing its lifespan and performance. Proper charging protects your battery investment, which is often the most expensive component of a solar power system. The International Renewable Energy Agency (IRENA) also emphasizes in its Future of Solar Photovoltaic report that technology improvements are key to reducing costs and improving reliability across the solar industry.

Making the Right Choice for Your System

Ultimately, the decision to invest in an MPPT solar controller is not just about the initial cost. It's an evaluation of your system's needs, your climate, and your long-term energy goals. For small, non-critical applications in warm climates with matched panel and battery voltages, a PWM controller can be a perfectly adequate and cost-effective solution. However, for most other systems—especially those in colder climates, with larger arrays, or using advanced lithium batteries—the MPPT controller is a clear winner. The significant efficiency gains, system design flexibility, and enhanced battery care it provides deliver superior long-term value that far outweighs the higher initial investment. As the IEA's Renewables 2023 report shows, maximizing the output of every component is key to the continued growth of solar power.

Frequently Asked Questions

Can I use a 24V solar panel with a 12V battery using a PWM controller?

This is not recommended. A PWM controller will force the 24V panel to operate at the 12V battery's voltage, effectively discarding about half of the panel's power potential. An MPPT controller is specifically designed to handle this voltage mismatch efficiently.

How much more energy can I really expect from an MPPT controller?

The energy harvest gain typically ranges from 10% to 30% over a PWM controller. The most significant gains are observed in colder temperatures, during periods of partial shading, and when the battery is in a low state of charge.

Is an MPPT controller necessary for LiFePO4 batteries?

While not strictly mandatory, an MPPT controller is highly recommended for LiFePO4 batteries. Its advanced and often customizable charging profiles are better suited to the specific voltage requirements of LiFePO4 chemistry, which helps maximize performance and extend the battery's lifespan.

Does an MPPT controller work better in cloudy conditions?

Yes. In low-light or partially shaded conditions, a solar panel's maximum power point fluctuates. An MPPT controller's ability to continuously track this point allows it to harvest more energy than a PWM controller, which may struggle to provide a meaningful charge in the same conditions.
