Unlock Silent Power: Combine Alternator Charging and Solar

For many RV and campervan owners, the goal is simple: reliable, uninterrupted power far from any hookups. Solar panels are a cornerstone of this freedom, quietly converting sunlight into usable energy. But what happens during a week of cloudy skies or when you're parked in a shady forest? Relying on a single power source can leave you vulnerable. The solution is to create a more resilient system by integrating your vehicle's alternator, turning every mile you drive into a powerful charging opportunity.

Combining alternator charging with your solar setup creates a robust, dual-source system that significantly enhances your energy independence. This approach ensures your batteries are charging whether you are parked in the sun or driving down the highway, providing a level of reliability that neither source can achieve alone.

Why Not Rely on a Single Charging Source?

A power system is only as strong as its weakest link. Depending on a single charging method, whether solar or alternator, introduces limitations that can interrupt your off-grid experience.

The Challenge of Intermittent Sunlight

Solar power is incredibly effective, but it is inherently dependent on weather and location. A string of overcast days can drastically reduce your power generation, leaving your batteries depleted. Similarly, choosing a beautiful, shaded campsite means your solar panels will underperform. Seasonal changes also play a major role; winter months with shorter days and a lower sun angle present a significant challenge for solar-only systems.

The Inefficiency of Idling for Power

On the other side, using only your vehicle's engine to charge your house batteries is far from ideal. Idling the engine for extended periods is an inefficient way to generate electricity, consuming fuel and creating unnecessary noise and emissions. While the alternator is a powerful generator, its primary job is to run the vehicle's systems and top off the starter battery, not to correctly charge a deep-cycle house battery bank.

The Synergy of a Dual-Charging Strategy

A dual-charging strategy leverages the strengths of each source to cover the weaknesses of the other. Solar panels excel when you are stationary on bright, sunny days. The alternator excels when you are in motion, regardless of the weather. By combining them, you gain a versatile system that adapts to your travel style and the environment. This concept of using diverse sources to improve reliability is a core principle in energy systems. As noted in the IEA's research, integrating multiple energy inputs enhances overall system flexibility and security.

The Core Component: Understanding DC-to-DC Chargers

You cannot simply connect your alternator to your house batteries with a set of wires. This is unsafe and ineffective, especially with modern vehicles and sensitive battery chemistries like Lithium Iron Phosphate (LiFePO4). The essential component that makes this combination possible is a DC-to-DC battery charger.

What is a DC-to-DC Charger and Why Do You Need One?

A DC-to-DC charger is a smart device that takes the power from your vehicle's alternator and starter battery and transforms it into a perfect, multi-stage charge profile for your house battery bank. It isolates your starter battery, ensuring you can always start your engine. This is critical because it prevents your RV's appliances from draining the vehicle's starting battery. Furthermore, many modern vehicles use 'smart' alternators that vary their voltage. A DC-to-DC charger can handle these fluctuating voltages and deliver a stable output, something a simple isolator relay cannot do.

Key Features to Look For

When selecting a DC-to-DC charger, consider these features:

• Amperage Rating: This determines how quickly it can charge your batteries. Common sizes range from 20A to 60A. The right size depends on your alternator's capacity and your battery bank's charge acceptance rate.
• Multi-Stage Charging: A quality charger will offer bulk, absorption, and float charging stages, which are essential for maximizing the lifespan of your batteries, particularly LiFePO4.
• Battery Chemistry Compatibility: Ensure the charger has selectable profiles for different battery types, such as AGM, Gel, and Lithium (LiFePO4).
• Solar Input: Some advanced DC-to-DC chargers include a built-in MPPT solar charge controller. This can simplify your wiring and reduce the number of components in your system.

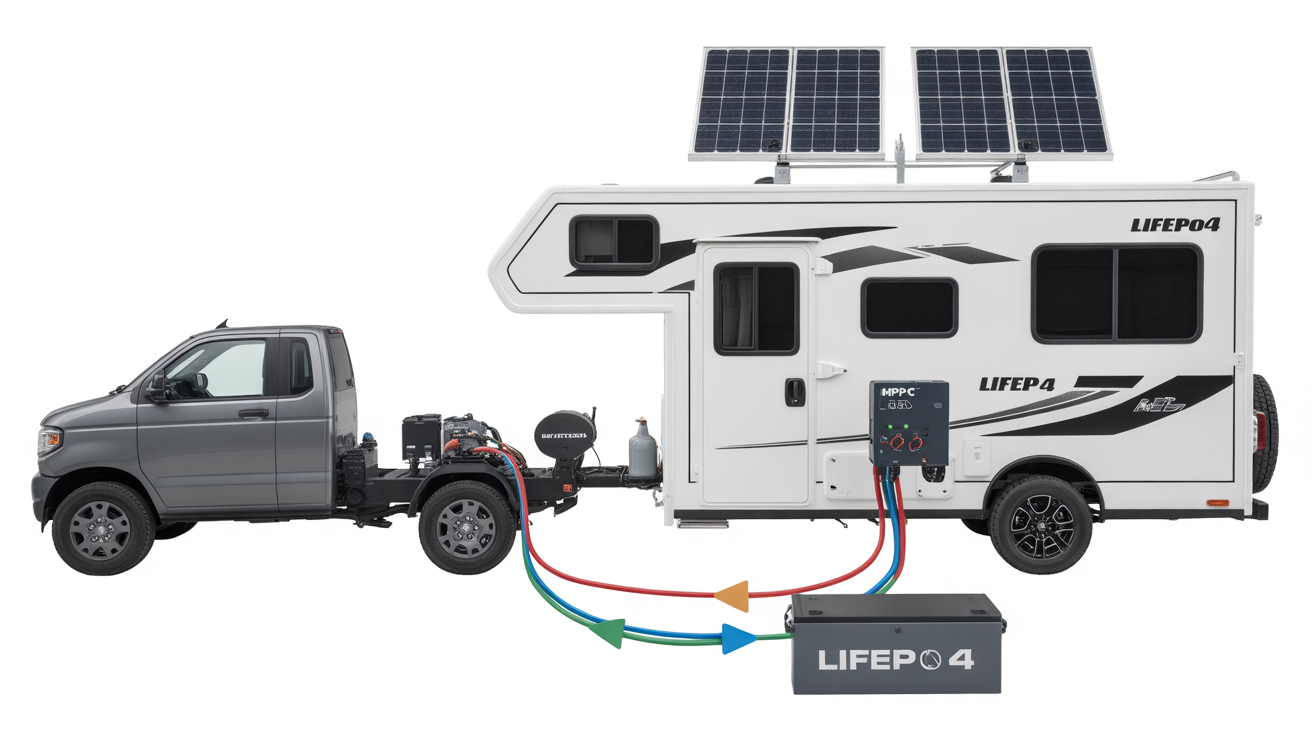

System Integration: Combined vs. Separate Components

You have two primary options for your setup. You can use a combination unit that includes both a DC-to-DC charger and an MPPT solar controller, or you can install two separate devices. A combined unit offers a streamlined installation with less wiring. A separate system provides redundancy; if one component fails, the other can still charge your batteries. Both approaches are valid, and the choice depends on your priorities for space, simplicity, and redundancy.

Designing Your Combined Charging System

A well-designed system is safe, efficient, and tailored to your specific needs. Proper planning involves sizing the components correctly and adhering to safety standards.

Sizing Your Alternator Charger

It is crucial not to overload your vehicle's alternator. An alternator's stated output (e.g., 180A) is its maximum, but it needs a significant portion of that to run the vehicle itself. A safe practice is to size your DC-to-DC charger to draw no more than 25-40% of the alternator's rated capacity. For a 180A alternator, a 40A or 50A DC-to-DC charger is a suitable choice.

Wiring and Safety Considerations

Proper wiring is non-negotiable for safety and performance. The long wire run from the starter battery in the engine bay to the house batteries in the living space requires a thick wire gauge to minimize voltage drop. Always use high-quality, correctly sized fuses on both the input and output connections of the DC-to-DC charger to protect the device, your batteries, and your vehicle.

Disclaimer: This table provides general recommendations. Always consult the product manual and a professional for your specific application.

Real-World Benefits and Performance

The practical advantages of a combined charging system become apparent on the road, offering a new level of freedom and confidence in your power supply.

Arrive at Camp with Full Batteries

One of the most significant benefits is the ability to fully recharge your battery bank while driving. After a few hours on the road, you can arrive at your destination with 100% battery capacity. This means you can immediately use your appliances without worrying about power, even if you arrive after sunset or during a rainstorm.

Redundancy for Unpredictable Weather

A dual-charge system provides crucial redundancy. If you encounter several days of cloudy weather that render your solar panels ineffective, you are not stranded. You can simply drive for an hour or two to significantly replenish your batteries. This capability turns a potentially trip-ending power shortage into a minor inconvenience. The ability to use smart inverter technology and storage to improve system services is a key benefit, a point supported by analysis in the IEA's China Power System Transformation report.

Protecting Your Investments

This setup protects both your vehicle and your battery bank. The DC-to-DC charger prevents the alternator from being overworked by the heavy, continuous demand of a large house battery bank. Simultaneously, it ensures your expensive LiFePO4 or AGM batteries receive a precise, healthy charge, which is vital for achieving their full expected lifespan. As research from IRENA on smart charging highlights, managing power flow intelligently is crucial for the longevity and efficiency of both power sources and storage systems like batteries. This is detailed in their Innovation Outlook: Smart charging for electric vehicles publication.

A Smarter Way to Power Your Travels

Integrating alternator charging with your solar array is a strategic upgrade that creates a truly resilient off-grid power system. It moves beyond relying on a single, intermittent source and builds a dynamic solution that generates power whenever you are parked in the sun or driving down the road. This combination provides reliability in all conditions, protects your valuable components, and ultimately delivers the energy independence every RV and campervan owner seeks. By making your vehicle an active part of your power generation, you ensure the adventure never has to stop for a lack of power.

Frequently Asked Questions

Can I just use a simple isolator relay instead of a DC-to-DC charger?

While isolators were common in older systems, they are not recommended for modern setups, especially with LiFePO4 batteries or vehicles with smart alternators. An isolator simply connects the batteries in parallel and does not regulate voltage or current. This can lead to chronic undercharging of your house batteries and can strain your vehicle's alternator. A DC-to-DC charger provides a controlled, multi-stage charge that is essential for battery health and system safety.

How do the solar controller and DC-to-DC charger work at the same time?

Quality charge controllers, both MPPT solar and DC-to-DC, are designed to work together seamlessly. They constantly monitor the battery's voltage. If both the sun is shining and the engine is running, each controller will supply current and independently adjust its output as the battery's voltage rises. They will both taper off as the battery becomes full, ensuring it is never overcharged. They function in parallel without interfering with one another.

Will installing a DC-to-DC charger void my vehicle's warranty?

When installed correctly according to the manufacturer's instructions—with proper wire gauges and fusing—a DC-to-DC charger is a standard aftermarket accessory and is very unlikely to void a vehicle's warranty. However, any damage caused by an improper installation may not be covered. If you have significant concerns, it is always a good practice to consult with your vehicle manufacturer or a qualified professional installer. This content is for informational purposes and does not constitute professional installation advice.
