Which notice applies: grid-tied, off-grid, or microgrid?

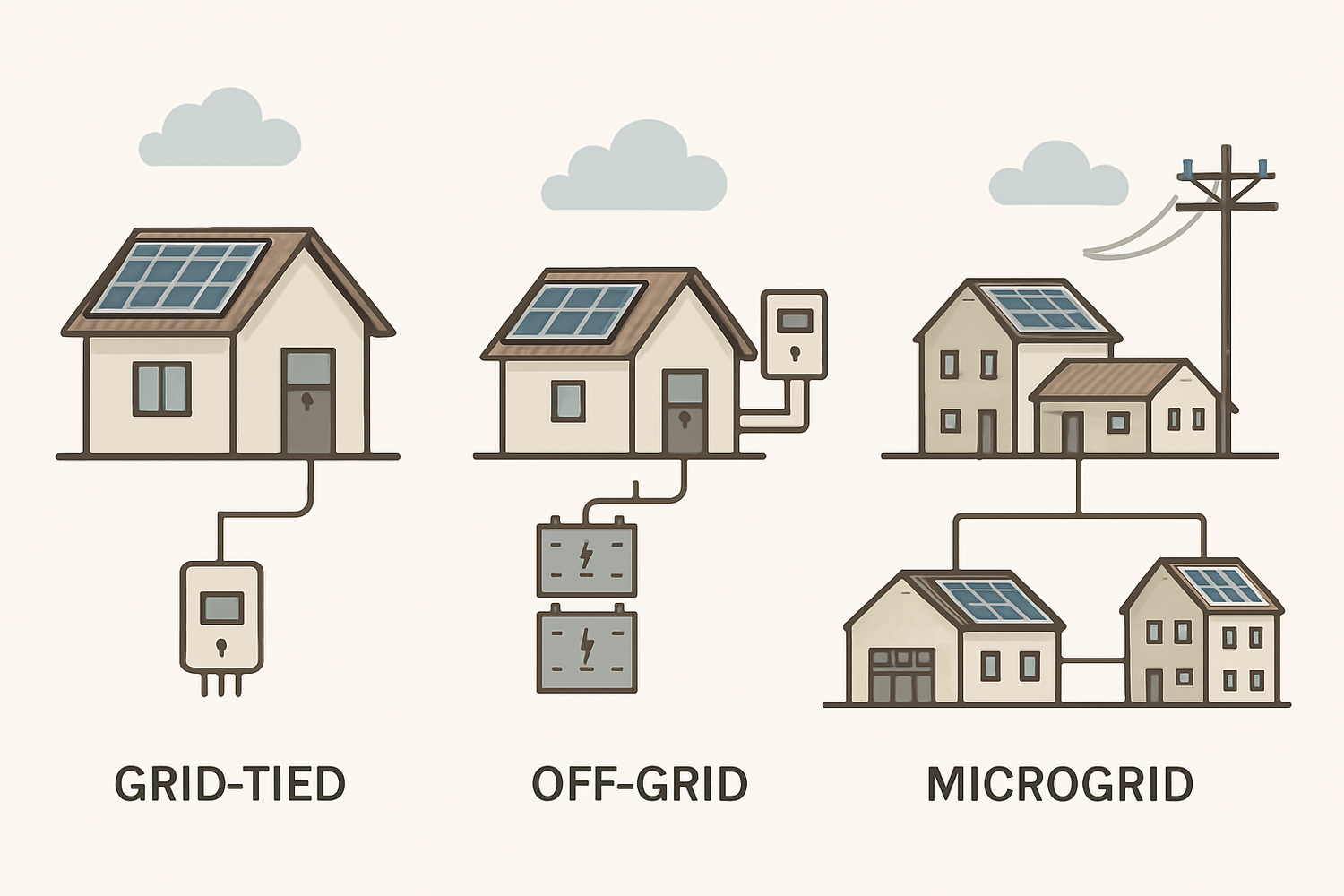

Understanding the distinctions between grid-tied, off-grid, and microgrid solar systems is fundamental to ensuring safety and regulatory compliance. Each system interacts with the electrical grid differently, demanding a unique set of safety notices. These labels are not just bureaucratic formalities; they are critical communication tools for utility workers, first responders, and technicians, providing essential information to prevent electrical shock, equipment damage, and grid instability.

Key Safety Notices for Grid-Tied Systems

Grid-tied systems are the most common type of solar installation. They are directly connected to the utility grid, allowing you to send excess power back to the utility and draw power when your panels are not producing enough. This interconnection creates specific safety requirements focused on protecting the grid and its personnel.

Rapid Shutdown and Interconnection Point Labeling

A primary concern for grid-tied systems is the safety of firefighters. During an emergency, they need a way to quickly de-energize the solar array on the roof. This is achieved through a rapid shutdown system. The National Electrical Code (NEC) mandates clear labeling indicating the presence of this system. Notices must be placed at the service disconnect and on the PV system components themselves, guiding emergency personnel on how to safely shut down the system. The interconnection point, where your solar system physically connects to the grid, also requires a specific placard detailing the system's operating voltage and current.

Anti-Islanding and Backfeed Prevention

When the utility grid goes down, a grid-tied solar system must automatically shut off. This feature, known as anti-islanding, prevents the system from sending power back into the grid lines. This is a critical safety measure that protects utility workers who are trying to repair the grid from being electrocuted by unexpected power from a solar installation. Safety notices must clearly warn against the dangers of backfeeding. Standards like IEEE 1547 are essential for certifying that inverters have this capability. According to a U.S. Department of Energy (DOE) success story, advanced inverters play a key role in maintaining grid stability and safety, even in complex microgrid setups.

Off-Grid Systems: A Different Set of Safety Rules

Off-grid systems, as the name implies, have no connection to the utility grid. They are completely self-sufficient, relying on solar panels, charge controllers, inverters, and a battery bank to provide power. The safety focus here shifts from grid interaction to the internal components of the stand-alone system.

Battery and Energy Storage System (ESS) Warnings

The heart of an off-grid system is its energy storage. Battery banks, often utilizing high-performance Lithium Iron Phosphate (LiFePO4) chemistry, store energy for use at night or on cloudy days. These systems present unique electrical and chemical hazards. NEC Article 706 governs Energy Storage Systems (ESS) and requires specific safety labeling. Notices should indicate the battery chemistry, system voltage, and the location of DC disconnects. An emergency shutdown procedure should also be clearly posted, providing a straightforward guide to de-energizing the entire system safely.

Isolating from the Grid: The Role of Transfer Switches

Even though an off-grid system is designed to be independent, it's crucial to ensure it can never accidentally connect to the grid. NEC Article 710, which covers Stand-Alone Systems, outlines these requirements. If a backup generator is used that is also connected to the property's wiring, a transfer switch is mandatory. This device physically prevents power from your system from ever reaching the utility lines. Safety notices must clearly identify the installation as a stand-alone or off-grid power source, ensuring no one attempts to work on it as if it were a grid-tied system.

Microgrids: The Hybrid Approach to Safety Labeling

Microgrids represent a more complex, hybrid model. A microgrid is a local electrical grid with defined boundaries that can operate in two modes: connected to the main utility grid or disconnected in 'island mode'. This dual capability provides enhanced energy resilience but also introduces more complex safety labeling requirements.

Dual-Mode Operation: Grid-Connected and Islanded

The primary challenge with microgrids is communicating their current operational state. A notice must clearly indicate whether the system is grid-connected or islanded. As highlighted in a report by the International Renewable Energy Agency (IRENA), the ability for a microgrid to operate in islanded mode is crucial for resilience during a grid disturbance. The safety protocols and potential electrical hazards are different in each mode, so clear communication is vital. The Microgrid Interconnect Device (MID), as defined in NEC Article 705, is the component that facilitates this transition and must be clearly labeled.

Point of Common Coupling (PCC) and System Control

The Point of Common Coupling (PCC) is the specific location where the microgrid connects to the main utility grid. This is a critical control point that requires extensive labeling. Notices at the PCC must detail the interconnection requirements, operational parameters, and contact information for the system operator. The complexity of these systems often involves multiple power sources (solar, batteries, generators), and the labeling must reflect this. Research from the International Energy Agency (IEA) on microgrids in Southeast Asia emphasizes that proper system design and clear operational frameworks are crucial for ensuring they are resilient and safe.

At a Glance: Comparing Safety Notice Requirements

To simplify these distinctions, here is a comparative overview of the primary safety notice requirements for each system type.

Ensuring Safety and Compliance for Your System

Choosing the right safety notices is a non-negotiable aspect of any solar installation. For a grid-tied system, the focus is on protecting the utility grid. For an off-grid system, the priority is the safe operation of its internal components, especially the batteries. A microgrid combines both challenges, requiring a sophisticated labeling strategy that accounts for its dual-mode operation. Adhering to these standards ensures you are compliant with regulations and, more importantly, protects the lives of everyone who interacts with the system. Beyond just safety labels, understanding the metrics behind your system is crucial for long-term reliability. A deep dive into the ultimate reference for solar storage performance can provide valuable insights into optimizing your setup for both safety and efficiency.

Frequently Asked Questions

What is the single biggest safety risk with grid-tied systems?

The most significant risk is unintentional islanding, also known as backfeeding. This occurs when a solar system continues to send power to the grid during a utility outage, creating a life-threatening hazard for line workers who believe the lines are de-energized. All modern grid-tied inverters have mandatory, certified anti-islanding protection to prevent this.

Can I use a grid-tied inverter for an off-grid system?

Typically, no. A standard grid-tied inverter requires a signal from the utility grid to operate. Without that signal (as in an off-grid setup), it will not turn on. Hybrid inverters are designed to function in both grid-tied and off-grid modes, but a standard grid-tied inverter cannot be used for a stand-alone system.

Why are microgrid notices so much more complex?

Microgrid notices are more complex because the system has two distinct operating modes: grid-connected and islanded. The safety procedures and electrical conditions change depending on the mode. Therefore, the labeling must be more detailed to accurately inform personnel of the system's current state and the specific protocols required at that moment.

Where can I find the specific wording for my safety labels?

The precise wording, colors, and placement of safety labels are specified in the National Electrical Code (NEC), particularly in Articles 690, 705, 706, and 710. Your local Authority Having Jurisdiction (AHJ), such as the city or county building department, may also have its own specific requirements that supplement or amend the NEC. Always consult the latest codes and local regulations.
