Adding an energy storage system to your solar installation is a major step towards achieving energy independence. It allows you to store excess solar power generated during the day for use at night or during a grid outage. A central question in this process is how to connect the battery to your system. AC coupling is a popular and flexible method, particularly for upgrading existing solar setups. This article provides a clear breakdown of the AC coupled battery system, exploring its benefits and drawbacks to help you determine if it’s the right solution for your home.
Understanding the Fundamentals of AC Coupling
AC coupling refers to the method of connecting a battery system to the alternating current (AC) side of an electrical system. This approach is distinct from DC coupling, where the battery is connected on the direct current (DC) side, before the solar inverter.
How an AC Coupled System Works
In a typical grid-tied solar installation, solar panels produce DC electricity, which is converted to AC electricity by a solar inverter. This AC power then supplies your home's needs, with any excess sent to the grid.

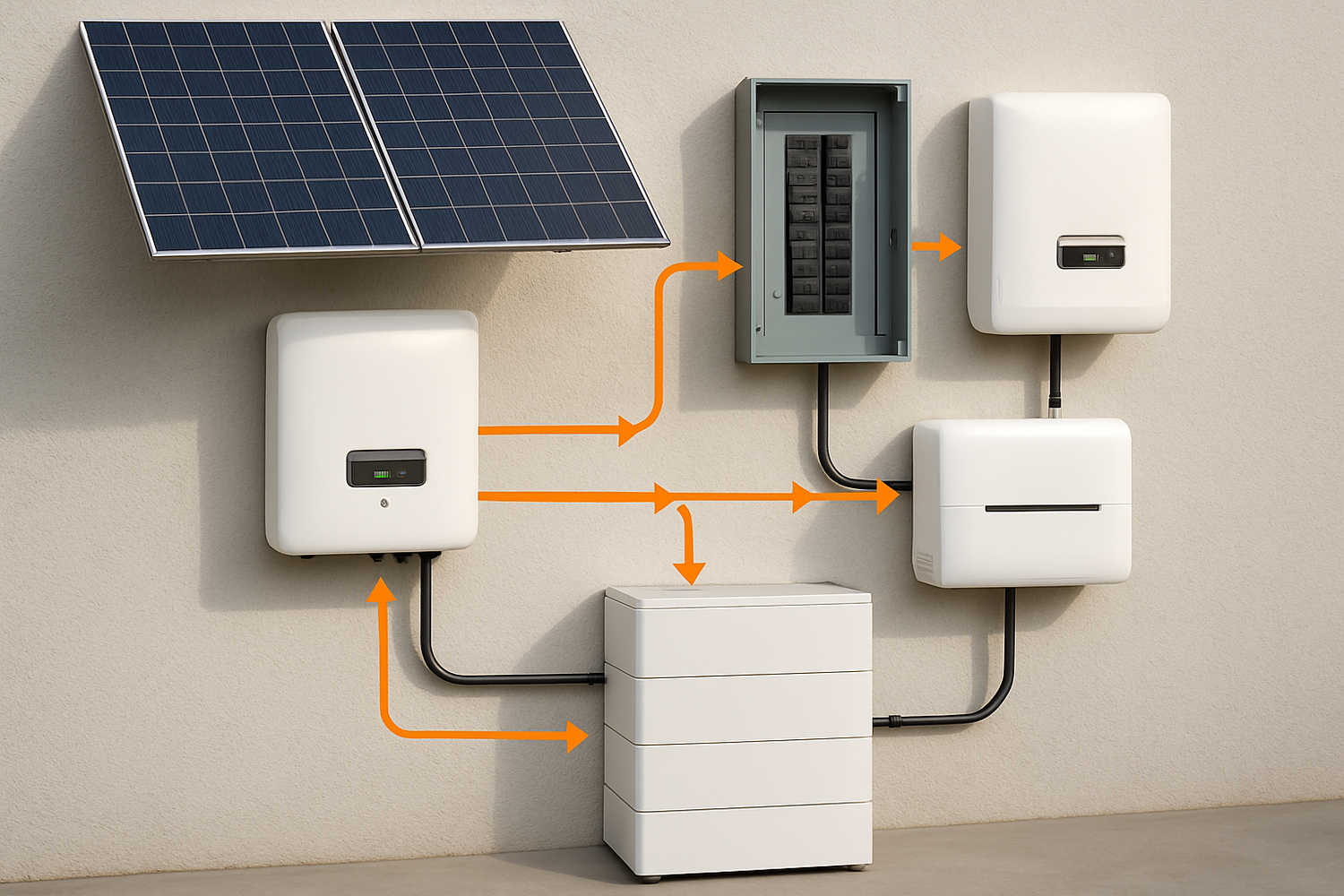

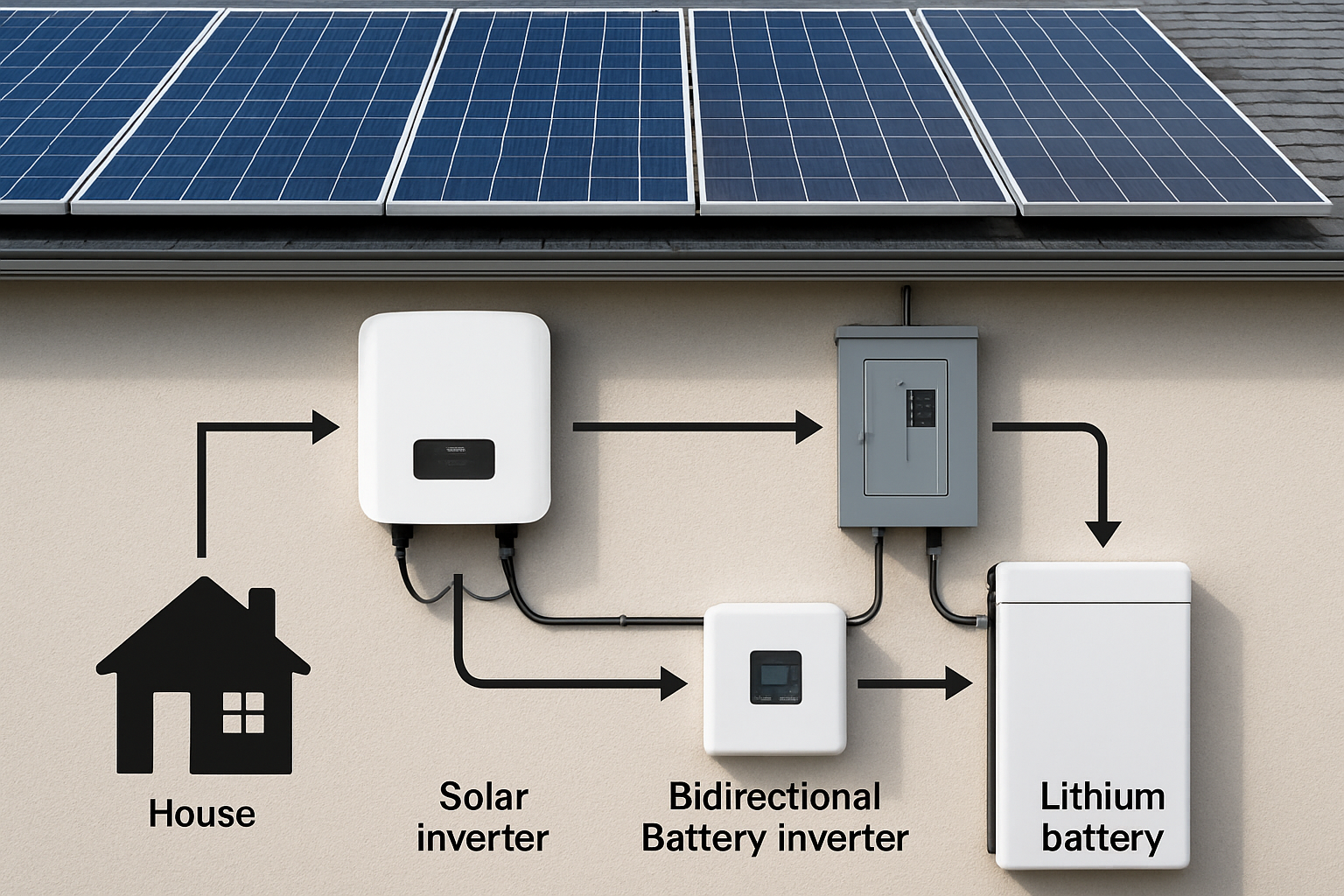

An AC coupled energy storage system is essentially added in parallel to this setup. It has its own dedicated battery inverter. When your solar panels produce more AC power than your home is using, this excess power is directed to the battery inverter. The battery inverter converts the AC power back into DC power to charge the battery. When you need to draw power from the battery, the process reverses: the battery inverter converts the battery's DC power back into AC power for your home.
Key Components in an AC Coupled Setup
- Solar PV Array and Solar Inverter: This is your existing solar power generation system.
- Battery Bank: A high-performance lithium iron phosphate (LiFePO4) battery pack is a common choice for its safety and longevity.
- Battery Inverter/Charger: This is the core of the AC coupled system. It's a bidirectional inverter that manages charging the battery from AC power and discharging the battery to supply AC power.
- Energy Meter: Often installed at the main electrical panel, this device monitors the flow of electricity to and from the grid, telling the battery inverter when to charge or discharge.
The Advantages of Choosing an AC Coupled Battery System
AC coupling offers several distinct advantages, making it a preferred option in many scenarios, especially when retrofitting existing solar installations.
Unmatched Installation Flexibility
The primary benefit of AC coupling is the ease of adding it to an existing grid-tied solar system. Since the battery system connects to the AC side, there is no need to replace or reconfigure the existing solar inverter. This modular approach simplifies installation and can significantly reduce labor costs. It also allows the battery and its inverter to be installed in a location physically separate from the solar equipment.
Independent System Operation
In an AC coupled architecture, the solar PV system and the battery storage system operate independently of each other. This means that if the battery inverter or the battery bank requires maintenance or experiences a fault, your solar panels can often continue to generate power for your home as usual. This separation creates a more resilient energy system with fewer single points of failure.
Scalability for Future Growth
AC coupling makes it straightforward to expand your energy storage capacity in the future. If your energy needs increase, you can add more batteries without redesigning the solar array. This adaptability is a key feature for homeowners who want to future-proof their investment.
Potential Drawbacks and Considerations
While flexible, AC coupling does have some trade-offs that are important to consider, particularly regarding efficiency and cost.
Efficiency and Energy Conversion Losses
The process of converting electricity multiple times results in some energy loss. In an AC coupled system, solar energy is first converted from DC to AC by the solar inverter. To be stored, it must be converted back from AC to DC by the battery inverter. When used, it's converted from DC to AC again. This cycle typically results in a round-trip efficiency of around 90-94%. While modern inverters are highly efficient, this is slightly lower than DC coupled systems, which can reach efficiencies of up to 98% because they involve fewer conversions. Maximizing your stored energy is vital, and as detailed in the ultimate reference for solar storage performance, understanding these efficiency metrics helps in proper system sizing and expectation setting.
Cost and Complexity
An AC coupled system requires two inverters: the original solar inverter and a separate, sophisticated battery inverter. The battery inverter is a powerful device that can be a significant portion of the total system cost. While installation can be simpler for retrofits, integrating the system correctly requires professional expertise to ensure all components communicate and function safely.
Limitations During Grid Outages
For an AC coupled system to provide backup power and be charged by solar panels during a grid outage, the solar inverter and battery inverter must be able to work together to form a stable, independent microgrid. Some older grid-tied solar inverters lack this capability. Modern battery inverters often use a technique called 'frequency shifting' to control the solar inverter's output, but compatibility must be verified before installation.
Making the Right Decision: Is AC Coupling for You?
The choice between AC and DC coupling depends entirely on your specific situation, goals, and existing equipment. The International Energy Agency (IEA) notes that battery storage is a critical and versatile technology for the clean energy transition, serving everything from utility-scale projects to behind-the-meter storage for homes.
Ideal Scenarios for AC Coupling
- Retrofitting Existing Solar Systems: If you already have a grid-tied solar system, AC coupling is almost always the most practical and cost-effective way to add battery storage.
- System Modularity is a Priority: If you value having independent solar and storage systems for resilience and troubleshooting, AC coupling is an excellent choice.
- Flexible Installation Location: When the ideal location for your battery bank is far from your solar inverter, AC coupling provides greater flexibility.
When to Consider Alternatives
- New Solar and Storage Installations: If you are installing a new system from scratch, a DC coupled or hybrid system might offer higher efficiency and potentially lower overall equipment costs.
- Maximizing Efficiency is the Top Goal: For off-grid systems or situations where every watt-hour counts, the higher round-trip efficiency of a DC coupled system can be a deciding factor.
| Feature | AC Coupled System | DC Coupled System |
|---|---|---|
| Best For | Retrofitting existing solar | New solar + storage installations |
| Efficiency | Good (90-94% round-trip) | Excellent (up to 98% round-trip) |
| Installation | Flexible, adds to existing system | Integrated, requires a hybrid inverter |
| Cost | Can be higher due to extra inverter | Often lower cost for new installs |
| Scalability | High modularity and flexibility | Dependent on hybrid inverter capacity |
| Backup Power | Excellent, but check inverter compatibility | Seamless, often designed for backup |
A Final Perspective
AC coupling is a powerful and proven technology that has made energy storage accessible to thousands of homeowners with existing solar arrays. Its flexibility and modular design offer compelling advantages for retrofits and scalable systems. According to the International Renewable Energy Agency (IRENA), the pairing of solar PV with battery storage has become a core pillar of energy transition strategies, driven by falling costs and technological progress. By carefully weighing the benefits of installation ease against the considerations of efficiency and cost, you can make an informed decision that aligns with your energy independence goals.
Disclaimer: The information provided is for educational purposes only and does not constitute financial or electrical installation advice. Always consult with a qualified professional before making decisions about your energy system.
Frequently Asked Questions
Can I add any battery to my existing solar panel system with AC coupling?
While AC coupling is very flexible, it's not universally compatible. The key is the compatibility between the battery inverter and the battery itself, such as a 48V LiFePO4 battery pack. The battery inverter must also be able to correctly manage the energy flow from your existing solar inverter. It is crucial to check the technical specifications from the manufacturers.
Does AC coupling work during a power outage?
Yes, providing backup power is a primary function of an AC coupled storage system. When the grid fails, a properly configured system can disconnect from the grid and form a stable, independent 'mini-grid' to power your essential loads using energy from both the battery and the solar panels.
Is an AC coupled battery system less efficient than a DC coupled one?
Generally, yes, due to the additional DC-to-AC-to-DC conversion step when charging the battery from solar power. As the U.S. Department of Energy explains, every energy conversion involves some loss. However, for many homeowners, the superior flexibility and ease of retrofitting offered by AC coupling outweigh the marginal difference in efficiency.
