As solar energy becomes a mainstream component of our power infrastructure, the standards governing its safe installation are becoming more rigorous. For installers, engineers, and property owners, understanding the structural load requirements for rooftop photovoltaic (PV) systems is critical. Key standards like the American Society of Civil Engineers (ASCE) 7 and the European Eurocodes are evolving to address the unique challenges PV arrays present to building structures. The upcoming code shifts, particularly those reflected in the widely adopted ASCE 7-22, set the stage for what to expect in 2025 and beyond.
The Foundation of Safe Solar: Why Structural Codes Matter
A solar installation is much more than just panels and inverters; it's an integrated system that interacts with a building's structure. Ensuring the roof can safely support the array for decades is a non-negotiable aspect of any project. This involves a detailed structural load analysis for PV roofs, accounting for various forces.
Beyond the Panels: Understanding Key Load Types
Several types of loads act on a roof after a PV installation. The primary ones include:
- Dead Loads: This is the static weight of the solar installation itself, including panels, racking, ballast, and all associated hardware. While a typical system adds only a few pounds per square foot, this permanent load must be factored into the roof's total capacity.
- Live Loads: These are temporary loads, such as maintenance crews walking on the roof or equipment used during installation.
- Environmental Loads: These are the most complex and critical forces. They primarily include wind loads (uplift and downward pressure) and snow loads (including drifting and sliding). Seismic forces are also a major consideration in certain regions.
The Role of ASCE 7 and Eurocode
ASCE 7 and Eurocode are the principal standards that provide engineers with the methodologies to calculate these loads. ASCE 7, specifically 'Minimum Design Loads and Associated Criteria for Buildings and Other Structures', is the key reference in the United States, adopted by the International Building Code (IBC). Eurocodes are a set of harmonized technical standards used for structural design across the European Union. Both frameworks aim to ensure safety and structural resilience, but they approach calculations with different methodologies.
Key Changes in ASCE 7-22: A Look Toward 2025
While the designation '2025 code shifts' is forward-looking, the most recent major update, ASCE 7-22, provides clear direction on the increasing stringency of requirements. This version, which will be referenced in the 2024 IBC and IRC, introduces several significant changes for PV installations.

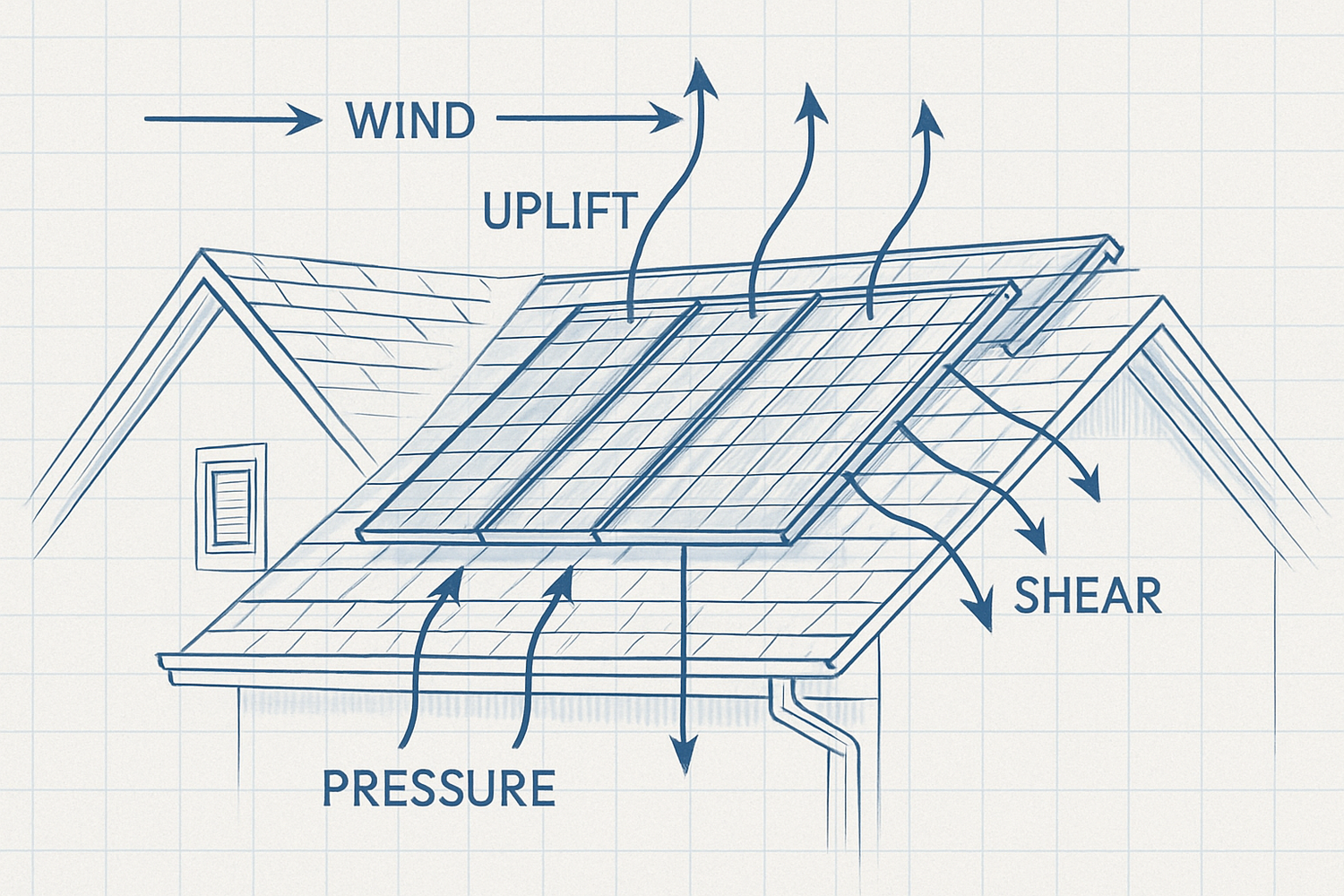

Wind Load Calculations: A More Refined Approach
ASCE 7-22 has refined how wind loads on rooftop components are calculated. One of the most significant changes is the simplification of roof zone designations for calculating wind pressures on components and cladding (C&C). While this simplifies the process, it also adjusts pressure coefficients, meaning that loads, especially at the corners and edges of a roof where uplift is greatest, require careful calculation. The standard also introduces provisions for tornado loads for the first time, a critical addition for high-risk buildings in certain geographical areas.
Snow Load Considerations: Addressing Drifting and Sliding
Snow accumulation around and under PV arrays can create significant, unbalanced loads. The ASCE 7-22 standard uses more granular ground snow load maps based on decades of additional data, leading to more accurate site-specific calculations. It also provides clearer guidance on how to account for snow sliding off panels and drifting against them, which can create concentrated loads that were previously underestimated. According to a report from the International Renewable Energy Agency (IRENA), as renewable systems become more integrated, the robustness of every component, including its structural foundation, is essential for grid stability.
Eurocode Updates: Harmonizing Standards for PV Installations
In Europe, the structural design of PV installations is primarily governed by Eurocode 1, which covers actions on structures, including wind and snow loads. While Eurocode does not yet have a dedicated section for solar panels as detailed as ASCE 7-22, engineers adapt its principles for monopitch canopy roofs to model the forces on tilted solar arrays.
Focus on Wind Actions and Fire Safety
Eurocode 1 provides detailed methods for determining wind pressure coefficients based on a building's geometry and location. The growing adoption of solar energy, as highlighted by the International Energy Agency's 'The Power of Transformation' report, emphasizes the need for internationally harmonized and reliable standards. The EU's revised Energy Performance of Buildings Directive (EPBD) mandates that new buildings be 'solar ready,' which implicitly requires that structural designs account for future PV loads from the outset. This directive, along with national annexes to the Eurocodes, is driving a more standardized approach to ensure safety and long-term performance.
Comparing ASCE 7-22 and Eurocode 1
| Feature | ASCE 7-22 | Eurocode 1 |
|---|---|---|
| Jurisdiction | United States (via IBC/IRC) | European Union Member States |
| Solar-Specific Guidance | Dedicated sections for rooftop and ground-mount PV wind loads. | No dedicated PV section; engineers adapt provisions for canopies and roofs. |
| Wind Load Approach | Detailed roof zones and pressure coefficients (GCp); introduces tornado loads. | External and internal pressure coefficients; relies on national annexes for specifics. |
| Snow Load Approach | Highly granular ground snow load maps; specific guidance on drift and sliding. | Characteristic ground snow load maps by region; provides shape coefficients for drift. |
Practical Implications for Installers and Engineers
These evolving codes have direct consequences for solar project design and execution. Staying current is not just about compliance; it's about ensuring the longevity and safety of every installation.
Adapting System Design and Component Selection
The updated load requirements mean that a one-size-fits-all approach to racking and mounting is no longer viable. Installers must conduct more rigorous site-specific assessments. This may lead to using more robust mounting hardware, different attachment patterns, or even requiring structural reinforcements on some roofs. The selection of high-quality components extends beyond the structural elements. A resilient system is only as strong as its weakest link. This is why understanding the metrics behind energy storage is equally important. For instance, a detailed look at the ultimate reference for solar storage performance reveals how factors like Depth of Discharge (DoD) and battery cycle life are crucial for the system's overall reliability and financial return.
Future-Proofing Installations
As codes continue to evolve, designing to the minimum standard may not be sufficient. Forward-thinking installers and engineers should consider designing for slightly higher load capacities to future-proof their work against the next code cycle. As the IEA's World Energy Balances data shows, the global energy landscape is transforming rapidly, and building resilient, long-lasting infrastructure is paramount. Working closely with structural engineers and using updated design software that incorporates the latest ASCE 7 and Eurocode provisions is the best way to manage risk and deliver superior quality.
Building a Resilient Energy Future
The shifts in ASCE 7 and Eurocode reflect the maturation of the solar industry. With greater precision in calculating wind and snow loads, these standards provide a clearer roadmap for designing and building safer, more durable rooftop PV systems. For professionals in the field, embracing these changes through continuous education and meticulous design practices is essential. It ensures not only compliance but also contributes to a more resilient and reliable renewable energy infrastructure for years to come.
Frequently Asked Questions
When do the 2025 code changes for PV roof loads take effect?
The latest major standard, ASCE 7-22, is already being adopted. For example, Florida has already implemented it. It will be referenced in the 2024 International Building Code (IBC) and International Residential Code (IRC), which are then adopted by states and local jurisdictions over the following months and years. The effective date varies by location.
Will these new codes increase the cost of solar installations?
There may be a minor increase in costs for some projects. This could be due to the need for more robust racking hardware, additional structural analysis by an engineer, or, in some cases, roof reinforcements. However, these costs are an investment in the long-term safety and durability of the system, preventing much costlier failures in the future.
Do these codes apply to both residential and commercial installations?
Yes, the principles and standards within ASCE 7 and Eurocode apply to both residential and commercial buildings. The specific calculations, risk categories, and required load capacities will differ based on the building's size, height, use, and location, but the fundamental requirement to perform a thorough structural load analysis is universal.
