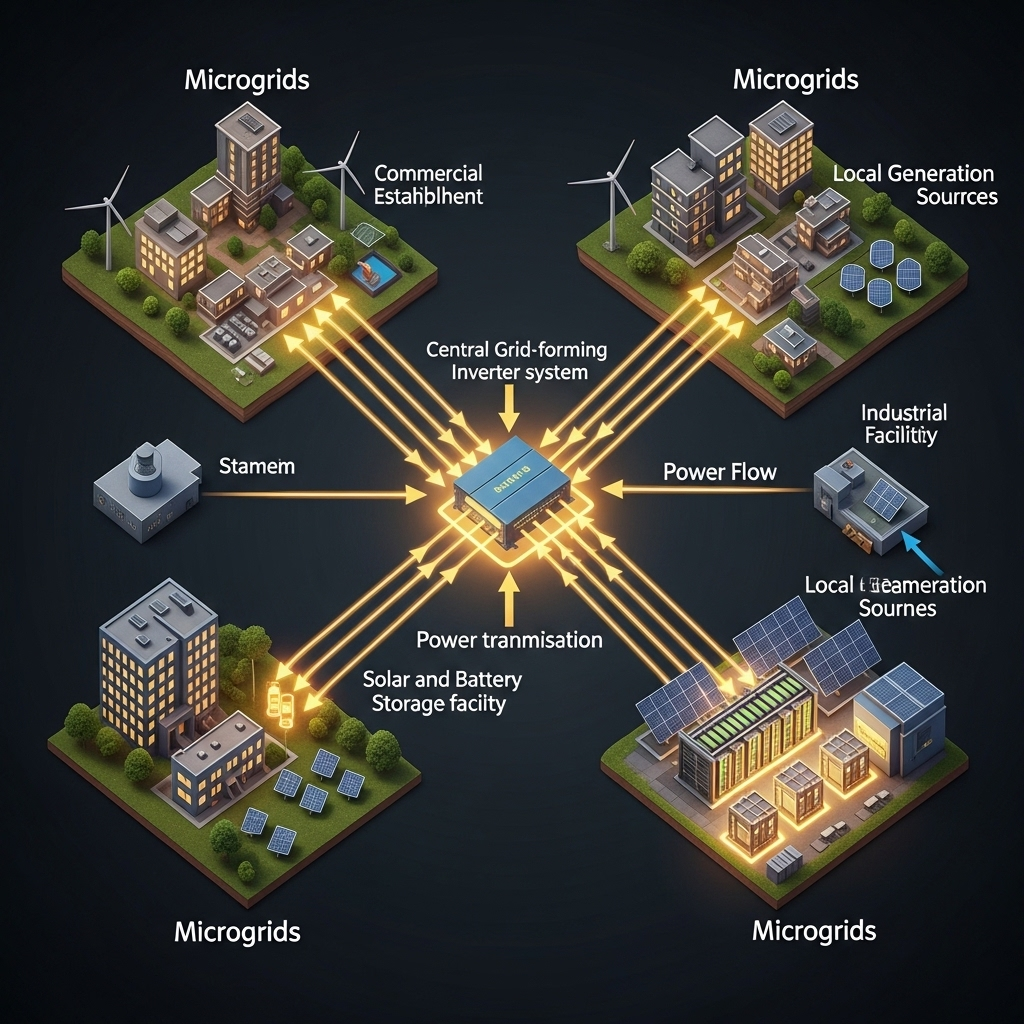

Case Study: grid-forming inverters blackstart four microgrids

Power outages are more than an inconvenience; they can disrupt critical infrastructure and daily life. As our reliance on electricity grows, so does the need for a more resilient power grid. Microgrids offer a powerful solution by creating localized energy islands that can operate independently. At the heart of this capability are grid-forming inverters, a technology that enables renewable energy systems to not only power a microgrid but also restart it from a complete shutdown. This analysis examines a pivotal case study where this technology was used to blackstart four microgrids, demonstrating a significant step toward true energy independence.

The Foundation: Grid-Forming Inverters and Blackstart

To appreciate the significance of this case study, it is important to grasp the core technologies involved. Grid-forming inverters and their blackstart capability are transforming what is possible with decentralized renewable energy.

Defining Grid-Forming Inverters

Most solar inverters currently in use are 'grid-following'. They require a stable, functioning grid to synchronize with and feed power into. If the grid goes down, they shut down for safety. Grid-forming inverters, conversely, can create their own stable grid. They generate a consistent voltage and frequency, effectively acting as the anchor for an independent electrical system. This functionality is crucial for operating a microgrid reliably without any external grid support. As noted in the IRENA report, Grid Codes for Renewable Powered Systems, for systems aiming for high shares of renewables, the role of grid-forming inverters is vital.

The Power of a Blackstart

A 'blackstart' is the process of restoring power to an electric grid without the support of the external transmission network. Traditionally, this has been the domain of large fossil fuel generators. The ability for a renewable energy system to perform a blackstart is a game-changer. It means a solar and battery storage system can initiate the power restoration process for a home, a business, or even a small community, providing a level of resilience previously unattainable with renewables.

A Landmark Project in Microgrid Resilience

A collaborative project involving Siemens and the U.S. Department of Energy’s Solar Energy Technologies Office (SETO) put this technology to the ultimate test. The goal was to develop and validate an advanced energy management system to secure and coordinate multiple microgrids.

A Multi-Layered Management System

The project developed a sophisticated three-layer system to manage the complexities of modern microgrids:

• Layer One: Situational Awareness. This layer operates at the distribution level, providing grid operators with real-time data and forecasts of energy resources. It allows for informed decisions to balance electric loads and can quickly reconfigure the grid to restore power after an outage.
• Layer Two: Cooperative Control. This layer empowers distributed energy resources to work together without a central command. According to a U.S. Department of Energy success story, this allows microgrids to 'talk to each other' to assess their health and share energy as needed, ensuring critical loads like hospitals are prioritized even if the main control room is offline.
• Layer Three: Autonomous Restoration. This is where grid-forming inverters perform their most critical function. This layer enables the entire system to be restored automatically, without any human intervention.

The Blackstart Test and Its Success

The project's culmination was a testbed designed to simulate a complete grid failure. The results were remarkable. The team successfully used 24 grid-forming inverters to execute a blackstart. As the project report highlights, they restored the simulated grid after it was knocked completely offline. Crucially, they resynchronized four distinct microgrids, bringing the entire system back online despite challenging conditions like short circuits and large initial loads. This successful demonstration proves that renewable-based microgrids can provide robust, autonomous power restoration.

Technical Components of an Autonomous Grid

The success of the blackstart test relies on the seamless integration of advanced inverter topologies, switching devices, and energy storage. Each component plays a specific role in creating a stable and responsive independent grid.

Inverter Topologies and System Stability

Grid-forming inverters utilize specific electronic designs and control algorithms to generate a clean and stable sine wave, mimicking the function of traditional rotating generators. They actively manage voltage and frequency, providing the inertia that is often lost when conventional power plants are decommissioned. This capability is a core focus of modern grid codes, which are adapting to handle the unique characteristics of inverter-based resources. The integration of high-performance components is key to reliable operation. For a detailed breakdown of how different parts of a system contribute to overall effectiveness, the ultimate reference for solar storage performance offers valuable analysis on optimizing component synergy.

The Role of Energy Storage

An inverter can only form a grid if it has a consistent power source. High-performance, reliable batteries, such as those using Lithium Iron Phosphate (LiFePO4) chemistry, are essential. They provide the instantaneous power needed to start up the grid and handle large inrush currents from motors and other equipment. IRENA's research on mini-grids confirms that grid-forming technology, often linked to battery systems, is proven technology with a long track record. In its Electricity Storage Valuation Framework, it states that this combination can enable a full transition from diesel to 100% renewable generation in off-grid areas.

Paving the Way for a More Resilient Future

The successful blackstart of multiple microgrids is not just a technical achievement; it has profound implications for the future of our energy infrastructure. It demonstrates a clear path toward a more decentralized, resilient, and renewable-powered grid.

From Isolated Islands to a Flexible Network

This technology allows us to envision a grid that can flexibly segment and reorganize itself during a major outage. Instead of a single, monolithic system vulnerable to widespread failure, we can have a network of self-healing cells. Areas with sufficient local generation, like solar and storage, could isolate themselves and maintain power, even if the broader transmission system is down. This represents a fundamental shift in grid architecture, moving from a top-down model to a more distributed and robust ecosystem.

Accelerating Energy Independence

By proving that renewable energy systems can provide essential grid services like blackstart, grid-forming inverters remove a significant barrier to phasing out conventional power plants. This capability gives grid operators the confidence to rely on inverter-based resources for grid stability and restoration. For individuals and communities, it offers a tangible path to energy independence, ensuring reliable power sourced from clean, local resources.

A New Standard in Energy Reliability

The case study of blackstarting four microgrids with grid-forming inverters marks a pivotal moment. It moves the concept of renewable-powered resilience from theory to proven reality. This technology empowers solar and energy storage systems to do more than just generate power; it enables them to form, stabilize, and restore the grid. As these solutions become more widespread, they will form the backbone of a cleaner, more secure, and truly independent energy future.

Frequently Asked Questions

What is the main difference between grid-forming and grid-following inverters?

A grid-following inverter needs an active grid to operate; it synchronizes to the grid's voltage and frequency. If the grid fails, the inverter shuts down. A grid-forming inverter can create its own grid, generating a stable voltage and frequency independently. This allows it to power a microgrid during an outage.

What does 'blackstart capability' mean for a solar energy system?

Blackstart capability means a solar and energy storage system can restore power from a complete shutdown without any help from the main electrical grid. The system's grid-forming inverter initiates a stable, local grid, and the batteries provide the initial power to bring everything back online.

Can a single home with solar and storage have blackstart capability?

Yes. A residential energy storage system equipped with a grid-forming hybrid inverter and sufficient battery capacity can provide blackstart capability. When a grid outage occurs, the system can disconnect from the grid and use the stored battery power to form a stable, independent grid to power the home's essential loads.
