As the world shifts toward renewable energy, the need for reliable, safe, and long-lasting energy storage has become paramount. While various lithium-ion chemistries compete for dominance, one stands out for its robust safety profile and exceptional longevity: Lithium Iron Phosphate, or LiFePO4. For engineers and homeowners alike, LiFePO4 has become a trusted foundation for residential solar systems, off-grid applications, and comprehensive energy storage solutions.
The Bedrock of Safety: Chemical and Thermal Stability
The primary reason engineers favor LiFePO4 for stationary energy storage is its inherent safety, which is rooted in its chemistry. Unlike other lithium-ion variants like Nickel Manganese Cobalt (NMC), LiFePO4 batteries have a remarkably stable molecular structure.
Understanding Thermal Runaway
Thermal runaway is a critical safety concern in all battery technologies. It's a chain reaction where an increase in temperature causes the cell to release more energy, which in turn increases the temperature further. This can lead to fire or rupture. The chemistry of LiFePO4 makes it significantly less prone to this phenomenon. The phosphorus-oxygen bond in the LiFePO4 cathode is incredibly strong, preventing the release of oxygen even under extreme conditions like overcharging or physical damage. Oxygen release is a key ingredient that fuels thermal runaway in other chemistries. For example, NMC cells can enter thermal runaway at temperatures as low as 160°C, whereas LiFePO4 cells remain stable up to around 230°C. This higher thermal threshold provides a much wider margin of safety in real-world operating conditions.

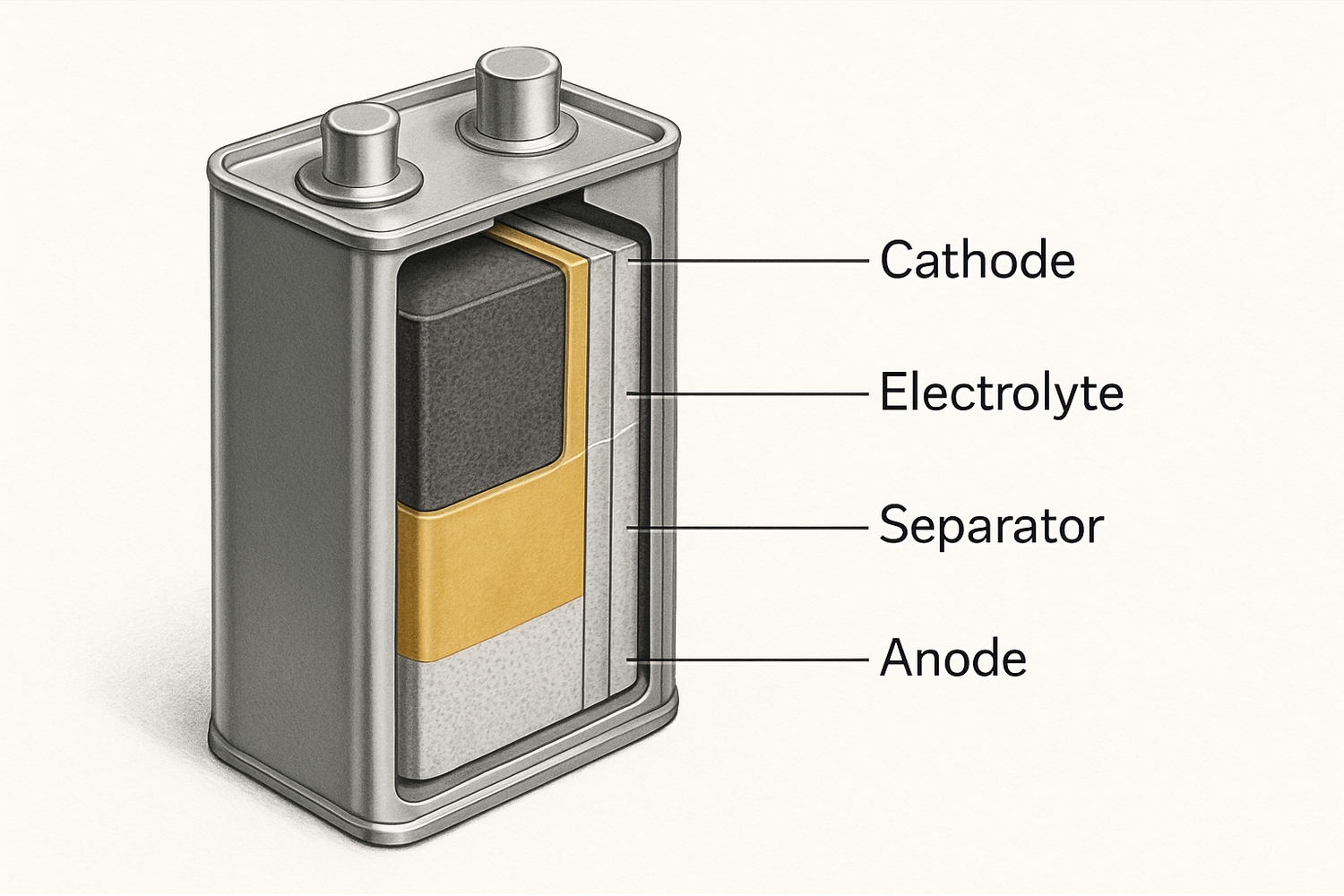

Structural Integrity Under Stress
Even if a LiFePO4 cell is punctured or short-circuited, its stable structure resists collapse. This resilience minimizes the risk of a catastrophic failure. All batteries sold in the United States, regardless of chemistry, must meet stringent safety standards set by organizations like the Department of Transportation and comply with Federal Motor Vehicle Safety Standards if used in vehicles. However, the foundational chemistry of LiFePO4 provides an additional layer of safety that is highly valued in systems designed for homes and businesses.
Performance Built to Last: Longevity and Efficiency
Beyond safety, the long-term performance of LiFePO4 batteries makes them a sound investment for energy independence. Key metrics like cycle life and depth of discharge (DoD) demonstrate their superior durability.
Exceptional Cycle Life
A battery's cycle life is the number of charge and discharge cycles it can complete before its capacity degrades to a specific percentage of its original rating, typically 80%. LiFePO4 batteries excel in this area, routinely offering between 3,000 and 6,000 cycles. In contrast, many NMC batteries offer a cycle life in the range of 500 to 1,500 cycles. This extended lifespan means a LiFePO4 battery can last for a decade or more under normal use, significantly lowering the total cost of ownership. For a deeper dive into how different performance metrics affect long-term value, you can review this ultimate reference on solar storage, which breaks down these crucial factors.
Depth of Discharge and Usable Energy
Depth of Discharge (DoD) refers to the percentage of the battery's total capacity that has been used. LiFePO4 batteries can be regularly discharged to 80-100% of their capacity without significant degradation to their lifespan. Many other lithium-ion chemistries recommend a lower DoD to preserve battery health, which means you have less usable energy for the same rated capacity. The ability to safely use more of the stored energy makes LiFePO4 systems more efficient and practical for daily cycling in a home energy storage system.
Practical Advantages in Real-World Applications
The chemical stability and longevity of LiFePO4 translate into tangible benefits for various applications, from residential homes to remote, off-grid installations. The International Energy Agency (IEA) notes that battery storage is the fastest-growing clean energy technology, with the energy sector now accounting for over 90% of annual lithium-ion battery demand.
Environmental Considerations
A significant advantage of LiFePO4 is that it does not contain cobalt. Cobalt mining is associated with severe environmental and ethical issues, including habitat destruction and unsafe labor practices. By choosing a cobalt-free chemistry, you are opting for a more sustainable and ethically sourced energy storage solution. This aligns with the growing global focus on creating responsible supply chains for clean energy technologies.
Wide Operating Temperature Range
LiFePO4 batteries function effectively across a broader range of temperatures compared to other chemistries. While extreme cold can reduce the performance of any battery, LiFePO4's thermal stability makes it less susceptible to heat-related degradation, a crucial feature for installations in garages, sheds, or warmer climates. This resilience ensures reliable performance year-round.

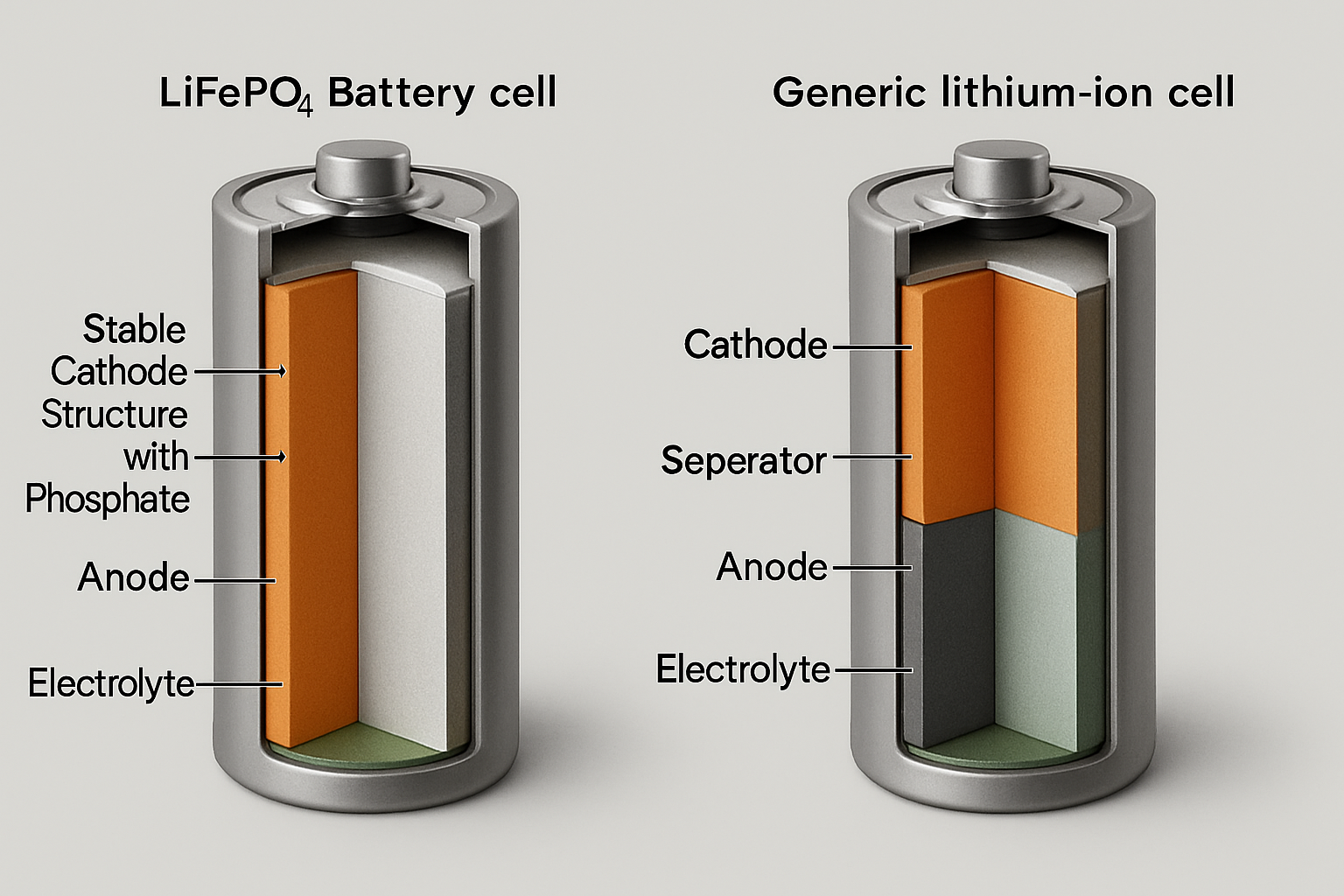

Comparing LiFePO4 with Other Chemistries
To provide a clear picture, here is a comparison of LiFePO4 with NMC, another popular lithium-ion chemistry used in energy storage and electric vehicles.
| Feature | LiFePO4 (Lithium Iron Phosphate) | NMC (Nickel Manganese Cobalt) |
|---|---|---|
| Safety | Excellent; high thermal stability, less prone to thermal runaway. | Good; requires more complex battery management systems to ensure safety. |
| Cycle Life | 3,000 - 6,000+ cycles | 500 - 1,500 cycles |
| Energy Density | Lower; requires more space and weight for the same capacity. | Higher; more compact and lightweight. |
| Environmental Impact | Cobalt-free, reducing ethical and environmental concerns. | Contains cobalt, which has a significant environmental and social impact. |
| Primary Application | Stationary energy storage, off-grid power, industrial applications where safety and longevity are key. | Electric vehicles, portable electronics where high energy density is prioritized. |
Disclaimer: This information is for educational purposes only. It is not intended as financial, investment, or professional engineering advice. Always consult with a qualified professional before making decisions about your energy system.
A Reliable Foundation for Energy Independence
The decision to trust LiFePO4 for energy storage is based on a clear engineering rationale. Its superior safety profile, rooted in its chemical and thermal stability, provides peace of mind. Its exceptional longevity and high cycle life ensure a durable, long-term investment. Finally, its practical advantages, including a cobalt-free composition, make it a responsible choice for a sustainable future. For anyone seeking to build a resilient and reliable solar or off-grid power system, LiFePO4 technology offers a proven and powerful foundation.
Frequently Asked Questions
Are LiFePO4 batteries completely risk-free?
No battery technology is entirely without risk. However, LiFePO4 is widely considered one of the safest and most stable lithium-ion chemistries available. Its high thermal runaway threshold and stable structure significantly reduce the risks of fire or explosion compared to other chemistries, especially when managed by a quality Battery Management System (BMS).
Why is energy density lower in LiFePO4 batteries?
The lower energy density is a direct trade-off for the stability and safety of the iron phosphate cathode material. While NMC batteries pack more energy into a smaller space, this comes with increased volatility. For stationary home energy storage, where space is less of a constraint than in a portable device, the emphasis is rightly placed on safety and longevity over maximum energy density.
Can LiFePO4 batteries be used in cold weather?
Yes, but like all batteries, their performance can be affected by very low temperatures. LiFePO4 batteries generally have a wider operating temperature range than many other types. For installations in climates with extreme cold, it is recommended to install the battery bank in an insulated space or use battery heating pads to ensure optimal performance and longevity.
