Fixed-Tilt vs Single-Axis Trackers: Yield, Risk, OPEX

Choosing the right mounting system is a critical decision in the design of a ground-mount solar project. The two primary options, fixed-tilt and single-axis trackers, present a fundamental trade-off between upfront cost and long-term energy production. This analysis provides a detailed comparison of energy yield, financial and operational risks, and operating expenditures (OPEX) to equip developers and asset owners with the data needed for an informed decision.

Maximizing Energy Production: A Yield Analysis

The primary function of any mounting system is to orient photovoltaic (PV) modules toward the sun. How effectively it accomplishes this directly impacts the project's revenue and overall financial performance. The difference in energy yield between a static system and one that follows the sun is significant.

The Mechanics of Fixed-Tilt Systems

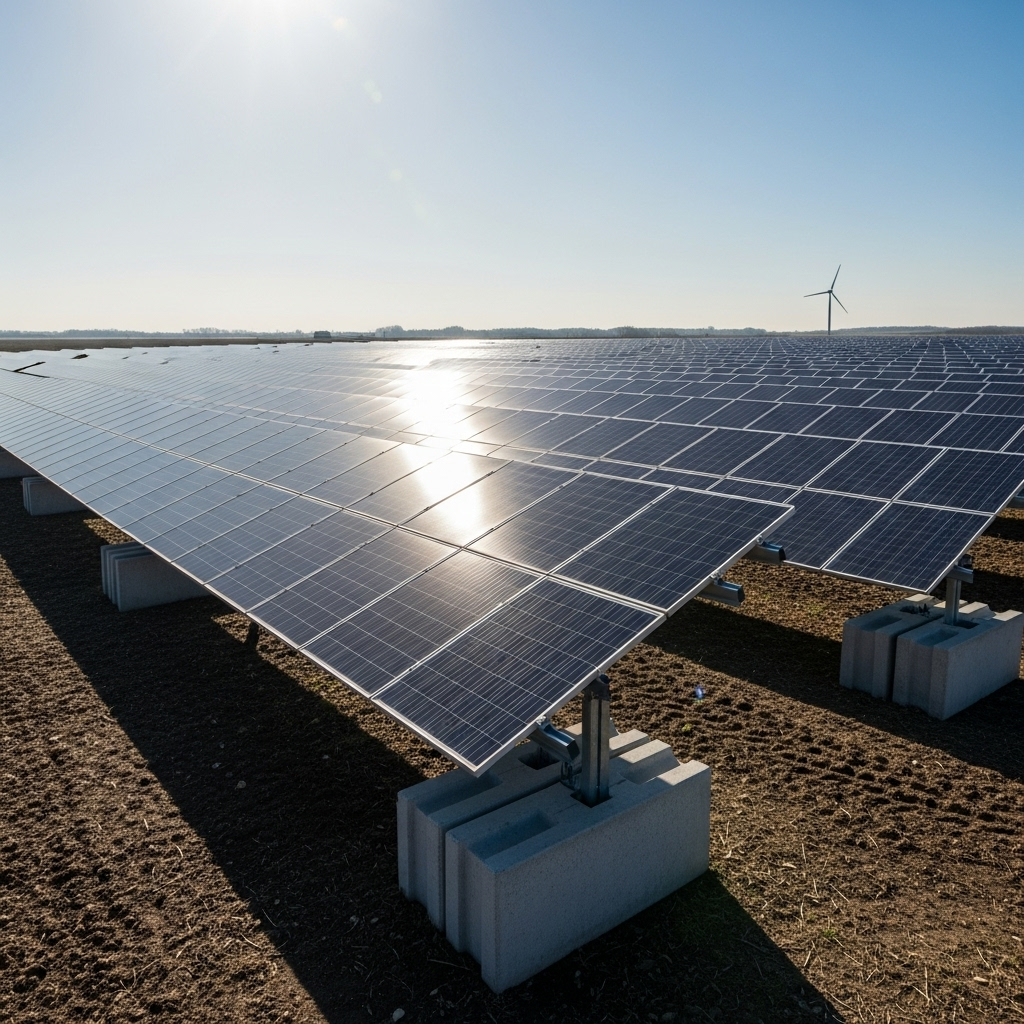

Fixed-tilt systems are stationary racks that hold solar panels at a constant angle. The optimal tilt angle is determined by the project's latitude and whether the goal is to maximize annual energy production or optimize for seasonal loads. For instance, as noted in the IEA's Next Generation Wind and Solar Power report, a greater tilt can increase winter output at the expense of summer generation. This design is simple, robust, and has a lower initial capital cost. However, its static nature means it only achieves peak efficiency for a brief period each day when the sun is directly perpendicular to the panel surface.

The Advantage of Single-Axis Trackers

Single-axis trackers increase energy capture by following the sun's path from east to west throughout the day. This continuous optimization keeps the solar panels at a more direct angle to the sun's rays for a longer portion of the day. According to research from the IEA, a PV installation with single-axis trackers can generate 12-25% more electricity annually than a fixed system in areas with high solar irradiance. This extended production window creates a broader, flatter generation curve, which can be more valuable to the grid and increase revenue opportunities.

Bifacial Gain: A Key Differentiator

The benefits of trackers are amplified when using bifacial modules, which capture light on both sides. Trackers lift the modules higher off the ground and adjust their angle, significantly improving the amount of reflected light (albedo) reaching the rear side of the panel. This synergy can add several percentage points to the overall energy yield, further strengthening the financial case for tracker-based projects.

Evaluating Financial and Operational Risks

While trackers offer superior yield, they also introduce greater complexity and potential points of failure. A thorough risk assessment must balance the promise of higher returns against the realities of more sophisticated equipment.

Upfront Costs and Installation Complexity

Fixed-tilt systems are the definition of simplicity. They have fewer components, require less site preparation, and can be installed more quickly, resulting in lower upfront capital expenditure (CAPEX). Trackers, with their motors, controllers, bearings, and more intricate support structures, carry a higher initial cost. The installation process is also more complex and time-consuming, requiring specialized labor for mechanical and electrical commissioning.

Weather-Related Vulnerabilities

The dynamic nature of trackers makes them more susceptible to extreme weather. High winds, in particular, pose a significant risk. To mitigate this, modern trackers are equipped with wind-stow capabilities, where the system moves to a near-flat or high-tilt angle to minimize wind load. However, this adds another layer of mechanical and software complexity. Fixed-tilt systems, being static and often built lower to the ground, present a smaller profile to the wind and are generally considered more resilient in storm-prone regions.

OPEX: The Long-Term Cost of Operation

The financial analysis does not end with installation. Operating expenditures over the project's 25-30 year lifespan can significantly influence the Levelized Cost of Energy (LCOE).

Maintenance Routines and Costs

Fixed-tilt systems have minimal moving parts, leading to very low OPEX. Maintenance typically involves little more than periodic panel cleaning and structural inspections. In contrast, trackers require a more intensive maintenance program. This includes regular checks on motors, actuators, and control systems, as well as lubrication of bearings and other moving components. These activities increase both scheduled maintenance costs and the potential for unscheduled repairs.

A Comparative Overview

The decision between these two technologies is a balancing act. The table below summarizes the key trade-offs.

The Role of Smart Monitoring and Storage

To maximize the return on investment for either system, a holistic view of energy management is essential. Advanced monitoring platforms can help mitigate tracker risk by providing early warnings of component failure. Furthermore, pairing a solar array with an energy storage system ensures that the additional energy generated by trackers during peak sun hours is not wasted. Understanding how to manage this stored energy is crucial, and a complete analysis is available in the ultimate reference for solar storage performance, which details how to optimize system output and utilization.

Making the Right Choice for Your Project

There is no single correct answer; the optimal choice depends entirely on project-specific variables. A detailed LCOE analysis is necessary to determine the most profitable path forward.

Site Location and Irradiance

The single most important factor is solar irradiance. In regions with high Direct Normal Irradiance (DNI), like deserts, the yield gains from trackers will almost always justify the higher costs. In climates with more diffuse light from cloud cover, the benefit of tracking is reduced, and fixed-tilt may offer a better return.

Financial Models and PPA Rates

The project's financial structure plays a deciding role. If the Power Purchase Agreement (PPA) includes time-of-use rates that reward energy production during late afternoon peaks, the extended generation curve of a tracker system becomes highly valuable. For projects with flat-rate tariffs, the calculation is a more straightforward comparison of total annual energy (MWh) against lifetime costs.

A Forward-Looking Perspective

The decision between fixed-tilt and single-axis trackers hinges on a careful evaluation of trade-offs: higher yield versus greater complexity and cost. While fixed-tilt systems offer reliability and a lower upfront investment, the trend in utility-scale solar overwhelmingly favors trackers. Their ability to significantly boost energy production, especially when paired with bifacial modules, often results in a lower LCOE and superior project economics. Ultimately, a thorough site-specific analysis of solar resources, land constraints, and financial incentives will reveal the most profitable and reliable solution for your solar investment.

Disclaimer: This article is for informational purposes only and does not constitute financial or investment advice. Consult with qualified professionals before making any project decisions.

Frequently Asked Questions

Do single-axis trackers always produce more energy than fixed-tilt systems?

Yes, trackers consistently produce more energy, but the exact gain depends on the location's solar irradiance. In sunny, high-DNI regions, the annual energy gain can be substantial, typically ranging from 12% to 25%. In areas with significant cloud cover and diffuse light, the advantage is smaller but usually still present.

Are trackers more expensive to maintain?

Generally, yes. Trackers have motors, controllers, and bearings that require periodic inspection, lubrication, and eventual replacement. This results in higher planned and potential unplanned maintenance costs (OPEX) compared to the minimal upkeep required for static fixed-tilt structures.

Which system is better for areas with high winds or snow?

Fixed-tilt systems are inherently more robust due to their simple, static design with no moving parts. However, modern single-axis trackers are engineered with protective features, such as high-wind stow modes and robust components, making them suitable for many challenging climates. A site-specific engineering assessment is always required.

How does land availability impact the choice?

Land is a critical factor. Single-axis trackers require more space between rows to avoid casting shadows on each other as they move. This results in a lower power density (fewer megawatts per acre). If land is limited or expensive, a more compact fixed-tilt design might be the more economical choice.
