When planning a solar installation on a flat roof, a primary question arises: should the system be secured with heavy ballast blocks or fastened directly with mechanical anchors? The correct answer isn't a simple preference; it's a conclusion reached through a careful structural load analysis. The choice between ballast and anchors directly impacts your roof’s integrity, the system's longevity, and the safety of the entire structure.
Understanding the Core Forces: Gravity vs. Uplift

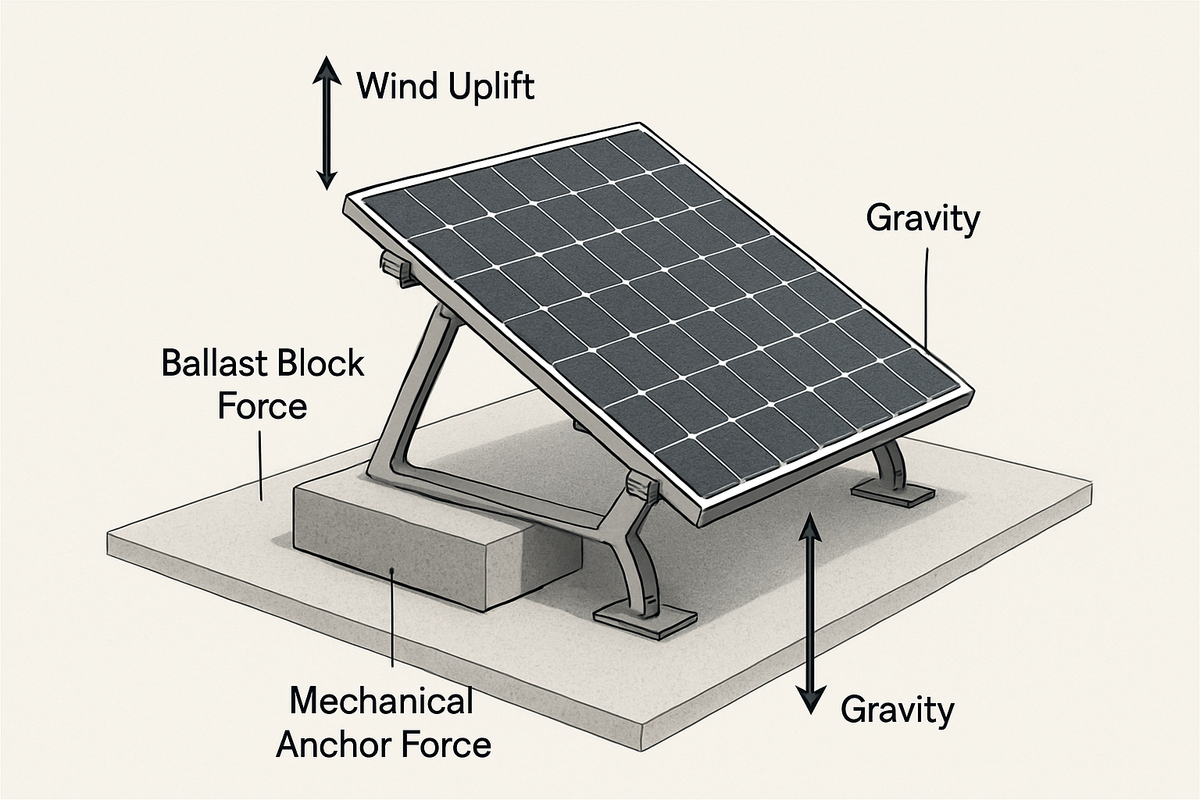

Every solar array on a flat roof is subject to a constant battle between downward forces (gravity) and upward forces (wind uplift). The mounting system's job is to ensure gravity always wins, keeping the array firmly in place, even during extreme weather. The two primary methods, ballasted and anchored systems, approach this challenge from opposite directions.
The Role of Ballast: Using Weight as a Solution
Ballasted systems use weight, typically in the form of concrete blocks, to hold the solar array down. This method avoids penetrating the roof membrane, which is a significant advantage for maintaining watertight integrity. The fundamental principle is straightforward: add enough dead load to counteract the maximum potential wind uplift. This concept of using mass for stability is a cornerstone of engineering. For instance, according to a report by the Floating offshore wind outlook, even massive floating offshore wind turbines use ballast to lower their center of gravity and ensure stability in open water.
The Function of Anchors: A Direct Connection
Anchored systems, also known as mechanically attached systems, use hardware that penetrates the roof membrane and fastens directly to the building's structural members, like rafters or the roof deck. This creates a direct, positive connection that offers superior resistance to uplift forces without adding significant weight to the roof. The main consideration with this method is ensuring every penetration is perfectly sealed and waterproofed to prevent leaks.
The Deciding Factor: Structural Load Analysis
You cannot safely choose a mounting system without first performing a comprehensive structural load analysis. A qualified structural engineer must assess the roof to determine its load-bearing capacity. This evaluation is non-negotiable and forms the foundation of a safe and durable solar installation.
Why a Structural Assessment is Non-Negotiable
Commercial buildings, in particular, are engineered with specific load limits. Adding several pounds per square foot of ballast without confirming the roof's capacity can lead to structural stress, sagging, and in worst-case scenarios, failure. The assessment considers the existing dead loads (roofing material, insulation, equipment) and potential live loads (snow, maintenance crews) to calculate the available capacity for a solar array.
Calculating Flat Roof Ballast Requirements
The amount of ballast needed is not a guess. It is a precise calculation based on multiple factors. According to the American Society of Civil Engineers (ASCE), standards like ASCE 7-16 provide detailed methodologies for determining wind loads on rooftop solar panels. Engineers use these standards to calculate uplift pressures, which are often highest at the corners and edges of the roof. This analysis dictates the exact weight and placement of ballast blocks required to keep the array secure.
When Anchors Become the Only Option
Anchors are often the necessary choice in several scenarios. If a structural analysis reveals the roof cannot support the additional weight of a ballasted system (often 4-15 psf), a lightweight anchored system is the only viable option. Similarly, in areas with very high wind speeds or on taller buildings, the amount of ballast required could become impractical, making anchors a more effective solution.
Comparing Ballasted and Anchored Systems: A Practical Breakdown
Both systems have distinct trade-offs related to cost, installation, and long-term maintenance. The optimal choice depends entirely on the specific conditions of the building and its location.
| Feature | Ballasted System | Anchored System |
|---|---|---|
| Roof Penetration | None; preserves roof membrane integrity. | Requires penetrations; must be properly sealed. |
| Weight | High (adds 4-15+ psf to the roof). | Low (adds ~2-4 psf to the roof). |
| Best For | Roofs with high load-bearing capacity and where penetrations are not desired. | Roofs with limited load capacity or in high-wind zones. |
| Installation Speed | Generally faster and less specialized labor. | More labor-intensive; may require a roofing contractor. |
| Potential Issues | Can compress insulation over time; blocks can shift if not properly installed. | Risk of leaks if penetrations are not sealed correctly. |
Roof Integrity and System Performance
While ballasted systems avoid penetrations, the immense weight can sometimes create new problems. It can compress the underlying insulation, creating low spots on the roof that lead to ponding water. Anchored systems place the focus on the quality of the waterproofing. When installed by certified professionals using high-quality flashing and sealants, anchored systems can provide a secure, leak-free attachment for the life of the system. A secure mounting system is the bedrock of a high-performing asset. The stability of your array ensures consistent energy generation, which is critical for getting the most from your investment. For a deeper look into system efficiency, our ultimate reference on solar storage performance offers valuable insights into maximizing your energy output.
Making the Right Choice for Your Property
Ultimately, the decision between ballast and anchors is not about which is universally better, but which is correct for your specific building. The process must begin with a professional structural load analysis. This engineering assessment provides the data needed to design a system that is safe, compliant with building codes like ASCE 7, and built to last. Choosing the wrong system can compromise your roof's integrity and your energy investment.Disclaimer: This article provides general information and does not constitute professional engineering or financial advice. Always consult with a qualified structural engineer and a certified solar installer for your specific project.
Frequently Asked Questions
Can you use a combination of ballast and anchors?
Yes, hybrid systems are an excellent solution in many cases. These systems use a reduced amount of ballast in conjunction with a few mechanical attachments. This approach can lower the overall weight on the roof while still providing the necessary uplift resistance, particularly in high-risk zones like the roof perimeter.
How much weight does a ballasted system add?
The added weight, or dead load, of a ballasted system varies significantly based on the project's specific wind load calculations. It typically ranges from 4 to 15 pounds per square foot (psf) but can be higher in very windy locations. A structural engineer must determine the exact flat roof ballast requirements.
Do solar installations void roof warranties?
This is a critical consideration. An anchored system with penetrations is more likely to impact a roof warranty than a ballasted system. However, many roofing manufacturers have certification programs for solar installers. When an installation is completed by a certified professional according to the manufacturer's specifications, the warranty often remains intact. Always discuss this with your roofing manufacturer and installer before work begins.
