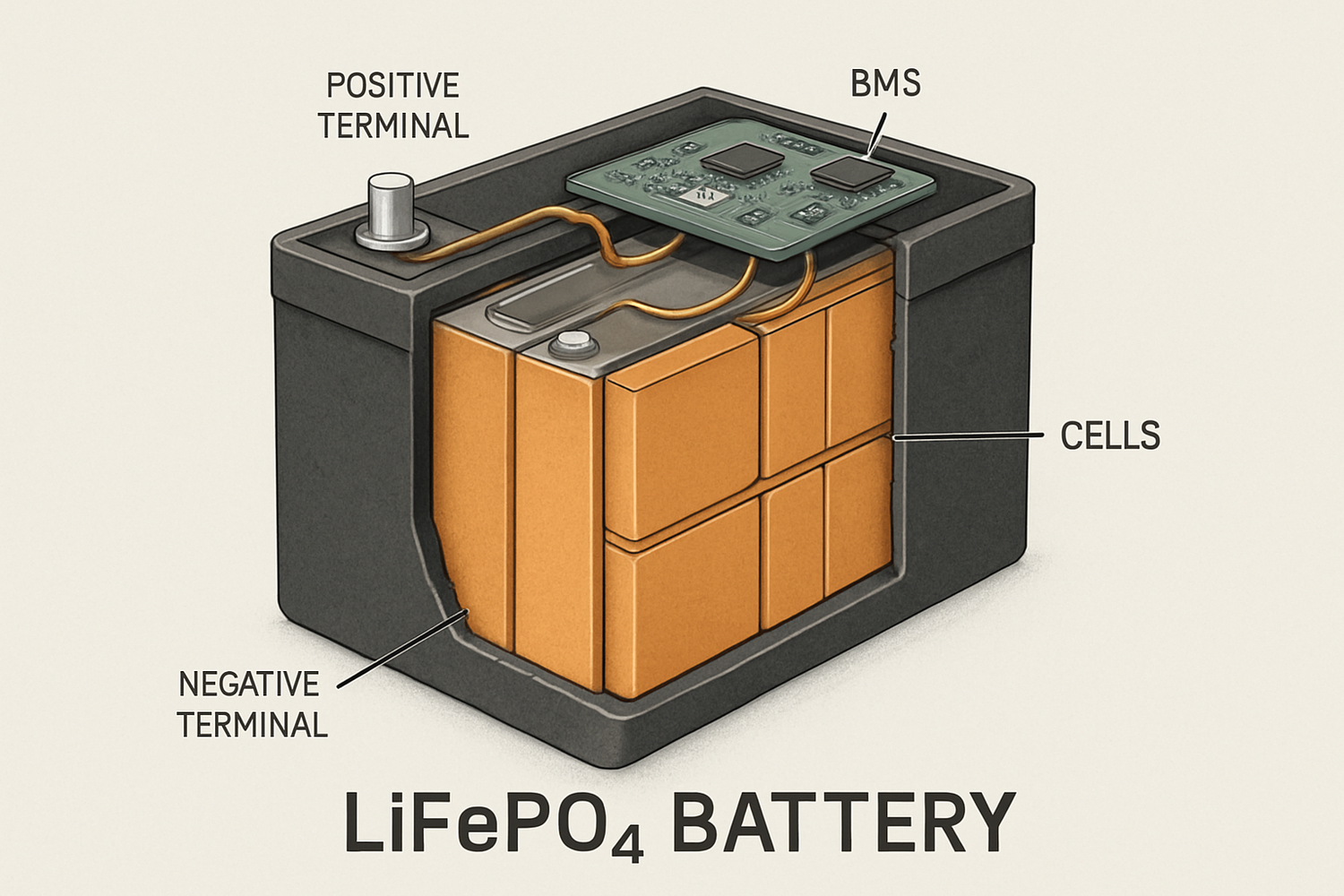

A Battery Management System (BMS) is the brain of a LiFePO4 battery, a critical component that ensures safety, longevity, and optimal performance. When it detects an unsafe condition, it enters protection mode, shutting down the battery to prevent damage. This can be alarming, as the battery will appear dead, often reading zero volts. Understanding how to properly perform a LiFePO4 BMS protection reset is a key skill for anyone managing a solar energy storage system. This guide provides clear, actionable steps to diagnose the cause, reset the BMS, and restore your system's operation safely.
Understanding BMS Protection Triggers
A BMS will activate protection mode for several reasons, all designed to safeguard the battery cells. Simply resetting the BMS without addressing the root cause is only a temporary fix. Identifying the trigger is the first and most important step in LiFePO4 battery protection troubleshooting.
Common Fault Conditions
The BMS constantly monitors voltage, current, and temperature. If any parameter goes outside the safe operating range, it acts. The primary triggers include:
- Over-Voltage Protection (OVP): This occurs during charging if the voltage of any cell exceeds the maximum limit (e.g., >3.75V). This is often caused by an incorrect charger setting or a faulty charger.
- Under-Voltage Protection (UVP): This happens when a cell's voltage drops too low during discharge (e.g., <2.3V). It protects the battery from deep discharge damage, which can be caused by excessive loads or parasitic drains.
- Over-Current Protection (OCP): The BMS will cut power if the discharge or charge current is too high. This can be triggered by a short circuit or connecting an appliance that draws more power than the battery is rated to supply.
- Temperature Protection (OTP/UTP): LiFePO4 batteries have a specific temperature range for safe operation, typically between 0°C and 55°C for charging. The BMS will shut down the battery if it gets too hot or too cold.
| Protection Mode | Common Cause | Initial Action |
|---|---|---|
| Over-Voltage (OVP) | Incorrect charger settings, charger malfunction | Disconnect the charging source immediately |
| Under-Voltage (UVP) | Deep discharge, parasitic loads | Disconnect all loads from the battery |
| Over-Current (OCP) | Short circuit, excessive load | Disconnect all loads and check for shorts |
| Over/Under Temperature | Extreme ambient temperatures, poor ventilation | Move the battery to a temperature-stable environment |
Why a Reset Becomes Necessary
Think of the BMS as an intelligent, reusable fuse. Once it trips, it disconnects the circuit to protect the cells. In most cases, the BMS will not re-engage the circuit until the fault condition has been cleared and, in some cases, a reset procedure is performed. This ensures the battery does not immediately return to an unsafe operating state. According to the International Energy Agency's Batteries and Secure Energy Transitions report, robust battery management is fundamental to the rapid expansion of energy storage needed to meet global climate goals. A proper reset procedure is part of that robust management.
Pre-Reset Safety Checks and Preparations
Before attempting to reset your battery management system, taking a few preparatory steps is crucial. Safety should always be the priority. Rushing the process without proper checks can lead to further issues.
Essential Safety Precautions
Working with any battery system requires caution. Always wear appropriate personal protective equipment (PPE), including safety glasses and insulated gloves. Ensure you are working in a dry, well-ventilated area, away from any flammable materials. Use insulated tools to prevent accidental short circuits.
Diagnosing the Root Cause
A successful reset depends on fixing the problem that triggered the protection mode in the first place. Use a multimeter to check the battery's terminal voltage. If it reads zero or close to it, the BMS is likely in protection mode. Inspect all connections for tightness and signs of corrosion. Check your charger's settings to ensure they are correct for LiFePO4 chemistry. If an over-current event occurred, verify that the connected loads do not exceed the battery's maximum continuous discharge rating.
Step-by-Step LiFePO4 BMS Protection Reset Procedures
Once you have identified and corrected the fault, you can proceed with the reset. The method for how to reset battery management system protection can vary slightly, but most follow one of these procedures.
Method 1: Automatic Reset (Self-Recovery)
Many modern BMS units are designed to reset automatically once the fault condition is removed. For example:
- In an over-current situation, simply disconnecting the load may be enough for the BMS to reset itself after a brief period.
- For temperature protection, the BMS will typically re-engage automatically once the battery's temperature returns to the safe operating range.
If the battery does not come back online after removing the fault, a manual reset is necessary.
Method 2: Applying a Charge (for UVP)
If the BMS has entered under-voltage protection, it often needs to see an incoming charge voltage to 'wake up'.
- Ensure all loads are disconnected from the battery.
- Connect a compatible LiFePO4 battery charger to the terminals. Using a charger designed for other chemistries can cause damage.
- Turn on the charger. The voltage from the charger signals the BMS to re-evaluate the cell conditions. If the cells are healthy, the BMS will exit protection mode and allow the charging current to flow.
Method 3: Applying a Load (for OVP)
If the BMS has tripped due to over-voltage, the cell voltage needs to be slightly reduced.
- Disconnect the charging source completely.
- Connect a small, suitable load (like a small light bulb or resistor) to the battery terminals.
- This will draw a small amount of current, causing the cell voltages to drop back into the normal operating range.
- Once the voltage has stabilized, the BMS should disengage the OVP and you can reconnect your system.
Troubleshooting Persistent BMS Protection Issues
What happens if the BMS refuses to reset? This usually indicates a more persistent problem that needs further investigation. Repeatedly trying to reset the BMS without resolving the core issue can degrade the battery. As the International Renewable Energy Agency (IRENA) notes in its analysis of Electricity storage and renewables: Costs and markets to 2030, extending battery lifespan is crucial for the economic viability of renewable energy systems.
When the Reset Fails
If the BMS does not come out of protection mode, re-verify your diagnosis. Is there a persistent short circuit you missed? Is the charger truly functional and compatible? In some cases, a cell within the battery pack may be damaged and unable to hold a safe voltage, or the BMS itself could be faulty. Understanding your system's overall health is vital. Key metrics like depth of discharge and charging efficiency, as detailed in this ultimate reference for solar storage performance, can help diagnose recurring BMS issues.
Seeking Professional Assistance
If you have followed all the steps and are unable to resolve the issue, it is time to contact a qualified technician or the battery manufacturer. Attempting complex internal repairs without the proper expertise can be dangerous and may void your warranty. A professional can diagnose faulty cells or a malfunctioning BMS and perform the necessary repairs safely.
Disclaimer: The information provided is for educational purposes only. Working with electrical systems involves risks. If you are not confident in your ability to perform these steps safely, please consult a qualified professional. This content does not constitute professional advice.
Maintaining BMS Health for Long-Term Reliability
A BMS entering protection mode is a sign that it's doing its job. While knowing the LiFePO4 BMS protection reset steps is useful, the goal is to prevent these events from happening. Regular maintenance, using correct charging parameters, and ensuring your loads are appropriately sized are the best ways to ensure the long-term reliability of your energy storage system. As reports from the IEA emphasize, the growth of renewable energy is heavily dependent on reliable and secure battery storage. Proper care of your battery and its BMS is a direct contribution to that reliability.
Frequently Asked Questions
Can I reset a LiFePO4 BMS without a charger?
In some specific cases, yes. If the BMS is in over-charge protection mode, applying a small load can lower the voltage and reset it. For an over-current fault, simply removing the load might be sufficient. However, for under-voltage protection, a charger is almost always required to 'wake up' the BMS.
How do I know if my BMS is in protection mode?
The most common symptom is a sudden loss of power from the battery. When you measure the voltage at the main terminals with a multimeter, it will read zero or a negligible voltage, even though the internal cells still hold a charge.
Will resetting the BMS damage my battery?
The reset procedure itself, when performed correctly, is safe and will not damage the battery. The real danger lies in ignoring the root cause of the fault. Repeatedly resetting a BMS that is tripping due to an underlying issue (like a short circuit or incorrect charging) will eventually lead to cell damage and reduce the battery's lifespan.
