5 Reasons LiFePO4 Is the Safest Home Energy Storage Battery

When choosing a home energy storage system, performance and capacity are important. But safety is paramount. You are bringing a powerful energy source into your home, so understanding the underlying technology is crucial. While many batteries fall under the 'lithium-ion' umbrella, the specific chemistry inside makes a significant difference. Among the available options, Lithium Iron Phosphate (LiFePO4) stands out for its exceptional safety profile. This technology offers peace of mind by fundamentally reducing the risks associated with home batteries.

1. Superior Thermal Stability: Resisting Overheating

The Science Behind Thermal Runaway

A primary concern with any high-energy battery is a phenomenon called thermal runaway. This is a dangerous chain reaction where an increase in temperature causes the system to get even hotter, potentially leading to fire. Thermal runaway can be triggered by overcharging, internal short circuits, or physical damage. The battery's chemical makeup plays a huge role in its susceptibility to this event.

How LiFePO4's Structure Prevents Overheating

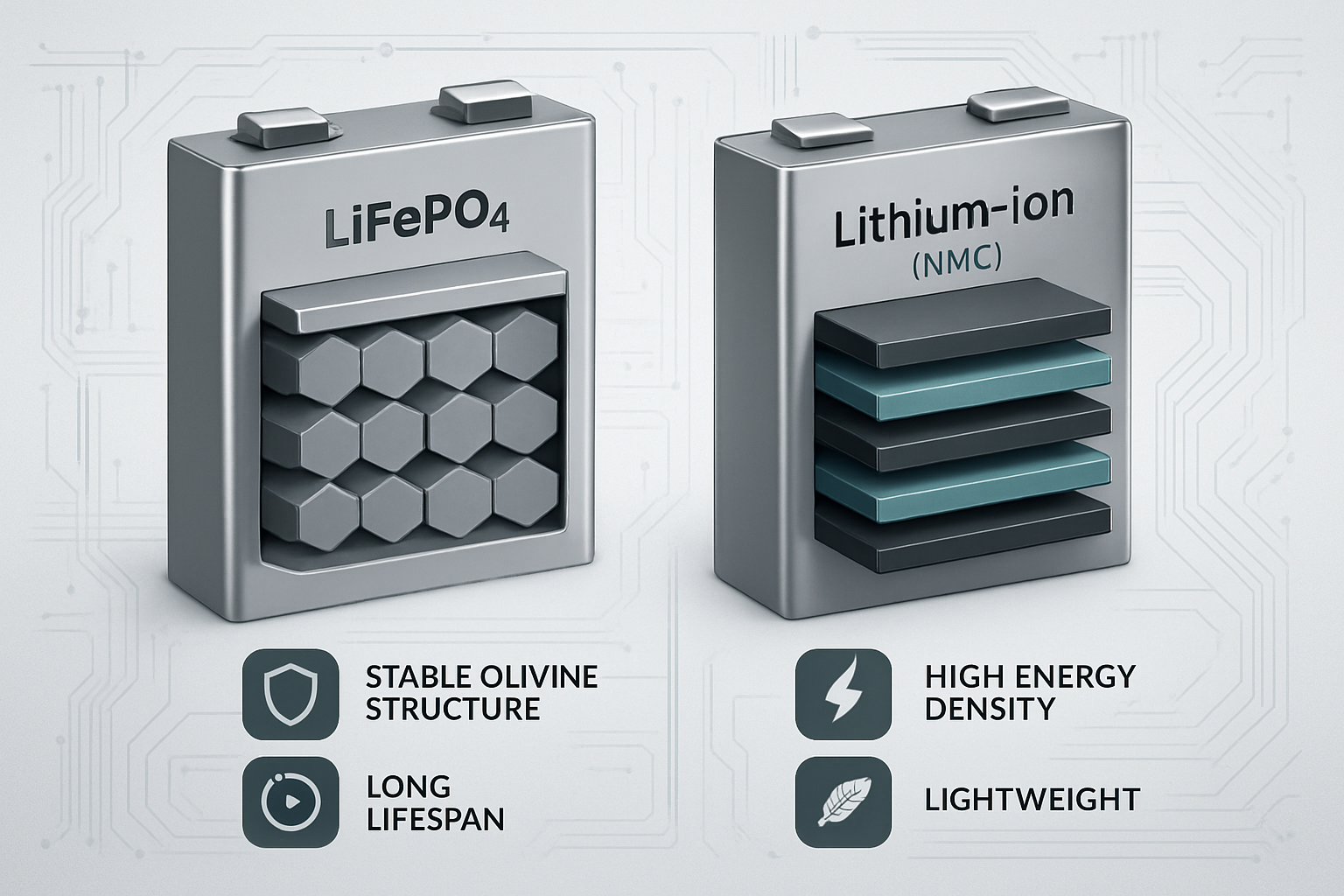

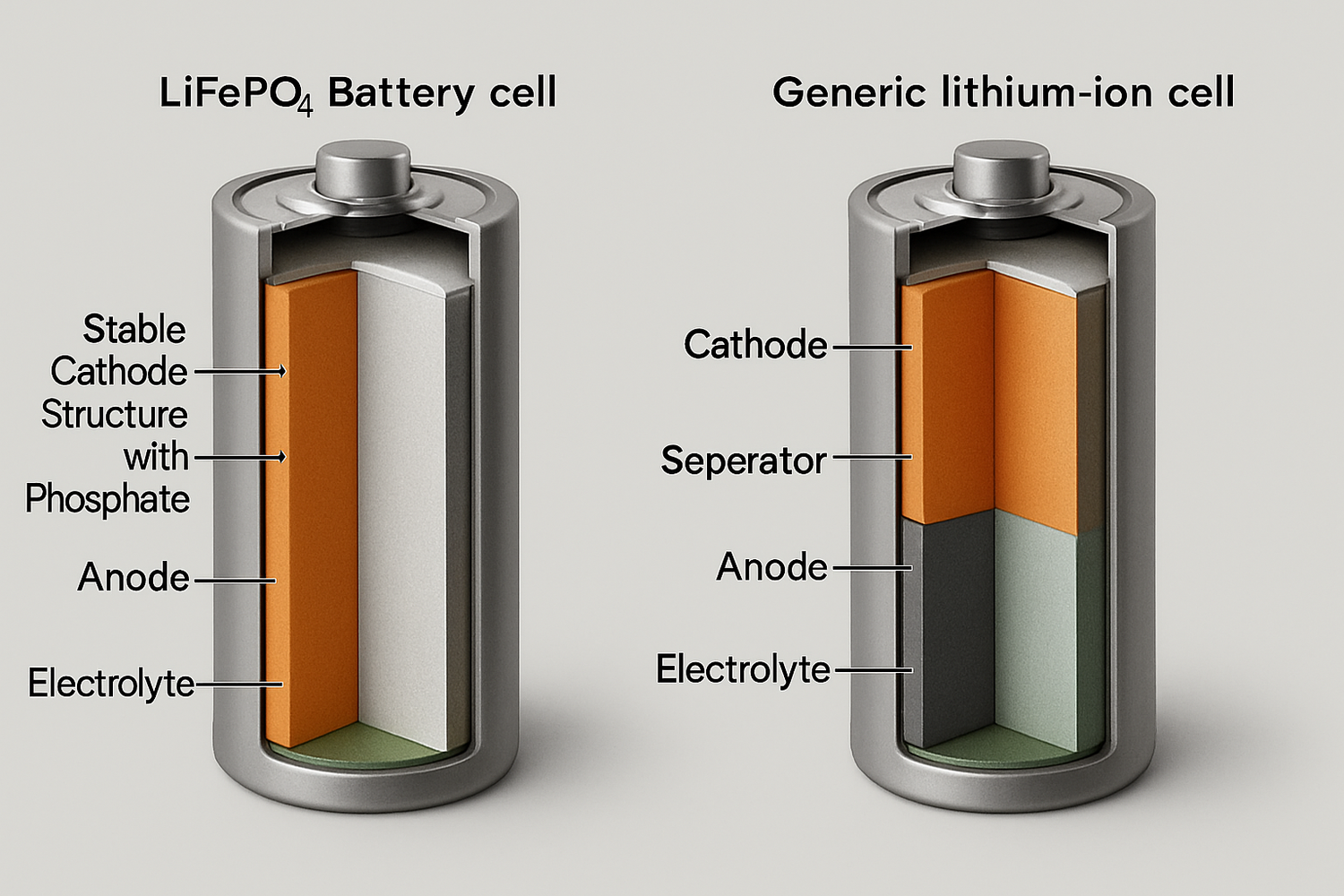

LiFePO4 batteries have a uniquely stable chemical structure. The phosphate-based cathode material features a strong covalent bond between its phosphorus and oxygen atoms. This bond is much harder to break than the bonds in other lithium-ion chemistries, such as Nickel Manganese Cobalt (NMC). Because of this stability, LiFePO4 batteries have a significantly higher thermal runaway threshold. An NMC cell may become unstable at around 160°C, whereas a LiFePO4 cell can often withstand temperatures up to 230°C before becoming unstable. This wider margin of safety means the battery is far less likely to enter a dangerous thermal runaway state, even under stress.

2. Exceptional Chemical Stability and Longer Lifespan

Reduced Risk of Chemical Breakdown

The robust crystal structure of LiFePO4 is not only heat-resistant but also incredibly durable over thousands of charge and discharge cycles. Other chemistries can experience structural degradation over time, increasing the risk of tiny metallic dendrites forming inside the cell. These dendrites can cause internal short circuits, a primary trigger for battery failure. The inherent stability of LiFePO4 minimizes these risks throughout the battery's operational life.

The Link Between Longevity and Safety

A long cycle life is a direct indicator of a battery's durability and, by extension, its safety. LiFePO4 batteries can typically endure thousands of cycles while retaining high capacity, far surpassing many other lithium-ion types. This longevity signifies that the internal components are under less stress with each use. As detailed in the ultimate reference for solar storage performance, a battery's ability to maintain performance over a long life is a critical measure of its quality and reliability. Less degradation means a lower probability of failure, making a long-lasting battery a safer battery.

3. Non-Toxic Materials for a Safer Home Environment

The Problem with Cobalt

Many common lithium-ion batteries, including NMC and Nickel Cobalt Aluminum (NCA), rely on cobalt in their cathodes. While effective for energy density, cobalt is a toxic heavy metal. According to research highlighted by the U.S. Department of Energy, finding alternatives to cobalt is a goal for creating safer, more environmentally friendly batteries. In the rare event of a battery casing being breached, the presence of cobalt can pose health and environmental risks.

The Benefits of Iron and Phosphate

LiFePO4 technology avoids these issues entirely by using iron and phosphate—materials that are abundant, affordable, and non-toxic. This makes the battery inherently safer for a residential setting. Should the battery be damaged, it does not release hazardous materials like cobalt, protecting both your family and the environment. This commitment to safer materials is a core principle of advanced battery design.

4. Higher Tolerance for Abuse and Suboptimal Conditions

Performance Under Stress

LiFePO4 batteries are mechanically more robust and can better withstand harsh conditions. In puncture or impact tests, LiFePO4 cells are significantly less likely to experience thermal runaway compared to their NMC counterparts. While NMC cells tend to eject a larger mass of material and burn hotter (peaking around 800°C), LFP cells have a lower peak temperature (around 620°C) and eject less material, making any failure event less hazardous.

Overcharging and Deep Discharging Resilience

Every quality battery system uses a Battery Management System (BMS) to prevent overcharging or over-discharging. However, the underlying chemistry of LiFePO4 provides an extra layer of protection. Its stable structure is more resistant to the damage that can be caused by excessive voltage or deep discharge. This tolerance makes the battery more forgiving of suboptimal conditions, reducing the chance of a safety incident.

5. Proven Track Record and Industry Standards

Adoption in Demanding Applications

The safety of LiFePO4 is not just theoretical; it is proven in the real world. This chemistry is widely used in applications where safety is non-negotiable, including public transit buses, industrial machinery, and critical medical equipment. Its reliable performance in these demanding fields provides strong evidence of its suitability for home energy storage, where safety is the highest priority.

Meeting Rigorous Safety Certifications

Modern energy storage systems are held to high safety standards, such as UL 9540, which certifies the entire system, and UL 9540A, which is a test method for evaluating thermal runaway. The inherent stability of LiFePO4 chemistry helps systems using these batteries to meet and often exceed these stringent requirements. Choosing a system with these certifications ensures it has undergone rigorous, third-party testing to verify its safety and reliability.

A Foundation of Safety for Your Energy Independence

Securing your home’s energy future should not come at the expense of safety. While all energy systems require proper installation and respect, the choice of battery chemistry is a foundational decision. LiFePO4 technology provides a superior safety profile through its exceptional thermal stability, durable chemical structure, non-toxic components, and proven resilience. By prioritizing this advanced chemistry, you build your home energy storage on a foundation of security and peace of mind.

Frequently Asked Questions

Are LiFePO4 batteries completely fireproof?

No battery technology is completely fireproof. However, LiFePO4 batteries are significantly less flammable than other lithium-ion types. Their thermal runaway threshold is much higher, meaning they can withstand more heat before failure, making them a much safer option.

Do LiFePO4 batteries cost more?

The initial investment for LiFePO4 batteries may be slightly higher than some alternatives. However, their extended lifespan, often lasting thousands more cycles, results in a lower total cost of ownership. Their durability and safety provide long-term value that outweighs the initial price difference.

How does LiFePO4 compare to other lithium-ion batteries in performance?

While some chemistries like NMC may offer slightly higher energy density (more power in a smaller space), LiFePO4 excels in safety, lifespan, and thermal stability. For stationary home energy storage, where space is less of a concern than safety and longevity, LiFePO4 presents the ideal balance of performance characteristics.

What is a Battery Management System (BMS) and why is it important?

A Battery Management System (BMS) is the 'brain' of a battery pack. It is an electronic circuit that monitors and manages all the cells, protecting them from overcharging, over-discharging, and extreme temperatures. A BMS is a critical safety feature in any lithium-ion battery system, working alongside the stable LiFePO4 chemistry to ensure optimal performance and safety.
