Thermal Runaway Explained: Why LiFePO4 Chemistry Is Safer

The safety of battery technology is a cornerstone of reliable home and commercial energy storage. As lithium-ion batteries become more common in our daily lives, understanding their operational safety is critical. One of the most important safety topics is thermal runaway, a condition that can lead to battery failure. This text explains the mechanism of thermal runaway and details why Lithium Iron Phosphate (LiFePO4) chemistry offers an inherently safer design against this risk.

Understanding Thermal Runaway in Lithium-Ion Batteries

Thermal runaway is an unstable, self-perpetuating process where excessive heat triggers a chain reaction that generates more heat. Once started, this cycle can be difficult to stop and may result in fire or cell rupture. Understanding its triggers and progression is the first step toward appreciating the chemical differences that enhance safety.

What Triggers This Chain Reaction?

Several conditions can initiate thermal runaway in a lithium-ion cell. These include overcharging, which deposits too much lithium and can cause a short circuit; internal short circuits from manufacturing defects; physical damage like punctures from an accident; and exposure to high external temperatures that push the cell beyond its stable operating limits.

The Destructive Cycle

The process begins when a trigger causes a localized temperature increase. This initial heat can cause the separator—a thin plastic membrane between the positive and negative electrodes—to melt. Once the separator is breached, a short circuit occurs, releasing a surge of energy and generating significantly more heat. This intense heat causes the cathode material to decompose and release oxygen. Oxygen acts as a fuel, feeding the reaction and causing a rapid, uncontrolled temperature spike that can propagate to adjacent cells.

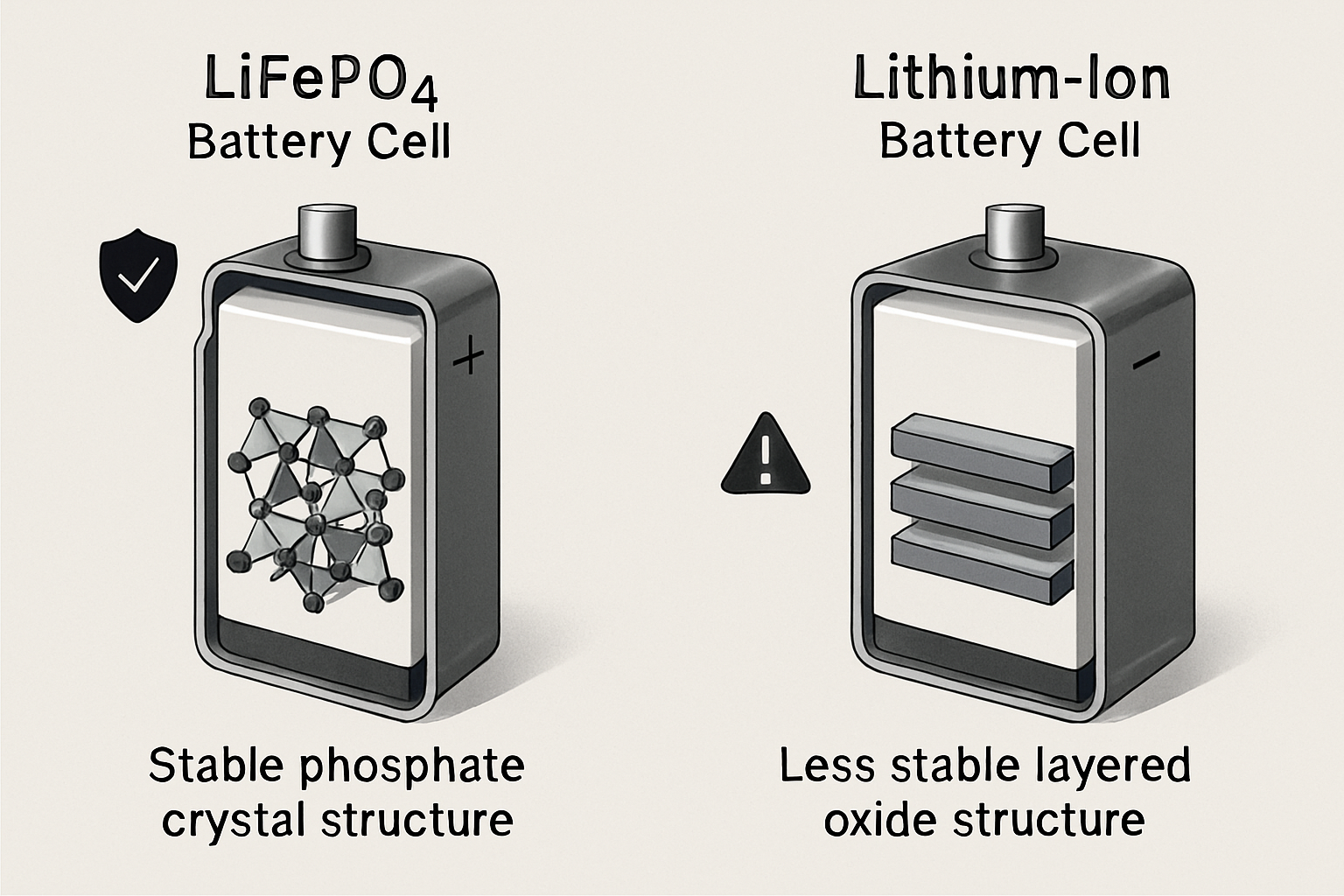

The Chemical Shield: How LiFePO4 Prevents Overheating

The key difference between LiFePO4 and other lithium-ion chemistries, like Nickel Manganese Cobalt (NMC), lies in its molecular structure. This structure provides a powerful, built-in defense against the onset of thermal runaway.

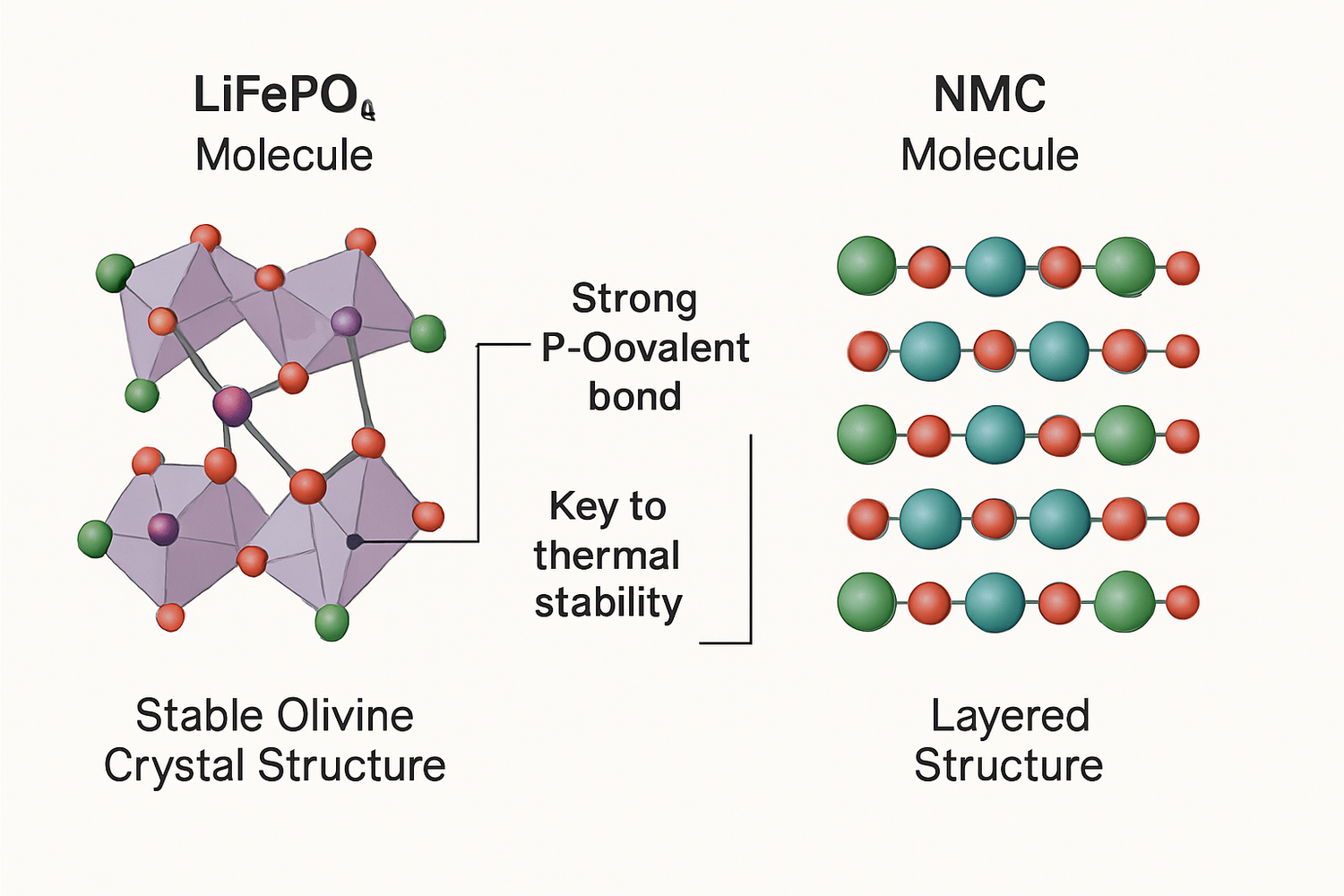

The Stability of the Phosphate Compound

LiFePO4 chemistry is built on a remarkably stable olivine crystal structure. The foundation of this stability is the powerful covalent bond between the phosphorus and oxygen atoms in the phosphate (PO4)³⁻ anion. This bond is significantly stronger than the metal-oxygen bonds found in other cathode materials. Because of this robust bond, the structure resists breaking down and releasing oxygen, even when subjected to high heat. By withholding oxygen, the LiFePO4 structure effectively removes a critical component needed for a thermal event to escalate into a fire.

Higher Thermal Decomposition Temperature

The temperature at which a battery's cathode begins to break down is a crucial safety indicator. LiFePO4 chemistry demonstrates superior performance in this area. Its structure remains stable up to much higher temperatures compared to other common lithium-ion chemistries. This provides a wider margin of safety during operation.

Note: Values are approximate and can vary based on specific cell design and test conditions. Data compiled from multiple sources.

Practical Safety Advantages of LiFePO4 Chemistry

The inherent chemical stability of LiFePO4 translates directly into tangible safety benefits for energy storage systems, from residential solar batteries to large-scale grid solutions.

Tolerance to Abuse and Stress

Due to its robust structure, a LiFePO4 battery is more resilient to operational stress. It can handle overcharging and short-circuiting with a much lower risk of initiating thermal runaway. This resilience makes it a preferred choice for applications where reliability is non-negotiable, such as off-grid solar solutions and home battery storage systems.

The Role of Battery Thermal Management

While LiFePO4 chemistry is fundamentally safer, a Battery Management System (BMS) remains a vital component. The BMS acts as the brain of the battery, continuously monitoring voltage, current, and temperature to keep the cells within their safe operating range. As detailed in the Ultimate Reference for Solar Storage Performance, effective management of these parameters not only prevents hazardous conditions but also optimizes the battery's efficiency and extends its cycle life, ensuring you get the most out of your investment.

A Broader Perspective on Energy Storage Safety

The focus on safe battery chemistry is part of a larger industry-wide commitment to ensuring the reliability of energy storage technologies as they become more integrated into our power infrastructure.

Industry Standards and Certifications

To ensure system safety, rigorous testing standards have been established. Certifications like UL 9540 are a safety standard for energy storage systems, while UL 9540A is a test method used to evaluate thermal runaway fire propagation. Systems that meet these standards have undergone comprehensive testing to verify their safety under various fault conditions, providing an extra layer of confidence for consumers.

The Future of Safe Energy Storage

As the world transitions toward renewable energy, the need for safe and dependable energy storage is growing exponentially. A special report from the International Energy Agency (IEA) highlights that batteries are poised to play a critical role in secure and clean energy transitions. The IEA projects that to meet climate goals, global energy storage capacity must increase six-fold by 2030, with batteries accounting for the vast majority of that growth. This rapid expansion underscores the importance of choosing inherently safe technologies like LiFePO4 to build a resilient and secure energy future.

Your Path to Secure Energy Independence

Ultimately, the choice of battery chemistry is a foundational decision for any energy storage system. While thermal runaway is a risk in all lithium-ion batteries, LiFePO4 chemistry offers a scientifically proven, structurally superior defense against it. Its stability is not an add-on feature but an intrinsic property of its molecular design. By prioritizing a technology with a built-in safety advantage, you are taking a crucial step toward achieving reliable and secure energy independence for your home or business.

Frequently Asked Questions

Is thermal runaway common in all lithium-ion batteries?

While thermal runaway is a possibility for all lithium-ion chemistries, the risk is significantly lower in LiFePO4 batteries. Their higher thermal decomposition temperature and stable chemical structure make them far less susceptible to entering this hazardous state compared to chemistries like NMC or LCO.

Does a Battery Management System (BMS) prevent thermal runaway?

A BMS is a critical safety feature that actively works to prevent the conditions that can lead to thermal runaway, such as overcharging or overheating. It acts as the first line of defense. The inherent chemical stability of LiFePO4 provides a second, passive layer of safety that makes the entire system more robust.

Are LiFePO4 batteries completely fireproof?

No battery is entirely fireproof under extreme conditions. However, LiFePO4 cells are incombustible and highly fire-resistant. In the rare event of a failure, they are much less likely to ignite or contribute to the spread of a fire, a key reason they are chosen for safety-critical applications.

Why isn't LiFePO4 used in all applications, like smartphones?

The primary trade-off for LiFePO4's superior safety and longevity is a lower energy density compared to other lithium-ion chemistries. For small, portable electronics like smartphones, manufacturers prioritize making the device as light and compact as possible, favoring higher energy density. For stationary energy storage, where safety and a long cycle life are more important than minimizing weight, LiFePO4 is the superior choice.
