LiFePO4 vs. NMC: A Deep Dive on Battery Safety Chemistry

When selecting a battery for an energy storage system, performance and longevity are important. But the most critical factor is safety. The two leading types of lithium-ion chemistries, Lithium Iron Phosphate (LiFePO4) and Nickel Manganese Cobalt (NMC), offer different balances of power, lifespan, and stability. Examining their fundamental chemical differences reveals why LiFePO4 is a safer choice for residential and commercial energy storage.

Understanding the Core Chemistry

The materials used in a battery's cathode directly influence its stability and safety profile. While both are lithium-ion technologies, the atomic structures of LiFePO4 and NMC create very different characteristics.

What is LiFePO4?

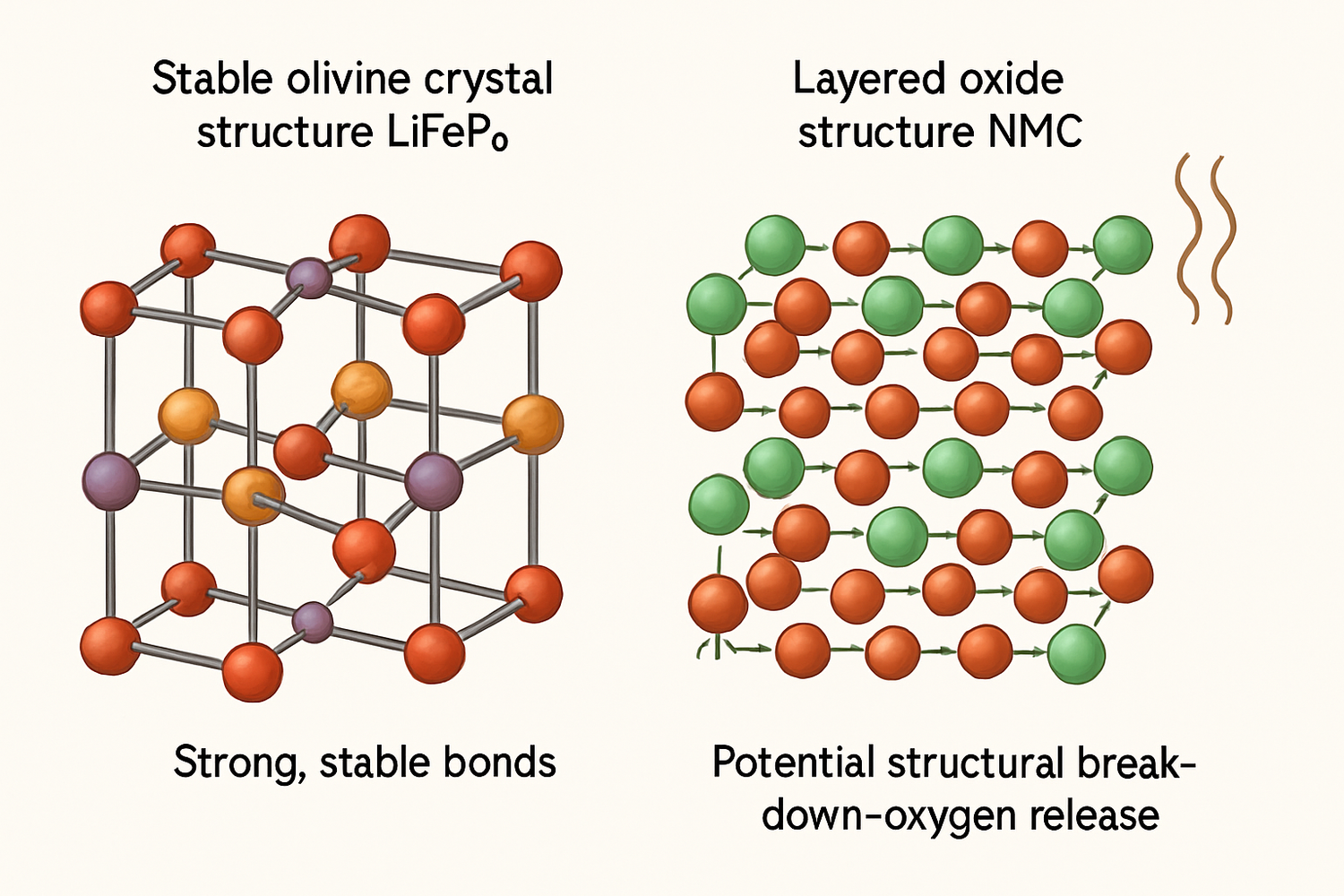

LiFePO4 batteries, also known as LFP, use lithium iron phosphate as the cathode material. This chemistry is defined by its exceptionally stable olivine crystal structure. The phosphorus and oxygen atoms are held together by strong covalent bonds, creating a rigid three-dimensional framework that is highly resilient to stress, such as overcharging or high temperatures. This inherent structural integrity is the foundation of its superior safety profile.

What is NMC?

NMC batteries feature a cathode composed of a combination of Nickel, Manganese, and Cobalt. This layered oxide structure allows for a higher energy density, meaning NMC batteries can store more energy in a smaller, lighter package. This trait has made them popular for portable electronics and electric vehicles (EVs), where space and weight are primary constraints. However, this higher energy density comes with increased volatility and a lower thermal tolerance.

The Critical Factor: Thermal Stability and Safety

The primary safety concern with any lithium-ion battery is thermal runaway, a dangerous condition where a cell overheats in an uncontrollable chain reaction. The chemistry of the battery is the single most important factor in its susceptibility to this phenomenon.

LiFePO4's Superior Thermal Resistance

LiFePO4 chemistry has a much higher thermal runaway threshold, beginning at approximately 270°C (518°F). The robust P-O bond in the olivine structure is difficult to break, even at high temperatures. This prevents the release of oxygen, which would otherwise fuel a fire, making the battery inherently non-combustible under stress. This chemical stability is a key reason why LiFePO4 is a preferred technology for applications where safety is non-negotiable, like home battery storage.

NMC's Thermal Sensitivity

In contrast, NMC batteries can enter thermal runaway at a lower temperature, around 210°C (410°F). Under stress from overcharging, physical damage, or high heat, the layered oxide structure of an NMC cathode can break down. This breakdown releases oxygen, which can ignite the electrolyte and lead to a fire or explosion. While a well-designed Battery Management System (BMS) can mitigate these risks, the fundamental chemistry of NMC is more volatile than LiFePO4.

Performance and Practical Considerations

While safety is paramount, a complete picture involves comparing other key performance metrics that influence a battery's suitability for different applications.

Energy Density vs. Lifespan

NMC batteries have a clear advantage in energy density, storing more energy per kilogram. As the International Energy Agency (IEA) notes, this makes them ideal for applications where space is limited. However, this comes at the cost of longevity. LiFePO4 batteries offer a significantly longer cycle life, often capable of enduring 3,000 to 7,000 charge-discharge cycles compared to the 1,000 to 2,000 cycles typical for NMC. A longer lifespan not only provides better long-term value but also reduces the environmental impact associated with battery replacement. As detailed in the ultimate reference on solar storage performance, a higher cycle life is a crucial factor in the overall cost-effectiveness of a solar storage system.

Cost, Materials, and Environmental Impact

The materials used in NMC batteries, particularly cobalt, are a significant concern. Cobalt is expensive and its mining is often associated with ethical and environmental issues. LiFePO4 batteries, on the other hand, use abundant, non-toxic, and lower-cost materials like iron and phosphate. This makes them a more sustainable and cost-stable option for large-scale energy storage.

Making the Right Choice for Energy Independence

For stationary energy storage applications like a home or business backup power system, the priorities are safety, reliability, and long-term value. While NMC's higher energy density is an advantage in weight-sensitive mobile applications, it is less critical for a stationary unit. The superior thermal stability, longer lifespan, and more sustainable materials of LiFePO4 make it the clear choice for achieving energy independence safely and reliably. According to the U.S. Department of Energy, developing safe and reliable energy storage is crucial for modernizing the grid, and the inherent stability of LiFePO4 chemistry aligns perfectly with this goal.

A Final Perspective

The choice between LiFePO4 and NMC chemistry is a choice between priorities. NMC technology prioritizes packing the most power into the smallest space. LiFePO4 technology prioritizes safety, longevity, and stability. For a system that will operate in your home, providing power for years to come, the decision should be guided by safety first. The inherent chemical stability of LiFePO4 provides a level of security that makes it the responsible and superior choice for stationary energy storage.

Frequently Asked Questions

Is NMC battery chemistry unsafe?

NMC is not inherently unsafe when operated within a system that has a robust and high-quality Battery Management System (BMS). However, its chemical properties make it more susceptible to thermal runaway from damage or high heat compared to LiFePO4, which is stable on a molecular level.

Why do electric vehicles use NMC batteries if LiFePO4 is safer?

Electric vehicle manufacturers often prioritize maximizing driving range while minimizing battery weight and size. NMC's higher energy density is advantageous for this purpose. The trade-off for this higher density is the need for more complex and sophisticated thermal management and safety systems to prevent overheating.

Does temperature affect both battery types?

Yes, all batteries are affected by temperature. However, LiFePO4 batteries operate safely across a wider temperature range and are far less susceptible to thermal runaway at high temperatures. The U.S. Environmental Protection Agency (EPA) has released guidance emphasizing that proper design and monitoring are critical for managing thermal risks in all large-scale battery systems.

What is the role of a Battery Management System (BMS)?

A BMS is a critical electronic system that acts as the brain of a battery pack. It protects the battery by monitoring its state, balancing cells, and preventing over-charging, over-discharging, and overheating. A high-quality BMS is essential for the safety and longevity of any lithium-ion battery pack, regardless of its chemistry.
