Myth vs Reality: "Smart" combiner boxes monitor everything

Smart combiner boxes add sensors, data, and remote control to a proven piece of DC hardware. That brings clear value. It does not grant omniscience. This piece separates marketing claims from field reality so you pick features that improve uptime and safety without overpaying.

What smart combiners actually monitor

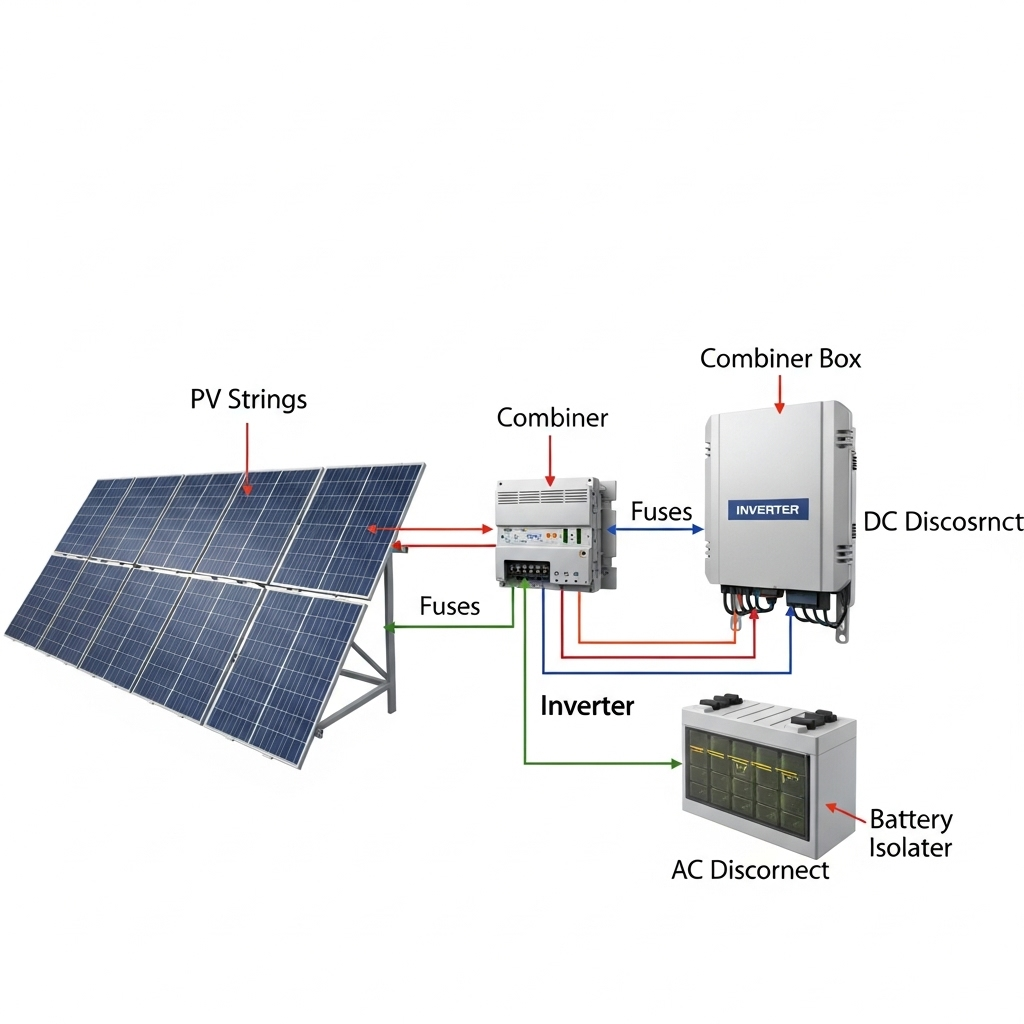

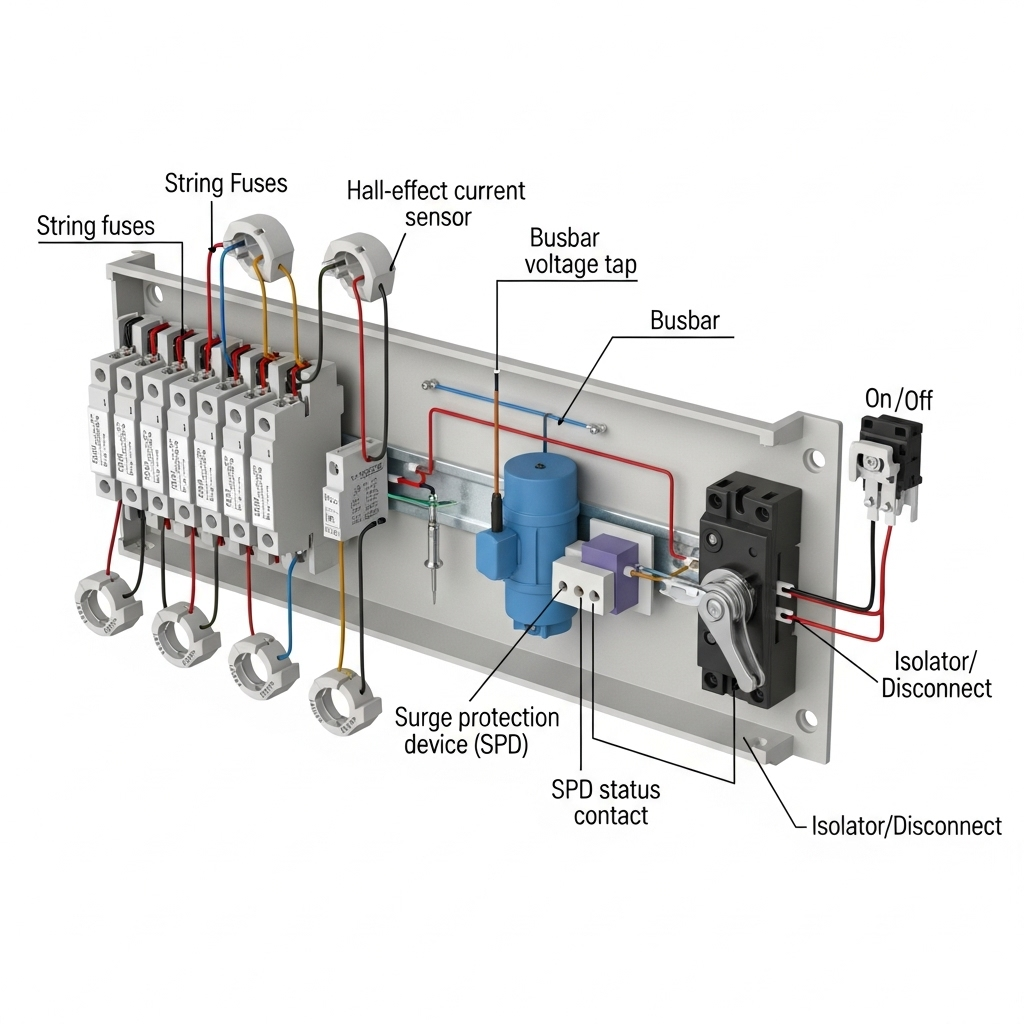

Most smart combiner boxes provide string-level electrical data plus a handful of box-level status points. Think of them as accurate eyes on current and basic health, not full diagnostic labs.

String current: Hall-effect or shunt-based sensing on each fused string. Useful for mismatch and open-circuit detection.
Bus voltage: One voltage tap for the combiner output. Helpful for quick power estimates with current sums.
Thermal points: One or more internal temperature sensors for enclosure and busbar heat trends.
Protection status: Surge protective device (SPD) thermal indicator via microswitch; fuse blown alarms inferred from current loss; arc-fault is optional and not universal.
Isolator/Disconnect position: Auxiliary contacts report ON/OFF for safer remote operations.
Communications: Typically RS‑485/Modbus RTU or TCP, sometimes CAN or Ethernet with IEC 61850 gateways in larger plants.

Myths vs reality

Myth	Reality	What to do instead
It monitors everything on each string.	It monitors current and maybe temperature; voltage is usually at the bus. No per-module data.	Pair with periodic IV‑curve testing or module-level sampling during maintenance windows.
It replaces thermography.	Internal sensors catch enclosure hot spots, not connector or module hot joints.	Keep annual IR scans for connectors, harnesses, and module blocks.
It guarantees arc-fault detection.	Arc-fault is optional and varies in algorithm quality and thresholds.	Verify arc‑fault certification and field test methods before relying on it.
It sees soiling and PID directly.	It infers performance via current imbalance; it does not measure soiling or insulation loss directly.	Use reference cells, on-site soiling sensors, or insulation testers in O&M.
It is a cybersecurity boundary by itself.	It is a data endpoint; security depends on architecture, hardening, and controls around it.	Apply defense-in-depth, network segmentation, and identity management.

What the specs really tell you

Two combiner boxes can look similar yet behave very differently in noisy, hot, or fast-changing conditions. Focus on accuracy, sampling, and event logic.

Telemetry point	Typical capability	Limits that matter
String current	1–2% of reading, 0.1–0.2 A resolution	Temperature drift and saturation near Isc on bright, cold days
Output voltage	0.5–1.0% accuracy	Often sampled at only one point; not string-resolved
Sampling interval	1–10 s, adjustable	Fast transients may be missed; arc-fault needs dedicated circuitry
Thermal sensors	Enclosure/busbar spot or averaged	No connector-level mapping without extra probes
SPD status	Dry contact (healthy/faulted)	Binary only; no residual protection margin
Isolator position	Aux contacts (open/closed)	No mechanical wear prediction without extra analytics

Data alone is not the target; actionable thresholds are. Start with vendor defaults, then tune alarm thresholds after two to four weeks of baseline data.

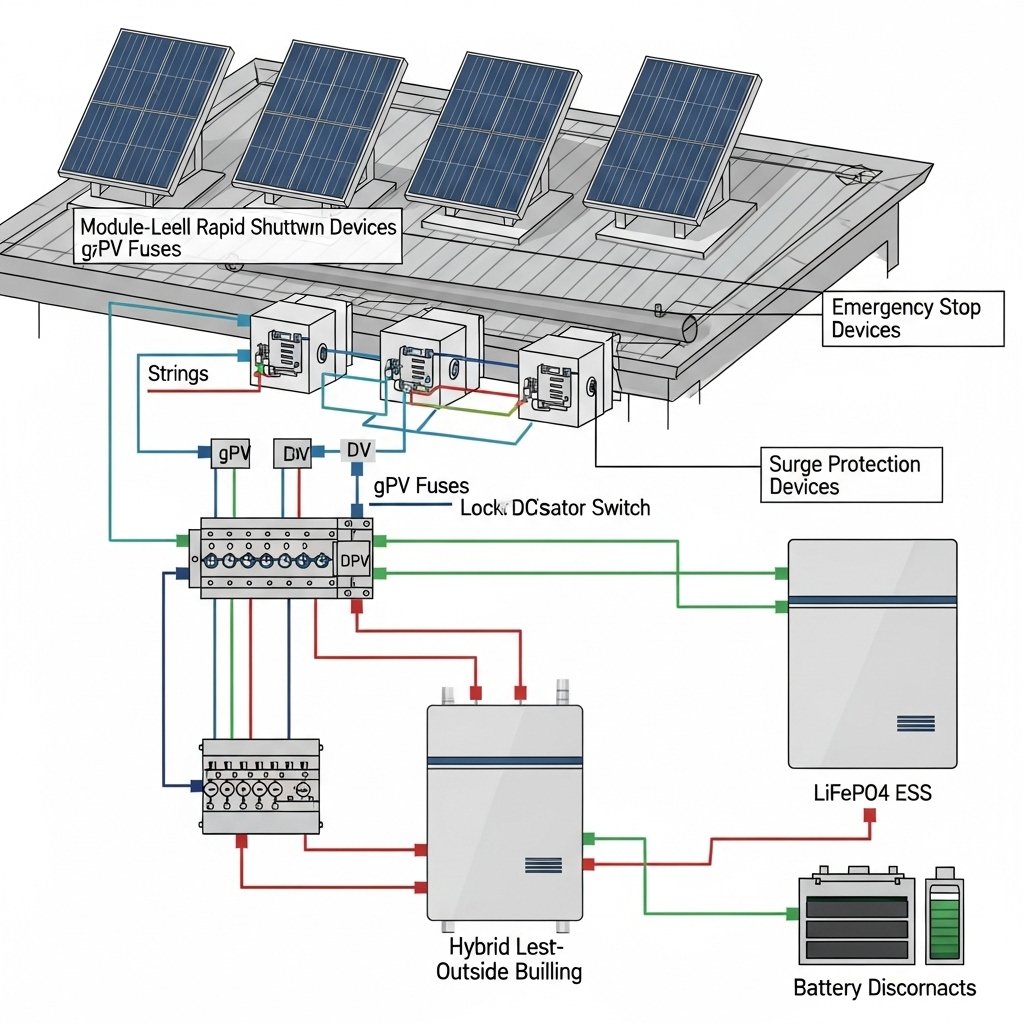

Why this matters for PV+storage sites

String-level telemetry helps storage controllers make smarter choices about charge windows and curtailment. The U.S. Department of Energy stresses that better PV monitoring contributes to safer operations and higher yield. That data gets even more useful once storage comes into play.

Charge window selection: If several strings sag, the storage system can delay charging to a cooler, higher-irradiance period to reduce clipping and thermal stress.
Fault triage: Current loss on a single string can trigger a partial derate rather than a full shutdown, keeping storage charging from healthy strings.
Thermal risk control: Rising enclosure temperature can prompt a pre-cool step in the inverter room or a temporary power cap.

The LiFePO4 focus common in residential and commercial ESS supports this strategy. A practical resource on storage performance from Anern presents typical Lithium iron phosphate behavior, including round‑trip efficiency in the high‑90% range under favorable conditions and conservative charge/discharge rate guidance for longevity. See the compiled reference here: Ultimate Reference: Solar & Storage Performance. Aligning smart combiner insights with those storage constraints helps avoid aggressive C‑rates during hot afternoons and extends cycle life.

What standards and authorities say

Global energy bodies highlight the role of trustworthy data and secure integration.

According to the IEA System Integration of Renewables, smarter monitoring and control are central to integrating variable renewables at scale. That favors reliable, comparable telemetry over flashy but noisy data.
IRENA’s grid code review underscores cybersecurity, early warning, and minimum security requirements for critical components. Combiner telemetry must sit inside a secured architecture with role-based access and supply chain checks.
IRENA’s smart charging work shows how accurate, standardized data streams unlock aggregator value. The same lesson applies to PV: clean, time-synced combiner data raises the value of plant controls.
The IEA Energy and AI report notes that technical excellence and human expertise must operate together. Edge analytics in combiners can help, but trained operators and robust procedures remain decisive.
The EIA tracks rapid solar deployment, raising the stakes for O&M discipline. Reliable string telemetry assists in scaling teams without inflating truck rolls.

Setting thresholds that catch real faults

Use site context. Irradiance swings and temperature shifts can mimic faults. Build rules that account for weather and inverter behavior.

String imbalance: Alert if any string current deviates more than 10–15% from the median for five consecutive samples during stable irradiance.
Fuse suspected open: Zero current on a single string while neighbors are healthy for more than 30 s during sunlit periods.
Thermal drift: Enclosure temperature rising >6°C over 10 minutes with flat power indicates airflow issues.
SPD failure: Immediate maintenance ticket on SPD fault contact change; reduced storm-time risk tolerance until replaced.

Tie these rules to site irradiance or inverter DC power to avoid false alarms on cloud edges. If available, correlate with weather station data.

What smart combiners do not see

Module-level defects: Cell cracks, junction box faults, and bypass diode issues need IV traces or module MLPE data.
Connector degradation: Heating at MC4 pairs appears late in combiner thermals. Keep IR inspections in the plan.
Soiling thickness: Current drops reveal impact, not cause. A reference soiling sensor adds context.
Ground insulation: Unless the combiner has a built-in insulation monitor, use a dedicated DC insulation device.

Procurement checklist: smart enough, not overbuilt

Measurement class: Current accuracy ≤2% over –20 to 60°C; voltage ≤1%.
Sampling and buffer: 1–2 s sampling with at least 24 hours local buffer for network outages.
Event logic: Configurable debouncing and persistence; field-updatable without a laptop-only workflow.
Isolator feedback: Dual auxiliary contacts for redundancy; clear label and lockable handle.
Surge protection: SPD status contact per pole; guidance on replacement cycle.
Cybersecurity: Unique passwords, TLS on TCP, signed firmware, and audit logs. Aligns with IRENA guidance on minimum protection levels.
Protocols: Modbus register map with scaling; gateway option for IEC 61850 in utility plants.
Serviceability: Tool-less fuse access, clear wiring labels, UV-stable gaskets, and condensation control.

Workflow that turns data into fewer truck rolls

Adopt a repeatable, light process.

Commissioning: Capture clean baselines at 800–1000 W/m². Store median string currents and temperature references.
Daily analytics: Flag strings below baseline by a set percentage during stable windows (e.g., 10:00–14:00, clear sky).
Weekly review: Group alarms by combiner location to spot harness or zone issues.
Quarterly tests: IV-curve sampling on the worst 10% of strings to validate alarms and fine-tune thresholds.
ESS coordination: If storage is present, limit charge C‑rate during hot spells. The Anern performance reference above details why conservative C‑rates preserve LiFePO4 life.

Reality check: data quality beats data quantity

Low-noise signals, accurate time stamps, and secured transport will beat high-frequency but unstable feeds. This is consistent with the emphasis on reliability and disciplined integration found in the IEA system integration work and the cybersecurity posture advised by IRENA’s grid code review.

Non-legal advice: Standards and code topics here are informational. Confirm project-specific requirements with certified professionals and authorities having jurisdiction.

FAQs

Do smart combiners replace IV-curve testing?

No. They spot current imbalance and outages quickly, but IV curves still reveal module defects and degradation patterns that current-only data misses.

Can they detect reverse polarity on a string?

Some units flag abnormal current direction at start-up. Treat this as a commissioning aid, not a substitute for checks with a meter.

How accurate must string current be to diagnose faults?

For most O&M, ≤2% of reading suffices. Tighter accuracy helps on long strings or low-irradiance tests but drives cost up.

Is arc-fault in the combiner enough for fire risk reduction?

Arc-fault helps, but it is not universal or foolproof. Keep proper installation practices, IR scans, and code-compliant rapid shutdown where required.

What is the best protocol for SCADA?

Modbus remains common and easy to integrate. In utility plants, a gateway to IEC 61850 may align better with substation standards.
