Ultimate Guide to NEC/IEC Labeling and Documentation for PV+ESS

Clear labels and a complete document pack cut risk and speed approvals for solar plus storage. This piece shows how to align NEC Labeling and IEC Labeling, build inspector-ready PV ESS Documentation, and avoid red tags. You will see a practical crosswalk, label text examples, and commissioning records that stand up to review.

Why labeling and documentation matter for PV+ESS

Code-compliant markings do more than pass inspections. They protect responders, guide O&M, and keep sites consistent across teams. Field experience shows that a unified label set paired with a structured document binder reduces back-and-forth with Authorities Having Jurisdiction (AHJs) and utilities.

According to the International Energy Agency, qualification standards such as IEC 61215 and IEC 62108 reduce early PV module failures but do not rank products for lifetime in different climates. That gap raises the value of strong as-builts and maintenance records. See Technology Roadmap - Solar Photovoltaic Energy 2010.

EIA data shows rapid growth of distributed solar capacity, which increases AHJ workloads and makes consistent labeling essential. Reference: U.S. Energy Information Administration.

Energy system operators need clarity at the point of interconnection. The IEA highlights the role of storage and DER visibility in grid flexibility. See China Power System Transformation.

Policy and safety bodies advocate adoption of international committees and standards for quality. This aligns with the note on standardisation and the role of IEC TC 82 for PV systems in the knowledge base, echoed by IRENA’s work on best practices.

For high-level safety topics related to PV and rapid shutdown, visit the U.S. Department of Energy’s solar resources: energy.gov/topics/solar-energy.

NEC labeling fundamentals for solar plus storage

Focus on the main NEC articles that touch PV+ESS labeling. Use code edition adopted by your AHJ (2017, 2020, or 2023 in many regions). The list below keeps it edition-agnostic; verify exact clause numbers locally. Non-legal advice.

• Article 110. Field-applied markings and equipment labeling (e.g., 110.21(B)). This governs durability, legibility, and permanence.
• Article 690. Photovoltaic systems. Labels for DC circuits, disconnects, rapid shutdown notice, and directories for multi-source buildings.
• Article 705. Interconnected power sources. Directory placard at the service entrance and clear identification of the point of interconnection.
• Article 706. Energy storage systems. Marking for ESS type, ventilation or no-ventilation, battery chemistry visibility, and emergency disconnects.

Label content and style points that pass

• Signal words and color: Red background with white text for PV DC hazard identifiers and rapid shutdown notices; yellow/black for caution as needed. Keep contrast high.
• Minimum size: Use characters ≥ 9.5 mm (3/8 in) where visibility is required at a distance. Increase size on outdoor gear.
• Plain text, no code quotes: State the hazard and the action. Example: ‘PV DC CONDUCTORS PRESENT — SHOCK HAZARD’.
• Directories: At service equipment, add a clear placard that points to each PV disconnect and ESS disconnect location.
• Durability: Use UV-stable films, solvent-resistant inks, and adhesives suitable for textured metal. Aim for UL 969 compliant constructions for longevity.

Typical NEC label set for PV+ESS

• PV array DC disconnect label at each DC disconnect.
• Rapid shutdown label at service equipment with diagram or text per adopted NEC cycle.
• Conduit/raceway identification for PV DC circuits from combiner to inverter.
• Point of interconnection label at the utility intertie.
• ESS enclosure label: chemistry (LiFePO4), nominal voltage, kWh, and emergency contact. Add ‘ESS DISCONNECT’ at the switch.

IEC documentation and labeling requirements

Projects outside North America, or multinational portfolios, rely on IEC standards to define required documents and on-equipment markings.

• IEC 62446-1: System documentation for PV. Includes schematic, array layout, string data, protection devices, and labeling locations.
• IEC 62446-2: Maintenance and periodic verification. Defines inspection records and test intervals.
• IEC 60364-7-712: Installation requirements for PV. Covers safe isolation, wiring identification, and signage.
• IEC 62933 (series): Stationary energy storage safety aspects; use it alongside local electrical rules for ESS signage.
• IEC 61730 and IEC 61215: Module safety and qualification inform on-module markings and performance qualification limits.

Documentation sets under IEC 62446-1 should include commissioning test records: open-circuit voltage, short-circuit current checks, insulation resistance, polarity verification, functional testing of protection devices, and shutdown systems. Keep acceptance ranges visible beside the results.

NEC–IEC crosswalk for PV ESS labeling and documentation

Build a repeatable PV ESS documentation pack

A consistent binder reduces questions and shortens approval time. Use the same structure across sites and code cycles, and swap the code references per jurisdiction.

• Cover and site directory: Address, AHJ, utility, code edition, contact list.
• Single-line diagram (SLD): AC/DC ratings, conductors, OCPDs, grounding/bonding, RSD topology, point of interconnection.
• Label index: Table of each required label, location, text, size, and material. Keep it printable and on a QR-labeled placard.
• Equipment data: Inverter, ESS (LiFePO4), combiner, disconnects. Include nameplate photos to match labels.
• Calculations: Voltage rise, conductor ampacity, fault current contribution, ESS short-circuit data if provided.
• Commissioning: Insulation resistance, polarity, Voc/Isc checks, RSD functional test, anti-islanding test, ESS charge/discharge functional checks.
• O&M and safety: Shutdown procedure, lockout/tagout points, PPE notes.

For storage performance context, include a short appendix that sets realistic expectations for battery behavior over time. The piece Ultimate Reference: Solar Storage Performance compiles field and lab insights on LiFePO4 cycle life, temperature impact, depth-of-discharge effects, and round-trip efficiency. Linking this reference helps owners and AHJs see that your label ratings and nameplate values match practical operating ranges.

Sample label index (condensed)

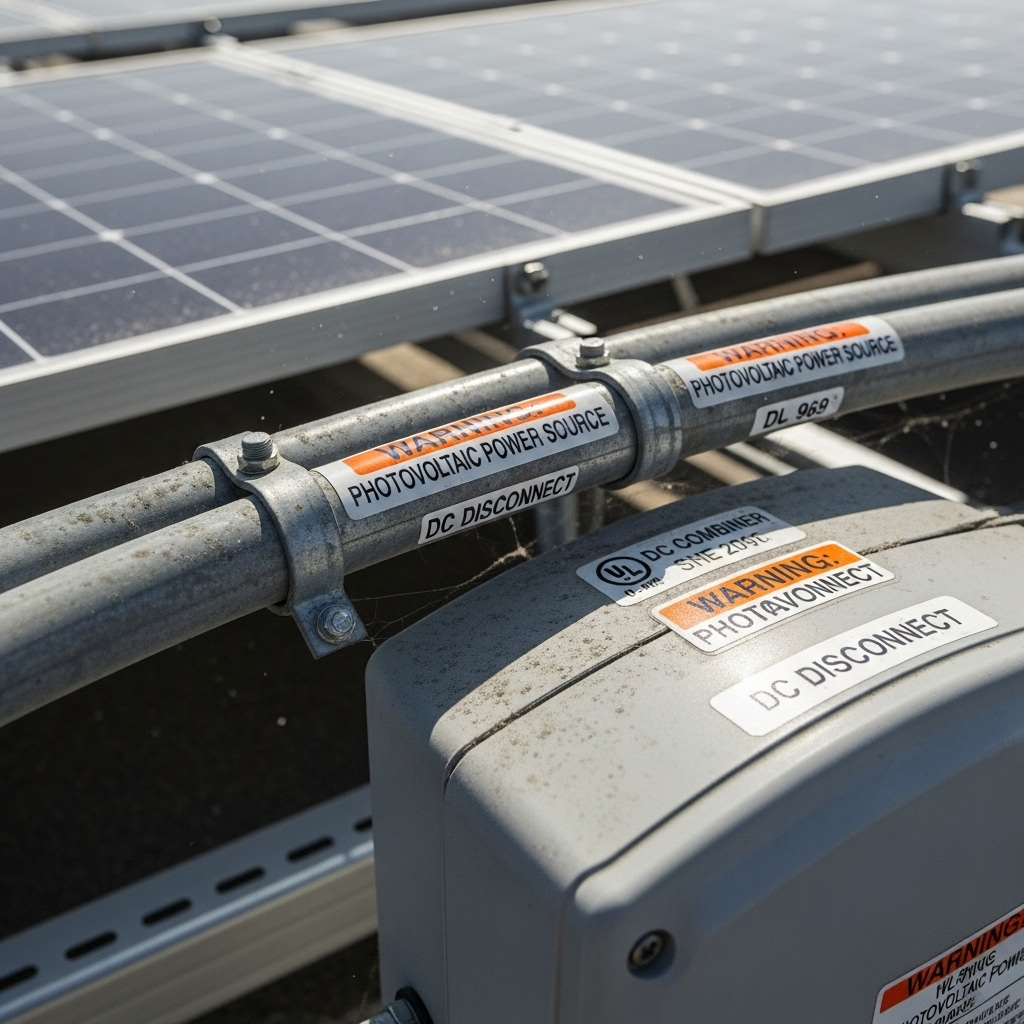

Durability, placement, and QA that prevent peel-offs

Make labels last as long as the hardware. Sunlight, heat, moisture, salt, and abrasion degrade many consumer-grade stickers in months. Pick tested constructions and verify placement details during commissioning.

• Materials: UV-stabilized polyester or polycarbonate facestock, solvent-resistant pigment ink or thermal transfer resin, outdoor-rated adhesive. Edges radiused to reduce lift.
• Surfaces: Clean with isopropyl alcohol, avoid oily residues, apply above 10 °C, roll with pressure. Rough metal may need primer.
• Placement: At eye level for service equipment. On the enclosure door, not the removable cover edge. Keep ≥ 12 mm from hot fins.
• Verification: Add a ‘label photo checklist’ page to the commissioning pack. Include distance and close-up shots.

The IEA notes that fast PV deployment in markets such as Germany and Italy created technical issues that demanded better practices and quality control. Aligning labeling and documentation helps reduce such issues. See Technology Roadmap - Solar Photovoltaic Energy 2010.

Real-world application: PV+ESS scenarios

Residential hybrid inverter with LiFePO4 ESS

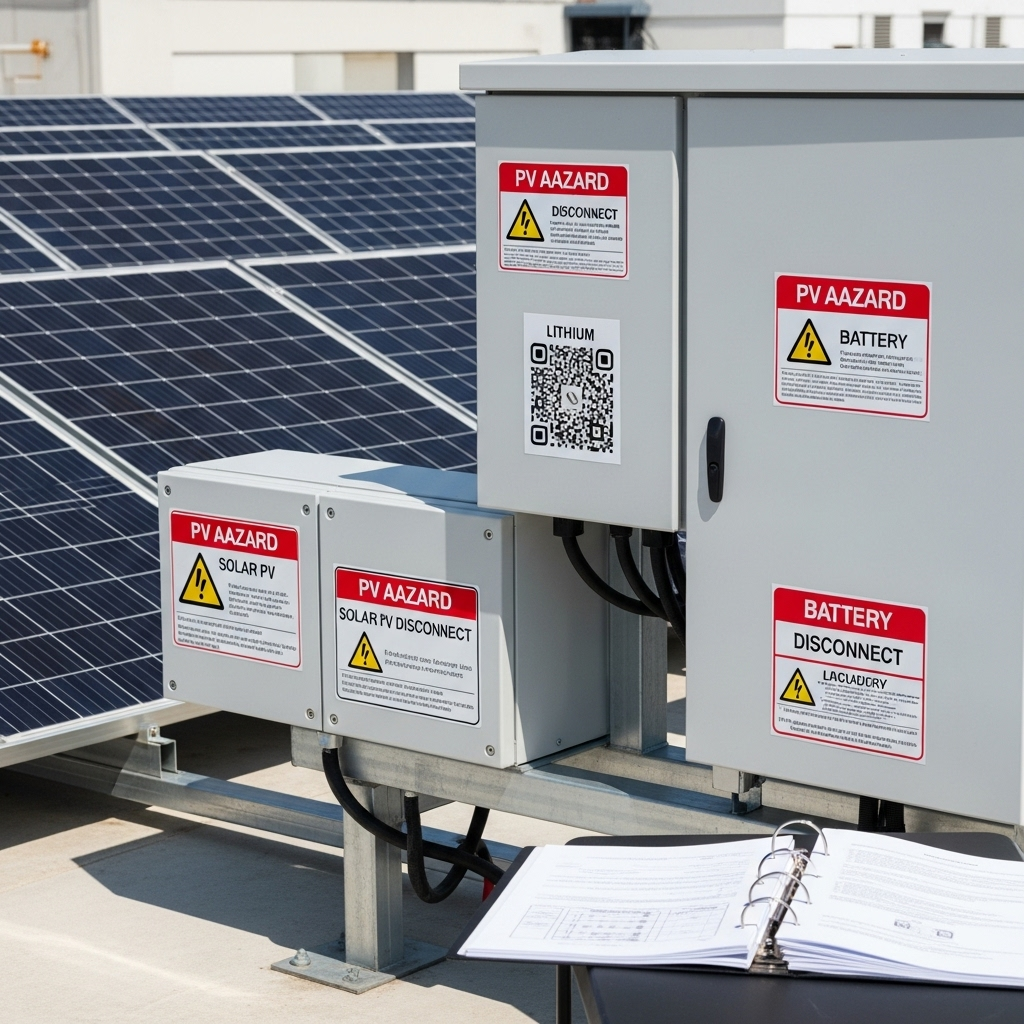

Place the directory at the service panel. Mark the hybrid inverter AC disconnect and the PV DC disconnect with red/white placards. The ESS cabinet needs chemistry, nominal voltage, kWh, and an ‘ESS DISCONNECT’ label. Add a QR code placard that links to the digital SLD, shutdown steps, and commissioning test sheet. Include a short appendix on expected LiFePO4 performance, with a link to the storage performance reference.

Small commercial with roof access

Install a weatherproof directory at the main service location on the ground floor. Place roof access placards stating that PV DC conductors are on the roof and indicate rapid shutdown boundaries per the adopted NEC cycle. In the IEC context, use building plan signage and the 62446-1 documentation pack to show isolation points and emergency steps.

Compliance workflow and records

• Code edition check: Record adopted NEC or IEC rules on the cover page.
• Label kit preload: Select pre-approved text and sizes per your matrix. Keep a few blanks for AHJ-specific requests.
• Commissioning tests: Document meter model, calibration date, ambient conditions, and pass/fail notes.
• Digital binder: Store PDFs behind a QR code. Provide an offline copy on a rugged USB in the ESS cabinet.
• Handover: Train the owner on shutdown steps. Include a printed quick-start card next to the directory placard.

Backed by credible sources

• IEA: PV qualification reduces early failures but does not rank product lifetime by climate. See Technology Roadmap - Solar Photovoltaic Energy 2010.
• IEA: Power system flexibility gains from clear DER visibility, with storage as a key enabler. See China Power System Transformation.
• IRENA: Ongoing work on renewable standards and best practices supports national adoption of IEC committees such as TC 82. See IRENA.
• EIA: Distributed solar capacity trends affect interconnection review volumes. See EIA.
• U.S. DOE: Safety and PV information resources for stakeholders. See energy.gov/topics/solar-energy.

Note: Codes change across cycles and jurisdictions. Engage your AHJ early and keep a redline-ready label matrix. Non-legal advice.

FAQs

Do I need separate directories for PV and ESS?

Combine them. A single directory placard at the service equipment that lists PV and ESS disconnects reduces confusion. Keep the detailed map in the binder and behind a QR placard.

What label sizes and fonts work best?

Use high-contrast fonts with minimum 9.5 mm character height for key hazards and directories. Increase size in bright outdoor settings and on large gear so responders can read from a safe distance.

Are QR-linked documents acceptable to inspectors?

Most AHJs accept QR codes as a supplement, not a replacement. Provide a printed pack onsite and a QR link to the latest digital files. Add a short URL for offline typing.

How do IEC 62446-1 records map to my NEC project?

The commissioning tests and documentation structure align well. Keep the IEC sheets as your base and add NEC-specific labels, rapid shutdown notes, and a utility interconnection summary.

What should I print on the ESS enclosure?

Print chemistry (LiFePO4), nominal voltage, nameplate kWh, disconnect location, and emergency contact. Add hazard symbols per local rules and ensure the label resists heat and UV.

Disclaimer: This content is for general information only and does not constitute legal, code, or engineering advice.
