Installing a solar array is a significant step toward energy independence. Yet, the focus on panels and inverters can sometimes overshadow the foundation of the entire system: the roof itself. Improperly planned module spacing and weak attachment methods can concentrate immense stress on your roof's structure, potentially leading to costly and dangerous rafter damage. A successful solar panel installation depends on a design that respects the structural limits of your home.
Understanding Rafter Load Fundamentals
Before a single panel is lifted onto the roof, a thorough grasp of the forces at play is necessary. A structural load analysis isn't just paperwork; it's the blueprint for a safe and durable energy system. It involves calculating all potential stresses to ensure the rafters can handle the new, permanent addition.
Static vs. Dynamic Loads: More Than Just Panel Weight
The total load on your rafters is more complex than the simple weight of the solar modules. These forces are broken into three categories:
- Dead Loads: This is the constant, unchanging weight of the installation itself. It includes the solar panels, the mounting rails, and all associated hardware. While a single panel might not seem heavy, an entire array adds a significant, permanent burden to the roof structure.
- Live Loads: These are temporary, variable forces. The most common examples are snow accumulation in colder climates and the weight of installers performing maintenance. These loads can be substantial and must be factored into the rafter load calculation.
- Dynamic Loads: These are powerful, often sudden forces exerted by the environment. Wind is the primary concern, as it creates both downward pressure and significant upward lift forces that try to pull the panels off the roof. In certain regions, seismic forces during an earthquake also represent a critical dynamic load.
The Critical Role of a Structural Analysis
A preliminary structural analysis is the first line of defense against overloading rafters. This process involves a professional assessment of your roof's existing condition, including the size, spacing, and span of the rafters, as well as the type of wood and its current condition. Ignoring this step is a gamble with your home's structural integrity. The analysis determines the maximum load capacity and dictates the allowable spacing and types of attachments for the solar array.
The Science of Module Spacing Optimization
Module spacing is a balancing act between maximizing energy production and maintaining structural safety. The placement of every attachment point directly influences how loads are distributed across the roof's framework. Optimizing this layout is key to preventing stress fractures and system failure.
Distributing Weight Evenly Across Rafters
Every attachment point creates a 'point load' on a rafter. Placing attachments too far apart concentrates the array's weight onto fewer structural members, increasing the stress on each one. A well-designed racking system, combined with optimal attachment spacing, distributes these point loads across multiple rafters. This strategy converts concentrated stress into a more manageable, distributed load, significantly reducing the risk of overloading any single rafter.
Wind and Snow Load Considerations
Module spacing directly impacts how the array interacts with wind and snow. Closely packed modules can create a sail-like effect, increasing wind uplift forces. Strategic gaps can help mitigate these forces. Similarly, spacing affects how snow accumulates and melts. Improper spacing can lead to the formation of large snow drifts, creating an unbalanced live load that overstresses specific sections of the roof. As noted in a report by IRENA, optimizing the configuration of energy-generating components is crucial for maximizing yields and ensuring long-term performance, a principle that applies equally to wind turbines and solar arrays. According to the Renewable Power Generation Costs in 2024 report, optimizing system configuration is a key element in performance.
Balancing Power Output and Structural Safety
The goal is often to fit as many panels as possible onto a roof to maximize power generation. However, this must be balanced with structural limitations. For specialized equipment like bifacial modules, parameters like row spacing and height above the roof are critical for boosting energy output from the rear side of the panel. This optimization of the module layout for power must always be checked against the structural capacity of the roof to handle the associated loads.
Choosing the Right Attachment Methods
The most carefully planned module layout is only as strong as the hardware holding it down. The attachment method is the direct link between the solar array and the building's structure. Using high-quality components and correct techniques is non-negotiable for a safe solar panel installation.
Lag Bolts vs. Structural Screws
The two most common methods for securing mounts to rafters are lag bolts and structural screws. While they serve the same purpose, they have different characteristics. A professional installer will choose the appropriate hardware based on the specific load requirements and wood type of the rafters.
| Feature | Lag Bolts | Structural Screws |
|---|---|---|
| Installation | Requires pre-drilled pilot hole | Often self-drilling, faster installation |
| Shear Strength | Good | Excellent |
| Pull-Out Strength | Standard | Typically higher due to aggressive threading |
| Common Use | Traditional method, widely available | Preferred in modern installations for speed and strength |
The Importance of Proper Sealing and Flashing

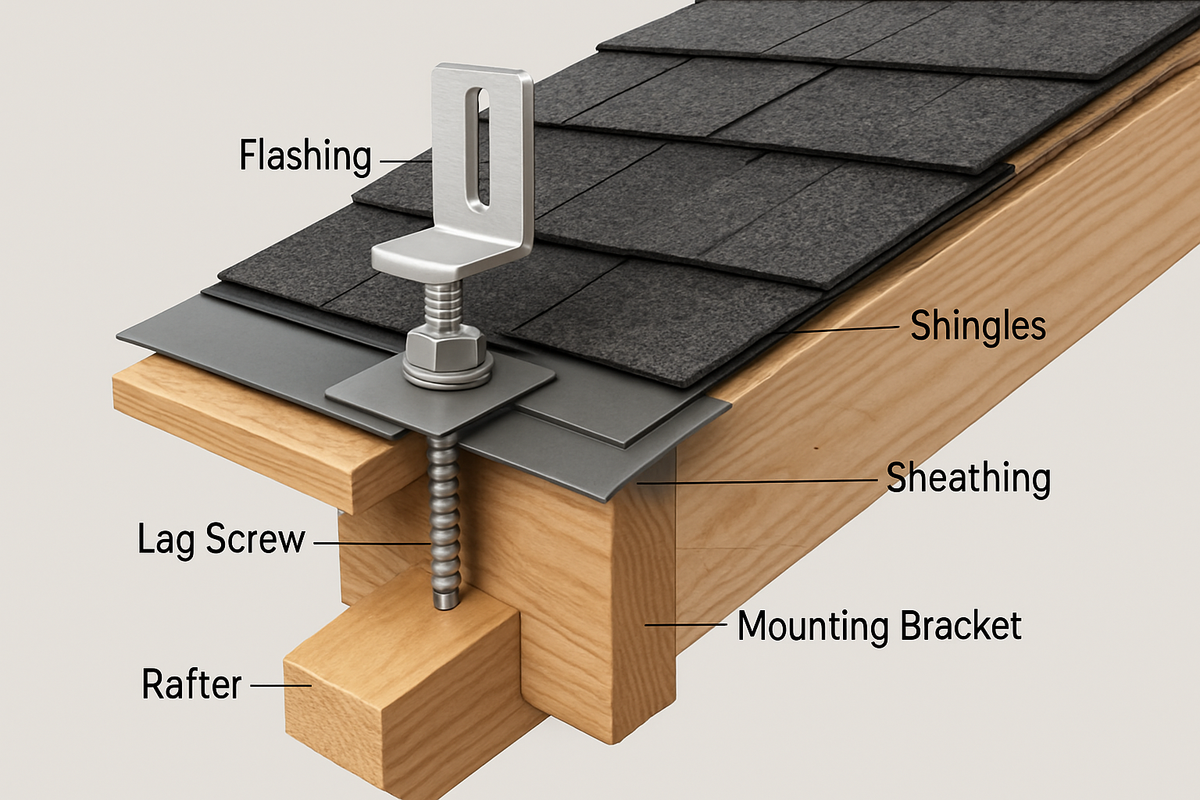

Every roof penetration is a potential entry point for water. A strong attachment is useless if it leads to leaks and water damage. Proper weatherproofing is critical. This is achieved using flashing, a metal or plastic component that fits over the attachment and under the shingles, directing water away from the penetration. Combined with a durable sealant, high-quality flashing ensures the roof remains watertight for decades.
Rail-Based vs. Rail-Less Systems: A Load Perspective
Mounting systems come in two main styles: rail-based and rail-less. Rail-based systems use long aluminum rails to support the panels, which helps distribute the load across multiple attachment points. They offer more flexibility in panel placement but add to the overall dead load. Rail-less systems attach directly to mounts, reducing weight and material costs. However, they typically require more roof penetrations and place concentrated loads directly on the attachments, demanding meticulous layout planning.
Integrating System Performance with Structural Planning
A holistic approach to solar system design considers how physical installation practices impact long-term energy production and overall system health. Structural integrity and energy performance are deeply intertwined.
How Component Selection Impacts Overall Load
The weight of solar components varies. While lightweight modules are available, they do not eliminate the need for a thorough roof load check. The total dead load includes not just the panels but also the racking, wiring, and other hardware. Research from institutions like the U.S. Department of Energy consistently highlights that the complete system's ability to withstand environmental stresses is a fundamental aspect of a safe and effective installation.
The Connection to Energy Storage Performance
A well-designed array produces predictable power, which is essential for sizing an efficient battery system. Optimizing your array's layout for structural safety also ensures consistent energy production, a key factor in maximizing your system's efficiency. Understanding the fundamentals of solar storage performance is crucial for getting the most out of every kilowatt-hour your safely mounted panels generate. A secure physical foundation enables reliable energy harvesting, which in turn leads to better battery utilization and greater energy independence.
A Forward Look
Properly securing a solar array is a matter of precise engineering, not guesswork. It begins with a professional structural analysis, followed by intelligent module spacing that distributes loads evenly, and finishes with high-quality attachment hardware installed correctly. By prioritizing the roof's structural health, you ensure your solar investment is not only productive but also safe and durable for its entire lifespan, protecting both your energy supply and your home.
Disclaimer: This article provides general information and is not a substitute for professional engineering or legal advice. Always consult with a qualified structural engineer and certified solar installer to ensure your installation complies with local building codes and regulations.
