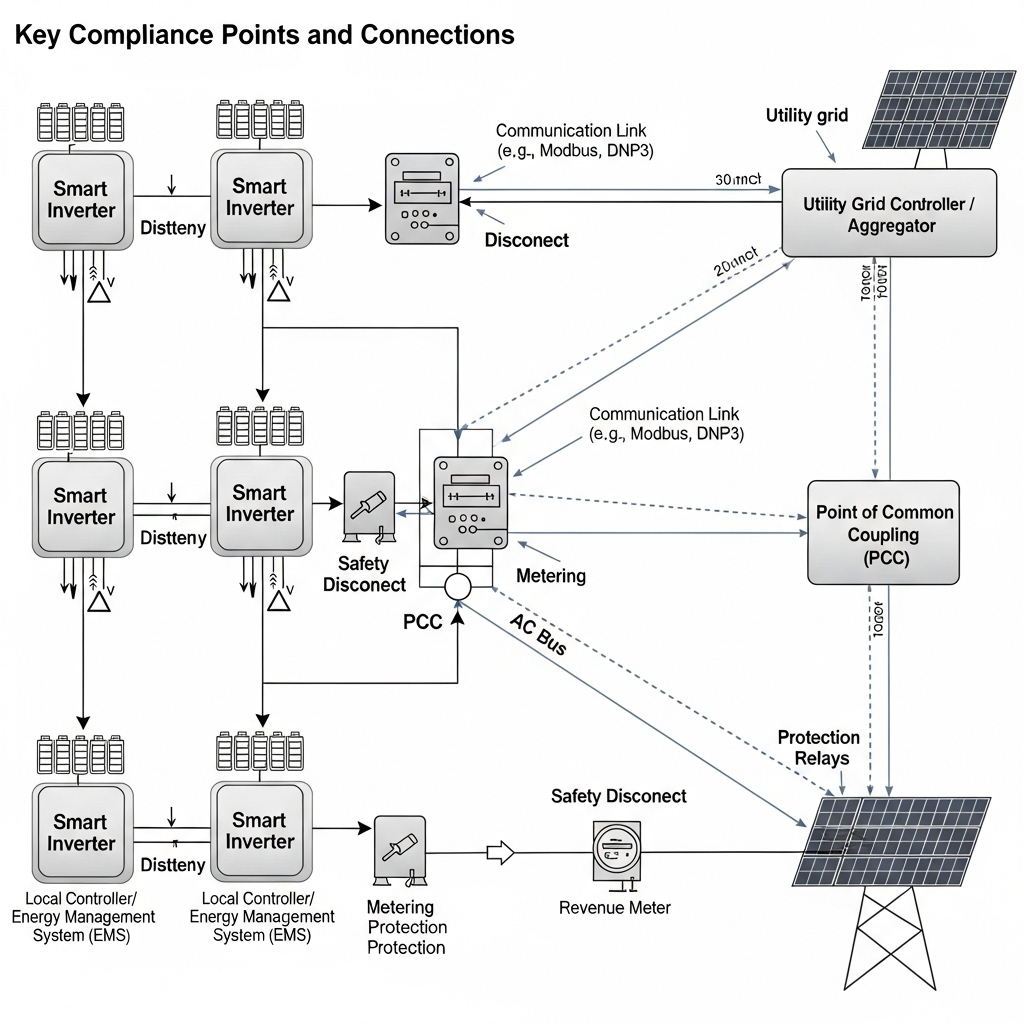

Connecting parallel Energy Storage Systems (ESS) to the grid offers immense flexibility and scalability for achieving energy independence. But this connection is not a simple plug-and-play operation. It requires strict adherence to a complex set of rules known as grid codes. These codes are essential for ensuring the stability of the electrical grid, the safety of utility workers, and the proper functioning of your own equipment.
Navigating these requirements can be challenging. This checklist provides a clear, practical roadmap to the essential compliance points for parallel ESS, helping you ensure your system operates safely, efficiently, and in harmony with the broader power grid.
Understanding the Landscape of Modern Grid Codes
Grid codes are the technical rulebooks that govern how power generation and storage assets connect to the electricity grid. As our energy systems evolve, so do these rules, moving from simple safety precautions to sophisticated requirements for a smarter, more decentralized grid.
The Evolution from Simple Rules to Smart Grids
Historically, grid codes were designed for large, centralized power plants. The primary concern was ensuring that these generators did not destabilize the grid. However, the rise of distributed energy resources (DERs) like solar and battery storage has fundamentally changed the grid's dynamics. According to a report on Grid Codes for Renewable Powered Systems, the decentralization of the power system is a key factor driving the revision and evolution of technical requirements in grid codes. Modern codes now require DERs, including parallel ESS, to actively support the grid rather than just feeding power into it.
Key International and Regional Standards
Several key standards form the foundation of most national grid codes. The IEEE 1547 standard is a cornerstone for DER interconnection in North America, while standards like EN 50549 are pivotal in Europe. These documents provide a comprehensive framework for performance, operation, and safety. However, as noted by IRENA, nationally customized implementation is necessary because broad regulations cannot capture the specifics of each power system. This means you must always consult your local utility or regulatory body for the precise requirements in your area.
The Core Compliance Checklist for Parallel ESS
Meeting modern grid codes involves satisfying a range of technical performance criteria. At the heart of these are voltage, frequency, and power quality regulations that ensure your parallel ESS acts as a good grid citizen.
Voltage and Frequency Regulation
Maintaining stable voltage and frequency is the most critical function of a power grid. Parallel ESS are now required to contribute actively to this stability.
- Voltage Ride-Through (LVRT/HVRT): Your system must remain connected and operational during brief grid voltage sags (Low Voltage Ride-Through) or swells (High Voltage Ride-Through). Disconnecting prematurely could worsen a minor grid disturbance. Smart inverters are programmed to 'ride through' these events, turning off only if the disturbance persists beyond a specified time.
- Frequency Response: The ESS must be able to automatically adjust its power output in response to deviations in grid frequency. For example, if the grid frequency drops, the system should inject power to help stabilize it. This service, often called frequency droop response, is a vital ancillary service that helps balance electricity supply and demand in real-time.
- Reactive Power Control: Modern grid codes require inverters to manage reactive power to help regulate local grid voltage. Advanced inverters can inject or absorb reactive power, a capability essential for supporting the grid, especially in areas with high solar penetration.
Power Quality and System Protection
Beyond stability, your system must not degrade the quality of power on the grid or pose a safety risk.
- Harmonic Distortion: The inverters in your ESS must produce a clean AC sine wave with minimal harmonic distortion. Excessive harmonics can interfere with other connected equipment. Standards like IEEE 1547 set specific limits for harmonic output.
- Anti-Islanding Protection: This is a critical safety requirement. If the main grid experiences an outage, your ESS must detect this 'island' condition and immediately stop exporting power. This prevents the system from energizing downed power lines, which would pose a severe risk to utility workers. According to IEEE 1547, the system must cease to energize the grid within two seconds of an island's formation.
Advanced Functions and Communication Protocols
Compliance today goes beyond basic electrical parameters. It involves sophisticated control functions and robust communication capabilities, largely enabled by smart inverters.
Smart Inverter Functionalities
Smart inverters are the brains of a modern ESS, capable of autonomous decision-making to support the grid. According to the Interstate Renewable Energy Council (IREC), smart inverters go beyond basic DC-to-AC conversion to provide essential grid support functions. These capabilities are now mandated in many regions, such as under California's Rule 21. Key functions include:
- Volt-Var Control: Automatically adjusting reactive power output in response to local voltage changes.
- Frequency-Watt Control: Reducing active power output when grid frequency exceeds a certain threshold.
- Soft-Start Ramping: Gradually ramping up power output after a shutdown to avoid sudden impacts on the grid.
Communication and Control Requirements
Utilities need to be able to monitor and, in some cases, control distributed resources to manage the grid effectively. This requires standardized communication protocols.
- Monitoring and Telemetry: Your system must be able to report its status—such as power output, state of charge, and operational mode—to the utility in near real-time.
- Remote Control: In many cases, utilities require the ability to remotely curtail or shut down the ESS. This is typically accomplished using protocols like DNP3 or IEEE 2030.5.
- Cybersecurity: With increased connectivity comes the risk of cyber threats. Grid codes are beginning to incorporate cybersecurity requirements to protect both the ESS and the grid from malicious attacks. NREL is actively working with industry partners to advance cybersecurity standards for DERs.
| Compliance Area | Core Requirement | Commonly Referenced Standards |
|---|---|---|
| Interconnection Performance | Voltage/Frequency Ride-Through, Power Quality | IEEE 1547, EN 50549, UL 1741 |
| Safety Protection | Anti-Islanding, Grounding, Overcurrent Protection | IEEE 1547, NEC (NFPA 70) |
| Control & Communication | Smart Inverter Functions, Remote Monitoring | IEEE 2030.5, DNP3, SunSpec |
| Ancillary Services | Frequency Response, Reactive Power Support | Local Utility/ISO Requirements |
Validating Performance and Ensuring Compliance
Meeting grid codes is not just about having the right equipment; it's about proving that the system performs as required. This involves certification, commissioning, and understanding the real-world metrics of your system.
Certification and Commissioning
Using equipment certified to standards like UL 1741 SA (Supplement A) streamlines the approval process, as it pre-validates many of the required grid-support functions. Once installed, the system must undergo a commissioning process, which often includes witnessed testing by the utility to verify that all protection and control settings are configured correctly and operate as intended.
Beyond the Checklist: Real-World Performance
Compliance ensures your system is a safe and stable grid participant, but it doesn't guarantee optimal performance for your specific needs. Metrics such as round-trip efficiency, depth of discharge, and response time are critical for maximizing your return on investment. For a comprehensive overview of how to evaluate these key indicators, exploring resources like The Ultimate Reference for Solar Storage Performance provides valuable benchmarks. Aligning these performance metrics with compliance requirements ensures your system is both effective and grid-friendly.
Navigating Compliance for a Resilient Energy Future
Connecting a parallel ESS to the grid is a significant step toward a more flexible and resilient energy future. While the compliance landscape is detailed and technical, it serves a vital purpose: ensuring a stable, secure, and reliable power system for everyone. By systematically working through this checklist—from fundamental voltage and frequency requirements to advanced smart inverter functions and communication protocols—you can confidently deploy a system that is not only powerful and scalable but also a valuable asset to the modern grid.
Disclaimer: This article provides a general overview of grid code compliance requirements. It is not a substitute for professional engineering advice or a thorough review of local and national standards. Always consult with a qualified installer and your local utility to ensure your system meets all applicable regulations.
Frequently Asked Questions
What is the main purpose of a grid code?
A grid code's primary purpose is to set technical rules for connecting to the electrical grid. This ensures that any connected system, including a parallel ESS, operates in a way that maintains grid stability, power quality, and safety for both the public and utility personnel.
Why are there specific rules for parallel ESS operations?
Parallel ESS operations involve multiple units that can have a significant collective impact on the local grid. Specific rules are needed to manage their aggregate behavior, ensure proper load sharing, and coordinate their response to grid events like voltage sags or frequency changes. This prevents instability and ensures they function as a single, predictable asset from the grid's perspective.
What happens if my ESS is not compliant with local grid codes?
Non-compliance can have serious consequences. Your utility will likely refuse to grant permission to operate the system until all requirements are met. If an unapproved system is connected, it could pose a safety hazard, cause damage to your equipment or the grid, and may lead to fines or legal action. It is crucial to achieve full compliance before operation.
