Your off-grid solar system is working perfectly, and then, suddenly, it's not. The lights go out, and your power station shows no output. This scenario often points to the Battery Management System (BMS) doing its job: entering protection mode. While this can be frustrating, it’s a critical safety feature, not a system failure. The BMS is the brain of your battery, safeguarding your investment and ensuring safe operation.
This guide provides a clear, practical path to understanding why a BMS enters protection mode, how to perform a BMS protection reset, and what to do if the issue persists. With years of experience in developing and manufacturing lithium battery and energy storage systems, we've seen firsthand how a proper understanding of the BMS is key to achieving true energy independence.
Why Your BMS Enters Protection Mode
A BMS acts as a vigilant guardian for the battery cells. Its primary directive is to prevent operations outside of the battery's safe operating parameters. When it detects a potentially harmful condition, it opens the circuit, effectively shutting the battery down to prevent damage. This is what's known as protection mode or a BMS lockout.
Common Triggers for BMS Lockout
Understanding the triggers is the first step in troubleshooting. For high-performance LiFePO4 (Lithium Iron Phosphate) batteries, the BMS is meticulously calibrated to monitor several key metrics:

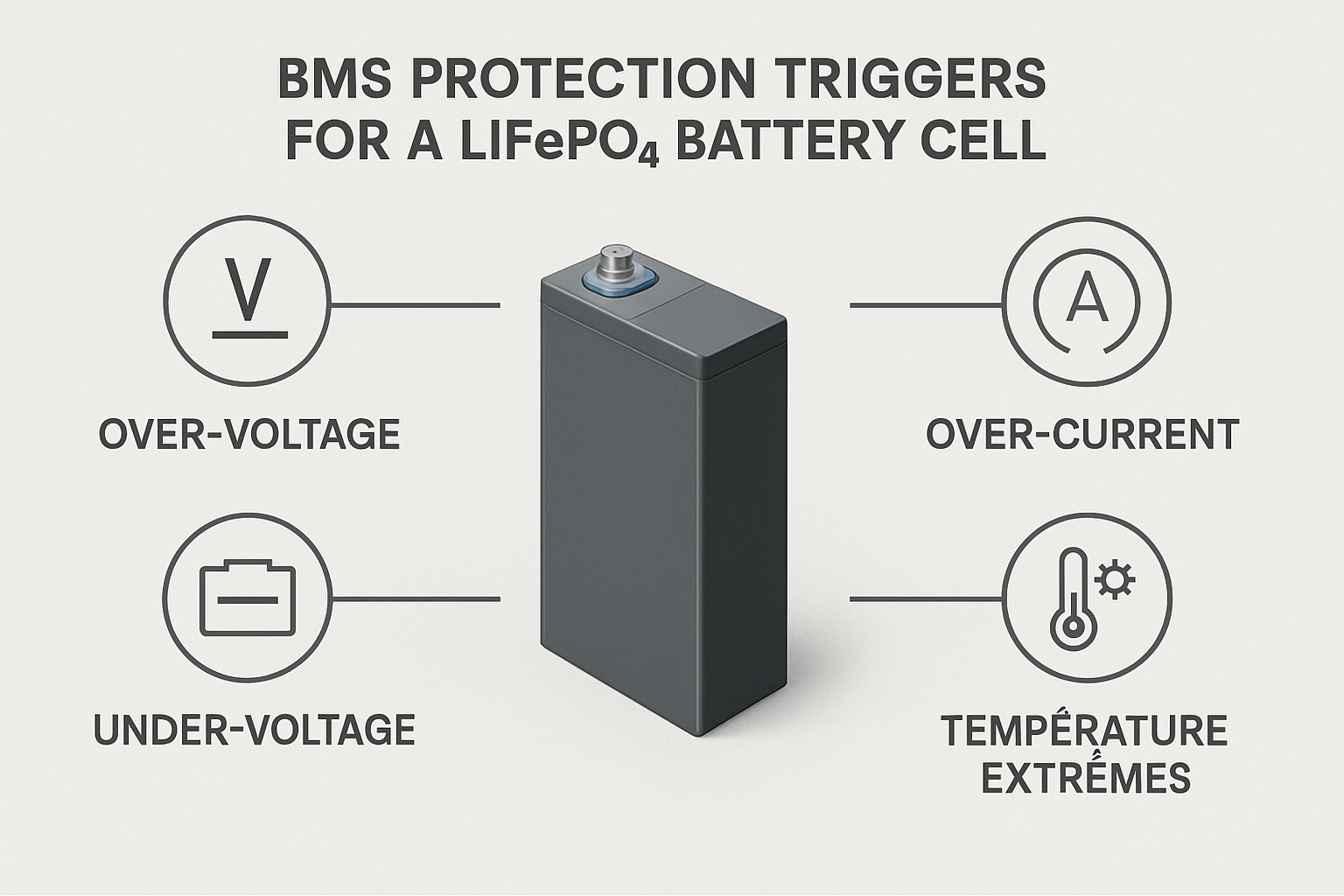

- Over-Voltage: This typically happens during charging. If the voltage of any single cell or the entire pack exceeds the maximum safe limit, the BMS will cut off the charging circuit.
- Under-Voltage: If the battery is discharged to the point where cell voltage drops below a critical threshold, the BMS will disconnect the load to prevent deep discharge, which can cause permanent damage.
- Over-Current: Drawing more current than the battery is rated for, either from a heavy load or a short circuit, will trigger the BMS to protect the cells from excessive strain.
- Temperature Extremes: Both high and low temperatures can be dangerous for a battery. The BMS will shut down if the cells get too hot during charging or discharging, or if charging is attempted below freezing temperatures.
Is a Tripped BMS a Sign of a Bad Battery?
Quite the opposite. A BMS that trips under fault conditions is a sign that it is functioning correctly. It's the silent protector that ensures the longevity and safety of your entire energy system. The goal isn't just to reset it, but to identify and resolve the underlying cause of the trip. For a deeper look into why these faults occur, you can explore Why Did My BMS Trip? Understanding Common Protection Faults.
Step-by-Step Guide to Resetting Your BMS
Before attempting any reset procedure, safety is paramount. The following steps will guide you through the process methodically and safely.
Pre-Reset Safety Checks
Disclaimer: This information is for educational purposes only. Working with electrical systems can be dangerous. If you are not confident in your abilities, please consult a qualified professional. This does not constitute professional advice.
- Isolate the Battery: Disconnect all loads and charging sources from the battery terminals. This removes any external factors that may have caused the fault.
- Visual Inspection: Check for any obvious signs of damage, such as melted wires, bulging casing, or leaking fluid. If you see any of these, do not proceed. The battery may be permanently damaged.

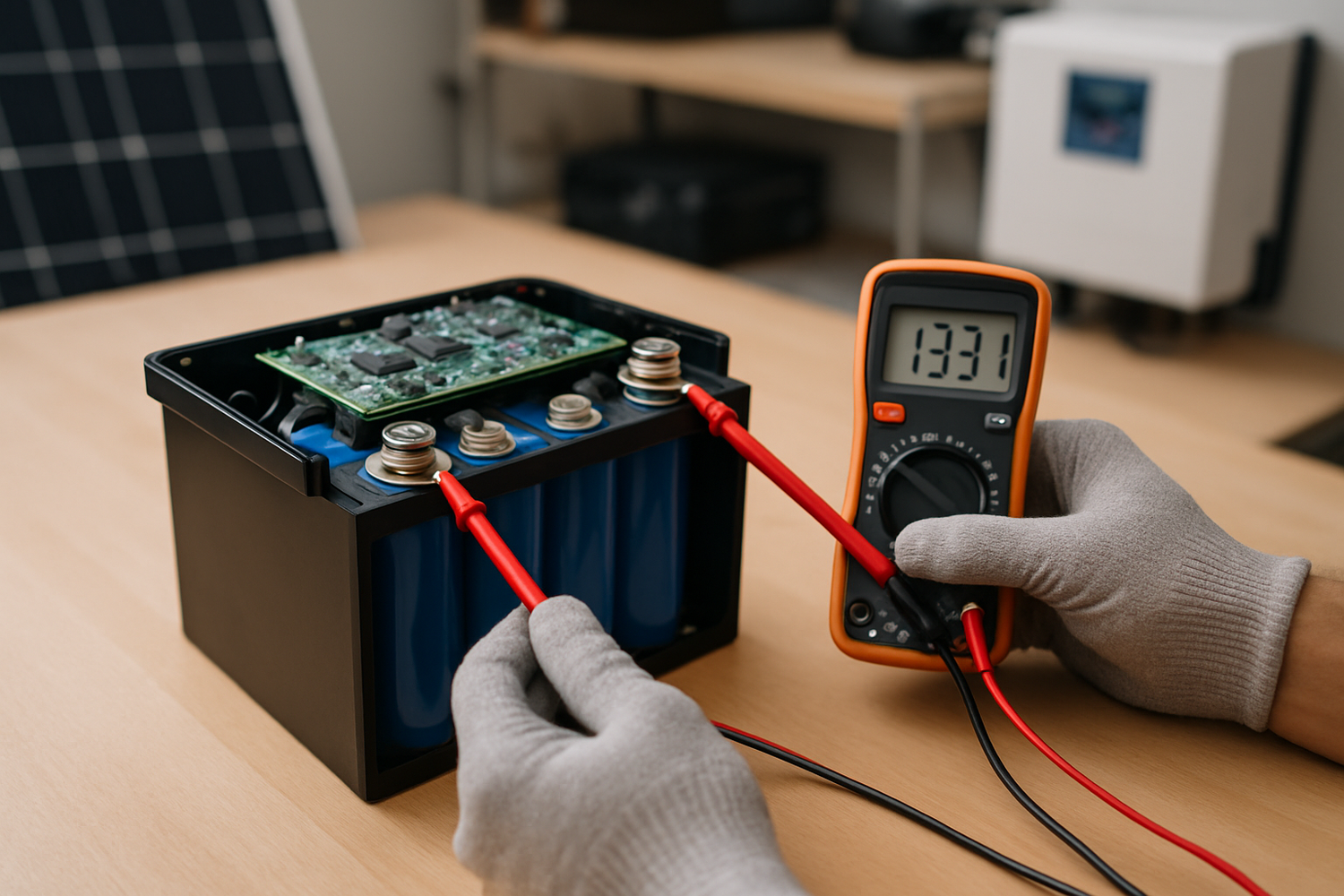

- Check Voltage: Use a multimeter to measure the voltage at the battery terminals. If the BMS is in protection mode, you will likely read zero or a very low voltage. This is normal.
Methods for BMS Protection Reset
Once you've completed the safety checks, you can proceed with a reset. The method will depend on the BMS design and the nature of the fault.
The Automatic Reset
Many modern BMS units are designed to reset automatically. Once the condition that caused the fault is removed—for example, disconnecting the oversized load that caused an over-current trip—the BMS will often re-engage the circuit on its own after a short period. This is the simplest scenario.
The Charger "Wake-Up" Method
This is the most common method for resetting a BMS that has entered under-voltage protection. Connecting a compatible charger can often "wake up" the BMS.
- Use a LiFePO4 Charger: It's crucial to use a charger specifically designed for LiFePO4 chemistry. Some advanced chargers have a "0V activation" or "rescue" mode designed for this purpose.
- Connect the Charger: Connect the charger to the battery. The charger's voltage will signal the BMS that a safe charging source is present, prompting it to exit protection mode and allow the charge current to flow.
This process is often detailed in real-world scenarios, such as in this Case Study: Resetting a BMS After an Over-Discharge Event.
Manual Reset Procedures
Some BMS units have a physical reset button or require a specific sequence to reset. These procedures vary widely between manufacturers, so consulting your product manual is essential. In our integrated systems, such as our all-in-one home energy storage solutions, we design the BMS for straightforward and user-friendly operation, with clear instructions for any required resets.
You may also encounter discussions about different reset types. To understand the nuances, see our comparison: BMS Soft Reset vs. Hard Reset: Which Does Your Battery Need?
Troubleshooting and Advanced Scenarios
Sometimes, a simple reset doesn't work. This usually indicates a more persistent issue that needs to be addressed before the BMS will function normally.
What If the BMS Won't Reset?
If the BMS refuses to exit protection mode, it's time for more in-depth troubleshooting. The BMS is likely still detecting a fault condition.
- Persistent Fault: Double-check all wiring for a short circuit. Ensure that the connected load has not failed in a way that creates a continuous over-current situation.
- Damaged Cell: In rare cases, one or more cells within the battery may be damaged and holding the pack voltage down. This is a more serious issue that may require professional service.
- Faulty BMS: While uncommon in quality batteries, the BMS itself can fail. This is a last resort diagnosis after all other possibilities have been eliminated.
Avoiding common pitfalls during this process is key. Check out these 5 Common BMS Reset Mistakes to Avoid in Solar Energy Systems to ensure you're on the right track.
A Word of Caution on Bypassing BMS Protection
You might find information online about how to bypass BMS protection. We strongly advise against this. The BMS is your single most important safety device. Bypassing it, even temporarily, exposes the battery to risks of over-charging, over-discharging, and thermal runaway, which can lead to fire and irreparable damage. Bypassing should only be considered a diagnostic tool by qualified technicians in a controlled environment.
BMS in Integrated Energy Storage Systems (ESS)
In a complete system, like an ANERN off-grid solar solution, the BMS doesn't operate in isolation. It communicates with the solar inverter and charge controller to create a cohesive and intelligent energy ecosystem. This integration allows for smarter protection, optimizing performance and safety across the entire system. Resetting a BMS in such a system often follows a system-level procedure outlined in the user manual. Learn more about how to Unlock Full Power: Safely Reset Your Home Energy Storage BMS.
The Bigger Picture: System Health and Performance
A BMS reset is a tactical solution to an immediate problem. The strategic goal, however, is to maintain a healthy, efficient, and reliable energy system for the long term.
The Role of BMS in System Longevity and Efficiency
A well-functioning BMS is directly tied to the lifespan and performance of your battery. By preventing damaging events, it ensures you get the maximum number of cycles from your investment. This is particularly important as battery storage becomes a key source of power system flexibility. The International Energy Agency (IEA) notes that battery storage is becoming the fastest-growing source of flexibility, and its proper management is crucial for grid stability and security. The performance of these systems, right down to the BMS level, impacts their ability to participate in energy markets and provide essential grid services.
Understanding the performance metrics of your solar storage is key. A BMS directly impacts the data you see in reports on cycle life and efficiency. For a deeper look into these metrics, see our Ultimate Reference on Solar Storage Performance.
Cybersecurity and Modern BMS
As energy systems become more interconnected, cybersecurity is an emerging and critical consideration. The International Renewable Energy Agency (IRENA) highlights that as Distributed Energy Resources (DERs) like solar and storage become more common, securing them from cyber threats is essential for grid reliability. A modern, high-quality BMS, especially within an integrated ESS, should incorporate security features. This includes using authentication to ensure the identity of personnel and devices, transport layer security (TLS) for data encryption, and the ability to perform secure firmware updates to protect against malware.
Grid Interaction and Advanced BMS Features
Advanced energy storage systems are no longer just passive power banks; they are active grid assets. Grid codes are evolving to require that assets like battery storage systems provide ancillary services to help stabilize the grid. According to IRENA, this includes capabilities like Fast Frequency Response (FFR), where a battery system can inject or absorb power in fractions of a second to counteract grid frequency deviations. This level of control and responsiveness is managed by the sophisticated interplay between the inverter and the BMS, demonstrating how critical this component is to the future of our energy infrastructure.
Your Path to Reliable Energy Independence
Successfully resetting your BMS protection is more than just a technical fix; it's a step toward mastering your own energy system. Remember that a tripped BMS is a sign of a healthy, protective system doing its job. By understanding the causes, following safe reset procedures, and addressing any underlying issues, you ensure the continued reliability and safety of your power source.
Building a dependable off-grid or home energy storage system starts with quality components. A robust LiFePO4 battery with an intelligent, reliable BMS is the foundation of energy independence. With the right knowledge and technology, you can confidently manage your system and enjoy the peace of mind that comes with a stable and secure power supply.
