How to Select MPPT Controllers for LiFePO4 ESS Safety

The Maximum Power Point Tracking (MPPT) controller is a cornerstone of a modern solar power system, acting as the crucial interface between your solar panels and your battery bank. When your energy storage system (ESS) is built on Lithium Iron Phosphate (LiFePO4) chemistry, the controller's role transcends simple efficiency; it becomes a primary guardian of system safety and battery longevity. Selecting the correct MPPT controller is a technical decision that directly impacts the reliability and security of your entire energy investment.

Understanding the Critical Link: MPPT and LiFePO4

An effective energy system relies on the seamless interaction of its components. The relationship between the MPPT controller and the LiFePO4 battery is a prime example of this synergy, where precise control is paramount for both performance and safety.

What is an MPPT Controller?

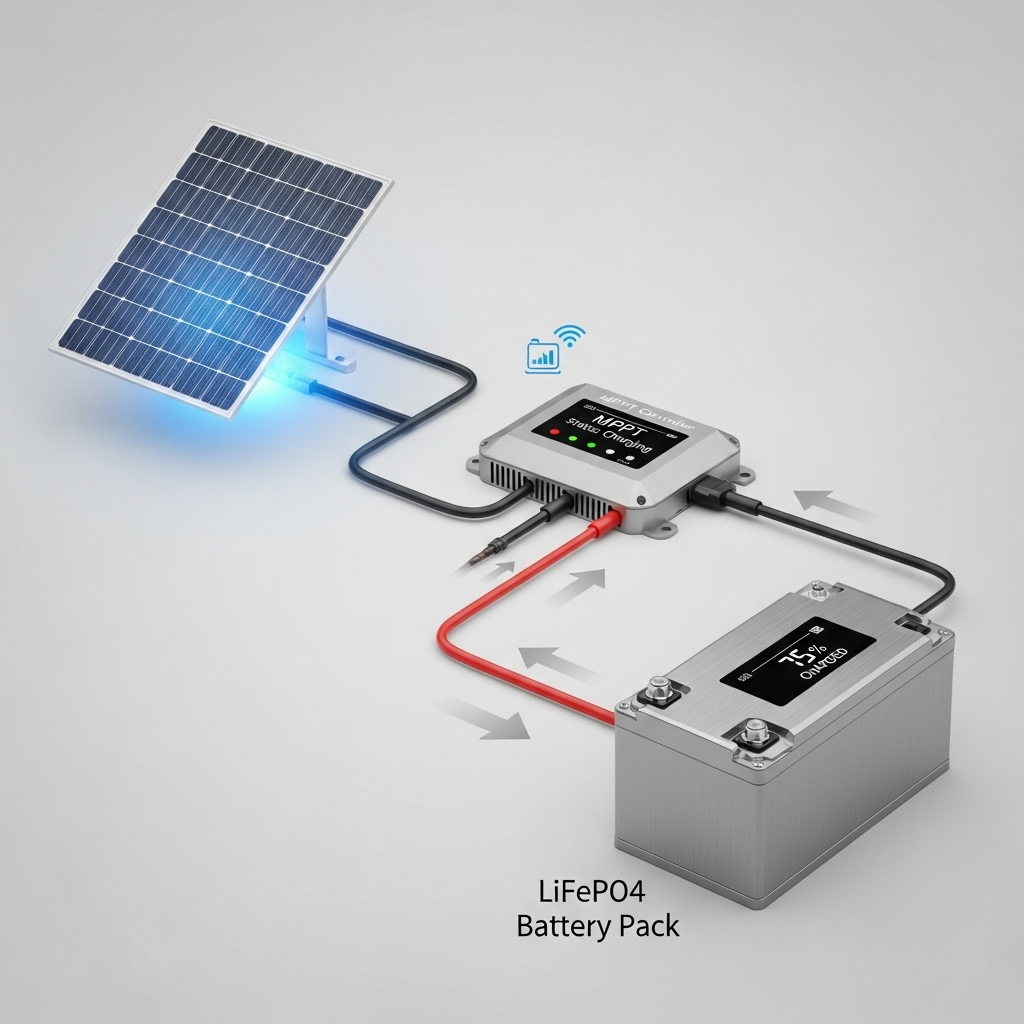

An MPPT controller is an advanced DC-to-DC converter that optimizes the match between the solar array (PV panels) and the battery bank. It continuously monitors the voltage and current from your solar panels to extract the maximum possible power. This is particularly effective during variable conditions like partial cloud cover or fluctuating temperatures, often yielding significantly more energy than older PWM (Pulse Width Modulation) controllers.

The Specific Needs of LiFePO4 Batteries

LiFePO4 batteries are a popular choice for ESS due to their long cycle life, excellent thermal stability, and high efficiency. Unlike traditional lead-acid batteries, they have a very flat voltage curve and are highly sensitive to their charging conditions. They do not tolerate overcharging, and applying incorrect charging voltages can lead to irreversible cell damage, diminished capacity, and, in severe cases, thermal runaway. The inherent safety of LiFePO4 chemistry can be compromised without a controller that respects its specific requirements.

Why a Mismatch Poses a Safety Risk

Using a generic controller or one improperly configured for LiFePO4 is a significant hazard. A controller designed for lead-acid batteries might apply an 'equalization' charge—a deliberate overcharge to balance cells—which is extremely dangerous for LiFePO4 chemistry. This can cause a rapid increase in cell temperature and pressure, creating a fire risk. Proper system design is crucial for safety, a point reinforced in reports on renewable energy infrastructure. For instance, the International Renewable Energy Agency (IRENA) discusses the importance of component quality and installation standards in its Renewable Power Generation Costs in 2024 report.

Core Technical Specifications for Controller Selection

Choosing the right MPPT controller involves a careful review of its technical specifications to ensure it aligns perfectly with both your solar array and your LiFePO4 battery's safety parameters.

Voltage and Current Compatibility

First, verify the controller's maximum PV input voltage (Voc). This rating must be higher than your solar array's open-circuit voltage, especially accounting for colder temperatures when panel voltage increases. Similarly, the controller's maximum input short-circuit current (Isc) must exceed the array's Isc rating. Mismatching these values can permanently damage the controller. The International Energy Agency (IEA) highlights the need for robust and well-matched components for stable power systems in its analysis, such as the Status of Power System Transformation 2019.

Customizable Charging Parameters

This is the most critical feature for LiFePO4 ESS safety. The MPPT controller must allow you to manually set the specific voltage for each charging stage: Bulk, Absorption, and Float. A controller locked into lead-acid presets is unsuitable. For most LiFePO4 batteries, the absorption voltage is typically set between 14.2V and 14.6V, and the float voltage around 13.5V to 13.8V. Crucially, you must have the ability to completely disable the equalization feature.

Temperature Compensation and Protection

A reliable MPPT controller should include a port for an external battery temperature sensor (BTS). This sensor allows the controller to monitor the battery's temperature and adjust the charging process accordingly. It should halt charging if the temperature exceeds safe limits (e.g., above 45-50°C) or drops below freezing (0°C), as charging LiFePO4 batteries in sub-zero temperatures can cause permanent damage known as lithium plating.

Advanced Features for Enhanced Safety and Performance

Beyond the basics, modern MPPT controllers offer features that provide additional layers of protection and give you greater insight into your system's health.

Sophisticated Multi-Stage Charging Algorithms

A high-quality controller executes a precise multi-stage charging algorithm tailored for lithium chemistry. It ensures the battery receives the optimal voltage and current during each phase, maximizing charge efficiency without stressing the cells. For detailed metrics on how charging profiles affect battery health, the ultimate reference on solar storage performance offers valuable data and insights into optimizing charging cycles. This level of control is essential for achieving the thousands of cycles LiFePO4 batteries promise.

Integrated Protection Mechanisms

Look for a controller with a comprehensive suite of built-in electronic protections. These are non-negotiable for a safe ESS. Key protections include:

• Battery Over-Voltage Protection: Prevents charging voltage from exceeding the battery's safe maximum.
• PV Short-Circuit Protection: Protects the controller from damage if a short occurs in the solar panel wiring.
• Reverse Polarity Protection: Guards against incorrect wiring of the battery or solar panels.
• Over-Temperature Protection: Reduces charging current or shuts down if the controller itself overheats.

These integrated fail-safes are fundamental to building a resilient system, a concept echoed in the IEA's work on Getting Wind and Solar onto the Grid, which emphasizes the need for grid-friendly and self-protecting technologies.

Communication and Monitoring

The ability to monitor your system provides a powerful tool for proactive safety management. Many controllers offer Bluetooth or Wi-Fi connectivity, allowing you to use a smartphone app to view real-time data, review historical performance, and receive alerts for any system faults. This remote oversight helps you spot potential issues before they become serious problems.

A Practical Selection Checklist

To simplify your decision-making process, use this checklist to evaluate potential MPPT controllers for your LiFePO4 ESS.

Feature	Importance for LiFePO4 Safety	Recommended Specification
Max PV Input Voltage (Voc)	Prevents controller damage from high panel voltage.	At least 1.25x the solar array's Voc in the coldest expected temperature.
Customizable Charge Profile	Critical for preventing overcharging and cell damage.	Must allow user-defined settings for Bulk, Absorption, Float, and disable Equalization.
Temperature Sensor Port	Protects battery from thermal damage and charging in unsafe temperatures.	Dedicated port for an external battery temperature sensor is essential.
Integrated Protections	Provides multiple layers of electronic safety against common faults.	Should include over-voltage, short-circuit, reverse polarity, and over-temperature protection.
Certifications	Indicates third-party validation of safety and quality standards.	Look for recognized certifications like UL, CE, or FCC.
Monitoring Capability	Allows for proactive system health checks and fault diagnosis.	Features like Bluetooth, Wi-Fi, or a dedicated display screen are highly valuable.

Securing Your Energy Future

Choosing an MPPT controller for a LiFePO4 ESS is a decision that directly influences the safety and longevity of your system. By prioritizing controllers with customizable charging profiles, robust temperature compensation, and a full suite of electronic protections, you create a resilient and reliable power solution. This careful selection process ensures your LiFePO4 battery operates within its ideal parameters, protecting your investment and providing you with safe, clean energy for years to come.Disclaimer: This article provides general guidance and is not a substitute for professional electrical advice. Always consult with a qualified installer and adhere to local electrical codes and regulations.

Frequently Asked Questions

Can I use a standard lead-acid MPPT controller for my LiFePO4 battery?

This is strongly discouraged unless the controller explicitly features a customizable LiFePO4 charging profile. Default lead-acid settings, particularly those with an automatic equalization stage, can severely damage LiFePO4 batteries and introduce significant safety risks.

What happens if I don't use a battery temperature sensor?

Without a temperature sensor, the controller cannot adapt to changing thermal conditions. This could lead to overcharging in hot weather or attempting to charge in freezing temperatures. Both scenarios can cause permanent battery damage, reduce lifespan, and increase the risk of a hazardous event.

How do I determine the right size MPPT controller for my solar array?

Sizing involves two main steps. First, ensure the controller's power rating (in watts) can handle the total output of your solar array. Second, and more critically, calculate your array's maximum open-circuit voltage (Voc) under the coldest possible conditions for your location and confirm it is safely below the controller's maximum PV input voltage limit.
