Powering large appliances like air conditioners, well pumps, or workshop tools requires a 240V split-phase electrical supply. For off-grid or backup power systems, achieving this level of output demands a robust and reliable configuration. Combining parallel inverters with the stability of Lithium Iron Phosphate (LFP) batteries provides a powerful and scalable solution. This technical blueprint explains how to design and implement a safe and efficient 240V system to achieve true energy independence.
Understanding the Core Components
A successful split-phase system depends on the synergy between your inverters and your battery bank. Each component plays a critical role in delivering stable, high-amperage power safely.
Why Parallel Inverters are Key for Scalability
Parallel inverter operation involves connecting two or more identical inverters to function as a single, more powerful unit. This approach offers significant advantages over using a single large inverter. You gain modularity, allowing you to scale your system's power output as your energy needs grow. It also provides redundancy; if one inverter fails, the other may still be able to power essential loads. For a stable parallel inverter operation, it is crucial to use identical models from the same manufacturer to ensure seamless communication and load sharing.
The Role of LFP Batteries in High-Power Systems
LFP batteries are the ideal foundation for a high-demand 240V split-phase system. Their chemistry provides exceptional thermal stability and a long cycle life, making them a safe and cost-effective investment. More importantly, LFP batteries maintain a very stable voltage output even under heavy load and can deliver the high discharge currents required to start large motors. A sophisticated Battery Management System (BMS) protects the battery bank from over-charging, over-discharging, and extreme temperatures, ensuring both safety and longevity.
The Mechanics of Creating a 240V Split-Phase System
Creating a 120/240V split-phase output from two inverters involves precise synchronization and correct wiring. This process transforms two standard 120V inverters into a cohesive unit capable of powering high-demand equipment.
Master-Slave Configuration and Phase Synchronization
In an inverter stacking configuration, one inverter is designated as the 'master' and the other as the 'slave'. The master unit sets the operational parameters, including the 60Hz frequency. The slave unit then synchronizes its AC output to be exactly 180 degrees out of phase with the master. This phase opposition is what creates the 240V potential between the two 'hot' lines (L1 and L2) while each line maintains 120V relative to the shared neutral. This synchronization is managed through a dedicated communication cable connecting the two inverters.
Critical Wiring and Neutral-Ground Bonding

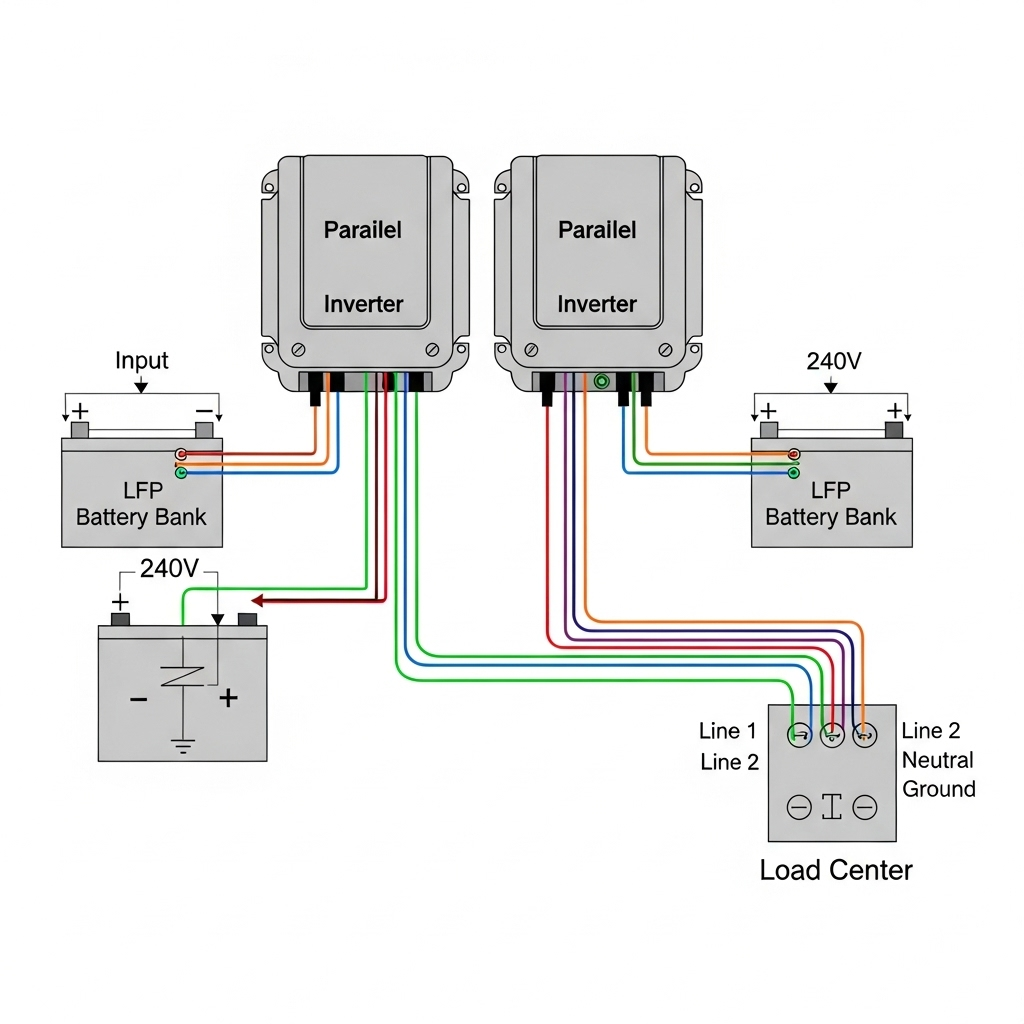

The wiring for a split-phase system involves connecting the outputs of the two inverters to a load center. You will have Line 1 (from the master inverter), Line 2 (from the slave inverter), a shared neutral wire, and a ground wire. It is critically important that the neutral-to-ground bond occurs at only one point in the entire system, typically at the main service panel. Multiple bonding points can create dangerous ground loops and interfere with the proper functioning of safety devices like ground fault circuit interrupters (GFCIs).
System Configuration and Performance Optimization
Proper configuration is essential for stability, safety, and efficiency. This involves setting the right parameters within the inverters and establishing a system for monitoring performance.
Setting Key Parameters for Stability
Your inverters must be configured with identical settings for output voltage (120V), frequency (60Hz), and charger parameters. Modern smart inverters offer advanced features that contribute to grid stability. As noted in a report by the IEA on the China Power System Transformation, smart inverter technology enables solar PV systems to provide voltage management and other power system support services. These settings ensure the inverters share the load equally and respond correctly to changes in demand or grid conditions.
Load Balancing and Performance Monitoring
While the inverters work together, it is important to balance the 120V loads as evenly as possible between the two electrical legs (L1 and L2) in your breaker panel. An imbalance can cause one inverter to work harder than the other, reducing efficiency and potentially leading to premature wear. Continuously monitoring your system is key to ensuring its health and efficiency. Tracking key metrics, such as those detailed in the ultimate reference for solar storage performance, provides valuable insight into energy production and consumption patterns, helping you optimize usage and detect potential issues early.
Safety Protocols and Long-Term Reliability
A properly installed system is a safe system. Adhering to electrical codes and implementing multiple layers of protection will ensure your power system is reliable for years to come.
Essential Protection Mechanisms
Your system must include several layers of protection. Circuit breakers are required on both L1 and L2 to protect against overcurrent events. The inverters themselves have built-in protections for over-voltage, under-voltage, and short circuits. Another critical safety feature is anti-islanding protection. According to a report from IRENA, Grid Codes for Renewable Powered Systems, this function prevents the inverter from sending power to the grid during an outage, protecting utility workers from electrical shock.
| Protection Type | Purpose | Implementation |
|---|---|---|
| Overcurrent Protection | Prevents excessive current from damaging wiring and appliances. | Circuit breakers on L1 and L2 in the load center. |
| Voltage Protection | Protects equipment from damaging under-voltage or over-voltage conditions. | Internal inverter function. |
| Short Circuit Protection | Instantly cuts power during a short circuit to prevent fire. | Internal inverter function. |
| Anti-Islanding | Prevents the system from energizing a de-energized grid. | Internal inverter function, required by grid codes. |
Maintenance and System Health Checks
Regular maintenance ensures the long-term reliability of your split-phase system. Periodically inspect all electrical connections to ensure they are tight and free of corrosion. Monitor your battery bank's state of charge and overall health through its BMS interface. Finally, review your inverter settings and performance logs to verify that the system is operating as expected.
Disclaimer: This information is for educational purposes only. Electrical work should be performed by a qualified professional. Consult local codes and regulations before installation. This is not financial or legal advice.
Putting It All Together
Building a 240V split-phase power system with parallel inverters and LFP batteries is an effective method for powering high-demand applications. This setup provides the scalability, reliability, and robust performance needed for true energy independence. By carefully selecting compatible components, adhering to correct wiring practices, and implementing rigorous safety protocols, you can construct a powerful energy solution tailored to your specific needs.
Frequently Asked Questions
Can I use two different inverter models to create a split-phase system?
No, this is strongly discouraged. For stable and safe operation, the inverters must be identical models from the same manufacturer to ensure their control algorithms and communication protocols are perfectly synchronized.
What is the main advantage of using LFP batteries for this setup?
LFP batteries offer superior safety, a longer cycle life, and the ability to deliver high currents consistently. This makes them ideal for supporting the demanding startup loads of large 240V appliances like air conditioners or well pumps.
How does load balancing affect the system?
Proper load balancing ensures that neither inverter is overworked. An imbalance can lead to premature wear on one unit, inefficient operation, and potential system shutdowns if one side is consistently overloaded.
Is a separate autotransformer needed for this configuration?
No, when you properly stack two inverters to create a 120/240V split-phase system, they generate the two phases internally. An autotransformer is typically used to create a split-phase output from a single 240V inverter, which is a different approach.
