9 Wiring and Inverter Errors That Kill System Efficiency

A solar energy system is a significant investment in achieving energy independence. However, its performance hinges on more than just the quality of the panels and batteries. Seemingly minor installation mistakes, particularly in wiring and inverter setup, can drastically reduce power output, compromise safety, and shorten the lifespan of your components. Understanding these common wiring and inverter faults is crucial for ensuring you get the maximum return on your investment.

This article details nine critical wiring and inverter errors that compromise system efficiency. Avoiding these pitfalls will help secure the reliability and performance of your renewable energy solution.

Foundational Wiring Mistakes That Drain Power

The physical connections are the veins of your solar system. Flaws in this foundational stage can lead to significant and often hard-to-trace energy losses.

1. Undersized Wires and Voltage Drop

One of the most common installation mistakes is using wires that are too small for the current they need to carry and the distance they must cover. All wires have a small amount of internal resistance. As electricity flows, this resistance causes a loss of energy in the form of heat, resulting in a lower voltage at the end of the wire than at the source—a phenomenon known as voltage drop. Excessive voltage drop means wasted power that never reaches your batteries or inverter. The National Electric Code (NEC) recommends a voltage drop of 3% or less for the entire system to maintain efficiency.

Wire Gauge (AWG)	Cable Length (Round Trip)	Current (Amps)	Estimated Voltage Drop % (24V System)	Power Loss (Watts)
10 AWG	50 ft	30 A	~2.5%	~18 W
12 AWG	50 ft	30 A	~4.0%	~29 W
6 AWG	50 ft	30 A	~1.0%	~7 W

*Data is illustrative. Always calculate for your specific system parameters.

2. Poor Connections and Terminations

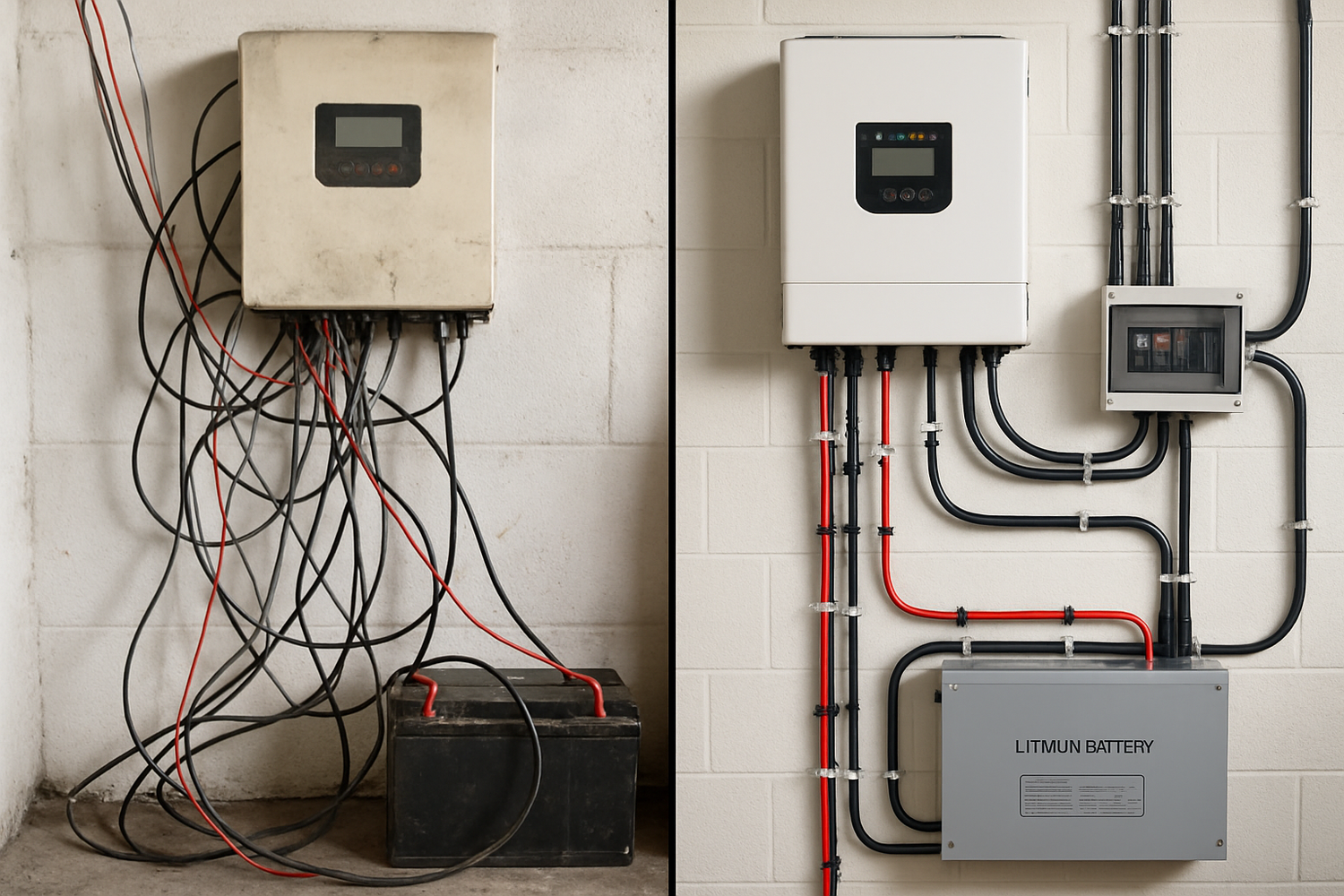

A system is only as strong as its weakest link. Loose or corroded connections at terminals, combiner boxes, or battery posts create high-resistance points. This not only causes power loss but also generates significant heat, which can melt insulation, damage equipment, and create a serious fire hazard through electrical arcing. Using the correct tools, like calibrated crimpers and torque wrenches, ensures secure, low-resistance connections that are both safe and efficient.

3. Incorrect DC String Sizing

Solar panels are connected in series to form a "string," which increases the voltage to a level suitable for the inverter. Incorrect string sizing can lead to two major problems:

• Over-voltage: The voltage of solar panels increases in cold temperatures. If the string voltage on the coldest expected day exceeds the inverter’s maximum input voltage, it can permanently damage the inverter.
• Under-voltage: In high temperatures, panel voltage drops. If the string voltage falls below the inverter's minimum operating range (its MPPT window), the inverter will stop producing power, leading to significant efficiency loss.

Inverter Configuration Faults and Consequences

The inverter is the brain of your solar system. Proper configuration is essential for it to manage power flow effectively and safely.

4. Mismatched Inverter and Energy Storage

The inverter's power rating must be correctly sized for both the solar array and the battery bank. An undersized inverter cannot handle the full output of the solar panels on a sunny day, leading to "clipping," where potential energy is wasted. Conversely, an inverter that is too large for the battery bank can attempt to draw more current than the battery can safely provide, potentially damaging the battery and causing the system to shut down.

5. Improper Grid Code and Parameter Settings

Modern inverters are complex devices with many configurable settings that dictate how they interact with the utility grid. As detailed in the IRENA report, Grid Codes for Renewable Powered Systems, grid connection codes specify the minimum technical requirements all power plants must meet for grid access. Misconfiguring parameters like voltage trip points, frequency limits, or reactive power control can cause the inverter to disconnect from the grid unnecessarily, interrupting your power supply and halting energy export.

6. Neglecting Temperature and Ventilation

Inverters generate a significant amount of heat during the DC-to-AC conversion process. To protect internal components, they will automatically reduce their power output—a process called de-rating—if they get too hot. Installing an inverter in a poorly ventilated space, like a small, sealed closet or in direct sunlight, will cause it to overheat and severely limit its performance. Manufacturers specify clearance requirements around the unit to ensure adequate airflow for cooling.

Advanced Errors in System Integration

Beyond the basics, several other integration errors can undermine both the safety and efficiency of a solar energy system.

7. Grounding and Bonding Faults

Proper grounding (earthing) is a critical safety measure that protects against electric shock and lightning strikes. It provides a safe path for fault currents to dissipate into the earth. An improper or missing ground can lead to unstable system voltages, create safety hazards, and even cause certain inverters to stop functioning due to ground fault detection errors. According to research, such faults can lead to equipment damage and fire hazards.

8. Lack of Overcurrent Protection

Fuses and circuit breakers are essential safety devices designed to protect wiring and equipment from dangerously high currents caused by short circuits or other faults. Omitting or incorrectly sizing these overcurrent protection devices (OCPDs) is a major installation mistake. Without them, a fault could cause wires to overheat, leading to a fire. OCPDs are needed in several key locations, including between the solar panels and inverter and between the battery and inverter.

9. Ignoring Monitoring and Data Systems

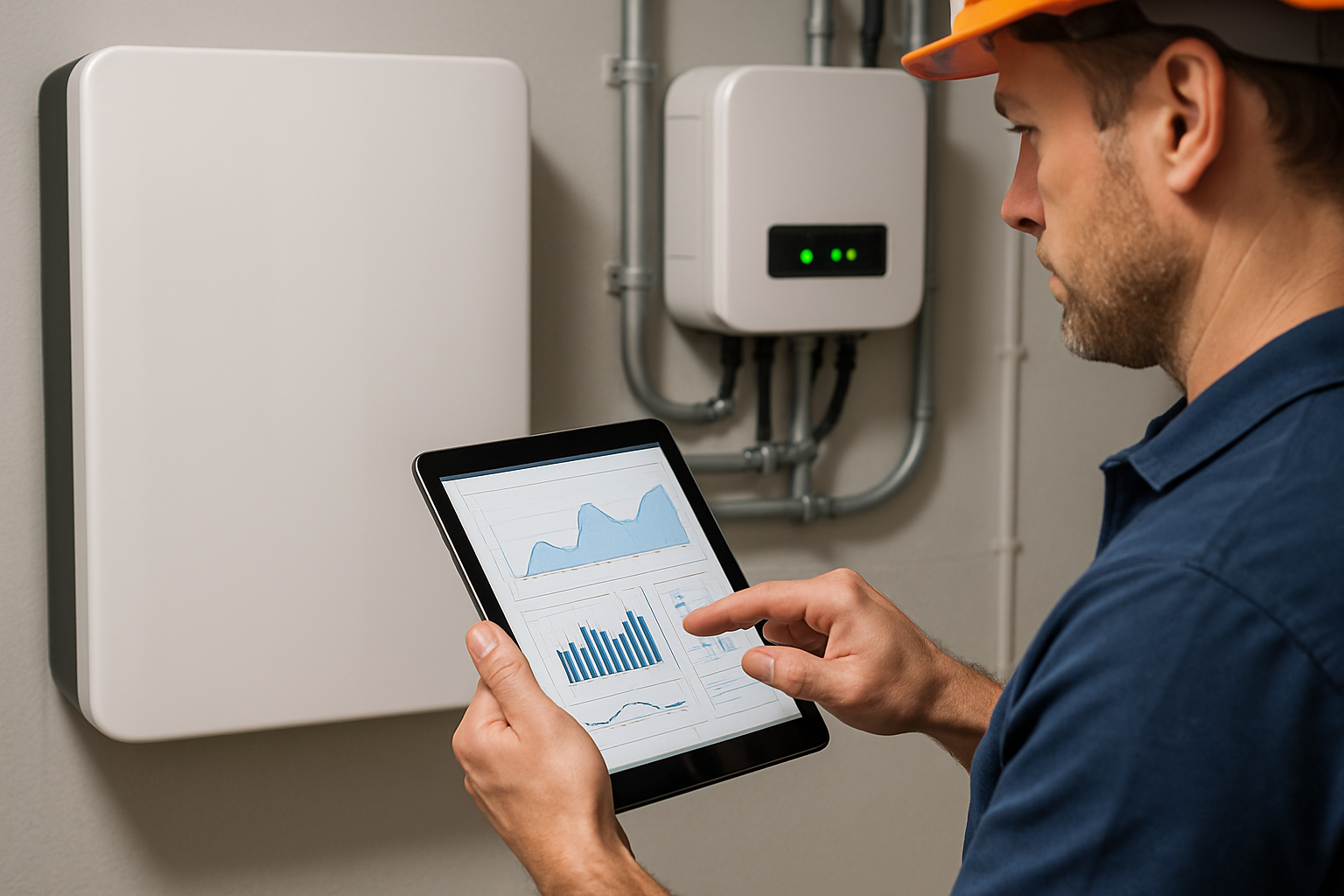

Many modern inverters and battery systems come with sophisticated monitoring capabilities. Failing to properly install and configure these systems leaves you blind to how your system is performing. A monitoring system is not just for viewing energy production; it is a powerful diagnostic tool. It can help you quickly identify issues like a non-performing panel string or an unexpected shutdown, allowing you to address wiring and inverter faults before they lead to prolonged downtime and energy loss.

Ensuring Peak Performance and Reliability

Achieving true energy independence relies on a system that is not only well-designed but also meticulously installed. The efficiency and longevity of your solar and storage system are directly impacted by the quality of the wiring and the precision of the inverter setup. By avoiding these nine common errors, you ensure that every connection is secure, every component is protected, and every setting is optimized for maximum power generation.

This attention to detail transforms a collection of high-quality components into a reliable, high-performance energy solution that delivers value for decades.

Disclaimer: This article is for informational purposes only and does not constitute professional installation advice. All electrical work should be performed by a qualified and licensed professional in accordance with local codes and regulations.
