Code-Safe Off-Grid BOM Checklist for DIYers and Makers

Creating an off-grid power system offers true energy independence. For DIY enthusiasts and makers, building your own system can be a rewarding endeavor. Beyond simply generating electricity, ensuring your off-grid system is safe and reliable requires careful planning and component selection. This means understanding and applying principles of electrical safety and best practices, even when you are not connecting to a utility grid.

Understanding Off-Grid System Safety Principles

While off-grid systems operate independently from the main utility grid, they are not exempt from safety considerations. Electrical systems, regardless of their connection status, carry inherent risks if not designed and installed correctly. Adhering to established safety principles protects both your equipment and, more importantly, the people interacting with the system.

Why Safety Standards Matter for Off-Grid Systems

Safety standards, often codified in electrical regulations, exist to prevent hazards like electrical fires, shocks, and equipment damage. For off-grid systems, these standards guide the selection of appropriately rated components, proper wiring techniques, and the inclusion of necessary protective devices. Ignoring these can lead to catastrophic failures, costly repairs, or even severe injuries.

Even though off-grid systems might not directly follow utility grid codes, the underlying principles of these codes offer valuable insights. For instance, Grid Codes for Renewable Powered Systems (IRENA, 2022) highlights that power systems are complex machines with numerous components needing consistent and coordinated function for security. This coordination and consistency are equally vital in a smaller, standalone off-grid setup to ensure reliability and prevent cascading failures.

Key Regulatory Concepts and Best Practices

In many regions, national electrical codes (like the National Electrical Code - NEC in the United States) provide comprehensive guidelines for electrical installations. While specific enforcement for off-grid systems can vary, following these codes as a best practice ensures a high level of safety. These codes cover aspects such as wire sizing, overcurrent protection, grounding, and equipment ratings. Understanding these concepts helps you choose components that meet robust safety benchmarks.

Consider the evolving requirements seen in grid-tied systems. For example, Getting Wind and Solar onto the Grid (IEA, 2017) discusses how European grid codes evolved to require "fault ride through" capabilities for renewable power plants. While off-grid systems operate differently, the principle of a system being able to withstand and manage faults without complete shutdown is a valuable design consideration for robustness.

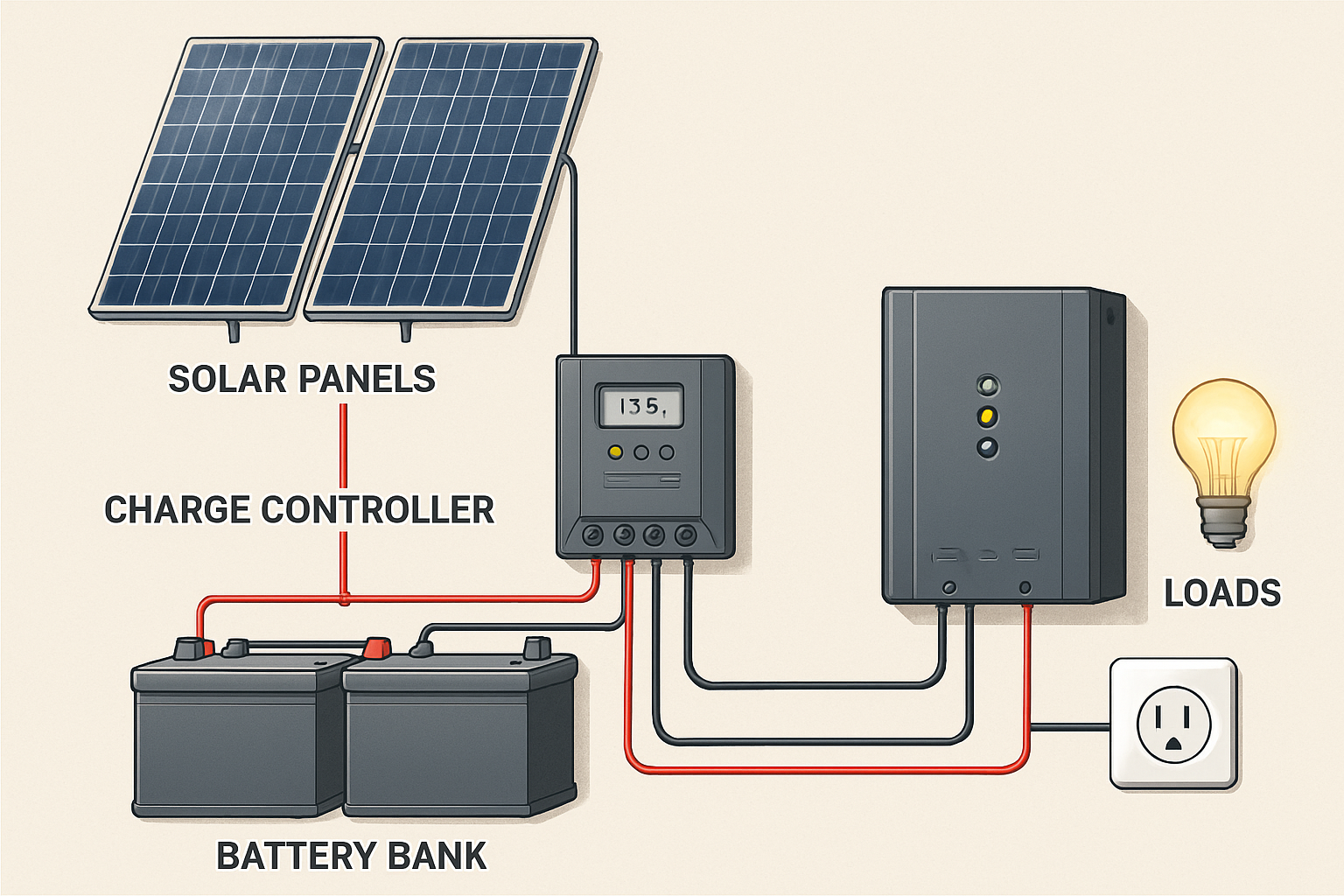

Essential Components for a Code-Safe Off-Grid Bill of Materials

A well-structured Bill of Materials (BOM) is your blueprint for a successful off-grid system. Selecting components that are not only functional but also certified for safety and performance is paramount.

Power Generation: Solar Panels and Charge Controllers

• Solar Panels: Look for panels with certifications such as UL, IEC, or TUV. These certifications indicate that the panels have undergone rigorous testing for safety, durability, and performance under various environmental conditions. Pay attention to their voltage and current ratings to ensure compatibility with your charge controller.
• Charge Controllers: These devices manage the power flow from your solar panels to your batteries. MPPT (Maximum Power Point Tracking) controllers are generally more efficient. Ensure your charge controller is rated for your system's voltage and current, and includes features like overcharge protection, reverse polarity protection, and temperature compensation. Certifications like UL 1741 are a strong indicator of safety and reliability.

Energy Storage: LiFePO4 Batteries

Lithium Iron Phosphate (LiFePO4) batteries are a popular choice for off-grid systems due to their long cycle life, high energy density, and inherent safety compared to other lithium chemistries. When selecting LiFePO4 batteries:

• Battery Management System (BMS): A robust internal BMS is crucial. It protects the battery from overcharge, over-discharge, overcurrent, and extreme temperatures. A good BMS also balances cells, extending battery life.
• Certifications: Look for batteries that comply with standards like UL 1973 (for stationary batteries), UL 9540 (for energy storage systems), or UN 38.3 (for transport safety). These certifications verify the battery's safety under various fault conditions.
• Capacity and Voltage: Match the battery bank's capacity (Ah) and voltage (V) to your energy needs and inverter specifications.

Power Conversion: Inverters

The inverter converts the DC power from your batteries into usable AC power for your appliances. For off-grid systems, hybrid inverters are often preferred as they combine an inverter, charge controller, and sometimes a transfer switch into one unit.

• Pure Sine Wave: Always choose a pure sine wave inverter. This ensures clean power suitable for sensitive electronics, preventing damage and improving appliance efficiency.
• Safety Features: Essential safety features include over/undervoltage protection, overcurrent protection, short-circuit protection, and over-temperature protection.
• Certifications: Inverters should carry certifications like UL 1741 (for inverters, converters, controllers, and interconnection system equipment for distributed energy resources) or IEC standards, indicating they meet stringent safety and performance requirements.
• Power Rating: Ensure the inverter's continuous power rating can handle your peak load, and its surge rating can manage temporary high demands from motor-driven appliances.

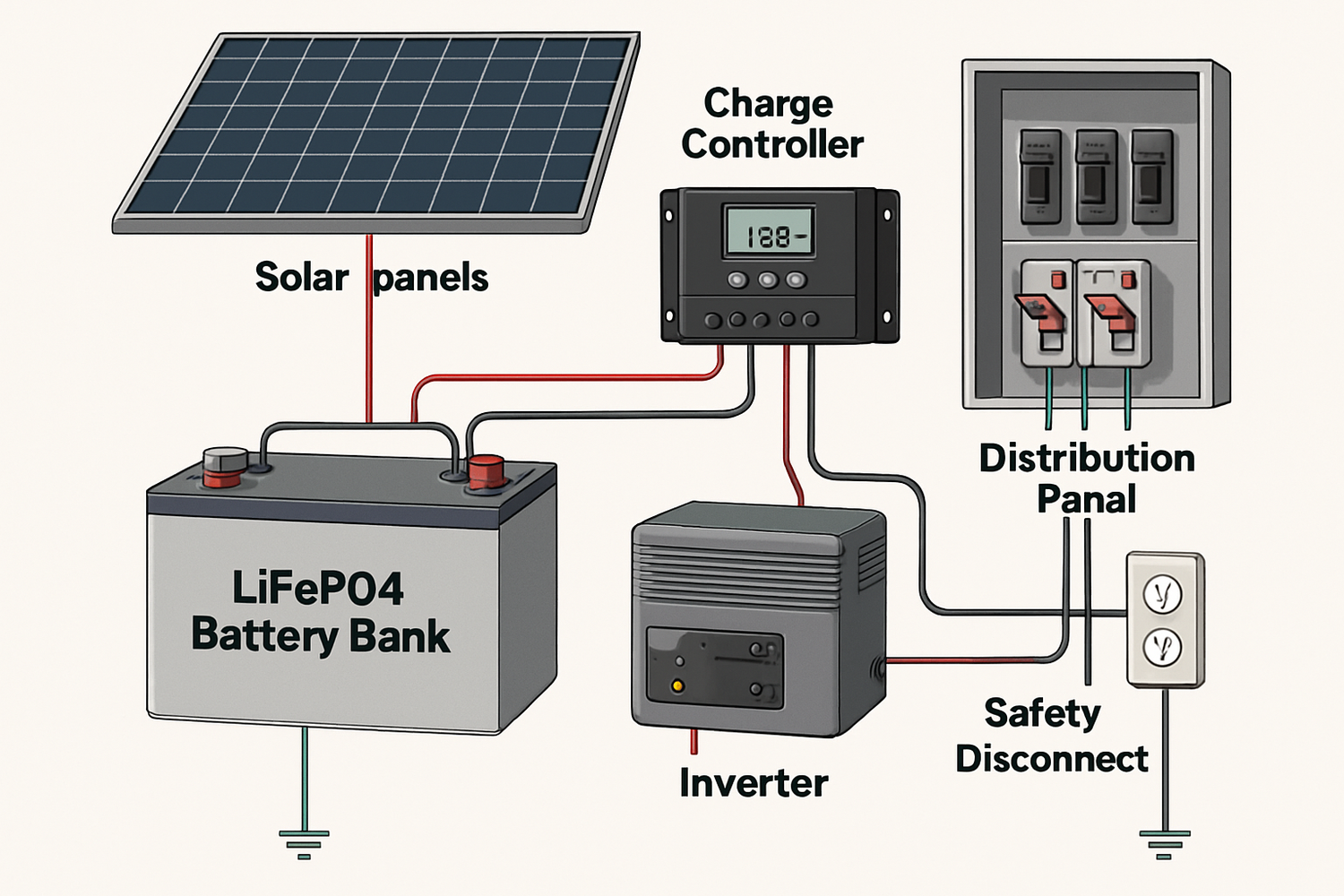

Safety and Protection: The Cornerstones of Your BOM

Beyond the core components, specific safety and protection devices are non-negotiable for a code-safe off-grid system. These items prevent damage, isolate faults, and ensure user safety.

Overcurrent Protection: Fuses and Circuit Breakers

Fuses and circuit breakers are critical for protecting wiring and components from excessive current, which can lead to overheating and fire. They must be correctly sized for the specific wire gauge and component ratings they protect.

• DC Circuit Breakers/Fuses: Required between solar panels and the charge controller, and between the battery bank and the inverter. DC circuits behave differently from AC, so use components specifically rated for DC applications.
• AC Circuit Breakers: Protect the AC output of your inverter and individual AC loads.
• Enclosures: All fuses and circuit breakers should be housed in appropriate, rated enclosures to protect them from environmental factors and accidental contact.

Grounding and Surge Protection

Proper grounding is fundamental for electrical safety. It provides a safe path for fault currents to dissipate, preventing dangerous voltage buildup on equipment enclosures.

• Grounding Rods/Electrodes: Install according to local electrical codes.
• Grounding Conductors: Ensure all metallic enclosures, solar panel frames, and equipment chassis are properly bonded to the grounding system using appropriately sized conductors.
• Surge Protective Devices (SPDs): Install SPDs on both the DC (solar array) and AC (inverter output) sides of your system to protect against lightning strikes and other transient voltage spikes.

Disconnect Switches and Monitoring Systems

The ability to safely disconnect power is vital for maintenance, troubleshooting, and emergency situations.

• DC Disconnects: Install a DC disconnect switch between the solar array and the charge controller, and another between the battery bank and the inverter. These allow you to isolate power sources for safe servicing.
• AC Disconnects: An AC disconnect switch should be installed on the output side of the inverter, before your main AC distribution panel.
• Monitoring Systems: While not a direct safety device in the same way, a good monitoring system provides real-time data on voltage, current, power production, and battery state of charge. Early detection of anomalies can prevent minor issues from escalating into major safety hazards. The development of tools like @DisCo, mentioned by energy.gov (2024), for improving cyber defense in distributed energy resources, underscores the growing importance of secure and reliable monitoring in modern energy systems.

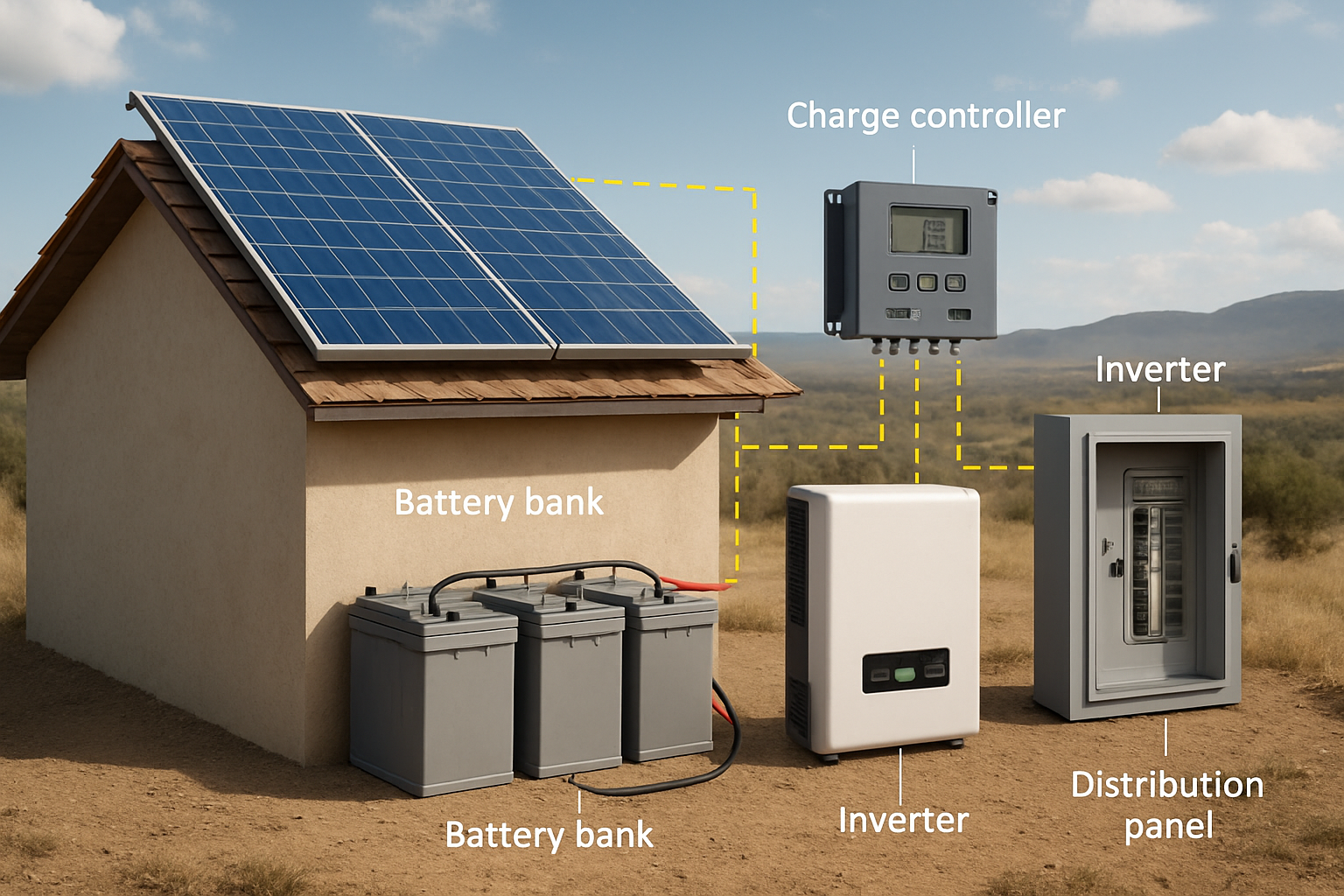

Building Your Code-Safe BOM: A Practical Checklist

Creating your BOM involves more than just listing parts; it requires a systematic approach to ensure compliance and functionality.

Step-by-Step Component Selection with Compliance in Mind

1. Assess Your Energy Needs: Calculate your daily energy consumption (Wh/day) and peak power demand (W). This determines the size of your solar array, battery bank, and inverter.
2. Research Local Regulations: Even for off-grid, some local jurisdictions may have specific requirements or permitting processes, especially for larger installations. Consult local building and electrical departments.
3. Select Certified Components: Prioritize components with recognized safety certifications (UL, IEC, TUV). This is your primary defense against substandard equipment.
4. Size Wires and Protection Devices Correctly: Use wire gauge calculators and consult electrical code tables to ensure wires can handle the expected current without overheating. Match fuses and circuit breakers to wire and component ratings.
5. Plan for Grounding and Surge Protection: Integrate these elements into your design from the start, not as an afterthought.
6. Document Everything: Keep records of all component specifications, certifications, and your system design. This is invaluable for troubleshooting, maintenance, and future upgrades.

Documentation and Planning for Future Needs

A comprehensive BOM should include not only the parts but also their specifications, quantities, and estimated costs. Consider creating a detailed wiring diagram for your system. This documentation becomes a critical resource for future maintenance or when expanding your system. Planning for potential future expansion, such as adding more solar panels or battery capacity, can save you time and money later by designing with scalability in mind from the outset.

Tools and Resources for DIYers

Numerous online calculators, forums, and educational resources can assist DIYers. Utilize these tools for sizing components, understanding wiring diagrams, and learning about best practices. Consulting experienced off-grid system designers or electricians, even for a review of your plan, can provide valuable insights and help catch potential safety oversights. Remember, while you are building it yourself, leveraging collective knowledge enhances safety and success.

Achieving Energy Independence Safely

Building an off-grid solar and storage system is a significant step towards energy autonomy. By prioritizing a code-safe approach in your Bill of Materials, you are not just assembling components; you are constructing a reliable, resilient, and secure power foundation. This diligent attention to safety standards and best practices ensures your system performs optimally for years, providing peace of mind alongside your energy independence.

FAQ

What does "code-safe" mean for an off-grid system?

For an off-grid system, "code-safe" means designing and installing your system following the safety principles and best practices outlined in national and local electrical codes, even if direct enforcement is less stringent than for grid-tied systems. This includes proper component selection, wiring, grounding, and overcurrent protection to prevent hazards.

Are certifications like UL or IEC really necessary for off-grid components?

Yes, certifications like UL, IEC, or TUV are highly recommended. They indicate that components have been independently tested and verified to meet specific safety and performance standards. Using certified components significantly reduces the risk of equipment failure, electrical fires, or other safety incidents, offering peace of mind for your off-grid installation.

How do I determine the correct wire size for my off-grid system?

Determining correct wire size involves calculating the maximum current that will flow through the wire and considering the wire's length (for voltage drop). You will need to consult electrical code tables (e.g., NEC tables) that specify wire ampacities based on gauge, insulation type, and ambient temperature. Always err on the side of using slightly thicker wire if unsure.

What is a Battery Management System (BMS) and why is it important for LiFePO4 batteries?

A Battery Management System (BMS) is an electronic system that manages a rechargeable battery, such as a LiFePO4 battery, to ensure its safe and efficient operation. It protects the battery from conditions like overcharging, over-discharging, overcurrent, and extreme temperatures, while also balancing individual cells. Without a BMS, LiFePO4 batteries can be damaged or become unsafe, making it a critical component for their longevity and safety.

Do I need surge protection for an off-grid system?

Yes, surge protection is highly advisable for off-grid systems. Lightning strikes or other electrical transients can induce high voltage spikes that damage sensitive electronic components like charge controllers, inverters, and batteries. Surge Protective Devices (SPDs) divert these excess voltages safely to the ground, protecting your valuable equipment.
