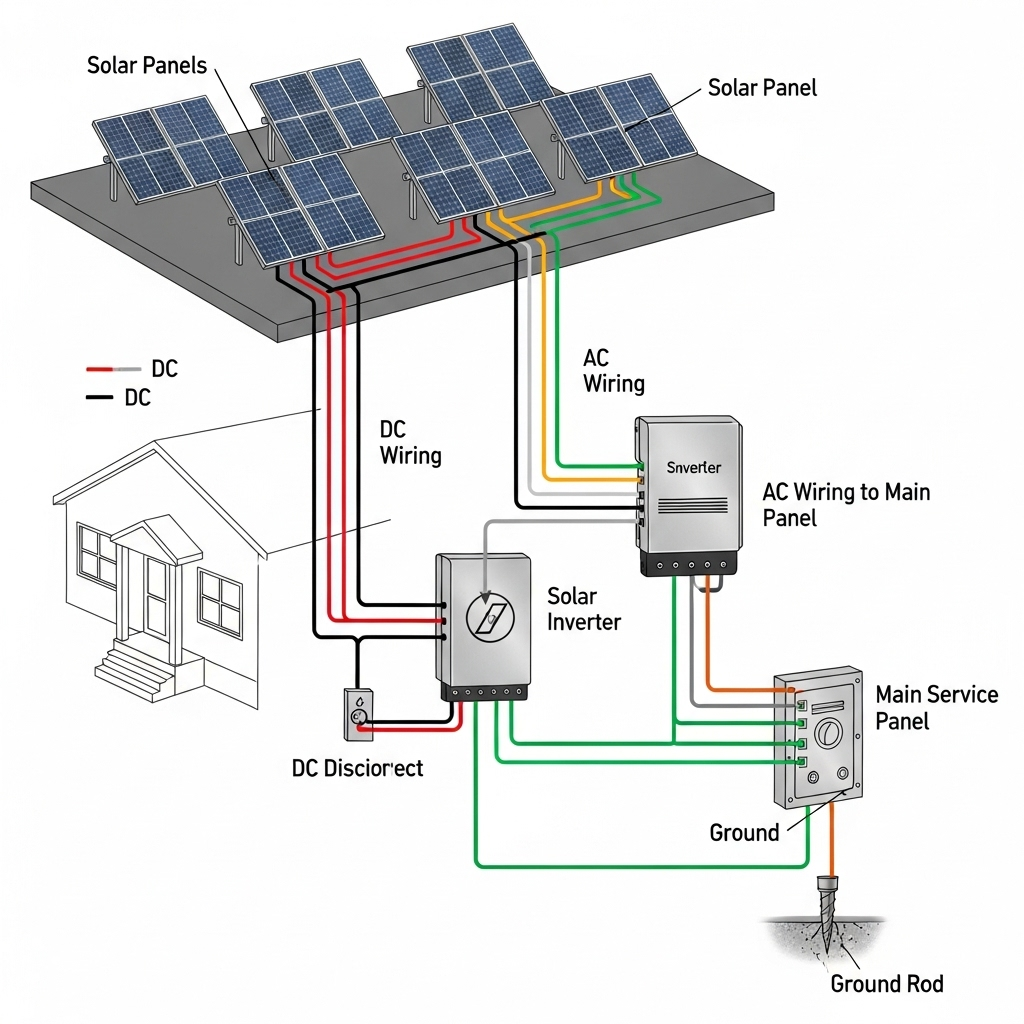

Building your own solar energy system is a rewarding step toward energy independence. However, the success and safety of your project depend entirely on correct electrical wiring. A small mistake can lead to significant power loss, equipment damage, or even create a serious fire hazard. Understanding the common pitfalls is the first step to ensuring your system is efficient, reliable, and above all, safe.
Mistake 1: Using the Wrong Wire Type and Size
One of the most frequent and dangerous errors in DIY solar wiring is selecting incorrect cables. This choice affects both the safety and efficiency of your entire system.
The Dangers of Undersized Wires
Wires that are too small for the current they carry will overheat. This heat degrades the wire's insulation and can melt connections, creating a severe fire risk. Furthermore, undersized wires cause a significant voltage drop. Voltage drop is the loss of electrical pressure along the length of a wire. A high voltage drop means less power reaches your inverter and batteries, reducing your system's overall energy output and wasting the money you've invested in high-efficiency panels.
The Safe Fix: Selecting Proper Cables
Always use wire specifically designed for photovoltaic (PV) systems. PV wire has insulation that is resistant to UV radiation and harsh weather, unlike standard indoor electrical wire. To choose the right size (gauge), you must consider the current (amps) and the length of the wire run. The National Electrical Code (NEC) provides detailed tables for this, but a simple rule is: the higher the amperage and the longer the distance, the thicker the wire (lower gauge number) you'll need. Using a properly sized wire minimizes voltage drop to the recommended 2-3% range, ensuring maximum power delivery.
| System Current (Amps) | Max Distance at 12V (Feet) | Recommended AWG | Max Distance at 24V (Feet) | Recommended AWG |
|---|---|---|---|---|
| 10A | 10 ft | 12 AWG | 20 ft | 12 AWG |
| 20A | 15 ft | 8 AWG | 30 ft | 8 AWG |
| 30A | 20 ft | 6 AWG | 40 ft | 6 AWG |
| 50A | 25 ft | 4 AWG | 50 ft | 4 AWG |
Mistake 2: Improper Connector Crimping and Sealing
Solar panel connectors, like MC4s, must be perfectly attached to ensure a safe and lasting connection. A poor crimp can become the weakest link in your system.
The Risk of Poor Connections
A loose or improperly crimped connector creates high electrical resistance. This resistance generates heat at the connection point, which can lead to melting, arcing, and fire. Additionally, if connectors are not fully seated and sealed, moisture can get inside. This leads to corrosion, which further increases resistance and can cause the connection to fail entirely over time.
The Safe Fix: Professional Crimping and Weatherproofing
Invest in the correct crimping tool designed specifically for your connectors. A proper crimp creates a solid, gas-tight connection between the wire and the terminal. After crimping, ensure the connectors are pushed together until they click, which indicates the internal weather seal is engaged. This protects the electrical connection from rain, snow, and humidity for the life of the system.
Mistake 3: Incorrect Series and Parallel Connections
How you wire your panels together—in series, parallel, or a combination—determines the system's overall voltage and current. Getting this wrong can damage your equipment.
Mismatched Strings and Voltage Issues
When wiring panels in series, you add their voltages. If you connect too many panels in a single string, the total voltage can exceed the maximum input voltage of your charge controller or inverter, causing permanent damage. When wiring in parallel, you add the currents. A shadow on just one panel in a string can negatively affect the output of all other panels in that string.
The Safe Fix: Planning Your String Configuration
Before connecting anything, calculate your string voltage. Multiply the Open Circuit Voltage (Voc) of a single panel by the number of panels in the series string. Ensure this number is below the maximum voltage rating of your inverter, leaving a safety margin for cold weather, which can increase panel voltage. Use identical panels within the same string to avoid performance issues. Planning your layout carefully helps ensure your system operates within the safe limits of your components.
Mistake 4: Neglecting Overcurrent Protection
Fuses and circuit breakers are not optional. They are essential safety devices that protect your investment and your home from electrical faults.
Why Fuses and Breakers Are Non-Negotiable
An overcurrent event, like a short circuit, can send dangerously high levels of electricity through your wires. Without a fuse or breaker to interrupt the flow, this current can melt wires and start a fire in seconds. According to the NEC, overcurrent protection is required in most systems to protect both equipment and wiring.
The Safe Fix: Sizing and Placing Protection Correctly
Overcurrent protection devices (OCPDs) must be installed in several key locations, including between the solar array and charge controller, and between the charge controller and battery bank. The NEC generally requires sizing the OCPD to at least 125% of the maximum continuous current of the circuit. For solar source circuits, this calculation is based on the panel's Short Circuit Current (Isc). For three or more parallel strings, each string needs its own fuse.
Mistake 5: Forgetting About Grounding
Grounding is a critical safety feature that protects both people and equipment from electrical hazards. It should never be overlooked.
The Shocking Truth About Ungrounded Systems
A properly grounded system provides a safe path for fault currents to travel to the earth. Without this path, a short circuit or a lightning strike could energize the metal frames of your panels and racking. Anyone touching this equipment could receive a severe or fatal electric shock. Ungrounded systems are a significant safety liability.
The Safe Fix: Implementing a Solid Grounding System
All metal components in your solar array that could become energized must be bonded together and connected to a grounding electrode. This includes panel frames, mounting racks, and electrical enclosures. Use grounding lugs and bare copper wire (typically #6 AWG or larger) to connect all components. This equipment grounding conductor (EGC) must then be connected to your home's main grounding system, ensuring any stray electricity has a safe path to the ground.
More Common Wiring Oversights
Beyond the top five, a few other mistakes can compromise your system's safety and performance.
Mistake 6: Poor Wire Management
Dangling or unsupported wires can be damaged by wind, weather, or animals. The fix is to secure all wiring neatly to the racking using UV-resistant zip ties and run wires through conduit where appropriate to protect them from physical damage.
Mistake 7: Ignoring Component Ratings
Every component, from the inverter to the smallest switch, has a maximum voltage and current rating. Exceeding these ratings leads to equipment failure. The fix is simple: always read and adhere to the specifications on every piece of equipment you install.
Mistake 8: Mixing Different Solar Panels
Using panels with different electrical characteristics in the same string will cause the entire string to underperform, limiting its output to that of the weakest panel. The fix is to always use identical panels (same make and model) within a series string.
Mistake 9: Lack of a Clear Wiring Diagram
Starting a project without a plan is a recipe for error. The fix is to draw a complete wiring diagram before you begin. It should show every component, wire, and connection. This plan will serve as your roadmap, preventing mistakes and making troubleshooting easier.
Your Path to a Safe and Efficient System
Successfully completing a DIY solar wiring project comes down to careful planning, using the right materials, and prioritizing safety at every step. By avoiding these common mistakes, you ensure your solar energy system will operate efficiently and safely for decades. A proper installation is key to getting the most out of your components. For a deeper look into how components interact to affect overall efficiency, our guide on solar storage performance offers valuable insights. Taking the time to do the wiring correctly protects your home, your family, and your investment in clean, renewable energy.
