The solar inverter is the heart of your photovoltaic system. It handles all the power you generate, so wiring it correctly is not just about performance—it is about safety. A common point of confusion for DIY installers is how to handle the electrical connections on the inverter’s direct current (DC) and alternating current (AC) sides. Understanding the roles of grounding, bonding, and isolation is fundamental to preventing electrical shocks, fires, and equipment damage. This guide provides clear principles for a secure installation.
Core Concepts: Grounding, Bonding, and Isolation Explained
Before touching any wires, it is important to understand three related but distinct safety concepts. These principles form the foundation of any safe electrical system, including your solar installation. Getting them right protects both you and your equipment.
What is Grounding? The Safety Path
Grounding connects parts of your electrical system to the earth. Its primary purpose is to provide a safe path for fault currents to flow. If a live wire accidentally touches a metal component, the grounding system directs the surge of electricity into the ground, tripping a breaker and preventing metal surfaces from becoming energized. This connection is typically made through a grounding electrode conductor (GEC) attached to a ground rod driven into the earth.
What is Bonding? Connecting the Metal Parts
Bonding ensures that all non-current-carrying metallic components in your solar installation are electrically connected. This includes solar panel frames, mounting racks, inverter chassis, and conduits. By connecting them with an equipment grounding conductor (EGC), you create a single, continuous low-resistance path. This equalizes the electrical potential across all metal parts, eliminating the risk of shock from touching two different pieces of equipment during a fault.
The Role of Isolation
Isolation involves keeping certain electrical circuits intentionally separated from others and from ground. In modern solar systems, particularly those with transformerless inverters, the DC conductors are often ungrounded or 'floating'. This design relies on sensitive ground-fault detection interrupters (GFDIs) inside the inverter. If a fault occurs, the inverter detects the leakage current and shuts down instantly, providing a different but equally effective form of protection.

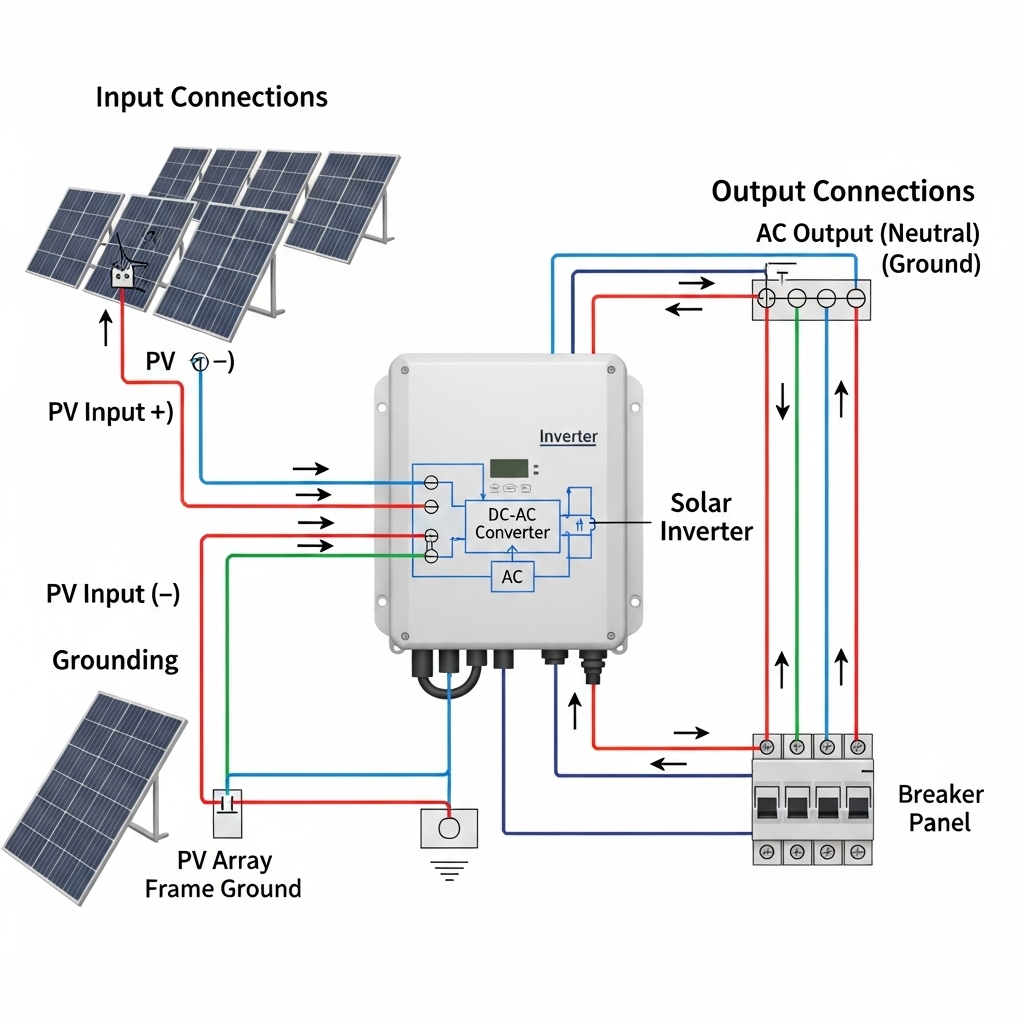

The DC Side: Managing Your Solar Array's Electrical Safety
The DC side of your system includes everything from the solar panels to the DC input of your inverter. Proper safety measures here are critical because DC faults can be particularly hazardous, sustaining arcs more readily than AC faults.
Grounding the PV Array Frame
The metal frames of your solar modules and the racking system they are mounted on must always be bonded together and connected to the system's equipment grounding conductor. This is a non-negotiable safety step. It ensures that if a wire's insulation fails and makes contact with the frame, the fault current has a safe path to ground, which will trip the protective device. Without this bond, the entire array could become energized at a lethal voltage.
Conductor Grounding: Positive, Negative, or Ungrounded?
While the frames are always grounded, the DC conductors (the positive and negative wires) are not. Historically, many systems were negatively grounded. Today, three configurations are common:
- Negatively Grounded: The negative DC conductor is bonded to ground. This was a common standard for many years.
- Positively Grounded: The positive DC conductor is bonded to ground. This is less common but required by some older thin-film module technologies.
- Ungrounded: Neither the positive nor the negative conductor is connected to ground. This is the standard for most modern transformerless inverters. These systems require specific ground-fault protection built into the inverter.
Always consult your inverter's installation manual to determine which DC grounding configuration it requires. Mismatching the grounding scheme can lead to equipment damage or create a serious safety hazard.
The AC Side: Connecting to Your Home's Electrical System
The AC side connects the inverter's output to your home's main electrical panel and, if applicable, the utility grid. As noted in the IEA's Solar Energy Perspectives report, PV systems require an inverter to transform DC into AC for most applications. The safety rules here are just as strict as on the DC side.
Grounding the Inverter Chassis
Just like the solar panel frames, the metal chassis of the inverter must be grounded. This is typically accomplished via the equipment grounding conductor that runs with the AC output wiring back to the main service panel. This ensures that any internal fault within the inverter will trip the appropriate breaker instead of energizing the unit's exterior.
The Neutral-to-Ground Bond
In a home's electrical system, the neutral wire and the ground wire are bonded together in one, and only one, location: the main service panel. This single bond is critical for safety and the proper operation of circuit breakers. A grid-tied inverter should not create a second neutral-to-ground bond. Doing so can create dangerous ground loops and interfere with GFCI protection. However, for off-grid or backup power applications where the inverter forms its own grid, it must act as a 'separately derived system' and create its own neutral-to-ground bond. Many hybrid inverters have an internal relay that automatically handles this switching when the grid goes down.
| System Type | Neutral-to-Ground Bond Location | Reasoning |
|---|---|---|
| Grid-Tied | Main Service Panel Only | Prevents parallel paths for current on grounding conductors. The utility provides the reference bond. |
| Off-Grid / Backup Mode | Inside the Inverter (or at a subpanel fed by the inverter) | The inverter is the source of power and must establish its own stable ground reference for safety. |
Practical Application: A Step-by-Step Safety Checklist
Use this checklist to verify the key safety connections for your inverter. Adhering to these steps is crucial for a secure and reliable installation.
Verifying Connections on the DC Side
First, confirm that all solar module frames and mounting racks are interconnected with bonding jumpers or self-bonding hardware. Then, run a continuous equipment grounding conductor from the racking to the grounding bus bar in your inverter or combiner box. Finally, check the inverter manual to confirm if the DC conductors should be grounded or left floating, and ensure your wiring matches.
Ensuring Safety on the AC Side
Ensure the inverter's chassis has a dedicated ground wire running to the ground bus in your AC panel. Identify the location of your system's neutral-to-ground bond. For grid-tied systems, it must be only at the main service entrance. For off-grid systems, ensure the inverter is creating the bond as required. The International Energy Agency's research on reliably integrating solar onto the grid highlights how these standards are essential for stability and safety.
Integrating Battery Storage
When adding an energy storage system (ESS), the same principles apply. The metal battery rack must be bonded to the rest of the grounding system. The inverter and battery management system (BMS) will have specific grounding requirements that must be followed precisely. The effectiveness of your connections directly impacts system safety and efficiency, which are critical factors in achieving optimal solar storage performance.
A Final Word on System Safety
Properly managing your inverter's AC and DC side connections is a cornerstone of a safe DIY solar project. Grounding provides a path for fault currents, bonding equalizes the electrical potential of all metal parts, and correct isolation prevents unintended current flows. These elements work together to create a secure system that protects you, your family, and your investment. The components involved in this process, known as the 'balance of system' (BOS), are fundamental to a functional PV installation, as detailed in the Technology Roadmap for Solar Photovoltaic Energy.
Disclaimer: This article provides general information and is not a substitute for professional electrical advice. Always consult your equipment manuals, the National Electrical Code (NEC), and local building authorities before starting any electrical work.
Frequently Asked Questions
What is the main difference between grounding and bonding in a solar installation?
Grounding connects your electrical system to the earth to protect against large electrical faults, like lightning or transformer failures. Bonding connects all the metallic parts of your solar installation (panels, racks, inverter) together to ensure they are at the same electrical potential, protecting against shock hazards from equipment faults.
Do all solar inverters require a grounded DC conductor?
No. Most modern grid-tied inverters are 'transformerless' and are designed for an ungrounded DC array. These inverters have sensitive built-in ground fault protection. Older or specialized inverters may require positive or negative DC conductor grounding. Always follow the manufacturer's specific instructions.
Where should the neutral and ground be bonded in an off-grid solar system?
In an off-grid system, the inverter is the source of power. Therefore, it must create the neutral-to-ground bond. This is often done automatically inside the inverter via a relay, or it may need to be done at the main AC distribution panel that the inverter feeds. There should only be one bond point in the entire system.
