Achieving energy independence with an off-grid solar system is a rewarding goal. It offers freedom from utility bills and a reliable power source in remote locations. However, the success of your system hinges on a correct installation. Errors made during setup can lead to poor performance, premature equipment failure, or even serious safety hazards. Understanding common off-grid solar installation mistakes is the first step toward building a robust and dependable power solution.
1. Inaccurate Energy Load Calculation
The most fundamental error in designing an off-grid system is miscalculating your energy needs. Without a precise understanding of your daily electricity consumption, you cannot correctly size any other component.
Underestimating Daily Consumption

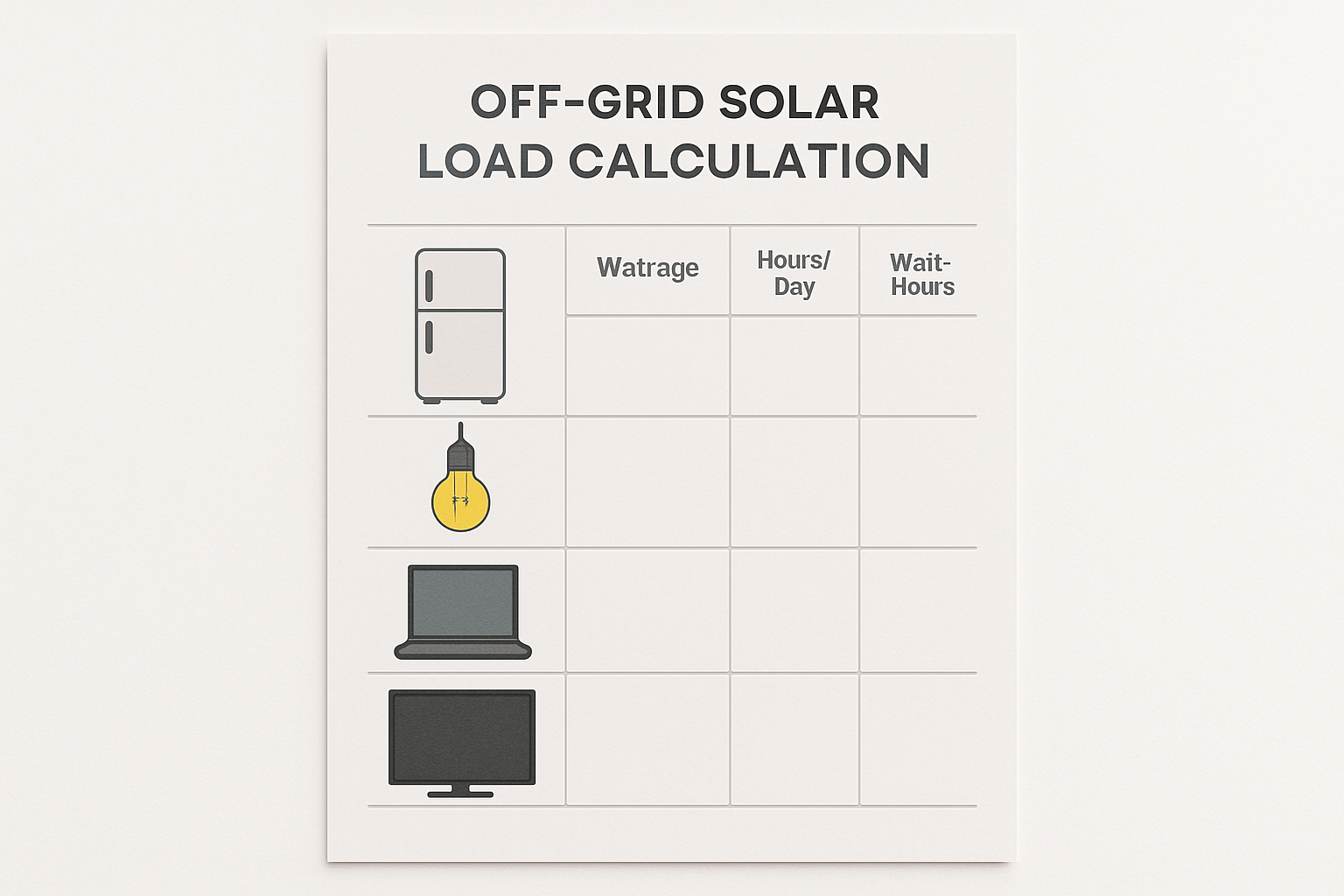

A common pitfall is overlooking small appliances or underestimating their usage. Every device, from a phone charger to a water pump, contributes to the total load. A comprehensive energy audit is essential. List every appliance, its power rating (in watts), and the number of hours you expect to use it daily. This calculation will give you a total watt-hour (Wh) figure, which is the foundation of your system design.
Ignoring Phantom Loads and Future Growth
Many modern electronics draw power even when turned off. These 'phantom loads' can add up significantly. Also, consider your future energy needs. Will you add new appliances or expand your living space? Sizing a system only for today's needs without a buffer for growth can lead to an undersized system down the line.
2. Incorrect Battery Bank Sizing and Selection
The battery bank is the heart of an off-grid system, storing energy for use at night and on cloudy days. Errors here can leave you without power when you need it most.
Insufficient Storage Capacity
Your battery bank should be large enough to power your home for a predetermined number of 'days of autonomy'—typically 2 to 5 days—without any solar input. This ensures reliability during extended periods of bad weather. Failing to account for this can result in frequent power outages and excessive strain on the batteries, shortening their lifespan.

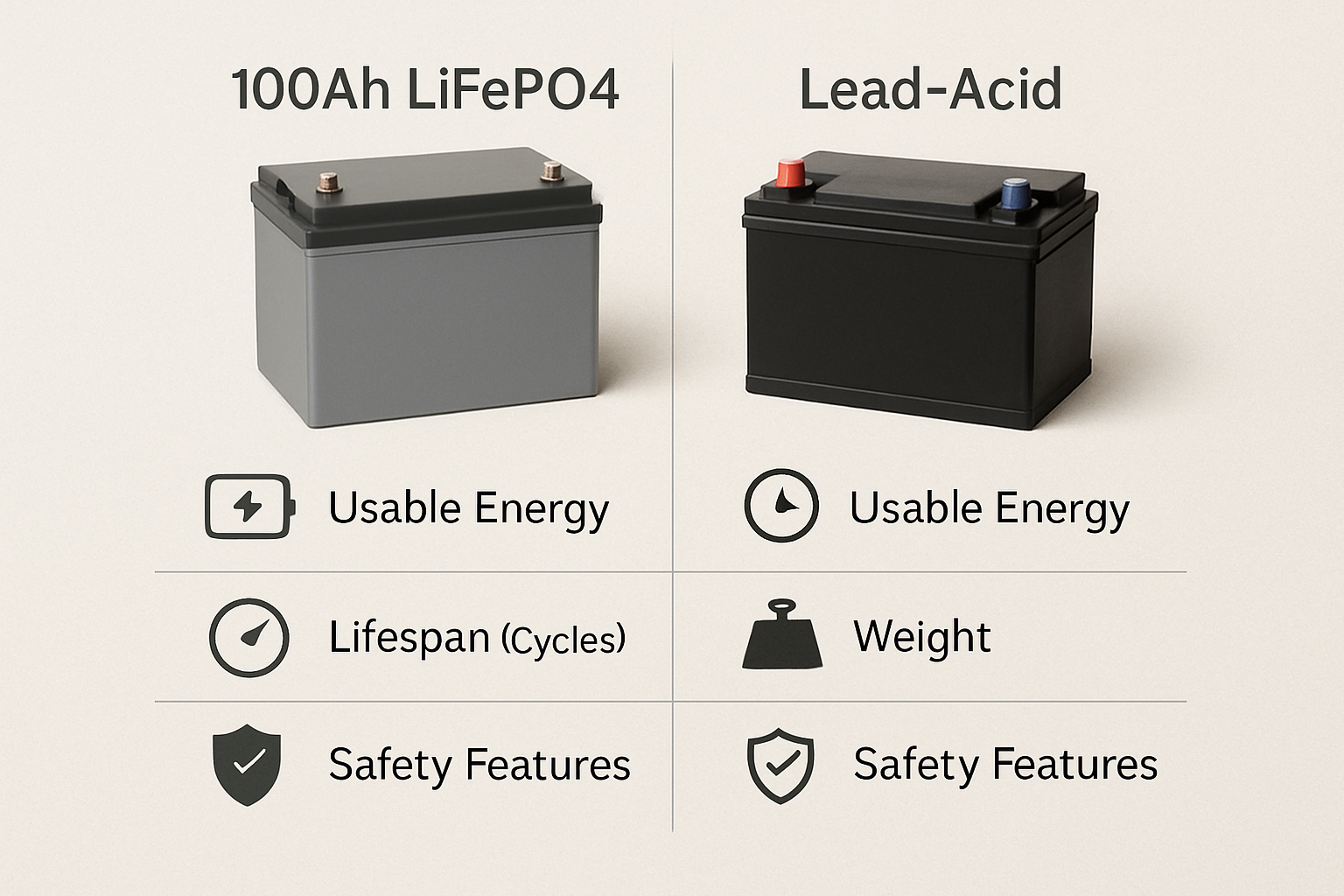

Choosing the Wrong Battery Chemistry
While traditional lead-acid batteries have been used for years, modern solutions like Lithium Iron Phosphate (LiFePO4) offer significant advantages for off-grid applications. LiFePO4 batteries provide a longer cycle life, higher efficiency, and can be discharged more deeply without damage. A battery's usable capacity is heavily influenced by its Depth of Discharge (DoD). As detailed in this guide on solar storage performance, LiFePO4 batteries can often be discharged to 80-95%, offering more usable energy compared to lead-acid types.
| Feature | Lithium Iron Phosphate (LiFePO4) | Sealed Lead-Acid (AGM) |
|---|---|---|
| Average Cycle Life | 3,000 - 7,000 cycles | 300 - 700 cycles |
| Recommended Depth of Discharge (DoD) | 80-95% | 50% |
| Round-trip Efficiency | ~95% | ~80-85% |
| Maintenance | None | None |
3. Overlooking Solar Panel Placement and Shading
The location and orientation of your solar panels directly impact their energy production. Even small amounts of shade can have a disproportionately large negative effect on the output of the entire solar array.

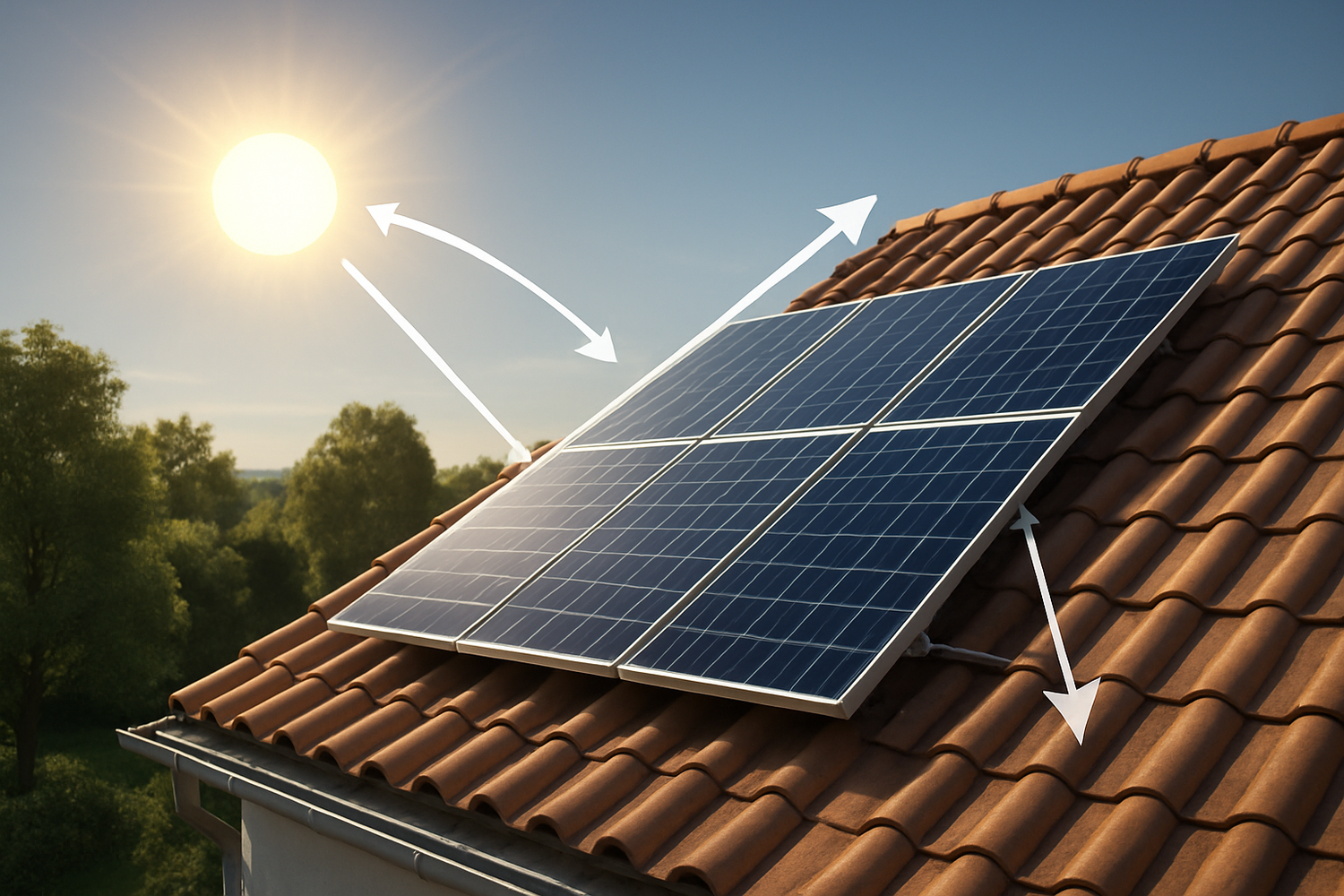

Improper Orientation and Tilt
For maximum year-round production, solar panels in the Northern Hemisphere should face true south. The optimal tilt angle is often close to your location's latitude. While a few degrees of deviation may not cause significant loss, poor orientation can drastically reduce your system's output, forcing you to buy a larger, more expensive system to compensate.
Ignoring the Impact of Shading
A single shaded cell on a solar panel can reduce the output of that entire panel. If panels are wired in series, that single shaded panel can reduce the output of the entire string. It is critical to conduct a thorough site analysis to identify any potential shading from trees, chimneys, or other buildings throughout the day and across different seasons.
4. Using Inadequate Wiring and Fusing
Wiring is a critical component for both safety and efficiency. Using undersized wires or skipping overcurrent protection is a dangerous mistake that can lead to equipment damage or fire.
Incorrect Wire Gauge
The size of the wire (its gauge) determines how much current it can safely carry. Wires that are too small for the current flowing through them will overheat, which is a serious fire hazard. Undersized wires also cause voltage drop, leading to significant power loss between your panels and batteries, reducing overall system efficiency.
Forgetting Overcurrent Protection
Fuses and circuit breakers are non-negotiable safety devices. They protect your wiring and equipment from damage during short circuits or other electrical faults. Overcurrent protection must be installed at key points in the system, including between the solar panels and the charge controller, the charge controller and the battery bank, and the battery bank and the inverter.
5. Mismatching System Components
An off-grid solar system is composed of several key components: solar panels, a charge controller, a battery bank, and an inverter. These components must be carefully matched to work together seamlessly. A mismatch can lead to inefficiency and damage.
Voltage Incompatibility
The nominal voltage of your solar array, charge controller, and battery bank must match. For example, you cannot use a 12-volt charge controller with a 24-volt battery bank. Similarly, the inverter must be rated for the voltage of your battery bank. An oversized or undersized inverter can also cause problems, from wasted energy to system failure.
Incorrect Charge Controller Type
There are two main types of charge controllers: PWM (Pulse Width Modulation) and MPPT (Maximum Power Point Tracking). MPPT controllers are more advanced and efficient, especially in colder climates or when the solar panel voltage is significantly higher than the battery voltage. Choosing the wrong type can result in losing a substantial portion of your potential solar generation.
6. Neglecting Proper System Grounding
Grounding is a critical safety measure that protects you from electric shock and your equipment from damage due to lightning strikes or electrical faults. Many DIY installers overlook or misunderstand this crucial step.
Lack of Equipment Grounding
All exposed metal components of the system, including panel frames, mounting racks, and inverter chassis, must be connected to a grounding conductor. This ensures that if a wire comes loose and energizes a metal surface, the current has a safe path to the ground, which will trip a breaker and prevent a dangerous shock hazard.
Improper System Grounding
The entire system needs a connection to the earth via a grounding electrode, such as a copper-clad rod driven into the ground. According to the U.S. Department of Energy, proper grounding must comply with the National Electrical Code (NEC) to ensure safety. This connection helps dissipate static electricity and provides a path for large surges from nearby lightning strikes.
7. Forgetting Long-Term Maintenance
An off-grid solar system is not a 'set-it-and-forget-it' installation. Regular maintenance is necessary to ensure it operates safely and efficiently for its entire lifespan, which can be 25 years or more.
Skipping Panel Cleaning
Dust, pollen, leaves, and bird droppings can accumulate on your solar panels, reducing the amount of sunlight that reaches the cells. Periodic cleaning, especially after long dry periods, can restore their performance.
Ignoring Connection and Battery Checks
Electrical connections can sometimes loosen over time due to temperature changes and vibration. It's good practice to periodically inspect all wiring connections to ensure they are tight. You should also regularly monitor your battery bank's state of charge and health to catch any potential issues early.
Building a Resilient Off-Grid System
Avoiding these seven critical mistakes is key to building a safe, reliable, and efficient off-grid solar system. Careful planning, proper component selection, and attention to detail during installation will ensure your system provides dependable power for years to come. The growth in off-grid renewable energy, as tracked by the International Renewable Energy Agency (IRENA), highlights a global shift towards energy independence, making proper installation knowledge more important than ever. A well-designed system is a valuable investment in your energy future.
Disclaimer: This information is for educational purposes only. Always consult with a qualified professional and adhere to local electrical codes and regulations for your installation. This content does not constitute professional engineering or financial advice.
Frequently Asked Questions
How many solar panels do I need for my off-grid home?
The number of panels depends entirely on your daily energy consumption (kWh), your location's peak sun hours, and the wattage of the panels. A thorough energy audit is the first and most important step to an accurate calculation.
What is the best type of battery for an off-grid system?
Lithium Iron Phosphate (LiFePO4) batteries are widely recommended for off-grid systems. They offer a long cycle life, high depth of discharge, superior efficiency, and inherent safety features compared to traditional lead-acid batteries.
Can I install an off-grid solar system myself?
While many components are designed for DIY installation, the process requires significant electrical knowledge. Mistakes can be dangerous and costly. For safety and compliance with local codes, consulting or hiring a certified professional is highly recommended, especially for critical tasks like high-voltage wiring and system grounding.
