How to Wire Off-Grid Solar Safely: A Step-by-Step Checklist

Building an off-grid solar system gives you true energy independence. The wiring, however, is where safety becomes paramount. A properly wired system runs efficiently and protects your investment and your property. This guide provides a clear, step-by-step checklist for wiring your off-grid solar setup correctly from the start.

Pre-Installation Planning: The Foundation of Safety

Proper planning prevents poor performance and hazardous situations. Before you touch a single wire, laying out a clear plan ensures you have the right components and a roadmap for a secure installation. This initial phase is the most critical part of your entire off-grid solar wiring project.

System Sizing and Component Selection

Your system's safety begins with choosing components that are designed to work together. Wires, fuses, and breakers must be rated for the voltage and current they will handle. Undersized wires can overheat and create a fire hazard, while improperly rated fuses may fail to protect your equipment during a fault. Calculate the maximum current for each part of your system and select a wire gauge that can handle it with minimal voltage drop. High-performance components, like LiFePO4 batteries, require specific considerations for charging and protection to operate safely and effectively.

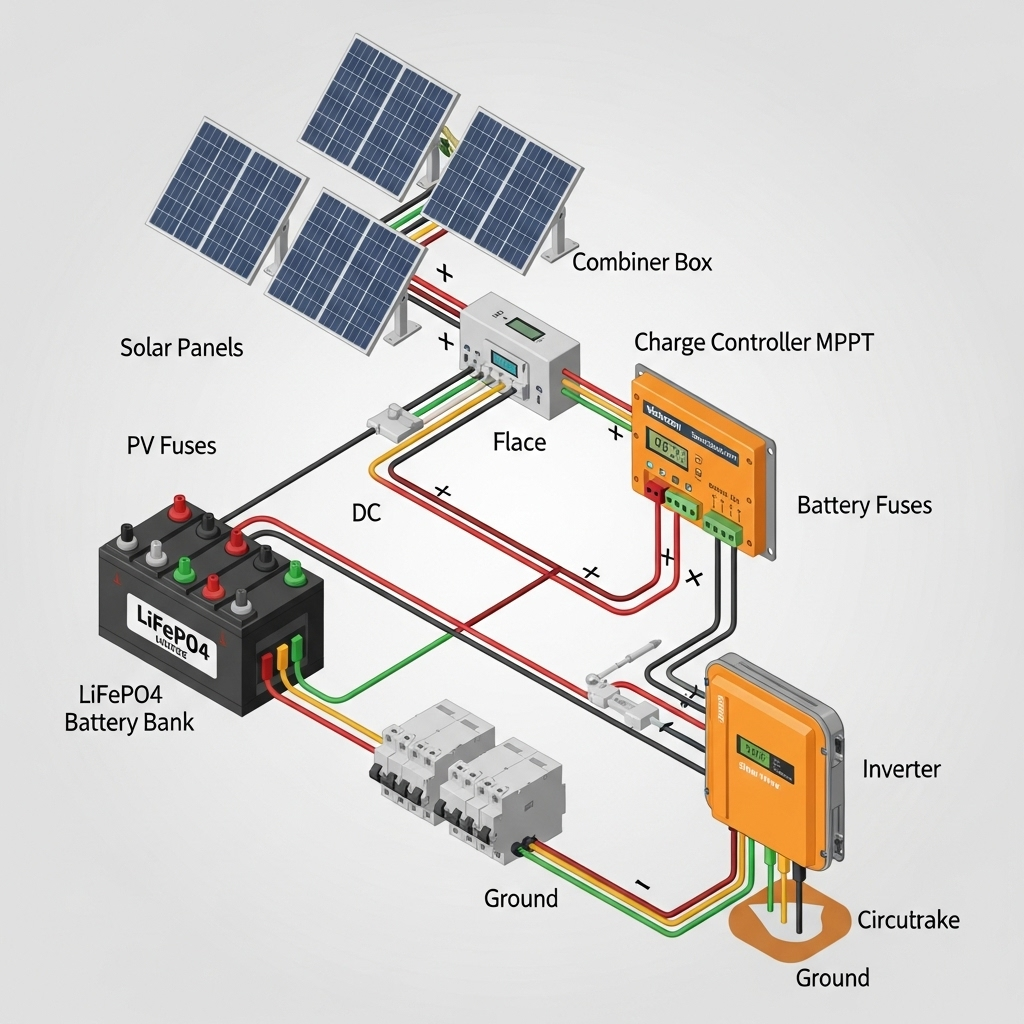

Creating a Wiring Diagram

Never start a wiring job without a diagram. This is your blueprint for safety and efficiency. A good diagram should map out every connection, including:

• The layout of solar panels (series, parallel, or series-parallel).
• The location of all overcurrent protection devices (fuses and breakers).
li>Wire sizes and colors for each connection (e.g., red for positive, black for negative).
• The connection points for your charge controller, battery bank, and inverter.
• A clear plan for system and equipment grounding.

This simple document helps you visualize the entire system and catches potential issues before they become real problems.

Assembling Your Tools and Personal Protective Equipment (PPE)

Using the right tools is not just about convenience; it's about safety. You will need a high-quality wire stripper, a crimper for secure connections, and a multimeter to verify polarity and voltage. For personal protection, always use insulated gloves, safety glasses, and avoid wearing any jewelry. Working with DC electricity, especially from a battery bank, demands respect and caution.

The Core Wiring Process: Connecting the Components

With a solid plan, you can begin connecting the main components. Follow a logical sequence to ensure the system is assembled safely. Each connection is a critical link in the chain, and its integrity affects the entire system's reliability. According to a report by the International Energy Agency, the 'balance of system' (BOS) components, which include wiring and electrical protection, are fundamental to a PV system's operation. As detailed in their Solar Energy Perspectives report, these parts are as important as the panels themselves.

Solar Panels to Charge Controller

First, connect your solar panels. If you are wiring multiple panels in series, you connect the positive terminal of one panel to the negative terminal of the next. For parallel connections, you connect positive to positive and negative to negative, usually within a combiner box. Always make these connections with the panels covered or in low light to prevent shock, as they produce voltage the moment they are exposed to light. Use MC4 connectors for a secure, weatherproof link. Install a circuit breaker or fuse between the panels and the charge controller for protection and as a means of disconnection.

Charge Controller to Battery Bank

This connection is critical for your system's health. The correct order is to connect the charge controller to the battery bank *before* connecting the solar panels. This allows the controller to read the battery voltage and configure itself properly. Place a correctly sized fuse or circuit breaker on the positive wire between the controller and the battery. This protects against short circuits and is essential for safety. Use thick, high-quality cables for this connection to handle the charging current efficiently.

Battery Bank to Inverter

The connection between your battery bank and inverter carries the highest current in your system. This is especially true when starting large appliances. Use the thickest cables in your system here, and keep them as short as possible to minimize voltage drop and resistance. A major catastrophic fuse or circuit breaker must be installed on the positive line, very close to the battery. This is a non-negotiable safety device that protects against a dead short in the inverter, which could otherwise cause a fire or explosion. For a detailed look at how battery performance impacts your entire system, reviewing data on solar storage performance metrics can provide crucial insights.

Grounding and Protection: The Unseen Safety Net

Grounding and overcurrent protection are your system's primary defenses against electrical faults, lightning strikes, and equipment damage. These elements do not contribute to power generation, but they are absolutely essential for creating a safe and durable off-grid system. The reliability of the power system, a concept also vital for large grids as noted by the IEA's Getting Wind and Solar onto the Grid report, starts with these foundational safety measures.

System Grounding Explained

Grounding provides a safe path for stray electrical current to travel to the earth. There are two types of grounding in a solar installation: equipment grounding and system grounding. Equipment grounding involves connecting the metal frames of your solar panels, mounting racks, and inverter chassis to a grounding rod. This prevents static discharge and protects you from shock if a wire accidentally touches the frame. System grounding involves connecting one of the current-carrying conductors (usually the negative side in a DC system) to ground. This stabilizes the system's voltage relative to the earth and is a requirement in many electrical codes.

Installing Overcurrent Protection Devices (OCPDs)

Fuses and circuit breakers, known as OCPDs, are designed to interrupt the flow of electricity when the current exceeds a safe level. This protects both your wiring from overheating and your expensive equipment from damage. Every circuit in your system needs its own OCPD.

Surge Protection Devices (SPDs)

If you live in an area with frequent lightning, installing Surge Protection Devices (SPDs) is a wise investment. These devices are installed on both the DC and AC sides of your system. They protect your sensitive electronics, such as the charge controller and inverter, from damage caused by voltage spikes from nearby lightning strikes.

Final Checks and Commissioning

Before you energize your system, a thorough final review is necessary. This is your last chance to catch any mistakes before they can cause damage. The U.S. Department of Energy has highlighted the importance of safe installation and commissioning processes to simplify solar adoption, as seen in projects like the Plug and Play PV system, which automates safety checks.

The Pre-Power-Up Safety Checklist

Go through your entire system with this final checklist:

• Check Tightness: Ensure every single electrical connection is tight. Loose connections create resistance, which generates heat.
• Verify Polarity: Use your multimeter to double-check the polarity (positive and negative) of every connection. Reversing polarity can instantly destroy your equipment.
• Inspect for Exposed Wires: Make sure there are no nicks or cuts in the wire insulation and that no bare copper is exposed anywhere except at the terminal blocks.
• Confirm Grounding: Verify that your equipment grounding wire has a solid, continuous path to your grounding rod.

Powering Up the System Sequentially

Turn your system on in a specific order to prevent damage:

1. Turn on the circuit breaker between the charge controller and the battery bank. The controller should power on.
2. Turn on the circuit breaker from the solar panels to the charge controller. You should see the controller begin to register power from the sun.
3. Finally, turn on your inverter.

Listen for any unusual sounds and check the displays on your controller and inverter to ensure everything is operating as expected.

Your Path to Energy Security

Wiring an off-grid solar system is a rewarding project that puts you in control of your power. By following a methodical, safety-first approach, you ensure your system is not only powerful but also reliable and secure. This checklist provides the framework, but always consult your equipment manuals and consider local electrical codes. A safe installation is the first step toward decades of clean, independent energy.

Disclaimer: This article is for informational purposes only. It is not a substitute for professional electrical advice. Always adhere to local electrical codes and consult with a qualified electrician when necessary.

Frequently Asked Questions

What is the most common wiring mistake in DIY solar?

The most common and dangerous mistake is using undersized wires. Wires that are too small for the current they carry can overheat, melt their insulation, and create a serious fire risk. Always calculate the required wire gauge based on amperage and distance to minimize voltage drop and ensure safety.

Do I need a fuse between my solar panel and charge controller?

Yes. While a single string of panels may not pose a huge risk, a fuse or circuit breaker is always recommended. It provides overcurrent protection and serves as a convenient way to disconnect the solar panels from the rest of the system for maintenance.

How do I choose the right wire size for my off-grid system?

Choosing the right wire size, or gauge, depends on two main factors: the amount of current (amps) the wire will carry and the length of the wire. You can use an online wire gauge calculator. You input the voltage, amperage, and distance, and it will recommend the appropriate American Wire Gauge (AWG) size to keep voltage drop within an acceptable limit (typically 2-3%).
