The 12V RV Solar Blueprint: From Energy Audit to Wiring

Building a reliable 12V solar power system for your RV or campervan is the key to true energy independence. A successful installation is not about buying the most expensive components, but about creating a balanced system tailored to your specific needs. This blueprint provides a systematic process, starting with a detailed energy audit and finishing with safe, efficient wiring, ensuring your mobile power station is ready for any adventure.

Step 1: Conducting a Thorough RV Energy Audit

Before purchasing any equipment, you must understand your power consumption. An energy audit is the foundational step in campervan solar planning. It removes guesswork and ensures the system you build will meet your daily requirements. A precise audit prevents overspending on unnecessary capacity or, worse, building a system that fails when you need it most.

Identifying Your Power Consumers

Begin by listing every electrical device you plan to use. Separate them into 12V DC appliances (lights, fans, water pump) and 120V AC appliances that require an inverter (laptops, blenders, etc.). Be exhaustive; even small consumers like phone chargers add up. For each device, find its power rating in watts (W). If only amps (A) and volts (V) are listed, you can calculate watts by multiplying the two (Watts = Volts x Amps).

Calculating Daily Watt-Hour Consumption

Next, estimate how many hours you will use each device on a typical day. Multiply each device's wattage by its daily hours of use to find its daily watt-hour (Wh) consumption. Summing the watt-hours for all devices gives you your total daily energy requirement. This number is the single most important factor in sizing your entire system.

Factoring in Seasonal and Lifestyle Variations

Your energy needs will fluctuate. Summer might involve more fan usage, while shorter winter days mean more reliance on electric lights. A weekend trip has different power demands than full-time boondocking. Always design your system for your highest expected usage to ensure you have enough power in reserve.

Step 2: Selecting Core Components for a Balanced System

With your energy audit complete, you can confidently select components. The goal is a balanced system where the battery bank, solar array, and charge controller work in harmony. As the International Energy Agency points out in its Solar Energy Perspectives report, photovoltaic technology is highly modular, making it suitable for a wide range of applications, from large-scale grids to small, mobile systems like those in an RV.

Sizing Your Battery Bank (LiFePO4 Focus)

Your battery bank stores the energy your panels collect. To size it, divide your total daily watt-hours by the battery voltage (12V) to get the required amp-hours (Ah). For our 953Wh example, this is 953Wh / 12V ≈ 80Ah. Because you should not regularly discharge a battery completely and to account for cloudy days, it is wise to have at least 2-3 days of autonomy. Therefore, a battery bank of 160-240Ah would be appropriate. High-performance Lithium Iron Phosphate (LiFePO4) batteries are an excellent choice due to their deep discharge capability, long lifespan, and safety.

Matching Solar Panels to Your Battery Needs

Your solar panels must be able to fully recharge your battery bank. To calculate the required solar wattage, divide your daily watt-hour needs by the number of peak sun hours you expect per day. This figure varies by location and season but using a conservative average of 4-5 hours is a safe starting point. For our example: 953Wh / 4 hours = 238W. Therefore, a solar array of 250-300W would be a good match for this system.

Choosing the Right Solar Charge Controller and Inverter

A solar charge controller protects your batteries from overcharging. An MPPT (Maximum Power Point Tracking) controller is more efficient than a PWM controller, especially in colder weather or with partially shaded panels. Size the controller based on your solar array's amperage and voltage. A pure sine wave inverter is needed to convert 12V DC power to 120V AC for sensitive electronics. Choose an inverter that can handle the maximum wattage of all AC appliances you might run simultaneously.

Step 3: The Critical Path of RV Solar Wiring

Proper RV solar wiring is crucial for safety and system efficiency. Undersized wires can cause significant voltage drop, reducing performance and creating a fire hazard. A methodical approach to wiring will protect your investment and ensure reliable power delivery. The U.S. Department of Energy has long supported initiatives to streamline solar installation processes, recognizing that proper connections are fundamental to performance. An early SunShot Initiative project, for instance, focused on simplifying the connection between the power source and the electrical system, a principle that applies directly to RV setups.

Wire Gauges and Fuse Sizing: The Foundation of Safety

Always use the correct wire gauge (thickness) for each connection. The gauge depends on the current (amps) flowing through the wire and its length. Thicker wires (lower gauge number) have less resistance and are used for higher currents or longer runs. Every positive wire connected to your battery bank must have a fuse or circuit breaker placed as close to the battery as possible. This protects the wire and the connected component from overcurrent events.

Series vs. Parallel Panel Connections

You can wire multiple solar panels together in two primary ways. A series connection adds the voltages of the panels together while keeping the amperage the same. A parallel connection adds the amperages while keeping the voltage the same. For 12V systems, parallel connections are common. However, series connections can improve performance in low-light conditions and allow for smaller, less expensive wiring from the panels to the charge controller.

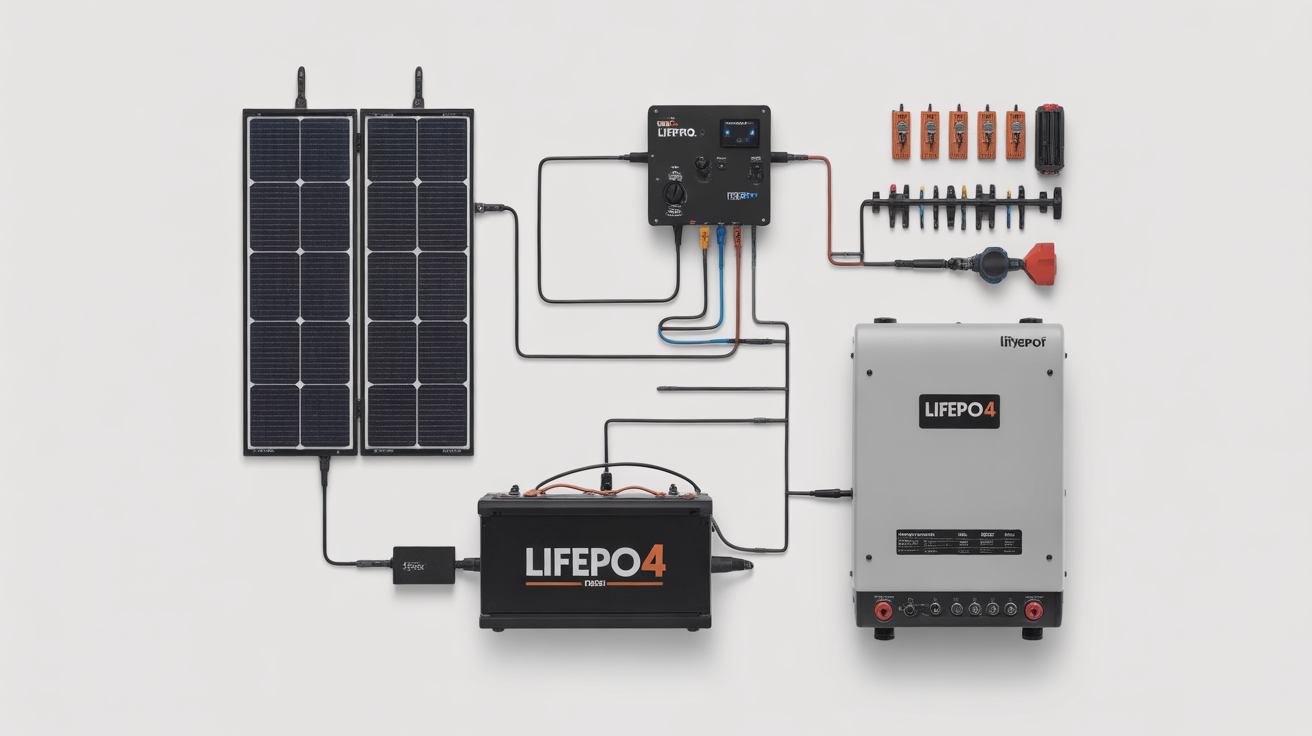

A Safe and Sequential Wiring Order

To prevent damage to your components, connect them in a specific order. The correct sequence for a solar system installation is crucial for safety and functionality. Always connect your battery to the charge controller first. This allows the controller to recognize the system voltage before it receives power from the panels. The recommended order is:
1. Connect the battery to the charge controller.
2. Connect the solar panels to the charge controller.
3. Connect your 12V DC loads to the charge controller's load terminals (if applicable) or a separate fuse block.
4. Connect the inverter directly to the battery terminals, with an appropriately sized fuse on the positive cable.

Your Roadmap to Energy Independence

Constructing a 12V RV solar system is an empowering project that unlocks the freedom of off-grid travel. By following this blueprint—starting with a meticulous energy audit, carefully selecting balanced components, and implementing a safe RV solar wiring plan—you create a robust and reliable power source. This systematic approach transforms a complex task into a manageable process, paving the way for countless adventures powered by the sun.
