Portable energy storage keeps lights on during outages, stabilizes microgrids, and powers remote work. In 2025, High-Current Connectors sit at the center of that reliability. Long grid-connection queues and rising peak loads push more sites toward fast-deployable ESS Portables. According to the Energy and AI report, connection queues for new data centers already stretch from 1–3 years in the United States, and up to 5–10 years in parts of Europe and Japan. Delays like these increase the value of mobile and modular storage.
Field experience from lithium-battery manufacturing and integrated ESS work shows a pattern. Connector Wear drives heat, voltage drop, and downtime. A clear Connector Replacement plan reduces risk, protects cells, and extends inverter life.
Why high-current connectors matter in ESS Portables
Current peaks and thermal stability
Portable ESS units see frequent connect/disconnect events, fast charge currents, and inverter surge currents. A 48 V pack feeding a 3–5 kW inverter can draw 80–150 A continuously, with 2–3x surges. Heat rise at the contact interface is proportional to current squared times contact resistance. Even modest resistance growth adds watts of heat. At 200 A and 150 µΩ, I²R loss is about 6 W concentrated in a small metal mass. Poor cooling and repeated cycles then accelerate Connector Wear.
System value under grid constraints
Transmission buildouts take time. The Next Generation Wind and Solar Power (Full Report) notes that grid upgrades are time intensive and can delay independent projects. A related IEA analysis explains that scattered private development complicates transmission planning and can impose delays, prompting stop-gap and modular solutions (Next Generation Wind and Solar Power). Portable ESS can bridge capacity gaps. That makes connector integrity a frontline issue.
Authority signals for storage
Public agencies highlight storage for resilience and flexibility. The U.S. Department of Energy summarizes the role of solar-plus-storage in energy reliability (energy.gov/topics/solar-energy). Market data also shows rising storage adoption, as tracked by the U.S. Energy Information Administration (eia.gov) and international bodies such as IRENA. More storage in more places increases connector duty cycles and the need for sound maintenance.
Connector Wear: mechanisms, signals, and tests
Main wear drivers
- Fretting and micro-motion: Vibration and load cycling create oxide films, lifting resistance.
- Plating loss: Repeated mating strips thin silver or tin layers. Base metal corrodes faster.
- Arcing at disconnect: Breaking DC under load pits contacts and raises resistance.
- Thermal cycling: Heat expands lugs, relaxes crimps, and loosens screws.
- Ingress: Dust and moisture add contamination and galvanic effects.
What to watch
- Temperature rise at steady current. Watch for trending increases at the same load.
- Visible pitting, dark spots, or plating wear on blades, pins, or sockets.
- Higher insertion force, sticking, or latch play; these precede electrical issues.
- Voltage drop growth across the connector measured at constant current.
Quick test references
For product selection and verification, use established methods. IEC 60512 series provides contact resistance and temperature rise test methods. IEC 61984 defines connector safety and test criteria. In North America, UL 1977 covers component connectors for data, signal, and power. ESS products should align with UL 1973 (battery) and UL 9540 (system) expectations for safe integration. These standards reduce ambiguity at design review.
| Wear mode | Typical symptom | Field check | Action |
|---|---|---|---|
| Fretting oxidation | Rising mV drop at load | 4-wire micro-ohm or mV drop test | Clean/replace; add anti-vibration mounts |
| Plating loss | Dark spots, uneven sheen | Visual with magnifier | Replace; switch to thicker silver or improved tin alloys |
| Arcing pits | Crater marks, black residue | Visual; inspect both sides | Replace; use interlock or pre-charge pin |
| Crimp relaxation | Warmth at lug, green corrosion | Thermal camera; pull test on samples | Re-crimp or re-terminate with proper die and force |
2025 Connector Trends you can apply
More current in smaller envelopes

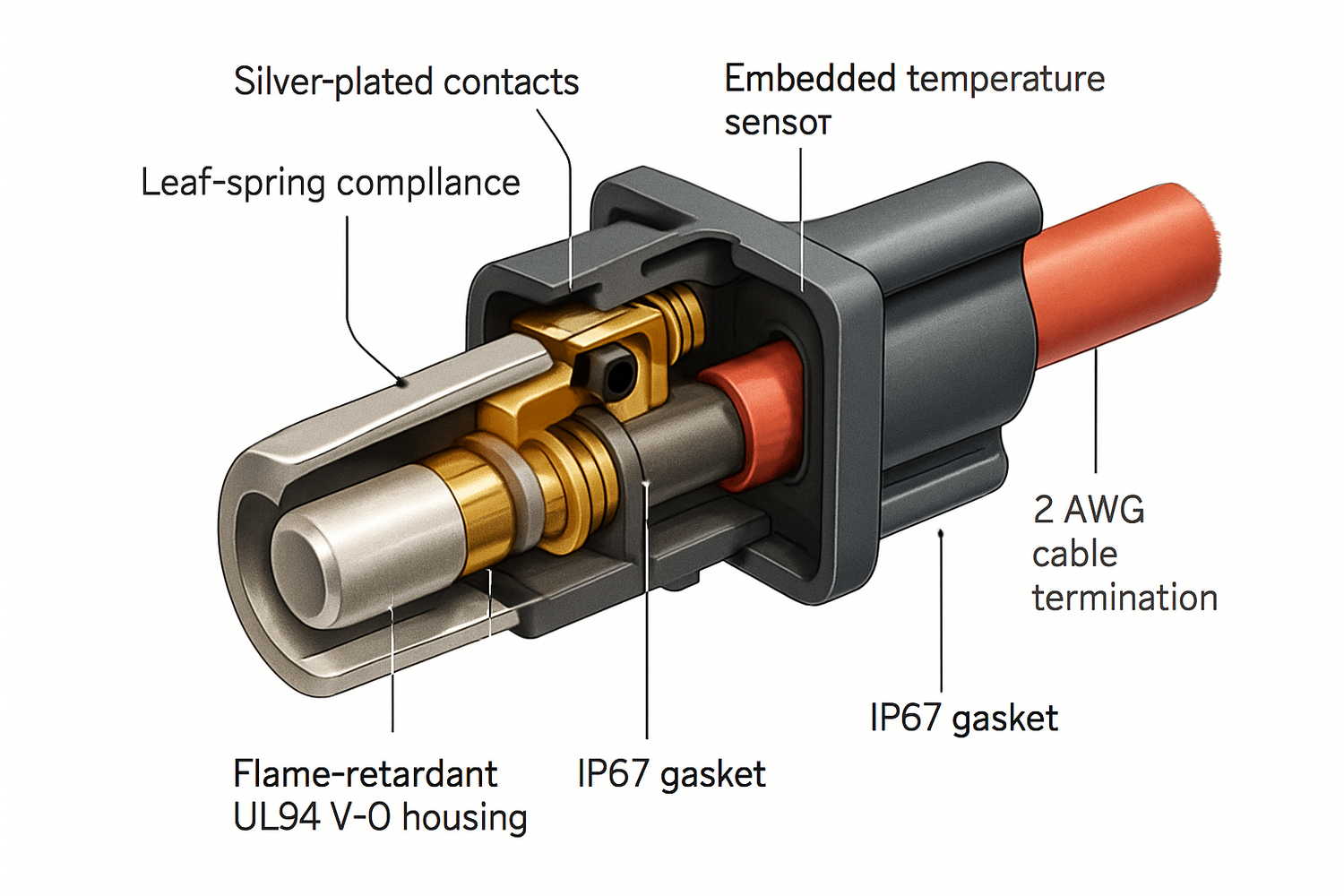

Expect compact families rated 150–300 A continuous in the same footprint class as older 100–200 A parts. Designers use compliant leaf-springs and multi-finger contacts to keep pressure stable over long cycle counts. That protects against resistance creep and heat rise.
Materials that fight heat and corrosion
Silver plating remains a favorite for low contact resistance and stable mating forces. Newer tin alloys show improved fretting resistance. Housings move to halogen-free, flame-retardant blends rated UL 94 V-0. Better resin choices improve impact strength at low temperatures, useful for outdoor ESS Portables.
Safety features from EV practice
Finger-safe shrouds, polarization keys, and latching with audible feedback now come standard. Many high-current pairs add pre-charge or pilot pins to reduce arcing. Some use simple interlock contacts tied to the BMS to block disconnect under load. These ideas borrow from EV low-voltage harness design.
Embedded sensing for predictive maintenance
Thermistors or RTDs near the contact root help detect abnormal heat rise early. Designers pair the sensor with the BMS to log temperature against current. That enables targeted Connector Replacement based on trends, not guesswork.
| Connector type | Typical continuous current | Initial contact resistance | Cycle life range | Temp rise at rated load | Safety features | Suggested replacement trigger |
|---|---|---|---|---|---|---|
| Flat-blade genderless DC | 150–250 A | 80–180 µΩ | 1,000–5,000 | < 30 °C | Latching, keying, touch-safe | > 30% rise in R or visible pitting |
| Circular bayonet high-current | 120–200 A | 100–200 µΩ | 2,000–10,000 | < 30 °C | IP67 seals, strain relief | Seal damage or torque loss |
| Blind-mate drawer-style | 200–300 A | 60–150 µΩ | 500–2,000 | < 25 °C | Pre-charge pin, HVIL-like pilot | Any misalignment or wear on guides |
| Magnetic assist, high-current | 100–180 A | 100–220 µΩ | 500–1,500 | < 25 °C | Breakaway, touch-safe | Magnet fatigue or latch wear |
Selection and Connector Replacement planning
Size for temperature, not just amps
Pick a rating that keeps temperature rise under 20–30 °C at the maximum expected continuous current. Verify with a test: run the unit at load for 30–60 minutes in worst-case ambient. Log current, connector surface temperature, and voltage drop. Compare to the datasheet condition. Re-rate if your duty cycle is heavier than the vendor’s test setup. This aligns with the test philosophy in IEC 61984 and IEC 60512.
Limit I²R loss with good terminations
- Use the correct crimp barrel for cable gauge. Validate with destructive pull tests on samples.
- Match plating: silver lugs on silver contacts reduce mixed-metal corrosion.
- Torque strain relief screws to spec. Re-check after the first heat cycles.
- Route cables to avoid side loads on the connector during transport.
Set service intervals from data
Create a baseline right after commissioning. Measure mV drop at a known current, and photograph contact surfaces. Inspect every 200–300 mating cycles, or every 3 months in heavy service. Replace if you see any of the following:
- Contact resistance grows by more than 30% from baseline.
- Any arcing pits, lifted plating, or latch cracks.
- Temperature rise exceeds prior tests at the same current.
Simple math shows why this matters. Example with 150 µΩ contact resistance: 100 A gives 1.5 W; 200 A gives 6 W; 300 A gives 13.5 W. A small resistance jump multiplies heat at high current. That shortens connector and cable life.
| Current (A) | Contact resistance (µΩ) | I²R heat (W) |
|---|---|---|
| 100 | 150 | 1.5 |
| 200 | 150 | 6.0 |
| 300 | 150 | 13.5 |
Field notes from portable ESS deployments
Use case: a 2–5 kWh portable ESS fleet supporting farm pumps and temporary site power. Units saw frequent mating in dusty yards. Early connectors showed rising temperature after 8–10 months. The fix combined IP67 circular connectors, thicker silver plating, and strain relief boots. After the change, measured temperature at 150 A dropped by about 8–12 °C in similar ambient, and connectors held stable resistance across a full harvest season. The lesson is simple. Pick ingress protection that matches the site. Then verify with logs, not assumptions.
Standards, safety, and compliance
Ask vendors for test evidence aligned with IEC 60512 (contact resistance and temperature rise) and IEC 61984 (safety of connectors). For North American deployments, check that selected components support system-level compliance under UL 9540 and battery compliance under UL 1973. Component connectors often reference UL 1977 for construction and test. These documents help you compare suppliers on the same basis. The Energy and AI report also notes long interconnection timelines. Portable, compliant systems de-risk projects while awaiting grid work. The IEA full report on next-generation wind and solar reinforces that transmission upgrades can delay projects, making safe, modular assets more attractive. Safety note: de-energize connectors before unplugging, or use interlocks designed for make/break under load. This information is provided for safety awareness and is not legal advice.
What this means for 2025 Connector Trends
Expect high-current options to shrink in size while adding safety and sensing features. Connector Wear will stay in focus as fleets scale and duty cycles intensify. A structured Connector Replacement policy, backed by data, will save more hardware than sporadic swaps. Teams that treat connectors as monitored assets will cut heat, extend cycle life, and reduce unscheduled service.
FAQ
How often should connectors in ESS Portables be replaced?
Start with inspection every 200–300 mating cycles or quarterly in heavy use. Replace on a 30% resistance rise, visible pitting, latch damage, or seal failure. Track temperature at a known current to spot trends.
What current rating should I pick for a 3–5 kW portable ESS?
For 48 V class units, continuous current often sits between 80–150 A, with surge peaks 2–3x. Choose a connector that keeps temperature rise under 20–30 °C at your maximum continuous current, verified in your enclosure and ambient.
Can I mix tin-plated lugs with silver-plated contacts?
It works, but it is not ideal for long cycles in damp or high-vibration service. Matching plating reduces galvanic effects and fretting. If you must mix, tighten service intervals and add anti-vibration support.
How do I measure contact resistance in the field?
Use a 4-wire micro-ohm meter or a DC load plus a DMM. Apply a stable current, measure mV drop across the mated pair, and compute R = V/I. Compare against your baseline.
Which standards should I ask vendors about?
IEC 61984 and IEC 60512 for connectors, UL 1977 for component test, and system alignment with UL 9540 and UL 1973. Ask for temperature rise and contact resistance curves at your target current.
Are magnetic high-current connectors safe for 150–200 A?
They can be, if they include touch-safe features, strong guidance, and verified temperature rise at load. Check test data and confirm duty-cycle limits. Replace sooner if you detect latch wear or rising heat.
References and context: Connection queue data from the IEA Energy and AI report. Grid delay insights from IEA Next Generation Wind and Solar Power (Full Report) and its companion page (summary). Broader storage context from energy.gov, eia.gov, and irena.org.
